BNC Bayonet Neill Concelman connector, (sometimes erroneously called a British Naval Connector or Bayonet Nut Connector,a type of connector used with coaxial cables such as the RG-58 A/U cable used with the 10Base-2 Ethernet system. The basic BNC connector

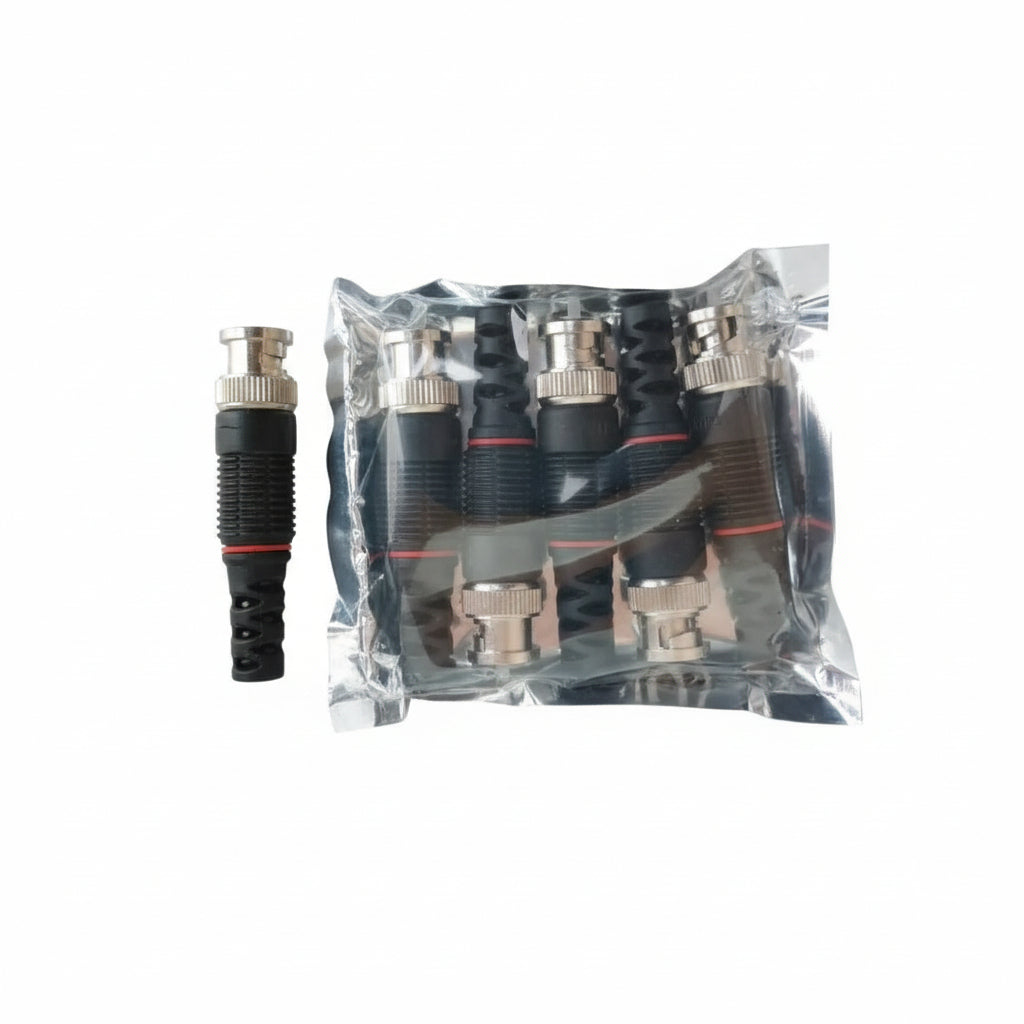

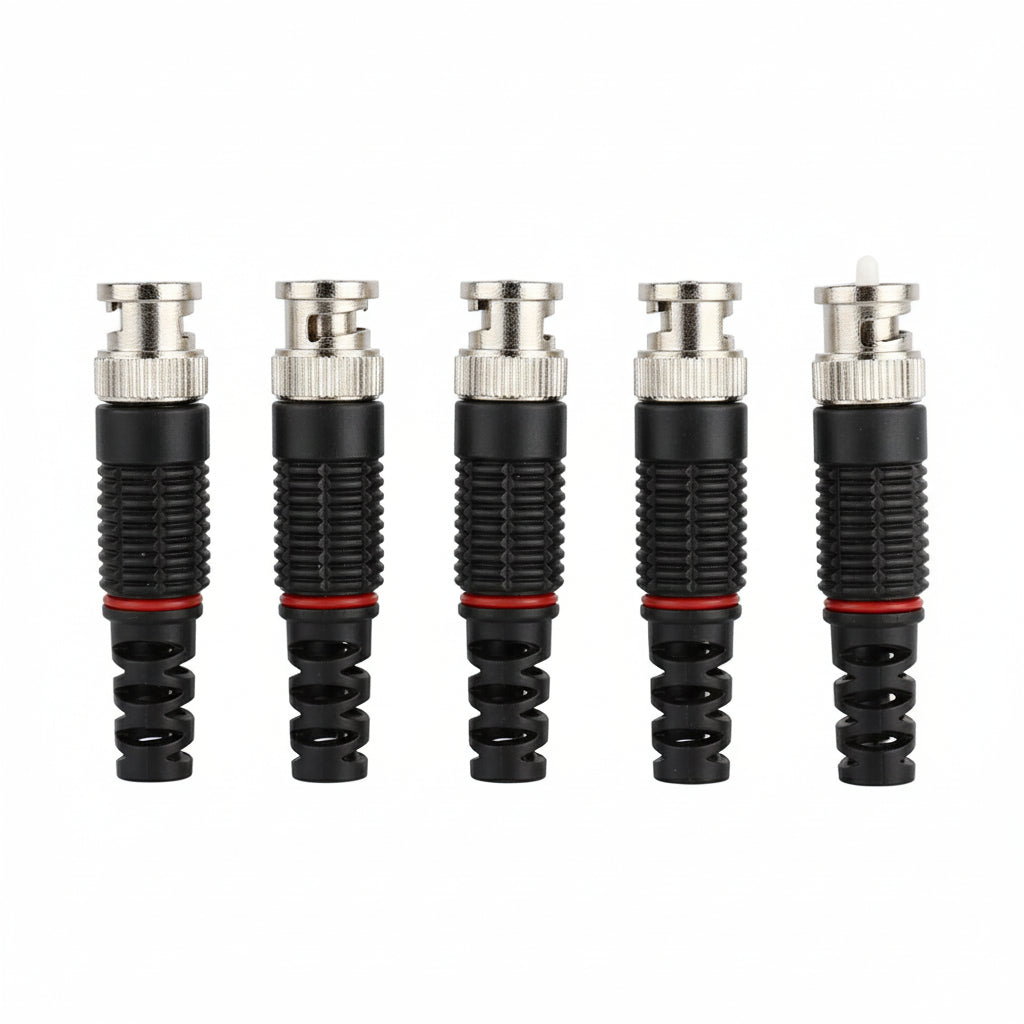

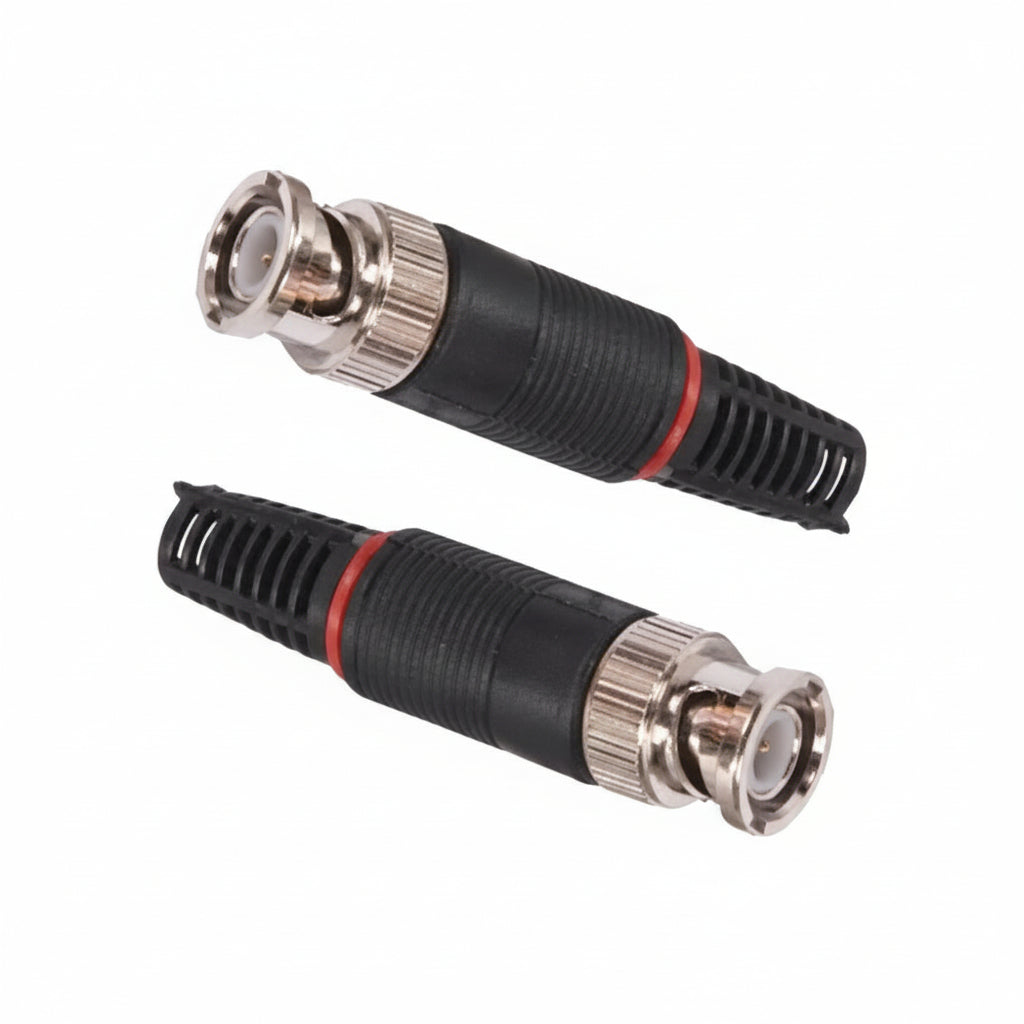

BNC Male Connector for CCTV Camera and DVR, BNC plug connector for audio, video, and networking applications that provides a firm connection. BNC is used to connect a variety of different coaxial cables. BNC connectors are different from many connectors because of their snap-lock superior architecture. The BNCA connectors are ideal for CCTV applications these quick connect accessories are a perfect fit for your Lorex cameras and cables.

Features/Specs:

• Make: Jam
• Pack of : 5 pcs
• Orientation: Straight
• Gender: Male
• Mounting Type: Cable
• Termination Style: Solder Type
• Temperature: Operating range -40C to +85C
• Capacity: 75 Ohm/50 Ohm options
• Material: Brass body with nickel plating, gold-plated contact
• Voltage Rating: 500 V RMS max
• Jacket Material: Depends on cable, connector itself is nickel/brass
• Cable Type: Coaxial (RG58, RG59, etc.)
• Color
• Nickel-plated
• Outer Diameter
• Standard BNC connector: approx. 14 mm
• Insulation: Dielectric (Teflon or PE depending on application)
• Contact Resistance: Center: 1.5 m, Outer: 1.0 m
• Standards Compliance: IEC 60169-8
• Durability: 500 mating cycles
• Insulation Resistance: >1000 M (@ 500 V DC)
• Impedance: 50 Ohm or 75 Ohm
