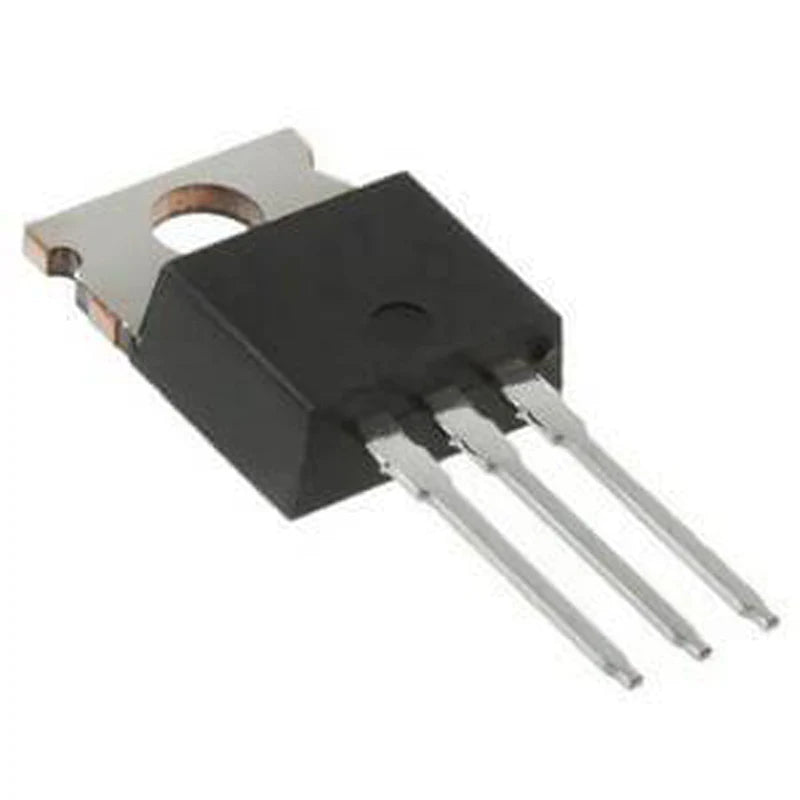

IRF9530 MOSFET IC IRF 9530 P-Channel Power MOSFET
IRF9530 MOSFET IC IRF 9530 P-Channel Power MOSFET
Regular price
Rs. 49.00
Regular price
Sale price
Rs. 49.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
• Dynamic dV/dt rating
• 100% avalanche rated
• Fast switching
• Ease of paralleling
• New high voltage benchmark
• P-Channel
• Compliant to RoHS directive 2002/95/EC
RF9530 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Drain-Source Breakdown Voltage (Vds) | -100V |
| Continuous Drain Current (Id) | -14A |
| Drain-Source Resistance (Rds On) | 0.20Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 58 nC |
| Operating Temperature Range | -55 - 175°C |
| Power Dissipation (Pd) | 79W |
