• Product Name: INA3221 Triple Channel I2C Output Current, Shunt and Bus Voltage Monitor
• Senses Bus Voltages From 0V to 26V
• Operating Voltage: 2.7V to 5.5V
• Gain Error: 0.25% (max)
• Sensor Interface: I2C

The INA3221 Breakout Board monitors both shunt voltage drops and bus supply voltages in addition to having programmable conversion times and averaging modes for these signals. The INA3221 also offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel. Sharvielectronics Tags, CJMCU-226, INA226, Configuration Register, Shunt Voltage Register, Shunt Voltage Conversion, Bus Voltage Conversion, Shunt Voltage Register, Bus Voltage Register, Power Register, Current Register, Calibrate Register, Mask/Enable Register, Alert Limit Registers, Manufacturer ID Register, Device ID Register, INA3221, Triple Channel Power Monitor, I2C Voltage Current Sensor, High-Side Current Monitor, SMBus Power Monitor, Multi-Rail Power Meter, Bus Voltage Monitor, Shunt Current Sensing, Alert Power Module, Battery Management Sensor, Industrial Power Monitoring, Arduino Power Shield, Raspberry Pi INA3221

Features:

• Reports Shunt and Bus Voltage
• High Accuracy
• Configurable Averaging Options
• Four Programmable Addresses
• Programmable Alert and Warning Outputs
• I2C Interface

Features/Specs:

• Chip Set: INA3221
• Product Name: INA3221 Triple Channel I2C Output Current, Shunt and Bus Voltage Monitor
• Senses Bus Voltages from 0V to 26V
• Operating Voltage: 2.7V to 5.5V
• Offset Voltage: ±80 µV (max)
• Gain Error: 0.25% (max)
• Sensor Interface: I2C
• Operating Temperature Range: -40°C to +125°C
• Length: 38mm
• Width: 32mm
• Height: 3.5 mm
• Weight: 6 gm

Applications:

Package Includes:

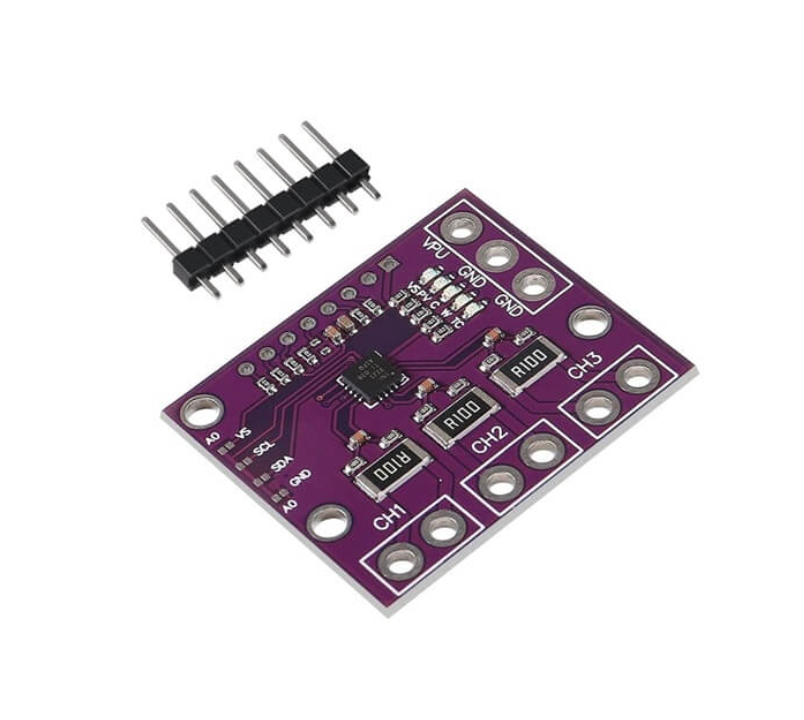

• 1 x INA3221 – Triple Channel I2C Bi-Directional Voltage Current Power Alert Monitor Module
