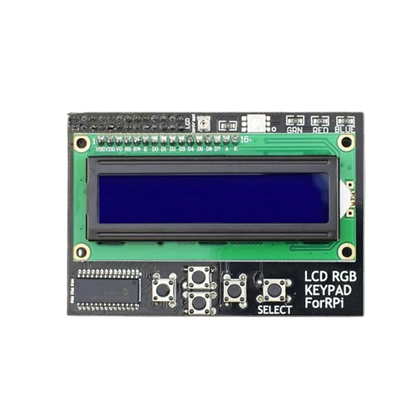

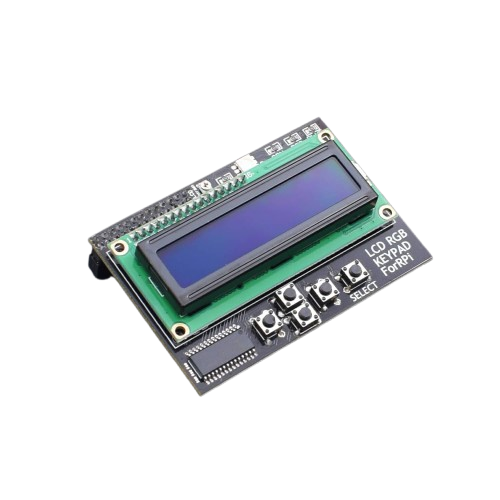

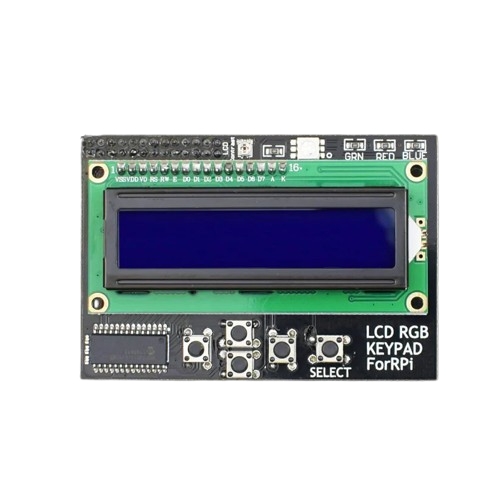

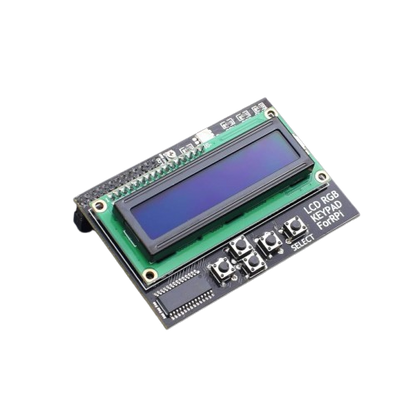

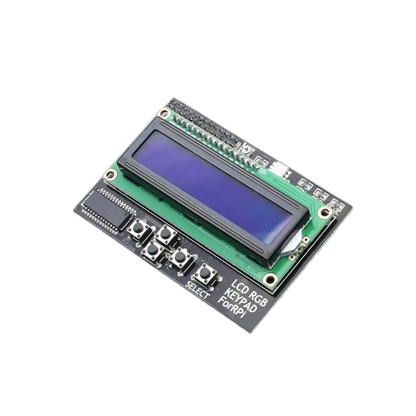

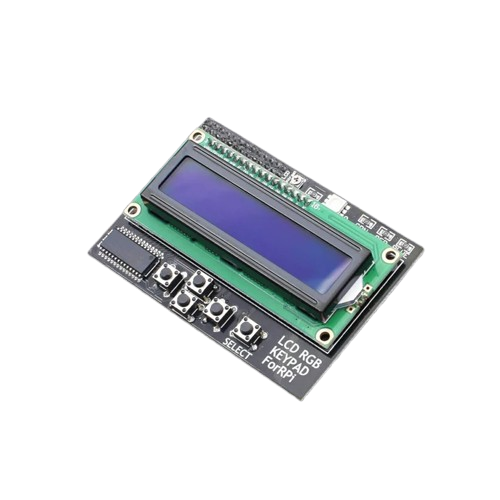

• The product integrates LCD1602 LCD monitors, RGB LED, and five key buttons.
• LCD1602 provides screen output.
• RGB LED with different input level, you can display seven kinds of colors.
• Five key button with LCD1602, provides input interface, which can reach the selected menu function.
• This product can be inserted directly on the PI GPIO interface, users do not need the late welding, plug and play.

This product is compatible with raspberry faction B + B motherboard and raspberry send motherboard. B + and B shall be inserted insertion method method compatible, B +'s GPIO 1 foot, the corresponding paragraph B GPIO1 pin on. The product integrates LCD1602 LCD monitors, RGB LED, and five key buttons (Up / Down / Left / Right / OK to select). Due to limited resources PI IO on the inside of the product also incorporates a grain of IIC interface expansion chips, and PI links only use IIC signal, python more simple, direct calls to library functions (see tutorial below).

Features:

• LCD1602 provides screen output: You can display two lines of 16 letters, suitable for displaying some simple text message. (For example: The following senior project displays the IP address of the foreign players, English menus and other information).
• Five key button with LCD1602, provides input interface, which can reach the selected menu function.
• RGB LED with different input level, you can display seven kinds of colors.
• This product can be inserted directly on the PI GPIO interface, users do not need the late welding, plug and play.

Package included:

1 x I2C IIC Interface RGB LED Screen LCD 1602 + Keypad for Raspberry Pi
