• Discharge voltage: 1 ~ 15 VDC 0.01V resolution
• Maximum current measurement error: 1.5% ± 0.008A
• Maximum voltage measurement error: 1% + 0.02V
• Supply Voltage: 4.5 ~ 6 VDC
• Working Current: less than 70 mA

Features:

• It is easy to operate and powered by a micro USB power source.

• Support current through: maximum 3.000A resolution 0.001A

• The highest battery capacity range: 9999Ah (1Ah=1000mAh).

• Designed with LEDs that indicate which parameter is showing on display.

• This discharge tester is used for testing the capacity of a 1.2-12V battery.

• This discharge tester allows you to check the test capacity, voltage, and current of the battery.

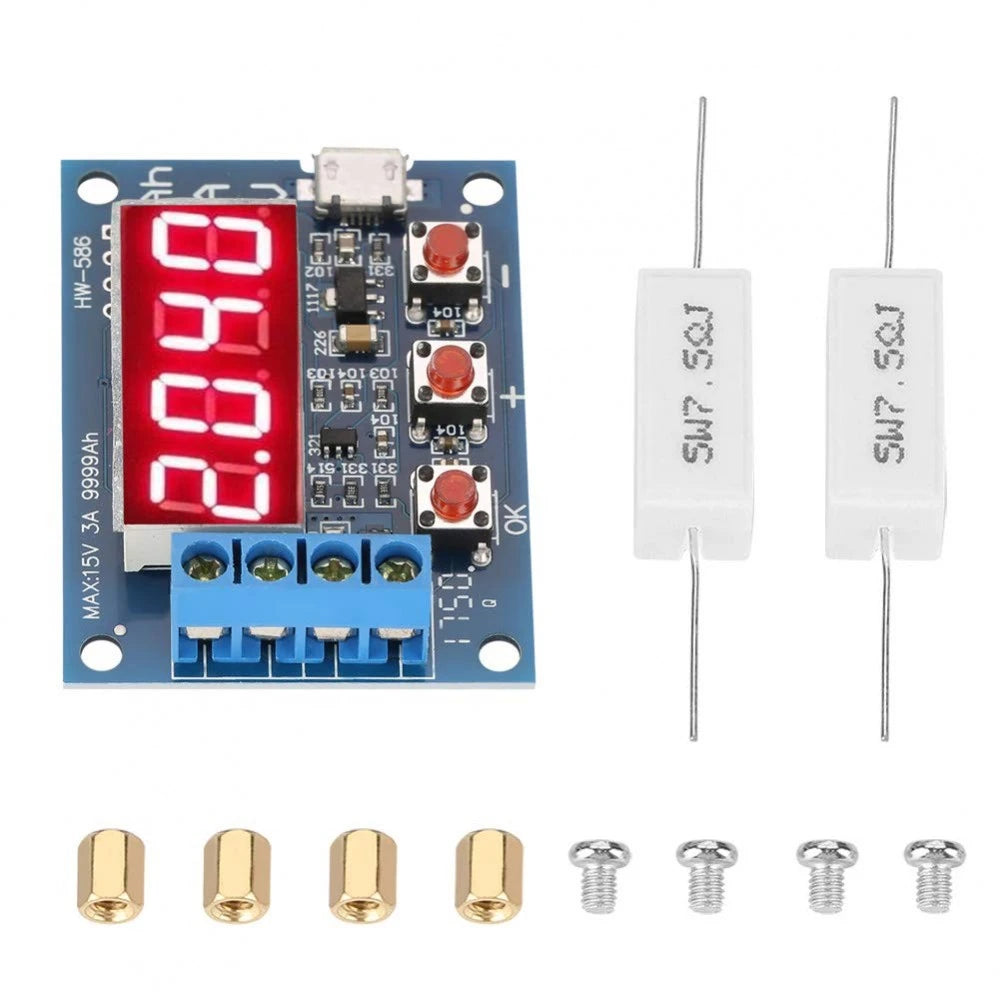

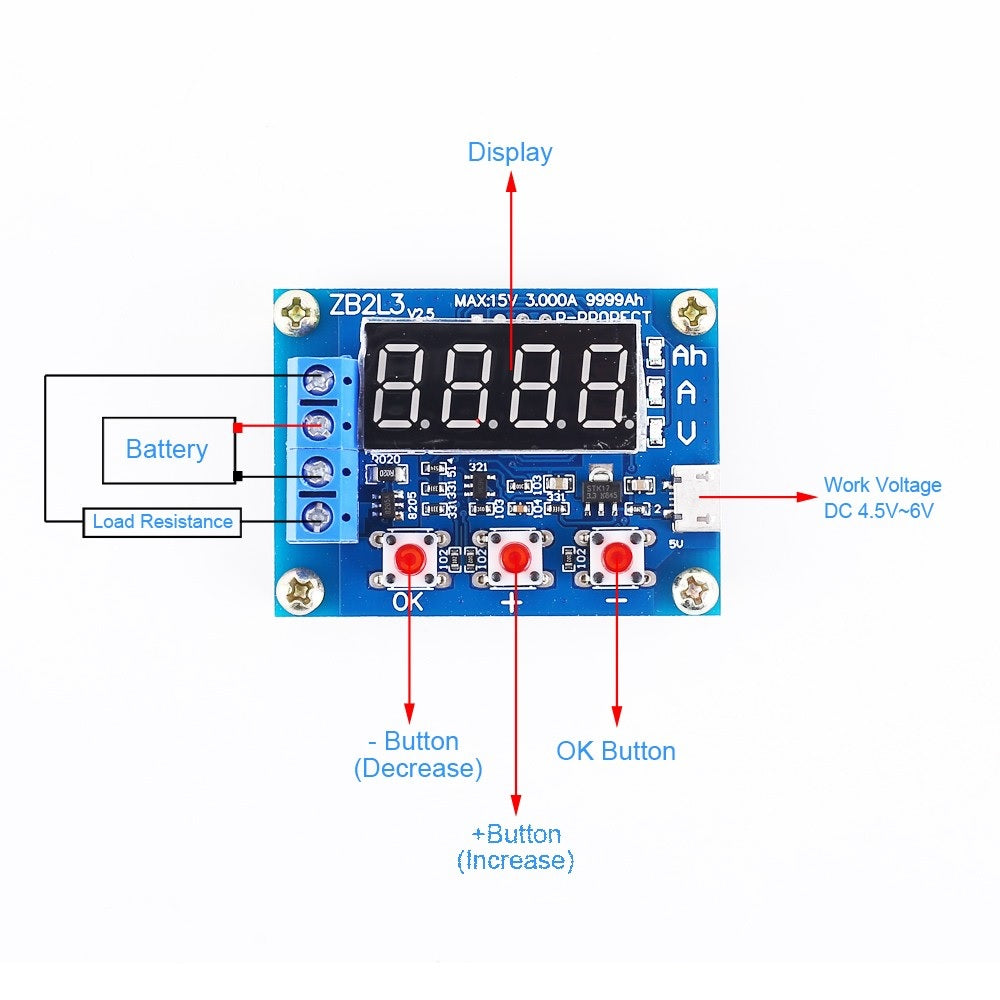

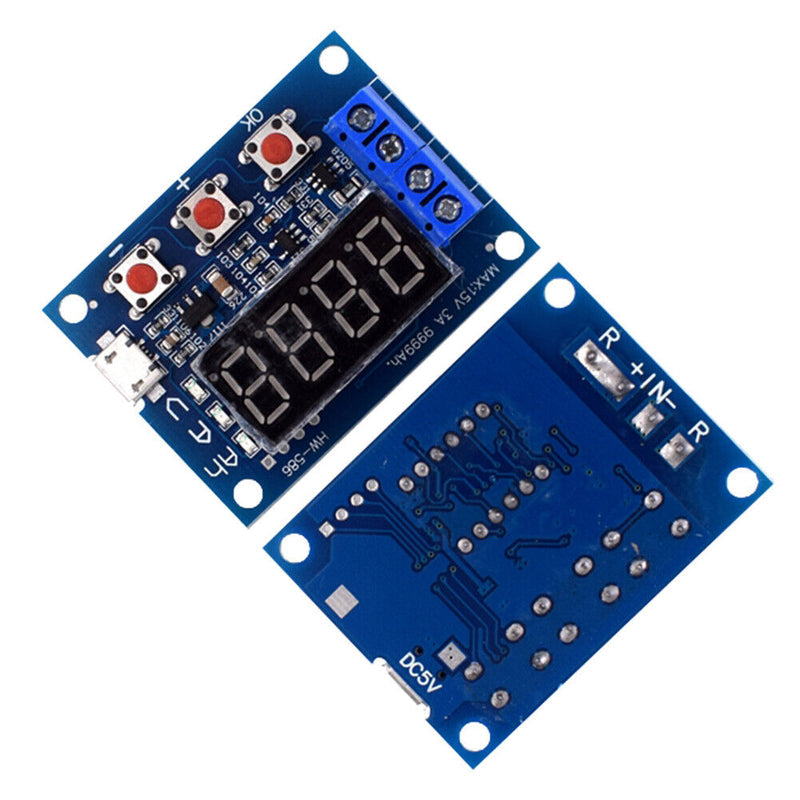

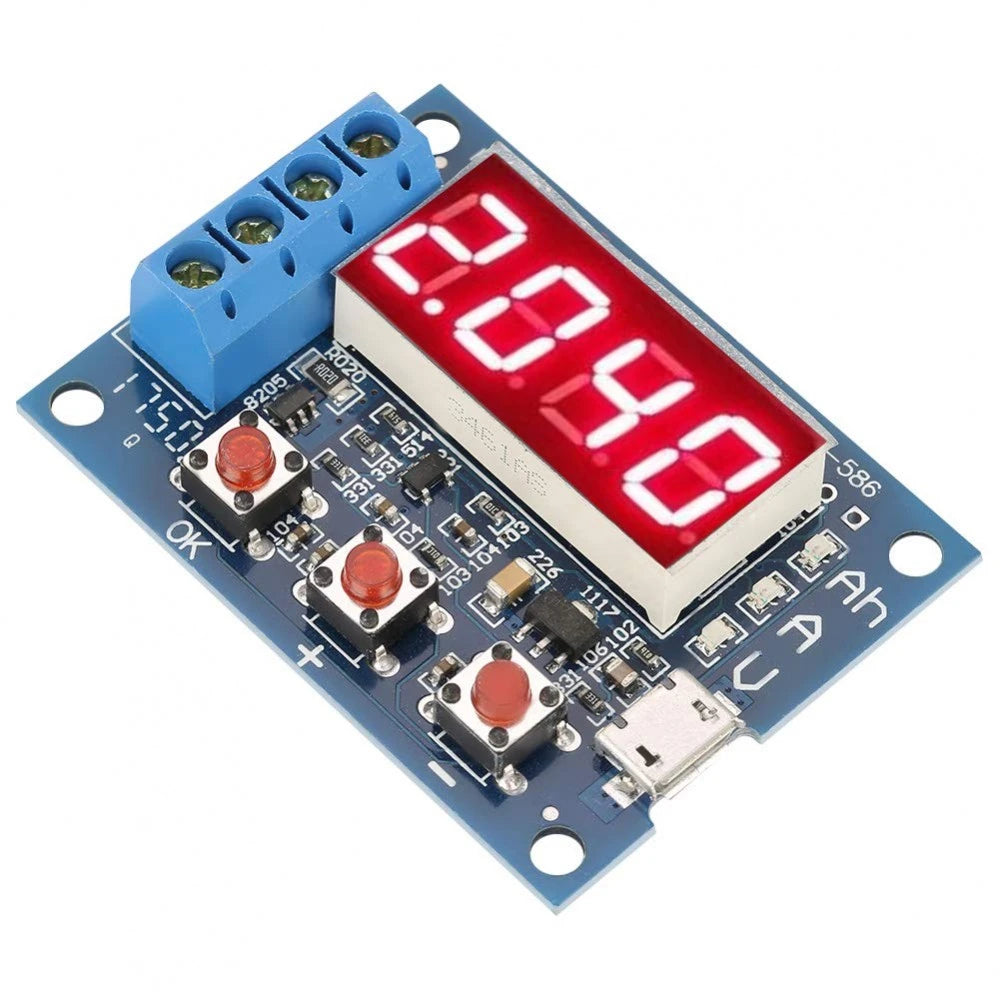

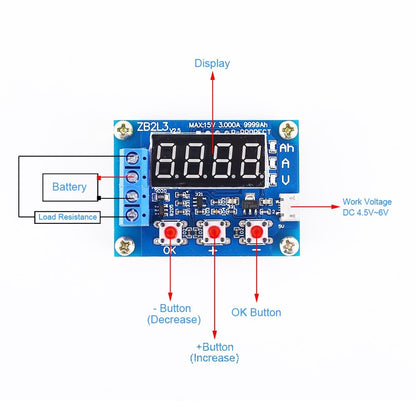

This is a Li-ion Battery capacity tester board that can measure the capacity of the fully charged battery connected at its inputs it also has 1W resistors that can be used to discharge the battery at the constant current output. It is easy to operate and powered by a micro USB power source.

This discharge tester is used for testing the capacity of a 1.2-12V battery. After the capacity test has been completed the capacity of the battery is displayed on the 4 digits 7 segment display, which can also display the current supplied by the batter as well as the battery voltage. This discharge tester allows you to check the test capacity, voltage, and current of the battery.
