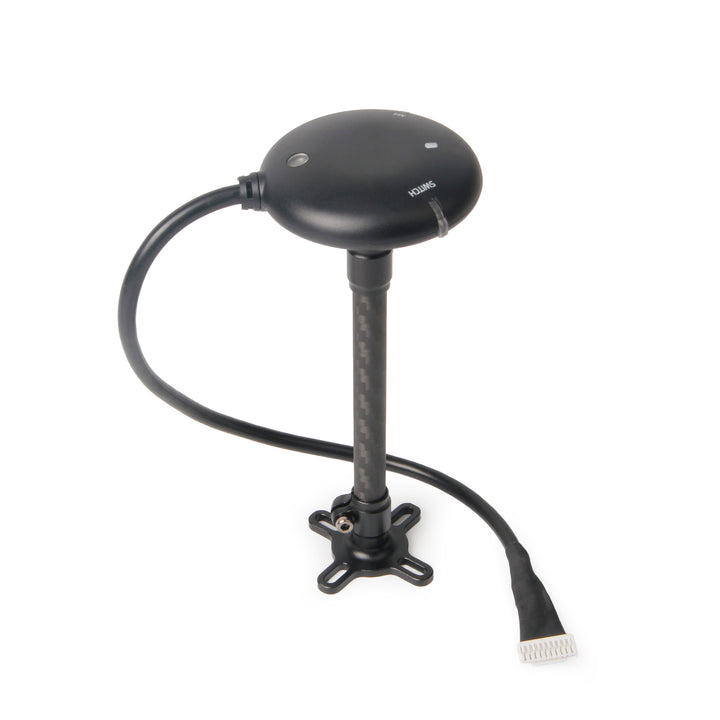

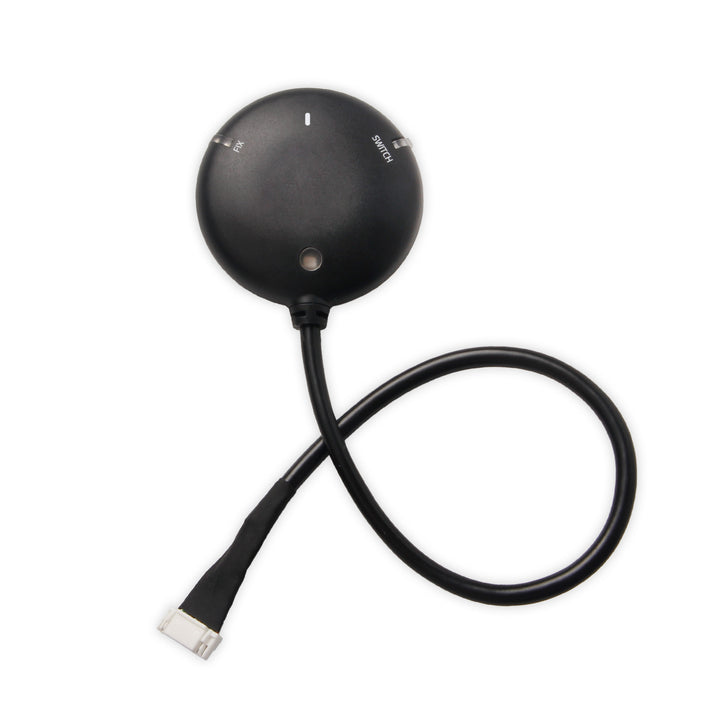

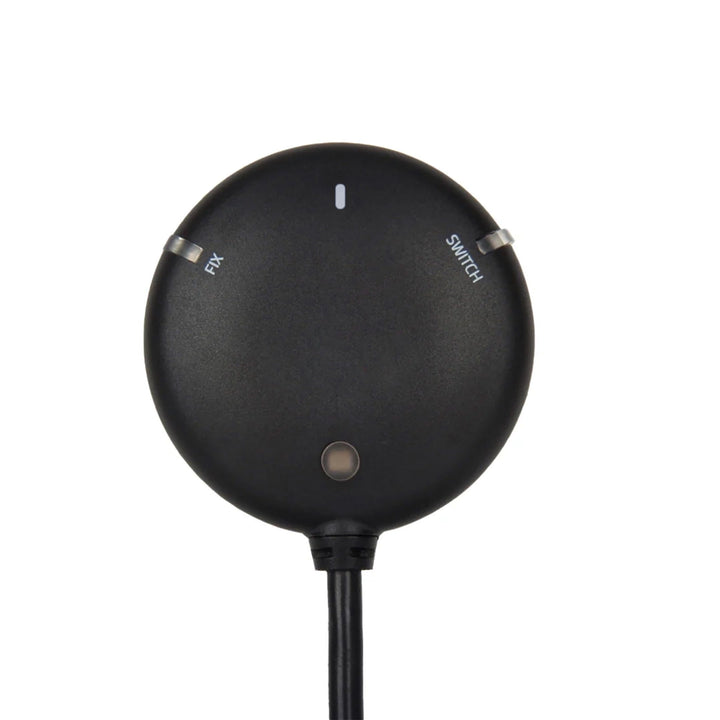

Holybro M9N GPS with Standard Connector
Holybro M9N GPS with Standard Connector
Couldn't load pickup availability
Holybro M9N GPS has a UBLOX M9N module, an IST8310 compass, a tri-colored LED indicator, and a safety switch. There are three different connector options for different purposes. This module ships with a baud rate of 115200 5Hz The M9N GPS uses multi-constellation GNSS powered by the u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations—GPS, Galileo, GLONASS, and BeiDou—can be received concurrently. It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. This module ships with a baud rate of 115200 (38400 previously).
The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
- Ublox M9N GNSS Receiever
- Accurate Positioning
- Fast Navigation Update Rate
- IST8310 Compass
- High-gain 25*25*4mm antenna
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
Features:
- Ublox Neo-M9N module
- Max concurrent reception of 4 GNSS
- Industry-leading -167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low-noise 3.3V regulator
- Current consumption: less than 150mA @ at 5 volts
- Fix indicator LEDs
- Protective case
- 26cm cable included
- Diameter: 50mm total size, 32 grams with case.

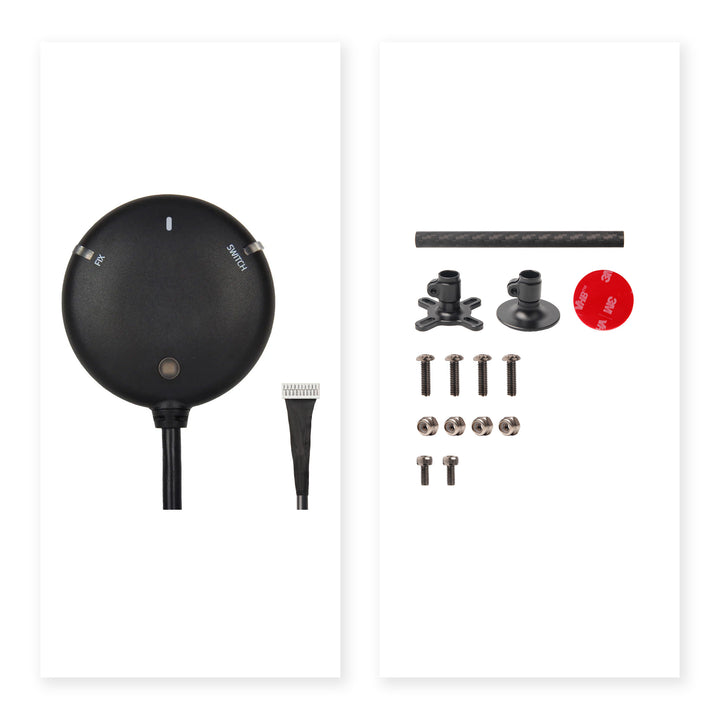

Packages Includes:
1 x M9N GPS Module Standard Connector
