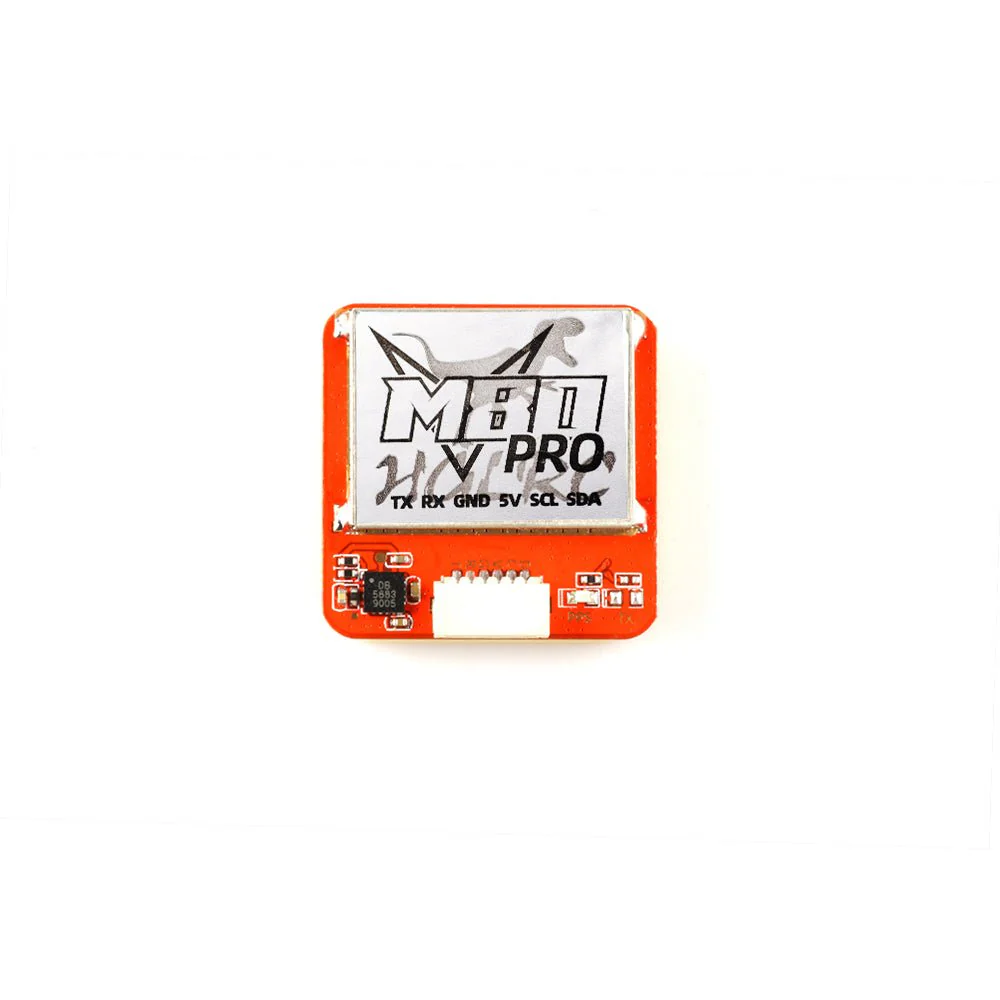

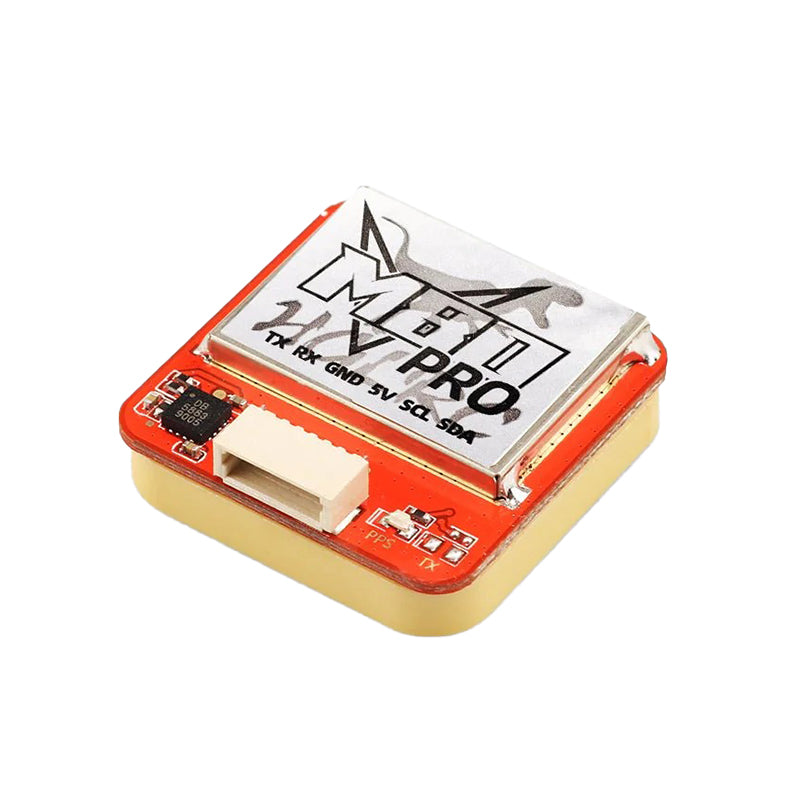

The HGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Receives a stronger antenna signal to make it easier to be found by satellites. No soldering needed just plug directly and use.

The HGLRC M80 PRO GPS Module is ideal for FPV racing drones!

1. Item Name:HGLRC M80 PRO GPS
2. Power Supply:5V

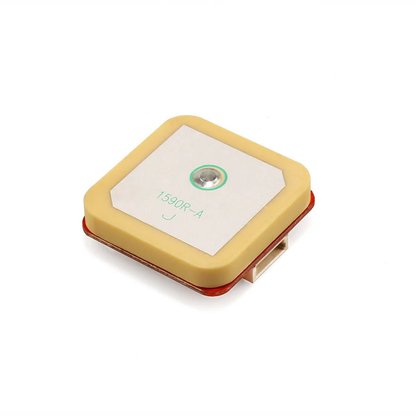

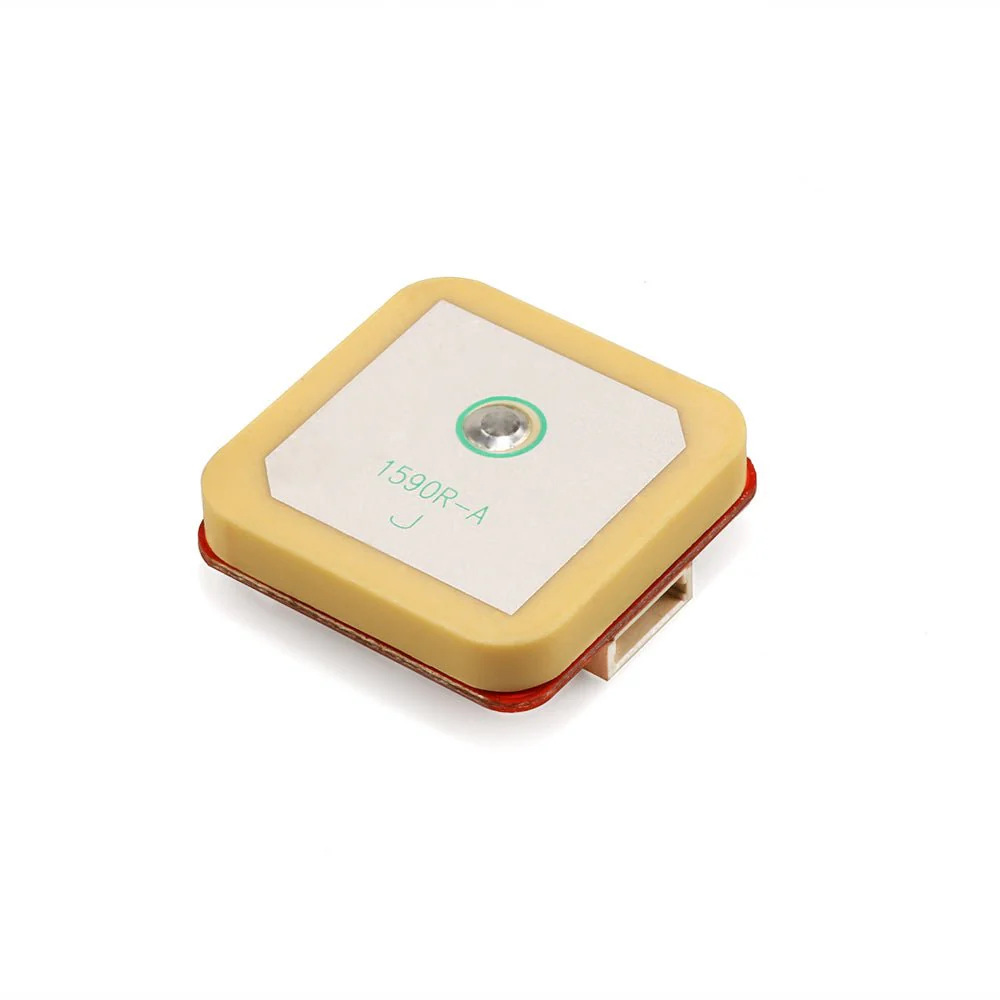

3. Antenna: Ceramic Antenna
4. Compass: QMC5883
5. Support Rate:115200dps

Features:

1. High precision GPS for accurate positioning.
2. Fast satellite acquisition for quick startup.
3. Supports both GPS and GLONASS for reliability.
4. Compact and lightweight design.
5. Built-in compass for orientation.

Specifications:

1. Item Name: HGLRC M80 PRO GPS
2. Power Supply:5V
3. Antenna: Ceramic Antenna
4. Receiving Format: GPS,GLONASS,GLILEO,QZSS,SBAS,BDS
5. Receiving Channel:72 Searching Channel
6. Compass: QMC5883
7. Support Rate:115200dps
8. Output Frequency:1Hz-10Hz ,Default 10Hz
9. Speed Precison:0.05 m/s
10. Level Positioning Precison:2D ACC2.5m(ln Open Sky)
11. Receiving Sensitivity: Trace -162dBm
12. Capture-160dBm
13. Dynamic Characteristics: Max Height:50000m
14. Max Speed:500m/s
15. Max Acceleration:4G
16. Working Temperature:- 40℃-+85℃
17. Storage Temperature:- 40℃-+105℃
18. Size:25mm x 25mm x 8.3mm
19. Weight:12.5g

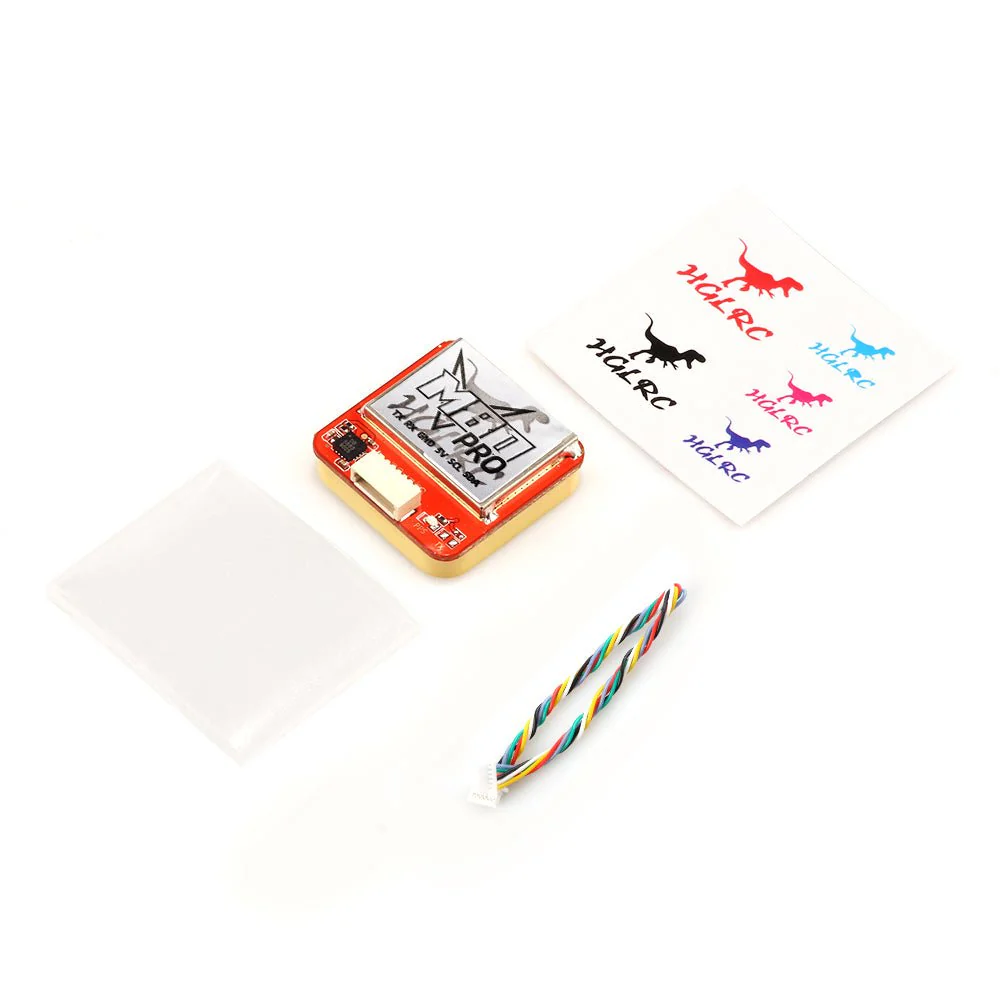

Package Includes:

1 x HGLRC M80 Pro GPS Module
