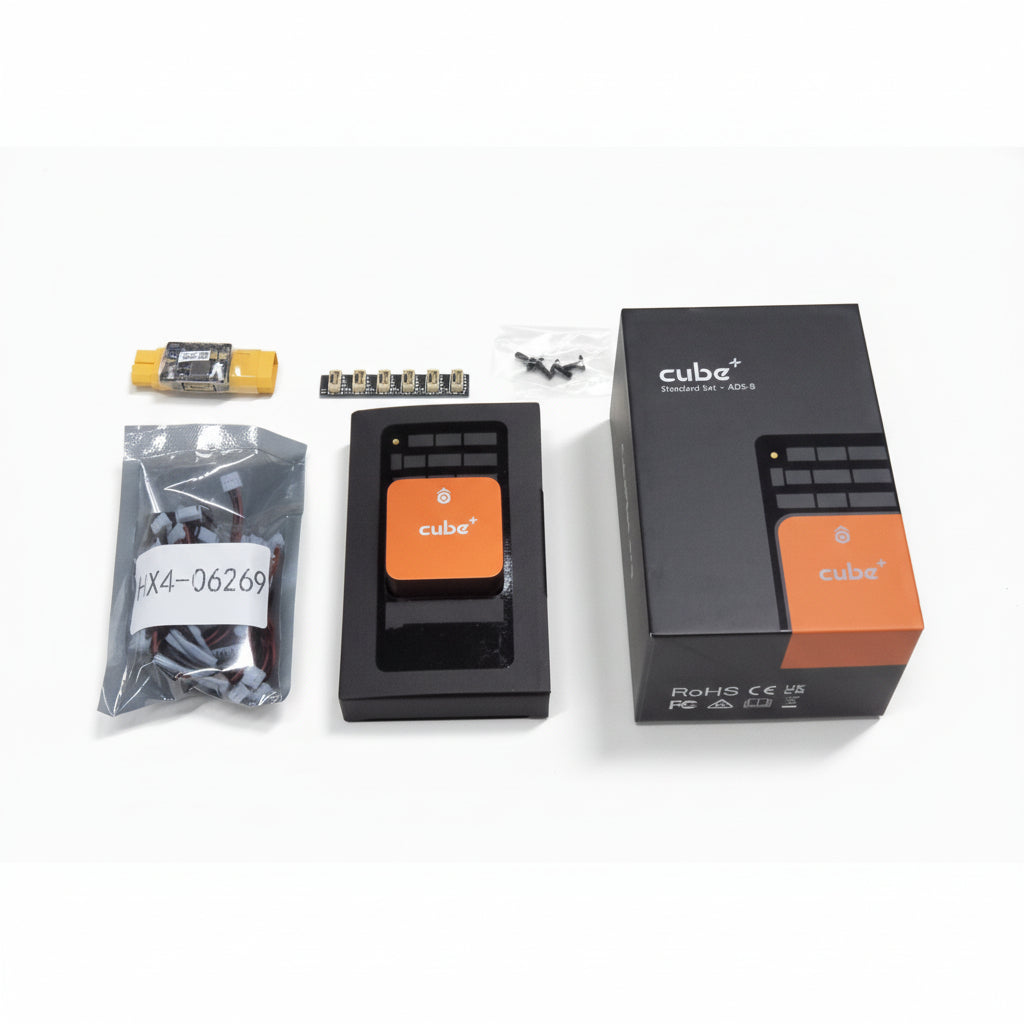

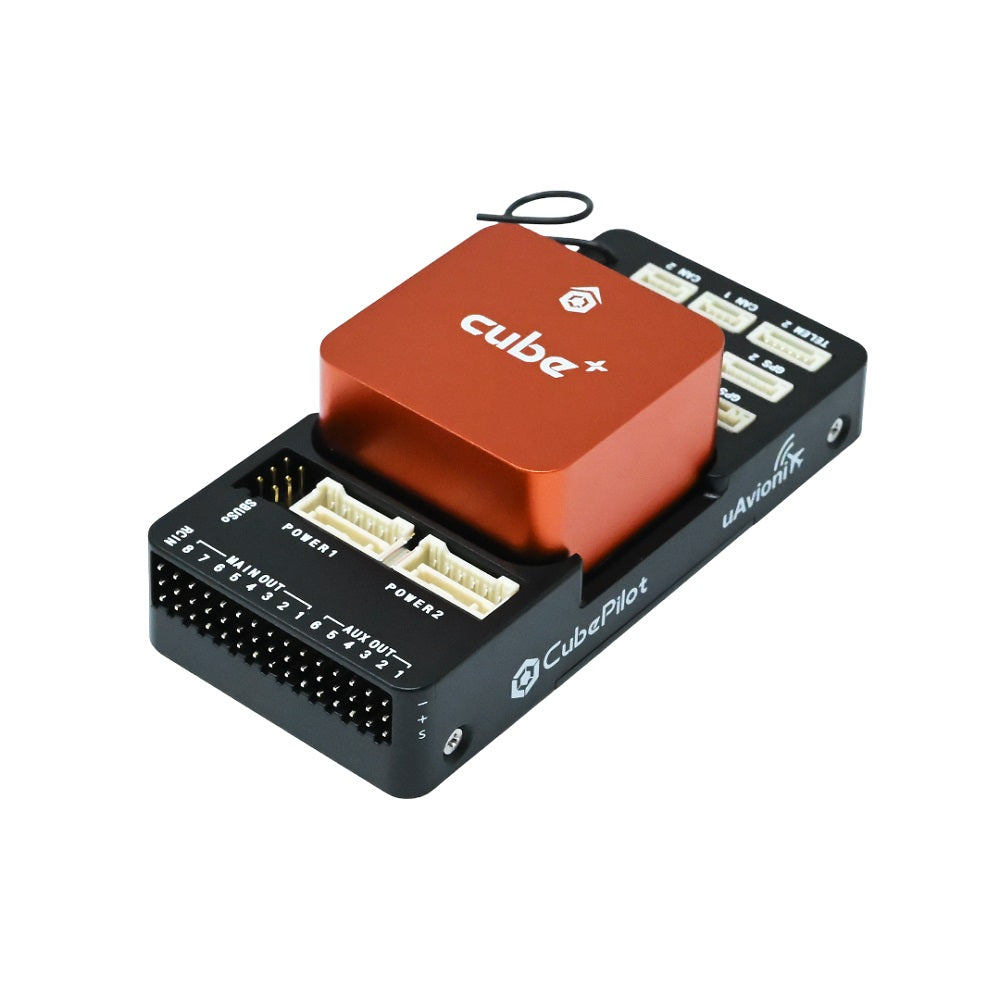

The Hex Pixhawk Cube+ Flight Controller Autopilot with ADSB Carrier Board flight controller comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board.

Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.

The Cube Orange

1. Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
2. Includes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in
3. triple-redundant sensors, temperature control shock absorption IMU.
4. With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.

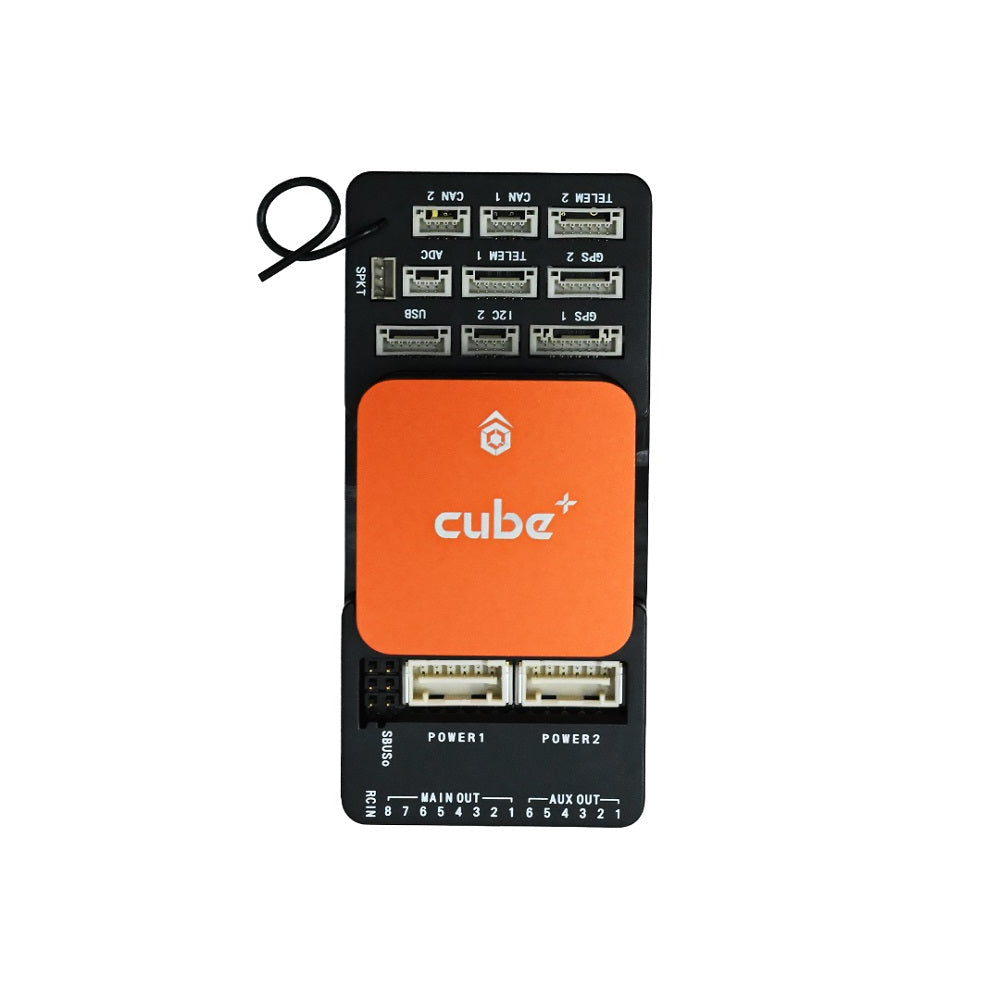

ADS-B Carrier Board

1. A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
2. Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
3. Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you

Features

• Built-in IMU Heating system, allowing flights at extreme temperatures (below freezing)
• Robust DF17 Interface connectors give enhanced drop and shock resistance
• Airframes: VTOL, Plane, Multi-copter, Traditional Heli, Rover, Boat, Sub, General Robotics

Technical Specifications:

• Item Type: Flight Controller
• Supported RC signals PPM/SBUS/DSM
• Power redundancy Triple redundancy
• SensorTriple IMU System
• Sensors detailsIMUl(lsolated) ICM42688 IMU2(1solated) ICM20948 or ICM42688 IMU3(Fixed) ICM20649 or ICM45686 MS5611x 2(Baro)
• Supported firmware Ardupilot PX4, and Hionos 00-178C
• Supported vehicle type Fixed-wing plane Multicopters Helicopter VTOL-plane Rover/boat/submarine
• Weight (g): 73

Additional Details

• Manufacturer: HEX / CubePilot
• Brand: HEX
• Generic Names: Flight Controller, Autopilot System, Drone Control Board, Pixhawk FC, CubePilot FC
• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
• Ideal For: Commercial Drones, Industrial UAVs, Surveying & Mapping, Public Safety, BVLOS Operations, Custom Drone Builds
