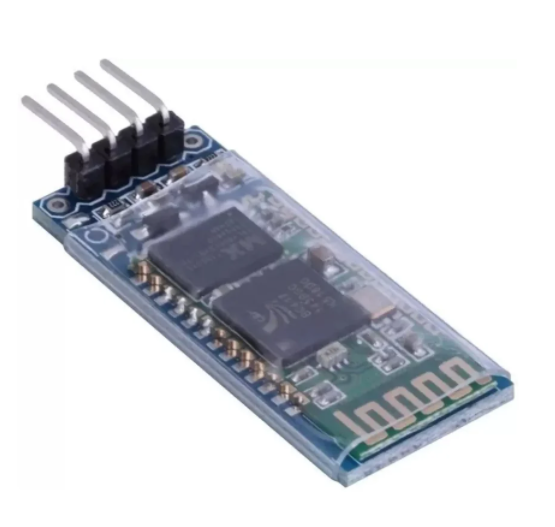

HC 06 4pin Bluetooth Module (Slave) No Button

Rs. 449.00 Rs. 799.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  1. Bases at CSR BC04 Bluetooth technology.
  2. with build-in 2.4GHz PCB antenna
  3. It’s at the Bluetooth class 2 power level.
  4. Range test: 10 meters
  5. Operating voltage: 3.3V to 6V DC
  6. Operating current in pairing is in the range of 30~40mA.

--

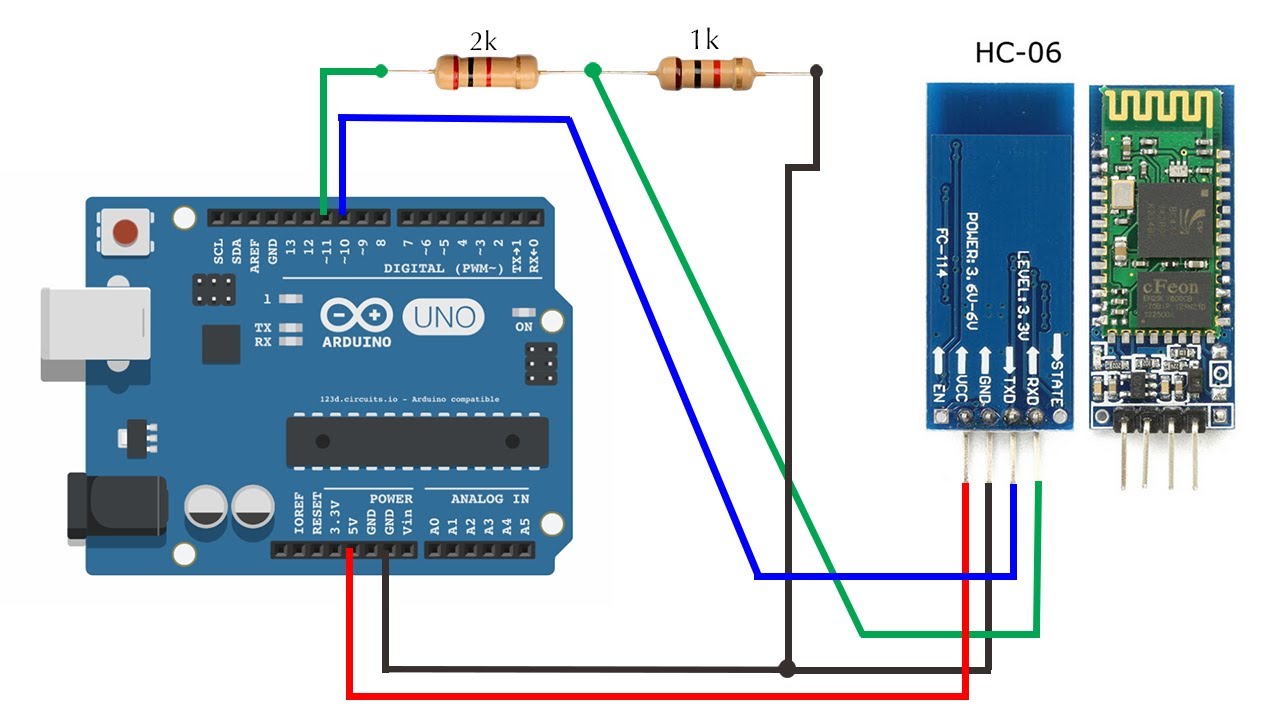

HC-06 is the popular Bluetooth module. This HC06 module is slave mode only. It’s very easy to add wireless serial connectivity for your device with this module. Examples for Arduino and other boards are available. Once you pair with other Bluetooth devices you work like with normal UART to exchange data.

This module has built-in 3.3V voltage regulator and helps to break out the important pins (Vcc, Gnd, Txd, Rxd). Based on CSR BC4 chip, Bluetooth V2.0 + EDR. You can set the baud rate, name and pair password by AT commands when there is no Bluetooth connection. This module is a slave- it can be paired with Computer- Bluetooth master- mobile phone- PDA- PSP and so on.

Features:

  1. Bases at CSR BC04 Bluetooth technology.
  2. with build-in 2.4GHz PCB antenna
  3. It’s at the Bluetooth class 2 power level.
  4. Range test: 10 meters
  5. Operating voltage: 3.3V to 6V DC
  6. Operating current in pairing is in the range of 30~40mA.
  7. Operating current in communication is 8mA.
  8. Interface via UART, default baud rate at 9600 bps
  9. Operating temperature range: -25 °C – +75°C
  10. Dimensions 27mm×13mm×2.2mm
  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
HC 06 4pin Bluetooth Module (Slave) No Button
