• Low profile for easy integration
• Stable phase center with high gain at low elevation angles
• Supports L5+L-Band
• Wide bandwidth, compatible with four systems across all frequency bands
• IP67 waterproof (assembly)

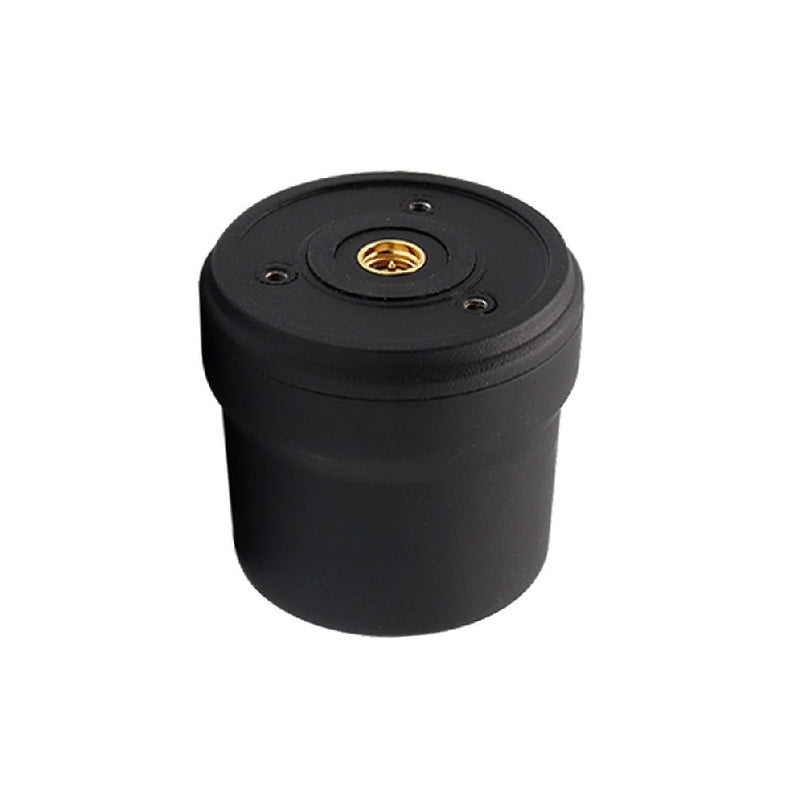

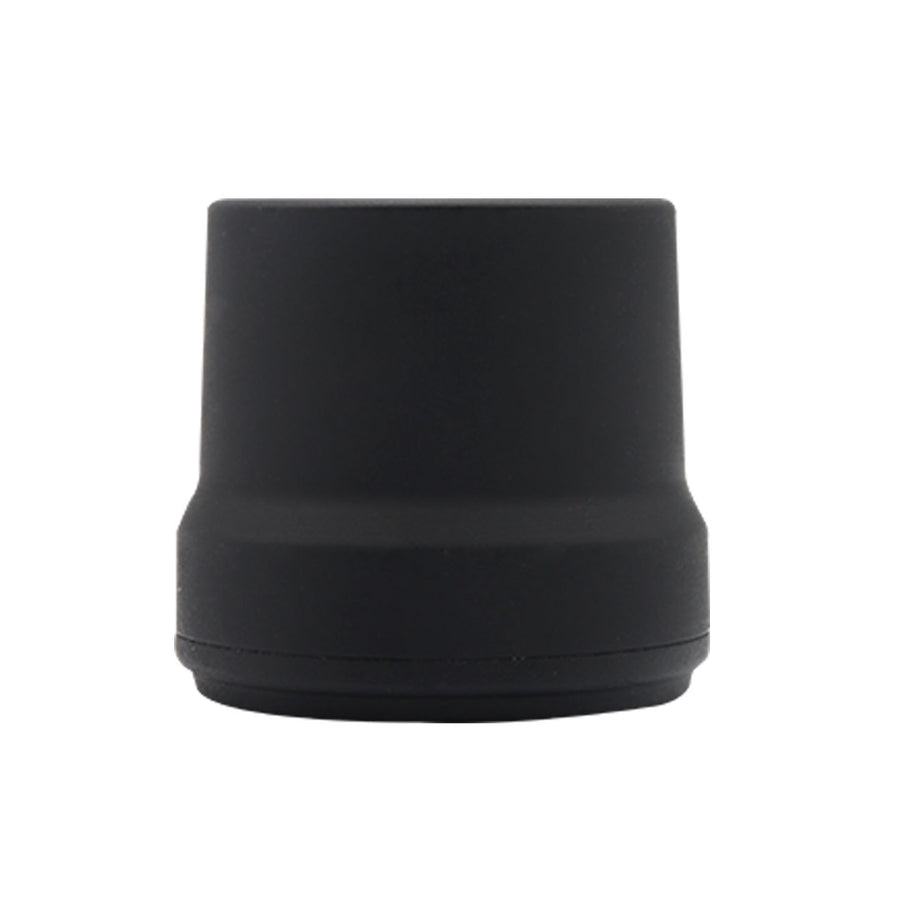

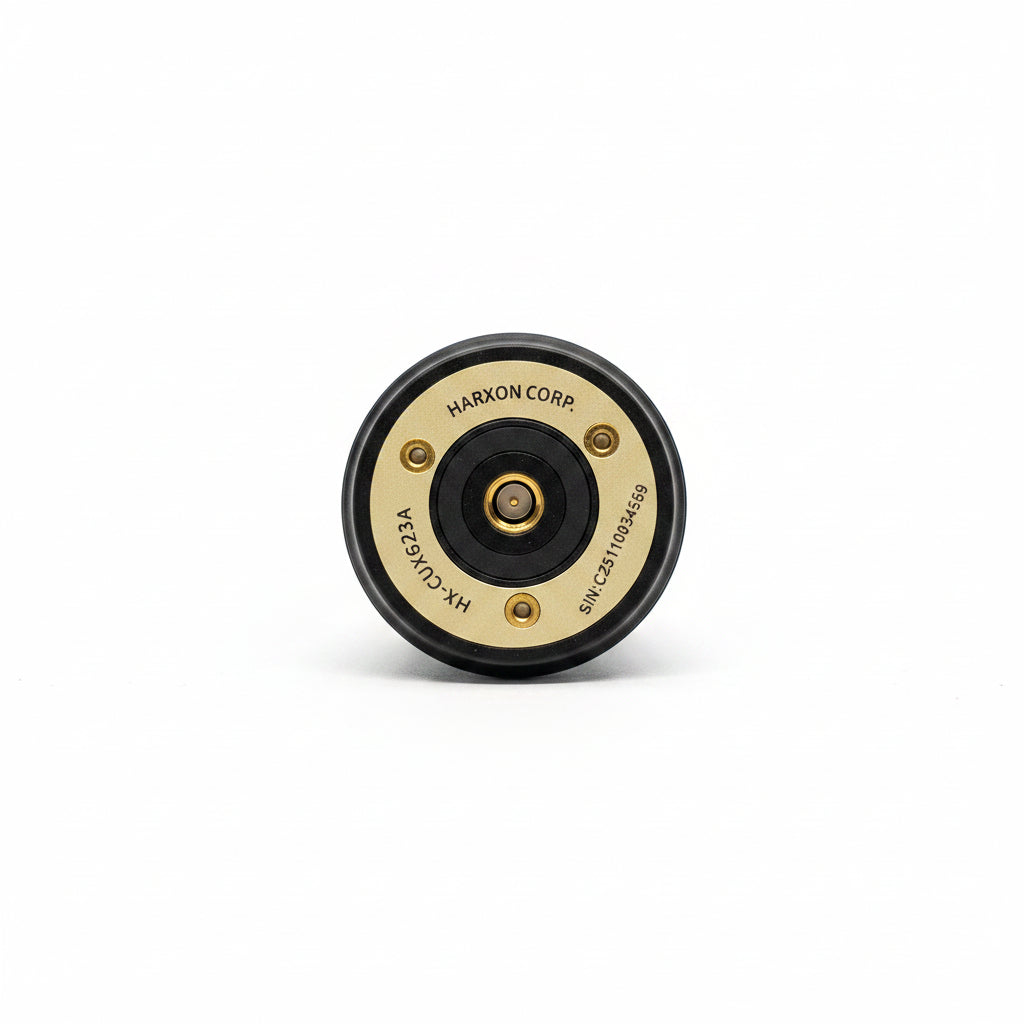

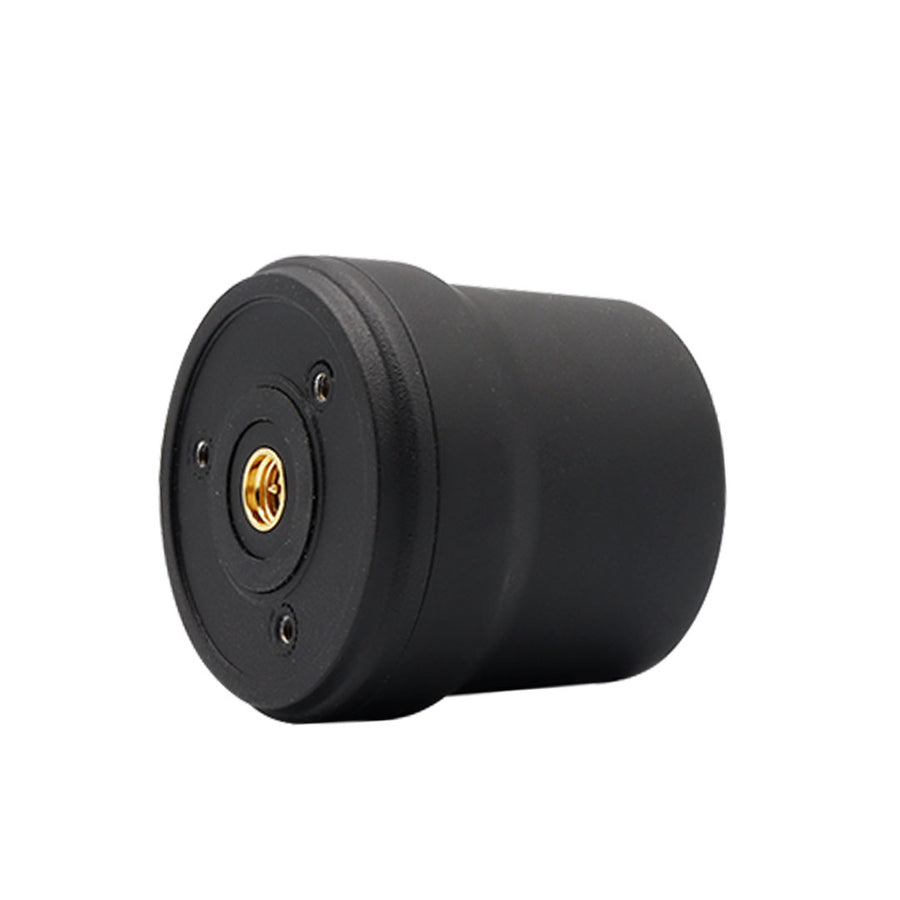

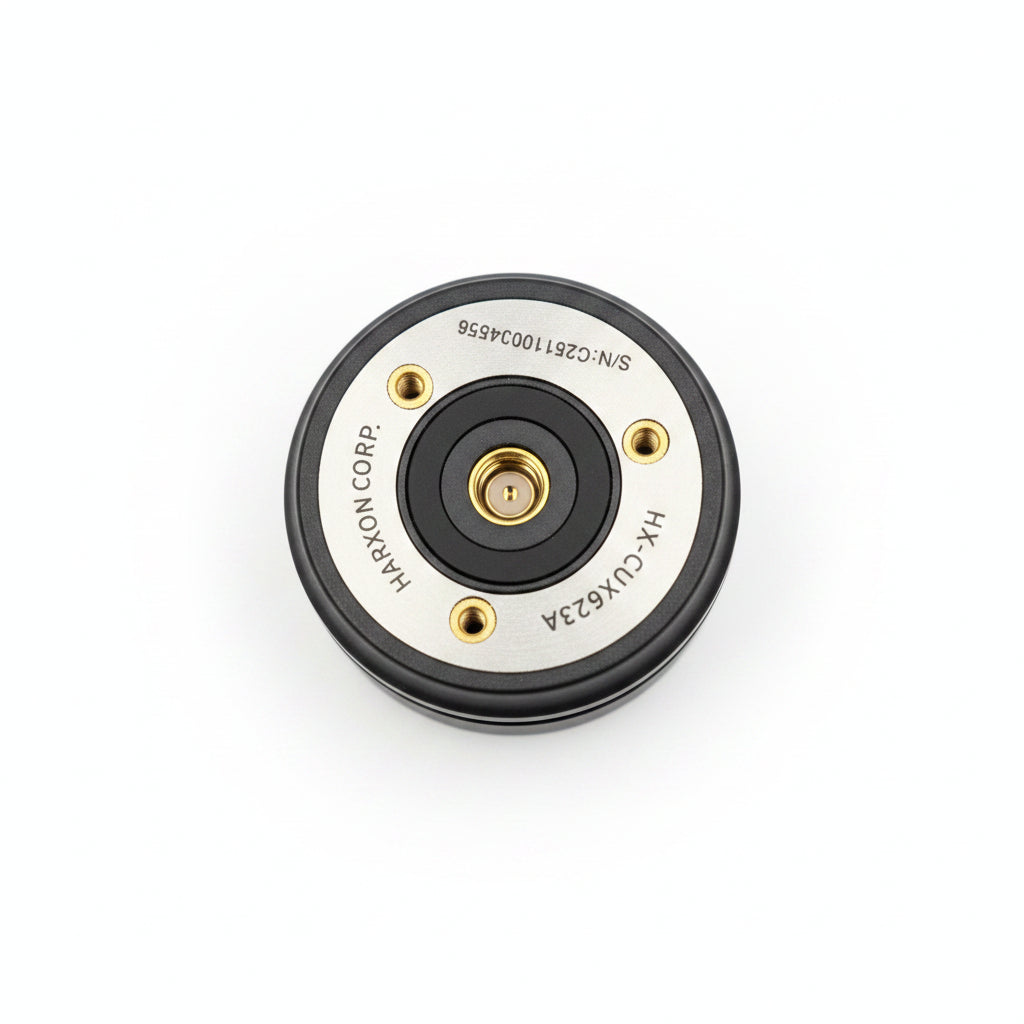

The HX-CUX623A is a four-system full-band external UAV antenna that covers GPS L1/L2/L5, GLONASS L1/L2/L3, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6 and L-Band. It can be widely used in surveying and mapping, navigation and dispatching and other industries, and is especially suitable for many applications of light UAVs, such as aerial photography, remote telemetry, disaster monitoring, traffic patrol and security monitoring.

Features:

• Supports full-band signals of four systems:
  Frequency range: BDS B1/B2/B3, GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, L-Band
• Centimeter-level positioning accuracy:
  With a stable phase center, the antenna employs a multi-feed design to ensure the phase center coincides with the geometric center, minimizing the antenna's impact on measurement errors.
• Good satellite reception:
  The antenna unit has high gain and a wide beam pattern, ensuring good reception of signals at low elevation angles and guaranteeing rapid satellite lock-on even in complex environments with obstructions.
• Low profile, easy to integrate:
  The antenna measures Ф 43.6*H40.8mm. Its low profile facilitates integrated system design, and its lightweight design effectively reduces the load on lightweight equipment, increases battery life, and makes it easy to carry.
• Wide operating bandwidth and high overall reliability:
  The antenna has a wide operating bandwidth, enabling it to simultaneously receive signals from multiple systems and multiple frequency points, thus improving the overall reliability of the device.
