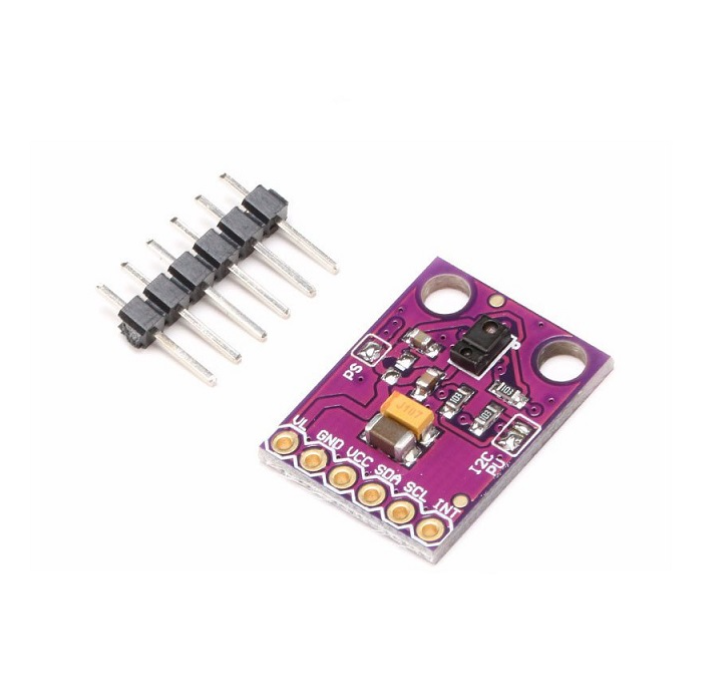

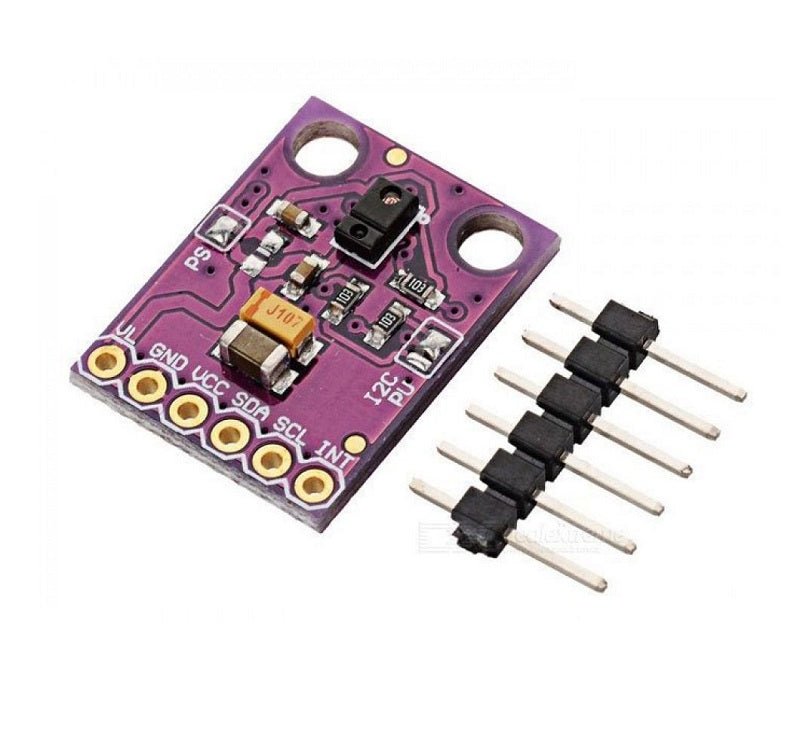

GY-9960-3.3V APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module
GY-9960-3.3V APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module
Couldn't load pickup availability
- Model: GY-APDS9960-3.3V
- Chip: APDS-9960
- Input Supply Voltage: 3.3V
- Communication Interface: I2C
- RGB and Gesture Sensor

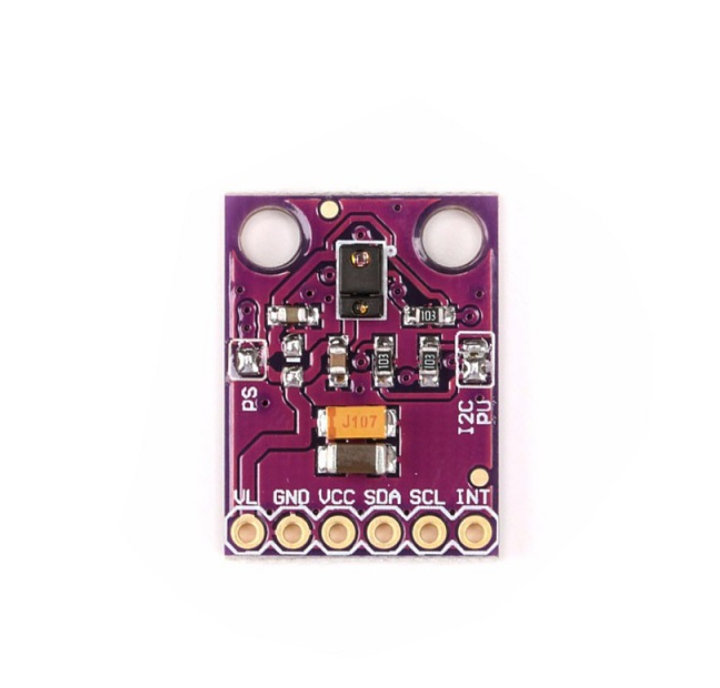

This is the RGB and Gesture Sensor, a small breakout board with a built-in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price. The APDS-9960 is a serious little piece of hardware with built-in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience, we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8″ (10 to 20 cm) . This Product Known as the APDS9960 module, APDS9960 RGB Gesture Sensor Detection I2C Breakout Module for Arduino, Gesture Sensor Detection, RGB Detection, APDS9960 RGB And Gesture Sensor, APDS-9960 proximity sensor, APDS 9960 proximity sensor, APDS 9960 gesture sensor, APDS-9960 gesture sensor, GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module.
Features/Specs:
- Model: GY-APDS9960-3.3
- Chip: APDS-9960
- Input Supply Voltage: 3.3V
- Communication Interface: I2C
- RGB and Gesture Sensor
- Communication: IIC communication protocol
- Length: 20mm
- Width: 15.3mm
- Height: 3mm
- Weight: 1 gm
Application:
- RGB Infrared Gesture Sensor
- Motion Direction Recognition Module
- Digital Camera Eye Sensor.
- Gesture Detection.
- Color Sense.
- Ambient Light Sensing.
- Cell Phone Touch Screen Disable.
- Mechanical Switch Replacement
Package Includes:
1 x GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module
1 x 6 Pin Male Header
