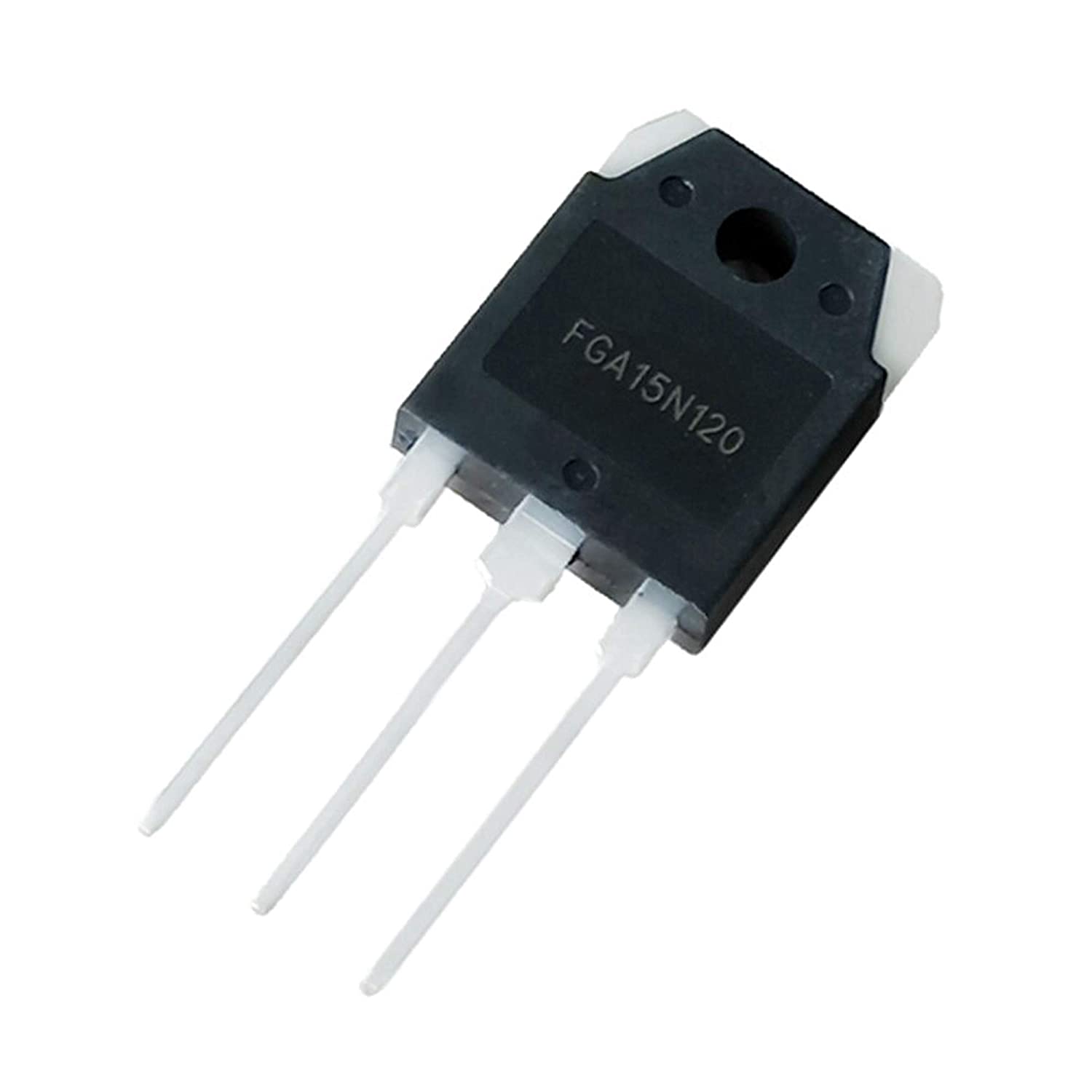

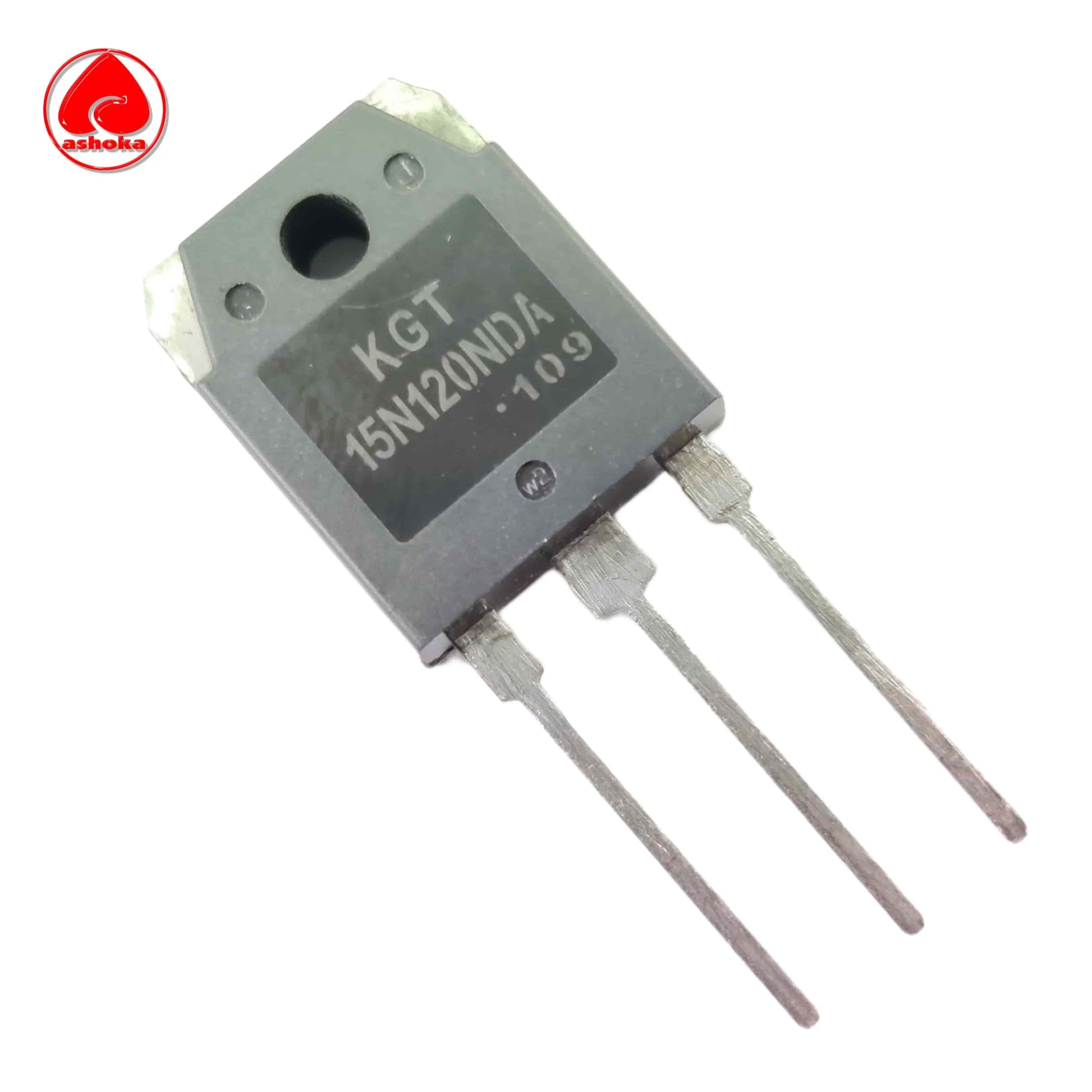

15N120 1200V NPT Trench IGBT Transistor
Regular price
Rs. 95.00
Regular price
Sale price
Rs. 95.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- High Voltage IGBT with low saturation voltage
- Collector-Emitter Voltage (VCE): 1200V
- Collector Current (IC): 30A @25°C
- Minimum Gate threshold voltage (VGE) is 4.5V
- Maximum Gate threshold voltage (VGE) is 8.5V
The 15N120 is a high voltage IGBT with a Collector to Emitter voltage of 1200V and continuous collector current of 30A. It also has a very low collector emitter saturation voltage of 1.9V and low switching losses.
FEATURES:
·High speed switching
·High system efficiency
·Soft current turn-off waveforms
·Extremely enhanced avalanche capability
Pin Description
|
Pin Number |
Pin Name |
Description |
|
1 |
Gate |
Controls the biasing of the IGBT |
|
2 |
Collector |
Current flows in through Source |
|
3 |
Emitter |
Current flows out through Emitter |
