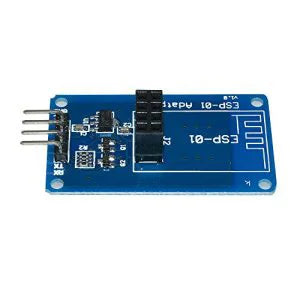

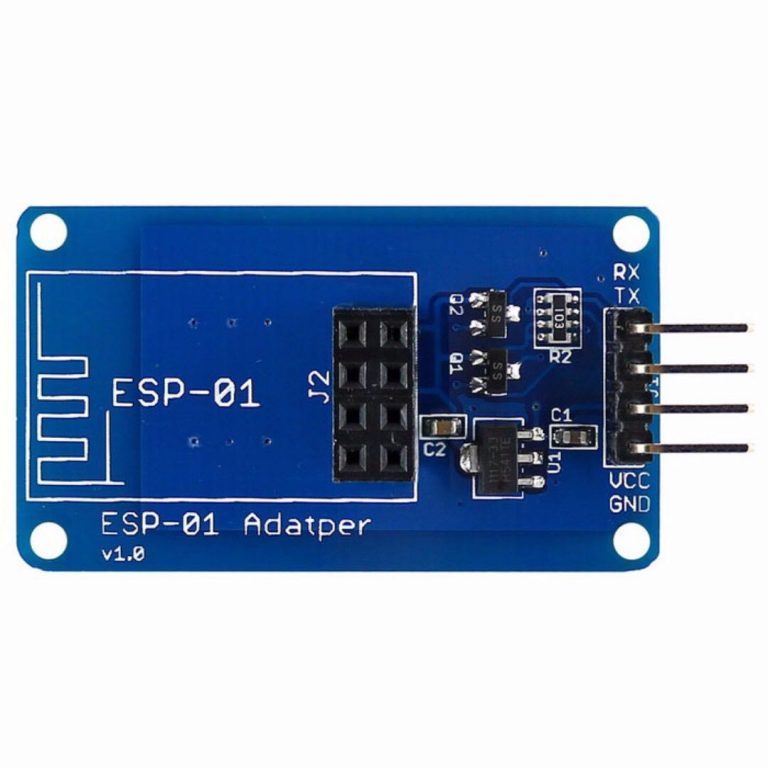

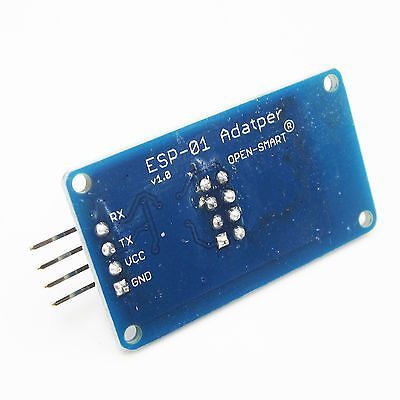

An ESP8266 ESP-01 ESP01 Adapter 3.3V 5V Breakout Board for ESP-01 Wifi module voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wifi module. Also, the item can be used with Arduino UNO R3 or compatible board
Features:
- On-board level shift circuit
- Arduino UNO R3 and the compatible board can directly connect to this module;
- Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit);
- Working voltage: 4.5~5.5V (Onboard 3.3V LDO Regulator);
- Working current: 240mA(MAX).
Specifications:
- Working voltage (V): 4.5 ~ 5.5
- Working current (mA): 240
- Length (mm): 47.5
- Width (mm): 24
- Height (mm): 11.5
- Weight (gm): 4
Package Includes:
- 1 x ESP-01 Adapter 3.3V 5V Board
