Features:

• ⁠High performance dual core processor: Integrated with a 32-bit LX7 dual core processor, providing powerful computing power and low-power performance.
• ⁠Wi Fi and BT dual-mode support: Supports 2.4GHz Wi Fi and BT 5 (BLE), compatible with multiple wireless communication protocols.

• Efficient data transmission: With a data rate of up to 150 Mbps, it ensures a fast and stable connection.

• ⁠Multi interface: Comes with two Type-C interfaces, one can be used directly with a COM tag, and the other USB can be powered on using OTG or by holding down BOOT to display the port and download the program normally.

• ⁠Low power and high power modes: Equipped with a low-power coprocessor and a high power mode of up to 20 dBm, suitable for various application scenarios.

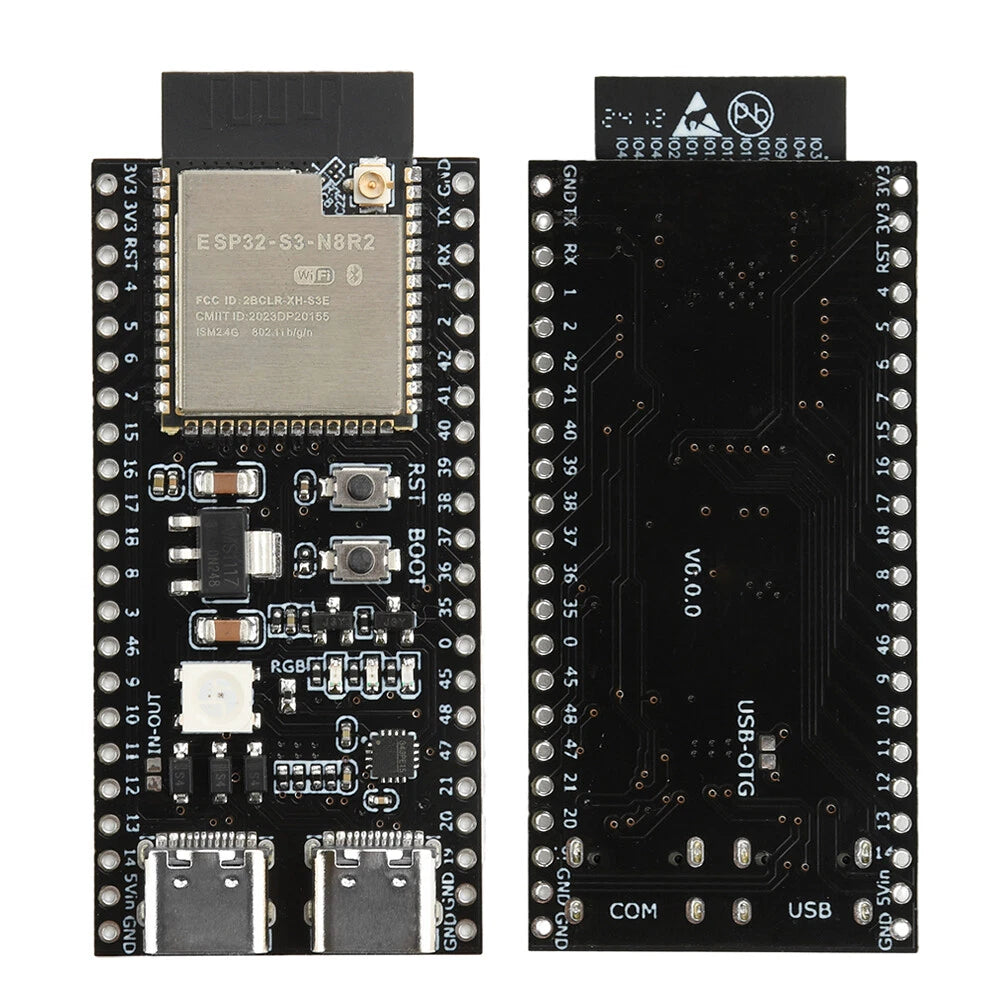

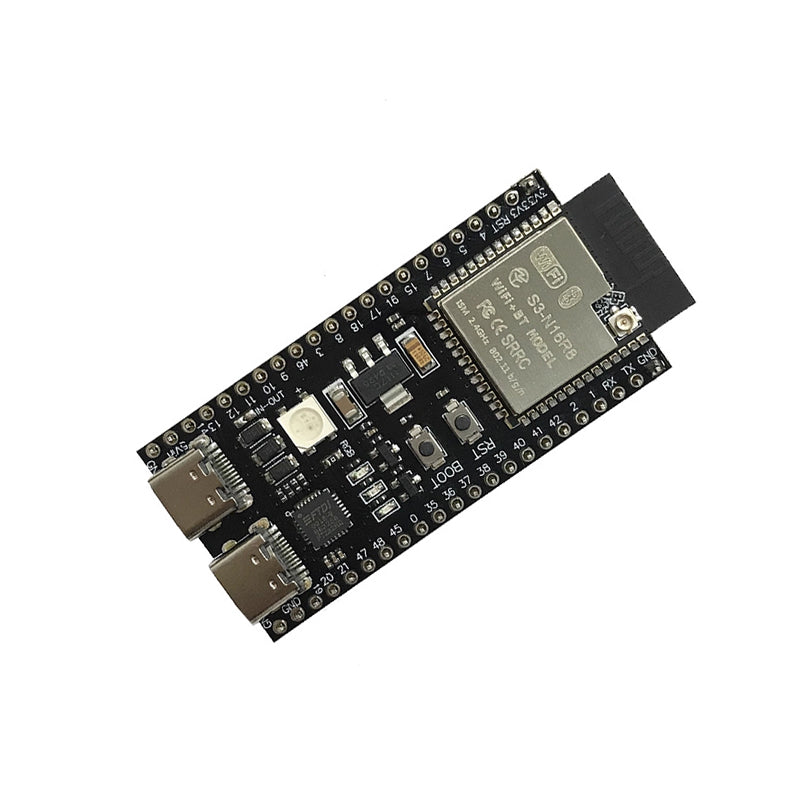

This product is a development board based on the ESP32-S3-module, with multiple IO ports and onboard WS2818RGB, corresponding to IO48. Comes with two Type-C interfaces, one can be used directly with a COM tag, and the other USB can be powered on using OTG or by holding down BOOT to display the port and download the program. The factory program automatically lights up RGB when connected to WiFi and turns off when disconnected.

Parameter:

• Working voltage: 3.3~5V

• IO ports: 36 IO ports

• Flash：N8R2 (8M)

• PSRAM: N8R2 (2M)

• 2 I2C, 4 SPI interfaces

• Size: 57mm * 28mm

Package Includes :

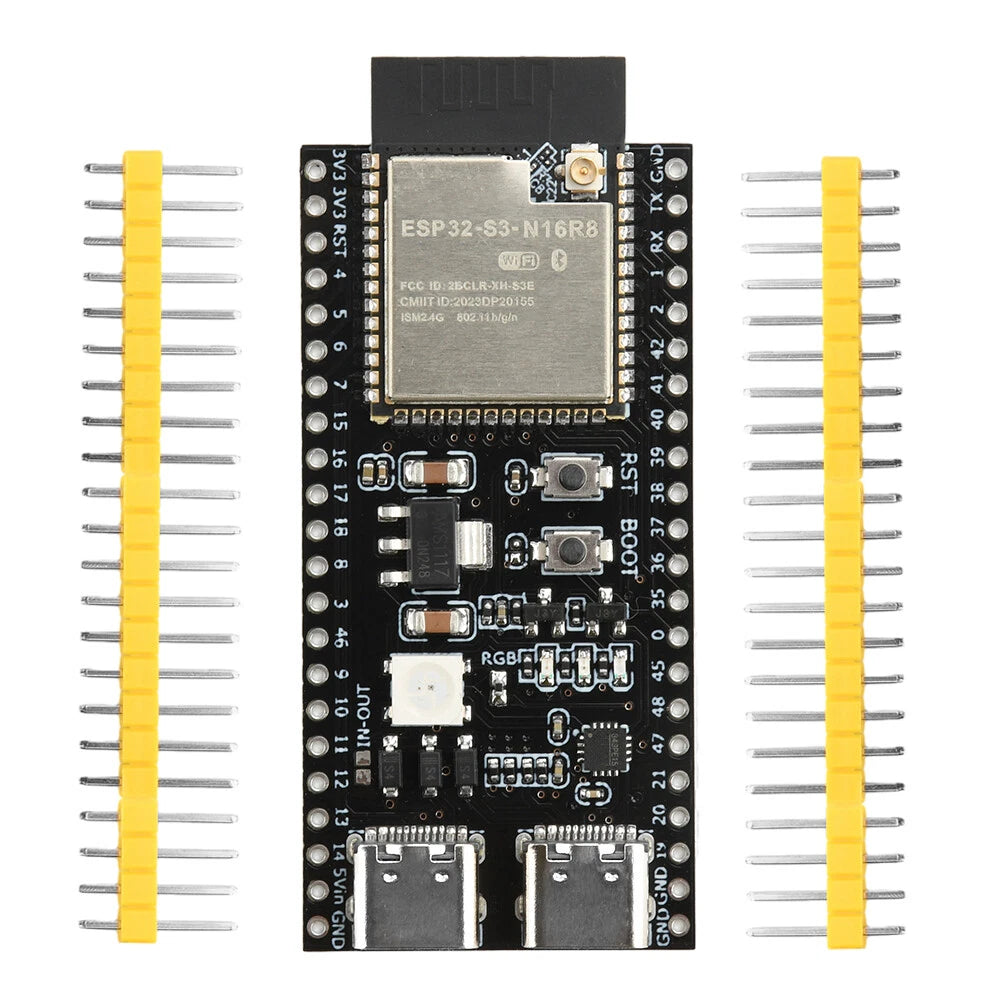

1 x ESP32-S3-N16R8 Development Board (Unsoldered)

2 x Header Pin

Antenna Not Included
