Specifications:

• Processor: 32-bit RISC-V, up to 160 MHz

• Memory: 512 KB SRAM, 16 KB low-power SRAM, 4 MB Flash

• Connectivity: Wi-Fi 6 (2.4 GHz), Bluetooth 5.3 LE, Zigbee 3.0, Thread 1.3

• Interfaces: UART, SPI, I²C, ADC, DAC, PWM

• GPIO: 22 programmable pins

• Power: 3–3.6 V operating voltage

• Dimensions: 18 × 26 mm

• Weight: 1.9 g

• USB Type-C for power and programming

• RGB LED indicator

Applications:

• IoT and smart home systems

• Robotics and automation

• Embedded systems learning and education

• Sensor and data collection networks

• Wearable and portable device prototyping

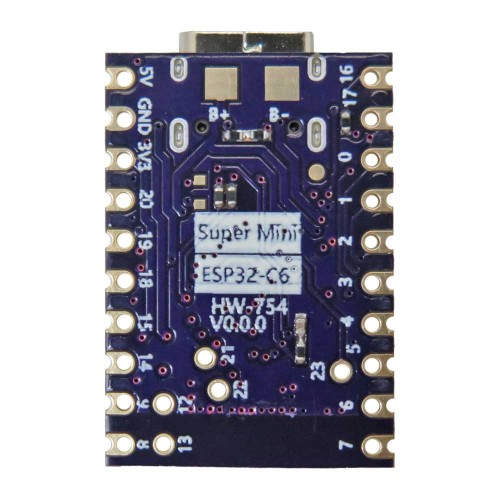

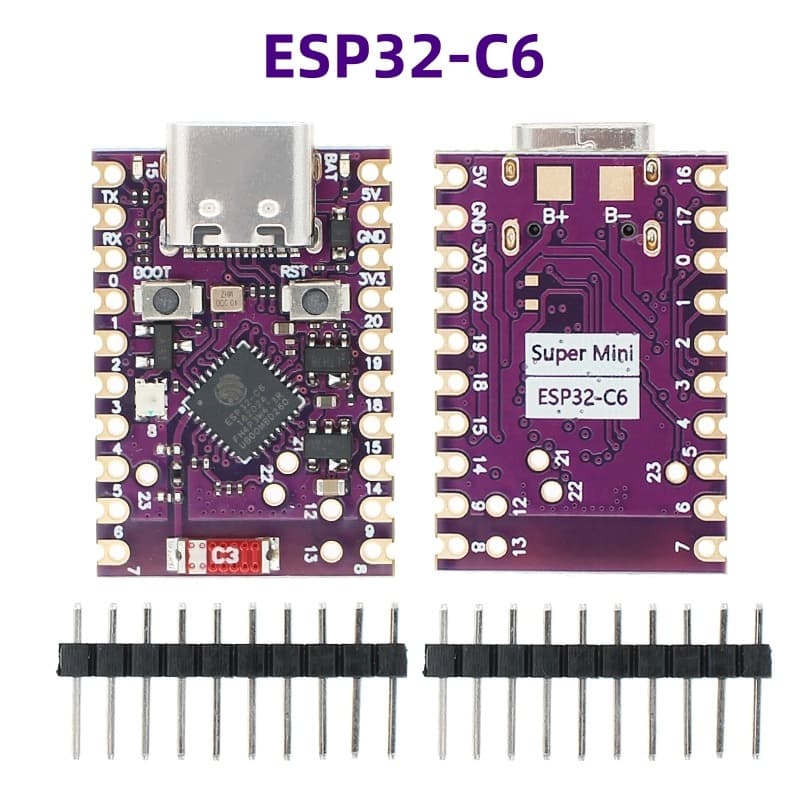

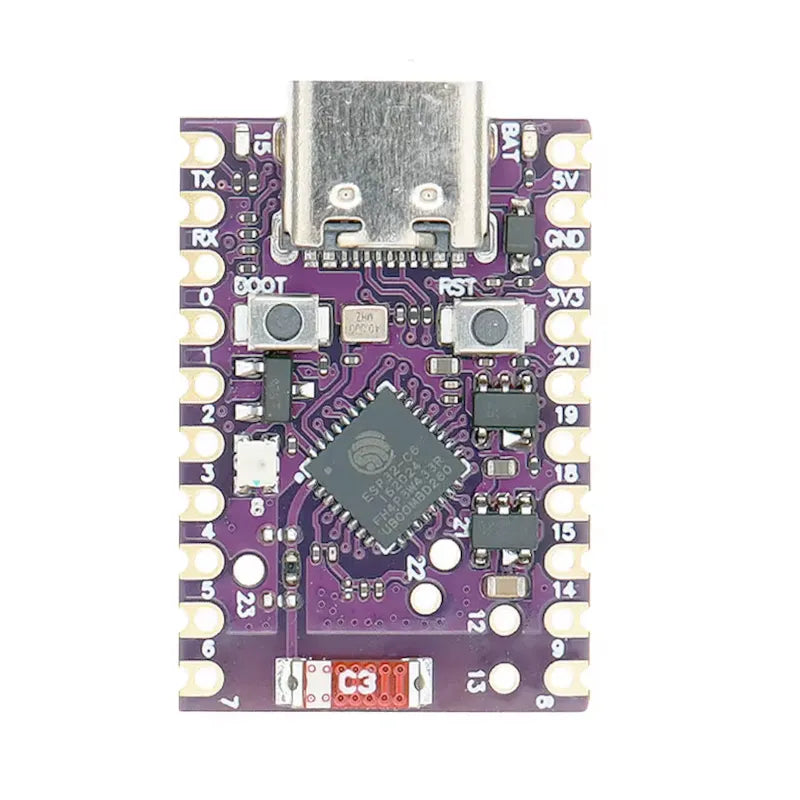

Enter the world of microcontroller and IoT development with the ESP32-C6 SuperMini – a high-performance, low-power board powered by a 32-bit RISC-V processor. Combining advanced connectivity features like Wi-Fi 6, Bluetooth 5.3 LE, Zigbee 3.0, and Thread 1.3, this board is ideal for building next-generation smart systems and connected devices.

Its compact 18×26 mm form factor makes it perfect for wearables, embedded applications, and educational use. The board provides full support for Arduino IDE, ESP-IDF, and MicroPython, ensuring a smooth experience for both beginners and professionals.

With 22 programmable GPIO pins and interfaces like SPI, I²C, UART, ADC, DAC, and PWM, the ESP32-C6 SuperMini allows seamless integration with a wide range of sensors, actuators, and peripherals. The USB Type-C port simplifies power and programming, and the onboard RGB LED provides quick visual feedback during operation.

Mesh Network Support:
Create a dynamic and self-healing IoT mesh network using multiple ESP32-C6 boards. By defining one as the main router, other boards connect automatically, expanding network coverage and maintaining stability even if one node disconnects.
