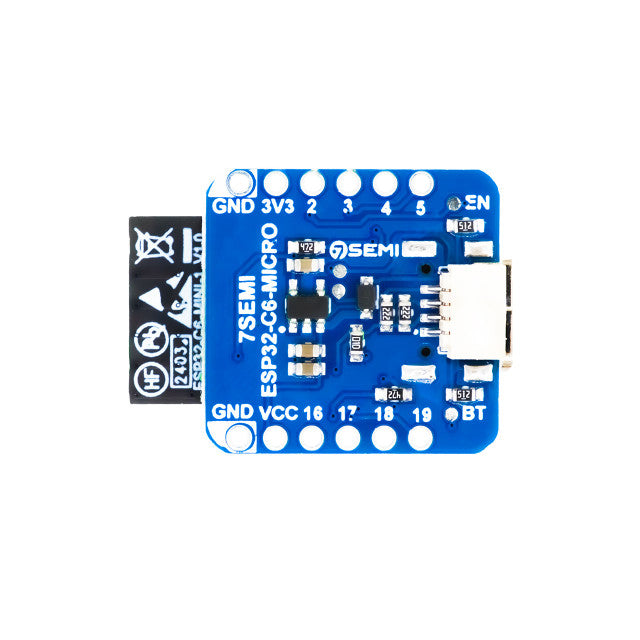

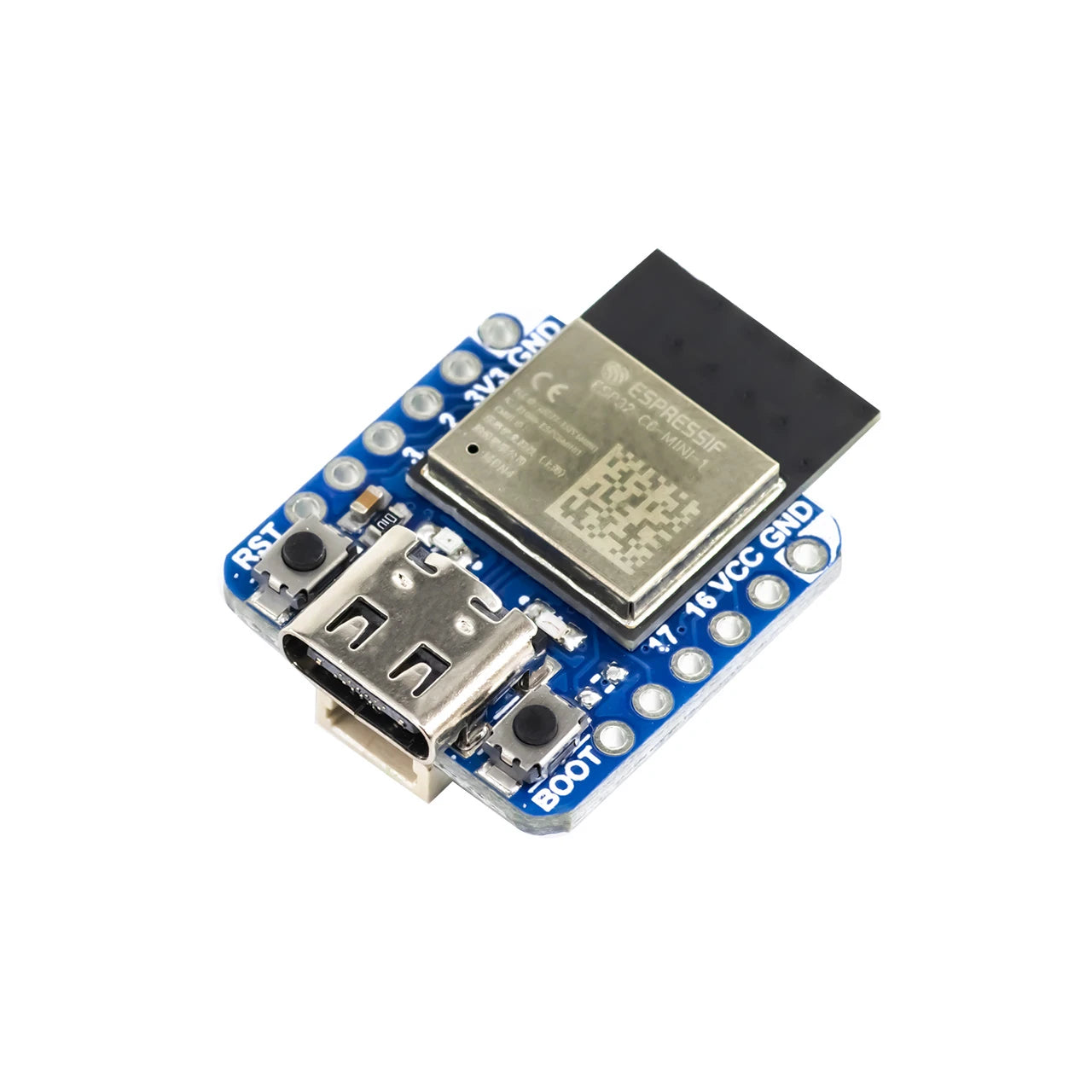

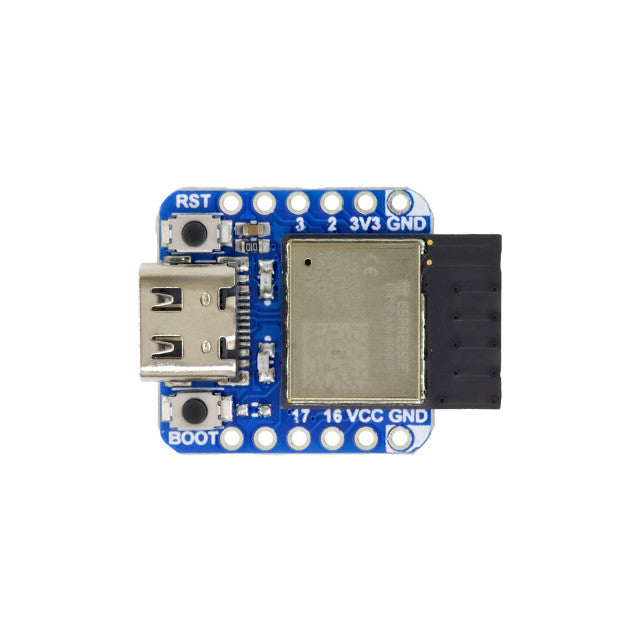

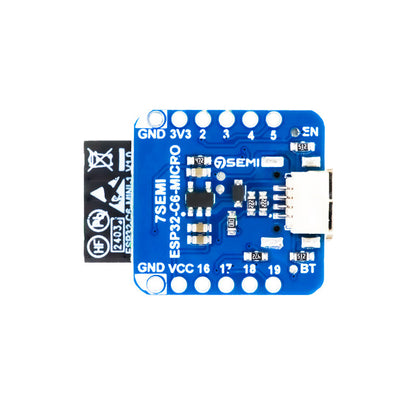

The 7Semi ESP32-C6 Mini WiFi Development Board is a compact module featuring the ESP32-C6-MINI-1-N4, a 32-bit RISC-V single-core microprocessor with 4MB flash memory. It supports Wi-Fi 6, Bluetooth 5.3, Zigbee, and Thread protocols, and includes a USB-C connector, Qwiic connector, and a 2-pin JST battery connector with integrated charging. The board offers peripherals like SPI, UART, I2C, and ADC, with eight GPIO pins, and consumes approximately 14µA in deep sleep mode, making it suitable for battery-powered wireless projects.

Pinouts

• Effortless Qwiic Integration: Plug and play with your Qwiic-based projects for rapid prototyping.
• Space-Saving Design: Perfect for projects where every millimeter counts.
• Remarkable Power Efficiency: Extend battery life for remote and portable applications.
• Comprehensive Wireless Support: Choose the ideal protocol with WiFi 6, Bluetooth, Zigbee, and Thread.
• Customizable Hardware: Tailor your solution with a range of peripheral interfaces.
• Developer-Friendly: Easy to connect and program for faster project completion.
• ESP32-C6 MINI-1 Module:

  • 32-bit RISC-V Single-Core Microprocessor
  • 23 Multifunctional GPIO
    • Most peripherals available on any GPIO pin.
  • Up to 7 12-bit ADC Channels
  • Up to 2 UART Channels (with flow control)
  • USB Serial
  • One Low Power UART Channel
  • One I²C Channel
  • One Low Power I²C Channel
  • LED PWM
  • One I²S Channel
  • 4 MB Flash
  • 2.4 GHz WiFi 6
  • Bluetooth 5 LE
  • Zigbee & Thread (802.15.4)
  • PCB Antenna
  • Matter-compatible
• Qwiic Form-Factor:

  • Dimensions: 1" x 1"
  • Four Mounting Holes
  • 8 PTH pins
  • USB-C Connector
  • 2-pin JST Connector for LiPo Battery (not included)
  • 4-pin Qwiic Connector
  • MCP73831 Battery Charger
    • Charge Rate: 213mA@3.3V
• LEDs:

  • PWR - Power LED
  • CHG - Battery Charging Indicator
  • STAT - Status LED
• Buttons:
  • BOOT
  • RESET
