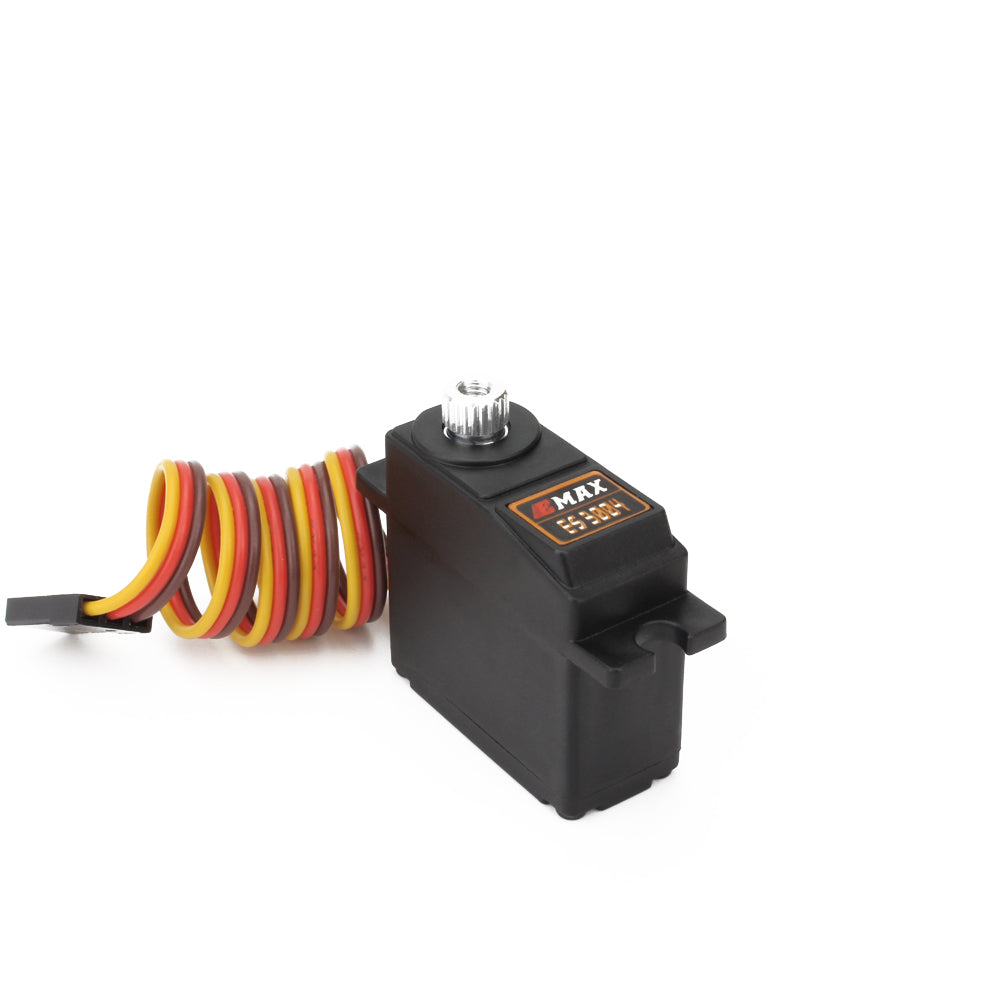

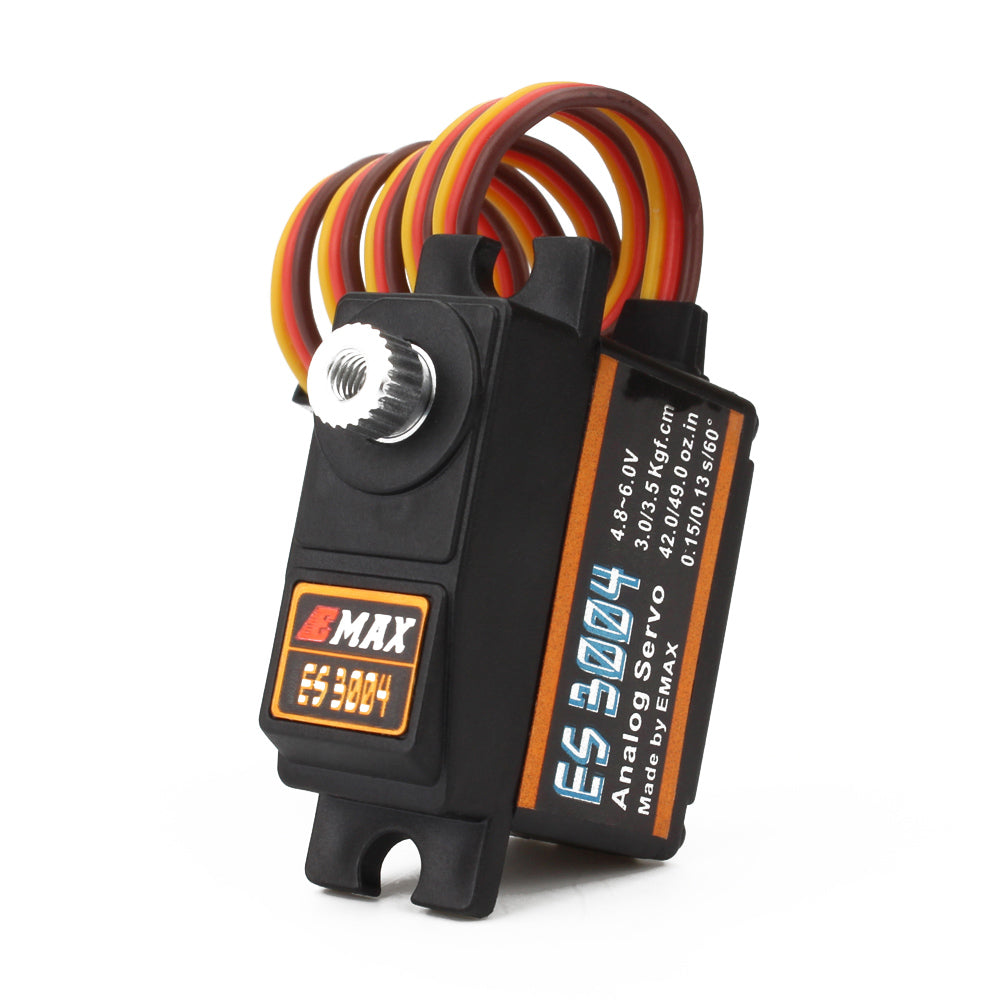

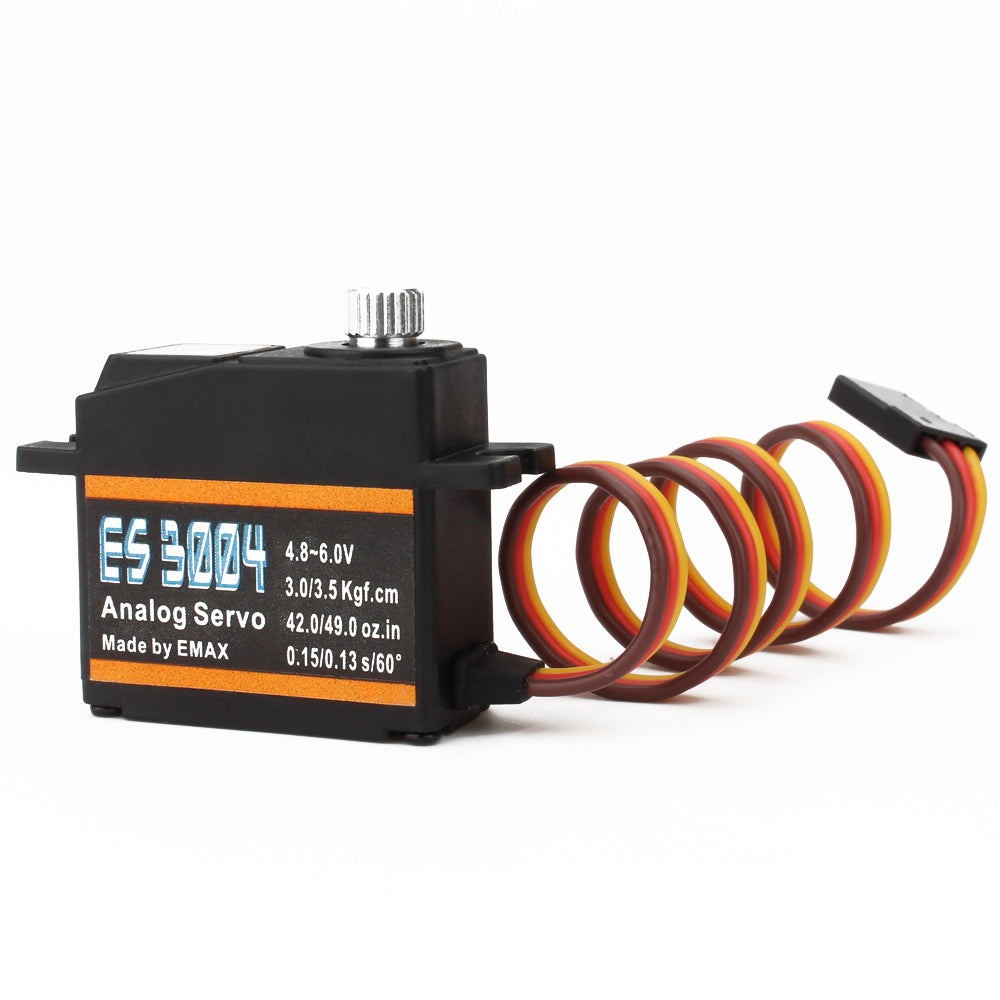

EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade
EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade
Regular price
Rs. 1,299.00
Regular price
Sale price
Rs. 1,299.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Brand: Emax
- Model: ES3003
- Voltage: 4.8-6.0 V
- Torque: 3.0 / 3.5kgf.cm
- Rate: 0.15 / 0.13 s / 60 degrees
- STD Direction: Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
- Gears: Plastic Gears
Specifications:
| Brand Name | EMAX | |
| Item Name | ES3004 | |
| Operating Voltage | 4.8V - 6.0V | |
| STD Direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | |
| Stall Torque | 4.8V | 3kg.cm Max |
| Operating Speed | 4.8V | 0.15 sec/60° at no load |
| Stall Torque | 6.0V | 3.5kg.cm Max |
| Operating Speed | 6.0V | 0.13 sec/60° at no load |
| Size | 28.45x13.00x31.10mm | |
| Weight | 17g | |
| Plug Available | FUT;JR | |
| Flower Head | 23T | |
| Maximum Travel | 145°±10° (700-2300μ sec) | |
| Others | Bearing; Metal; Analog | |

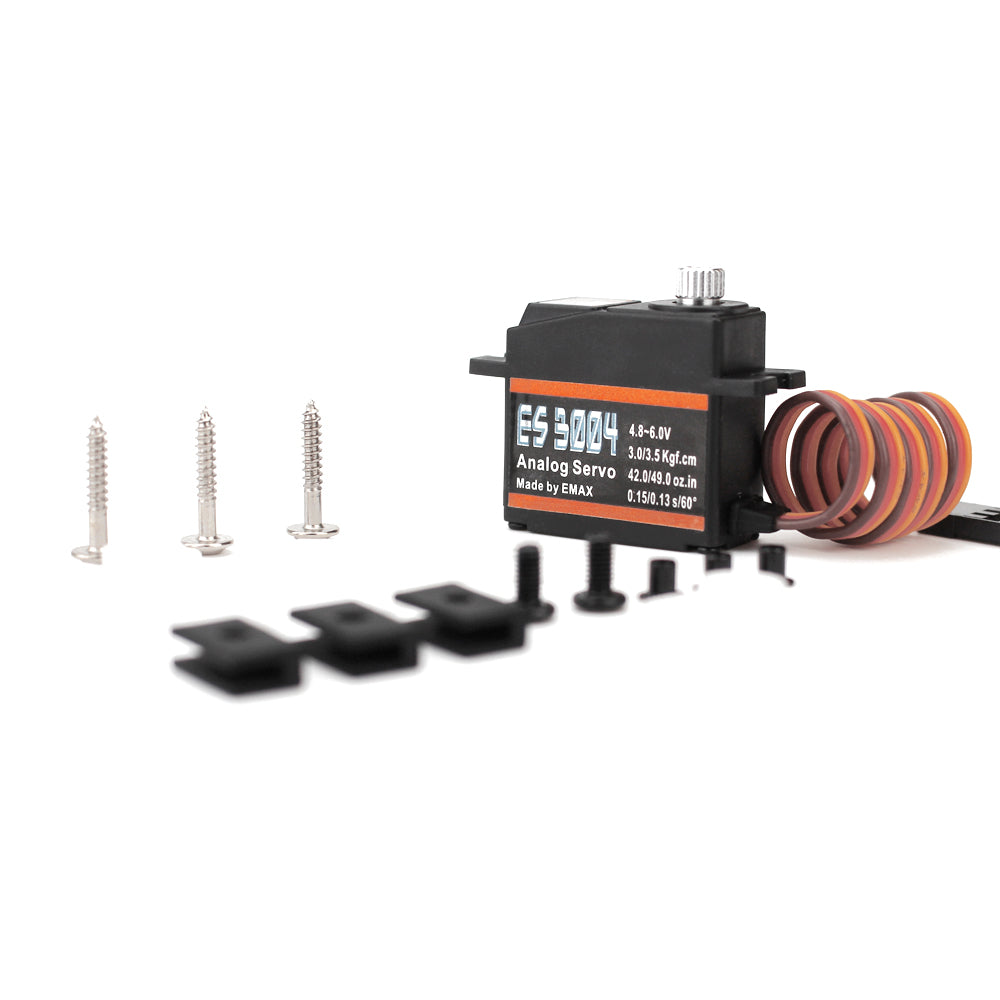

Package Included:
1x EMAX ES3004 Servo
