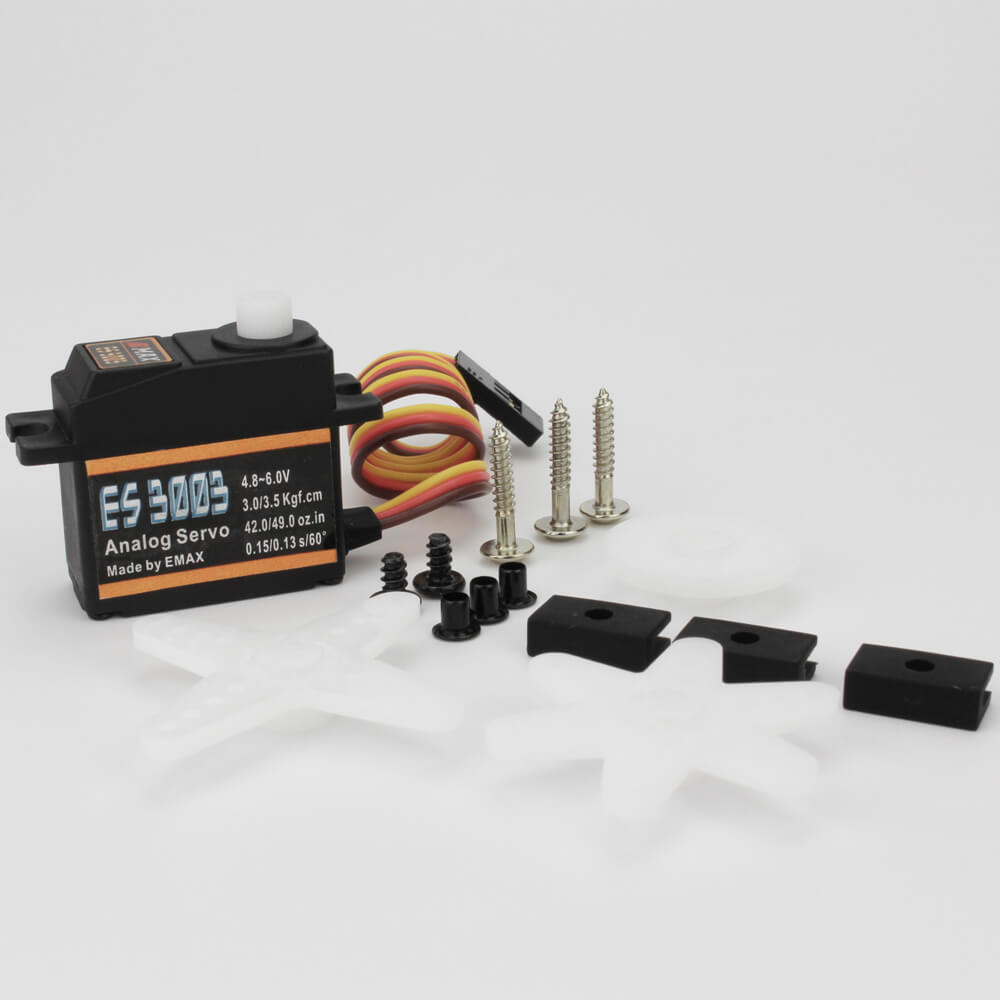

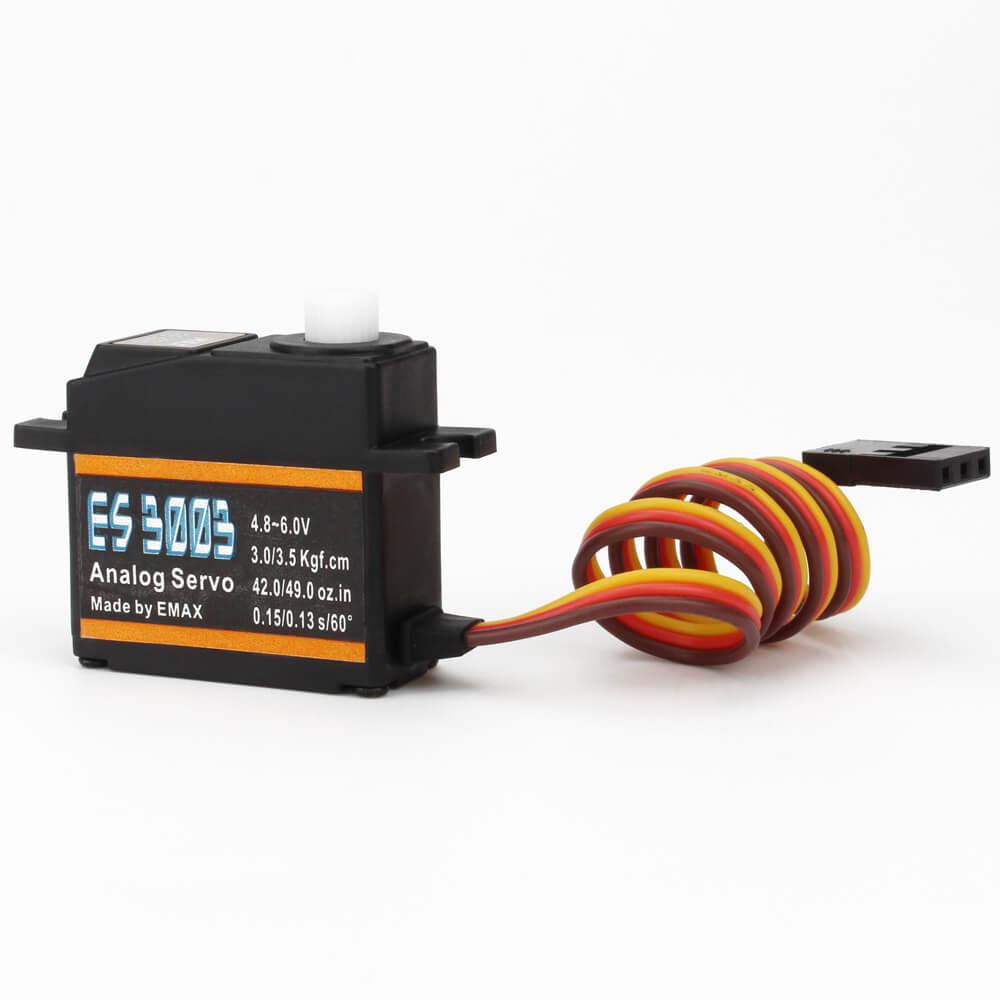

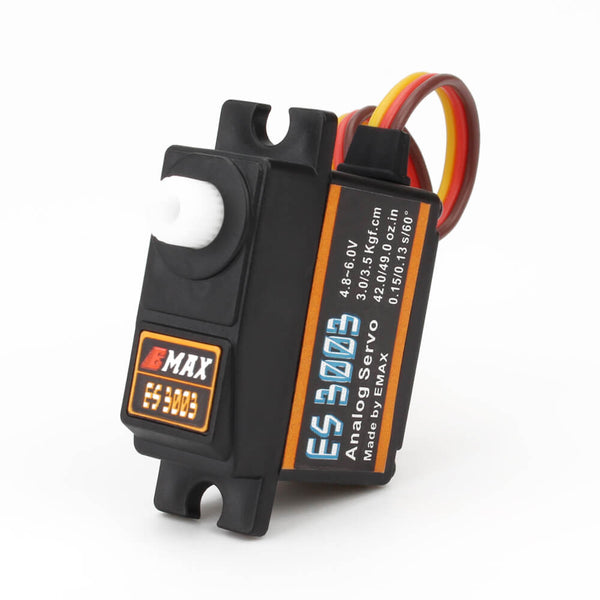

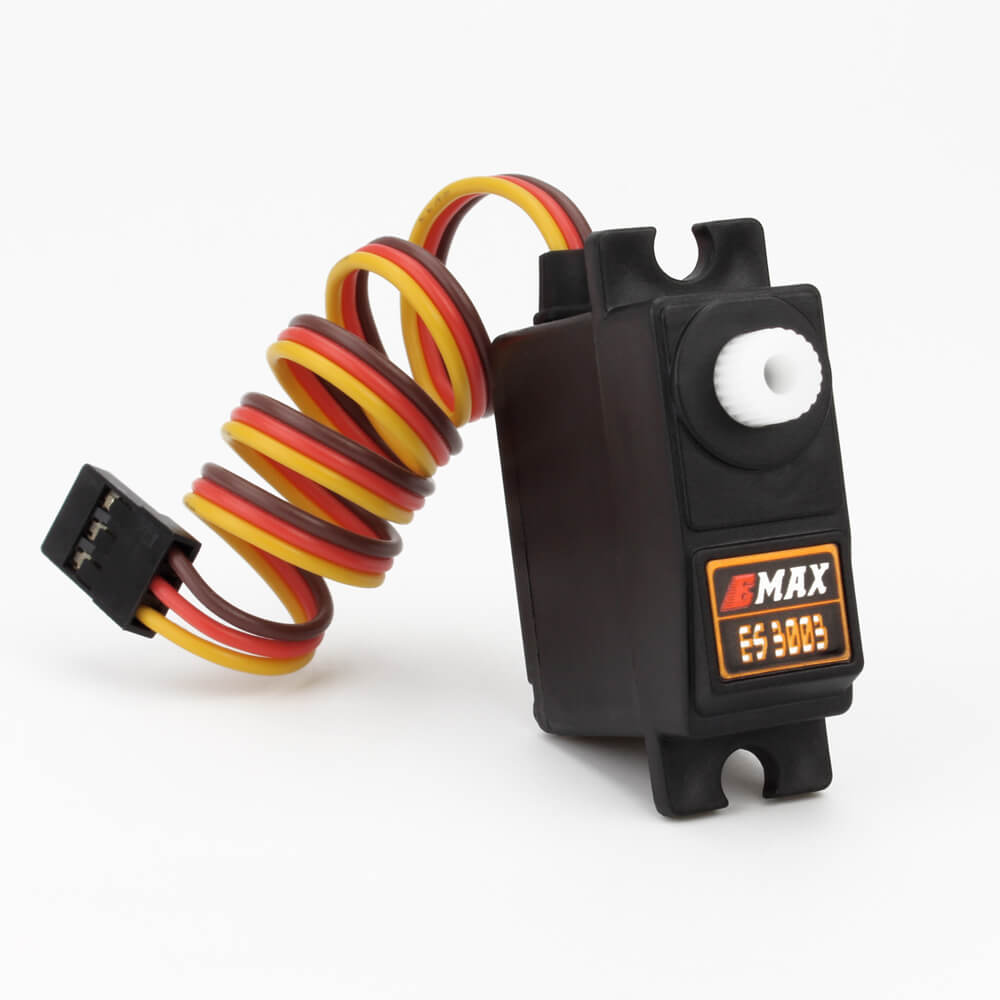

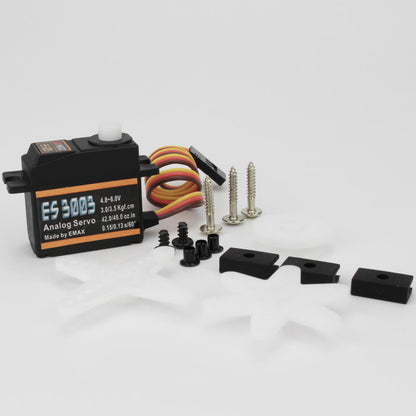

EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo
EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo
Regular price
Rs. 929.00
Regular price
Sale price
Rs. 929.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Brand: Emax
- Model: ES3003
- Voltage: 4.8-6.0 V
- Torque: 3.0 / 3.5kgf.cm
- Rate: 0.15 / 0.13 s / 60 degrees
- STD Direction: Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
- Gears: Plastic Gears
Specifications:
| Brand Name | EMAX | |
| Item Name | ES3003 | |
| Operating Voltage | 4.8V - 6.0V | |
| STD Direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | |
| Stall Torque | 4.8V | 3kg.cm Max |
| Operating Speed | 4.8V | 0.15 sec/60° at no load |
| Stall Torque | 6.0V | 3.5kg.cm Max |
| Operating Speed | 6.0V | 0.13 sec/60° at no load |
| Size | 28.45x13.00x31.10mm | |
| Weight | 17g | |
| Plug Available | FUT;JR | |
| Flower Head | 23T | |
| Maximum Travel | 145°±10° (700-2300μ sec) | |
| Others | Bearing; Plastic; Analog | |
Package Included:
1x EMAX ES3003 17g Servo
