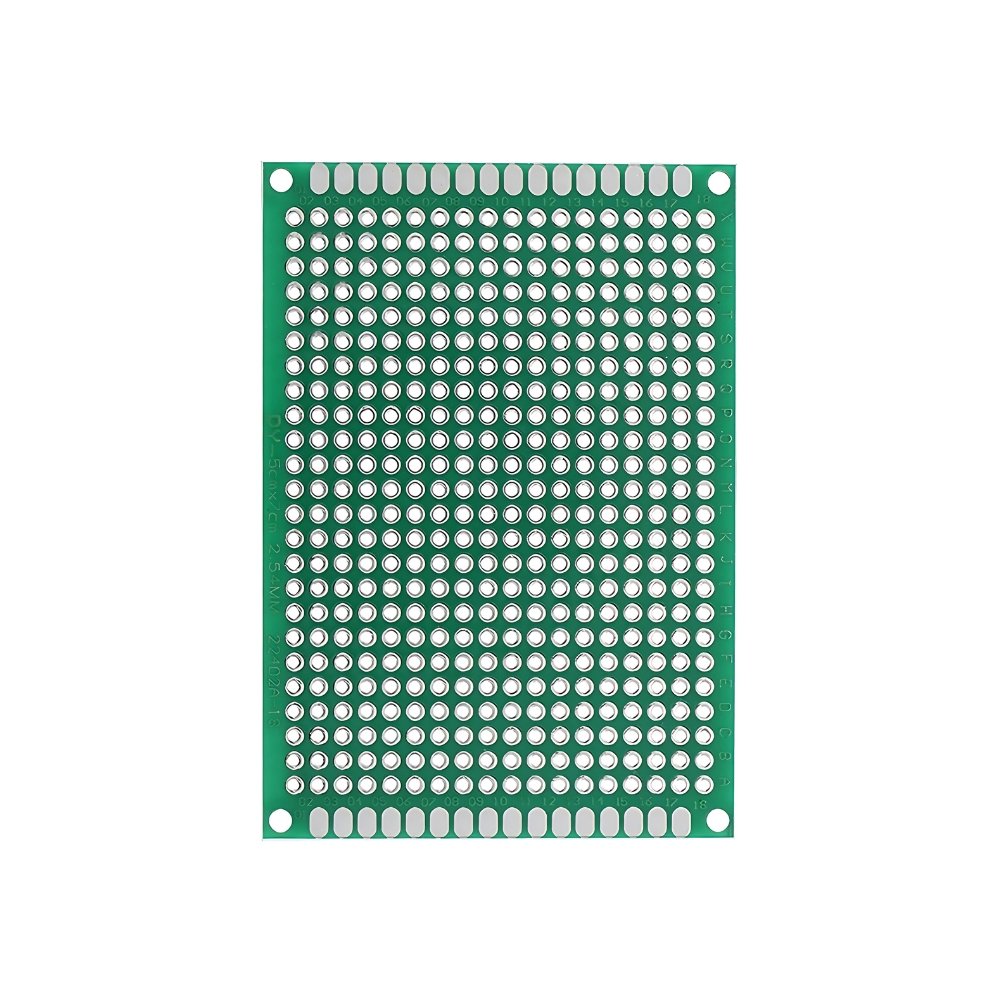

A General Purpose PTH (Plated Through Hole) PCB is a versatile printed circuit board designed for prototyping and assembling electronic circuits using through-hole components. It features a standard 2.54mm hole pitch, making it compatible with a wide range of electronic components such as resistors, capacitors, transistors, and integrated circuits (ICs).

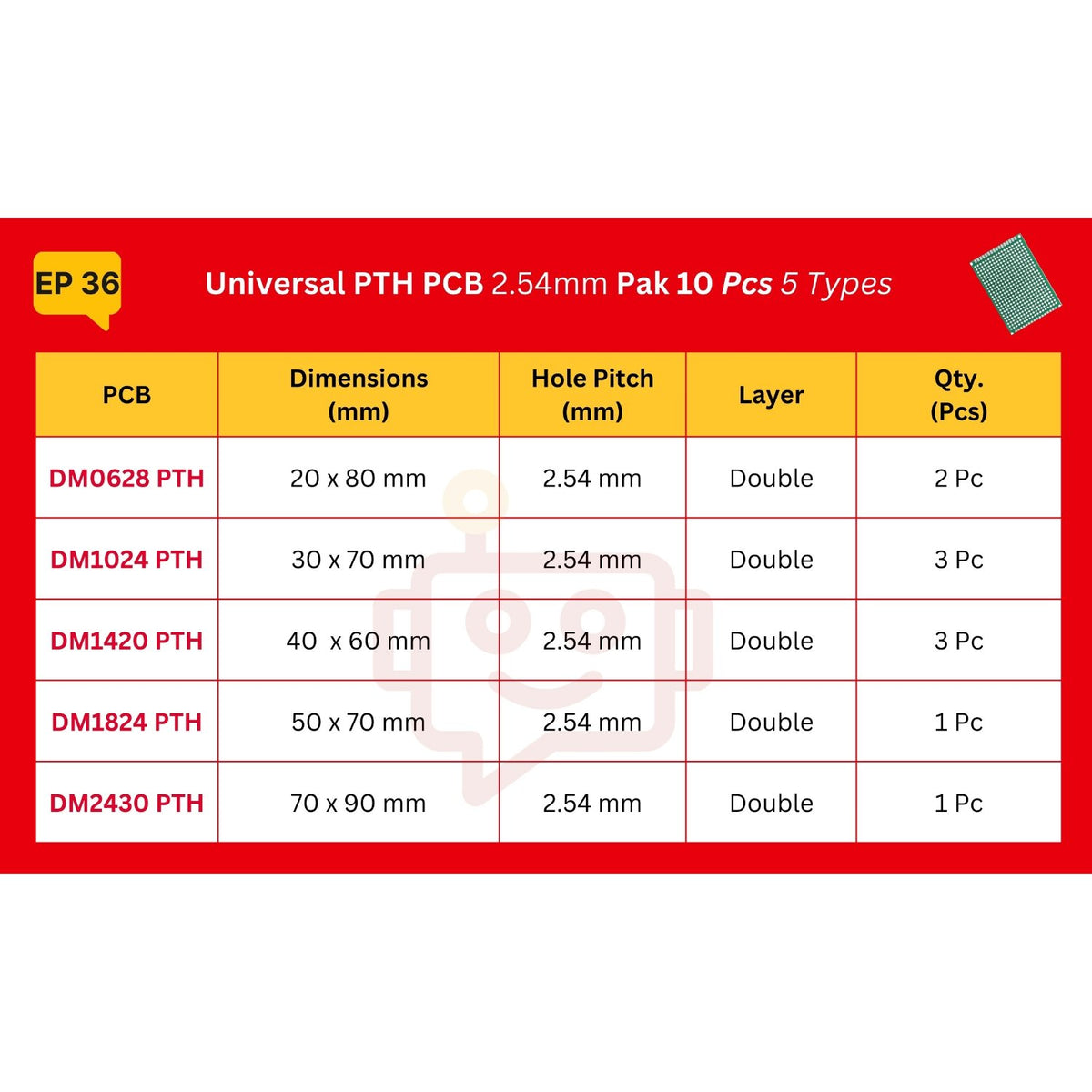

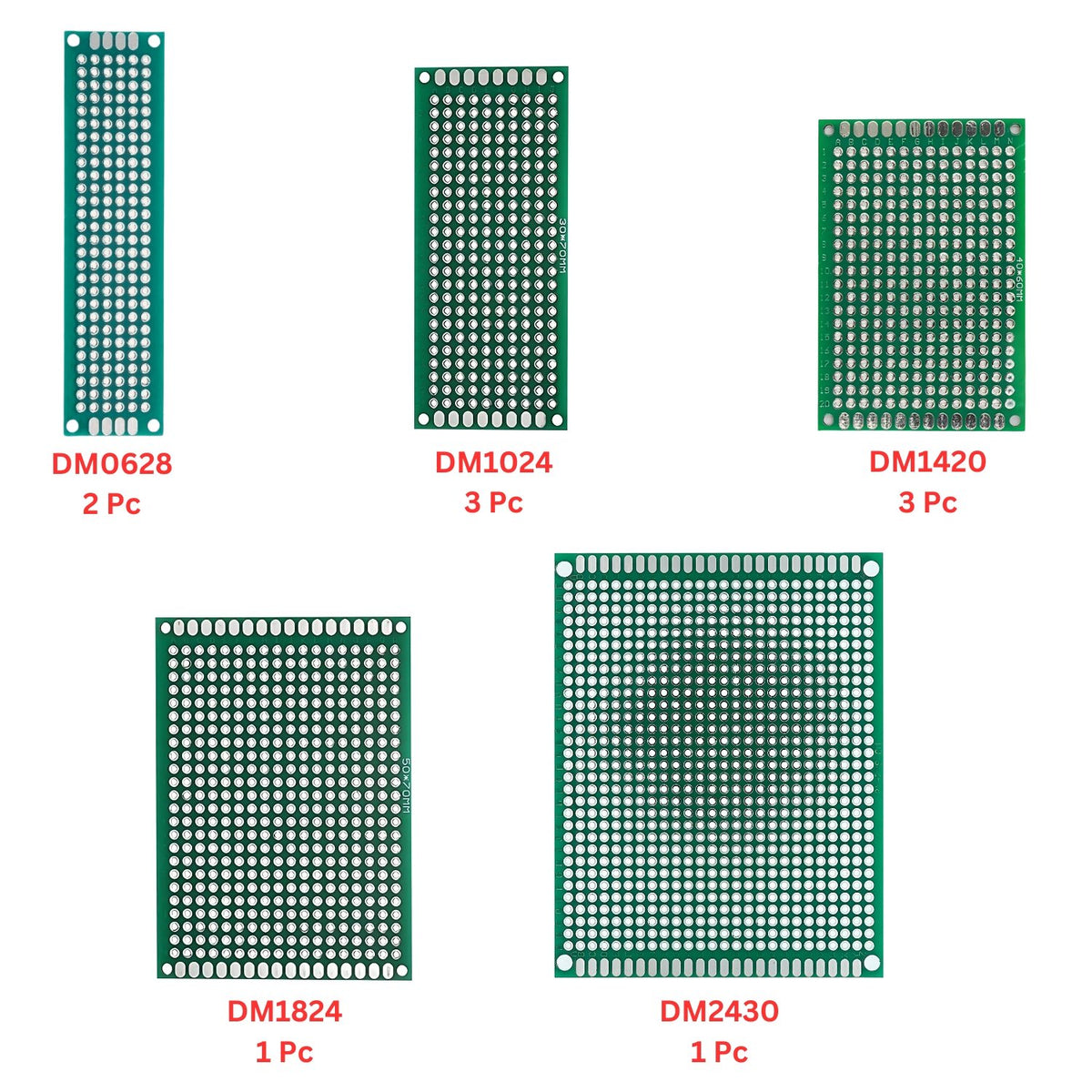

This set includes five types of general-purpose PTH (Plated Through Hole) PCBs suitable for prototyping and DIY electronic projects. These PCBs are versatile and can be used for assembling circuits with through-hole components such as resistors, capacitors, ICs, and connectors.
PCB Symbol:
PCB Structure:
Features:
- Easy prototyping and circuit testing
- Standard 2.54mm pitch for DIP components
- Durable FR4 material with high heat resistance
- Strong electrical and mechanical connections
- Pre-drilled holes for easy soldering
Applications:
- Prototyping and circuit development - Ideal for testing circuit designs before final production
- DIY electronics and hobby projects - Suitable for building custom electronic projects
- Educational and training purposes - Used in labs and workshops for learning circuit assembly
- Custom circuit design and testing - Allows flexible design modifications and troubleshooting
- Repair and modification of existing circuits - Helps in fixing or upgrading electronic devices
- Small-scale electronic production - Cost-effective for low-volume PCB-based projects
- Sensor and module interfacing - Supports easy integration of sensors and modules
- Power supply and converter circuits - Used for assembling power-related circuits
- Microcontroller and embedded system projects - Ideal for Arduino, Raspberry Pi, and other boards
- Communication and IoT device prototyping - Enables quick assembly of IoT-based circuits
