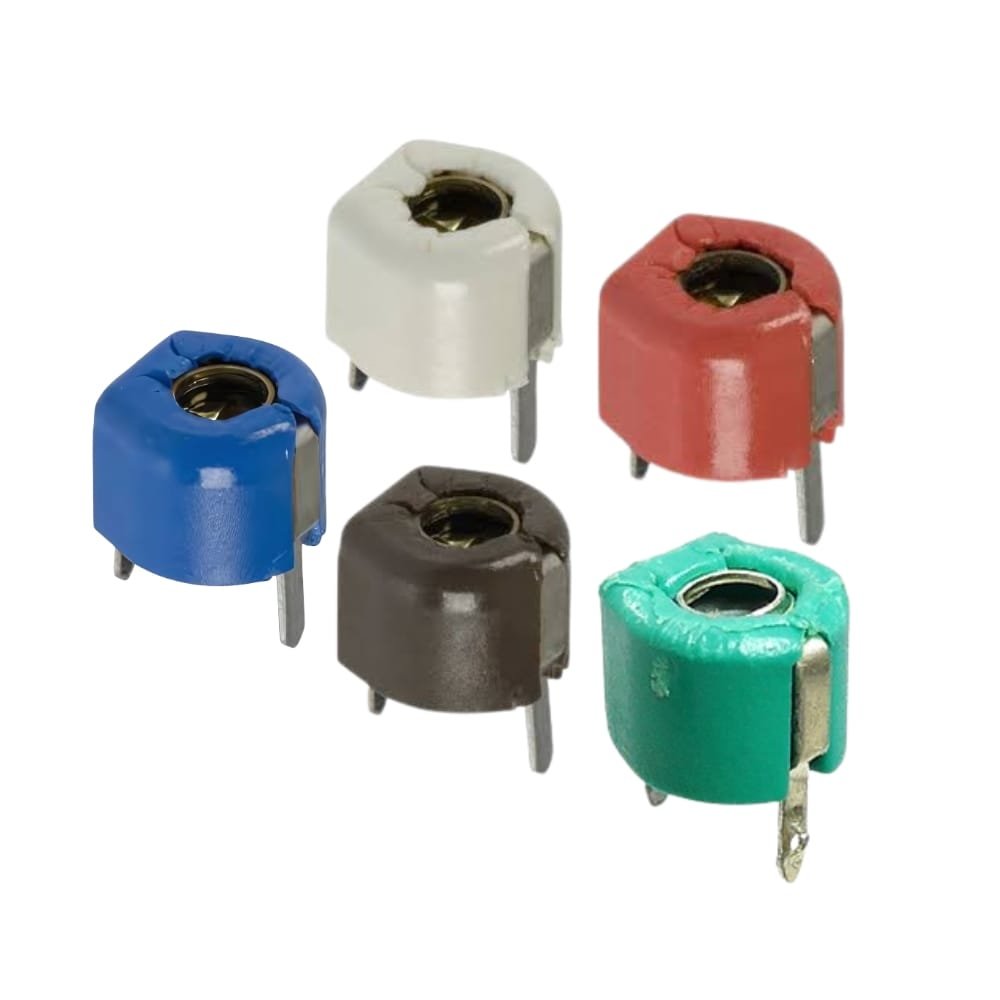

Elepak Trimmer Variable Capacitor Pak 5pF to 120pF 14 Pcs 7 Values
Elepak Trimmer Variable Capacitor Pak 5pF to 120pF 14 Pcs 7 Values
Regular price
Rs. 430.00
Regular price
Sale price
Rs. 430.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

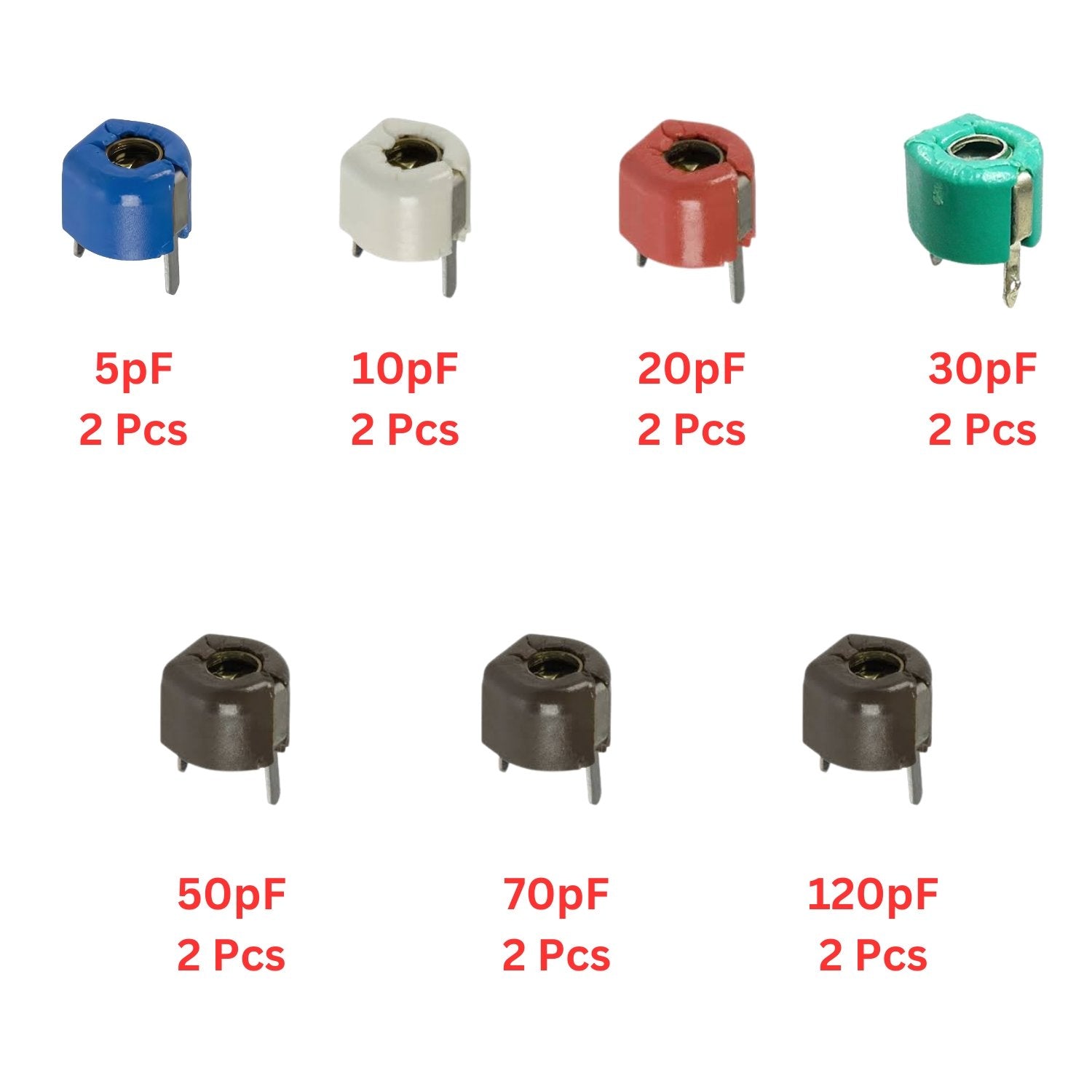

Package Includes:
14 Variable Capacitor 7 Types
- 5 pF - 2 Pcs
- 10 pF - 2 Pcs
- 20 pF - 2 Pcs
- 30 pF - 2 Pcs
- 50 pF - 2 Pcs
- 70 pF - 2 Pcs
- 120 pF - 2 Pcs

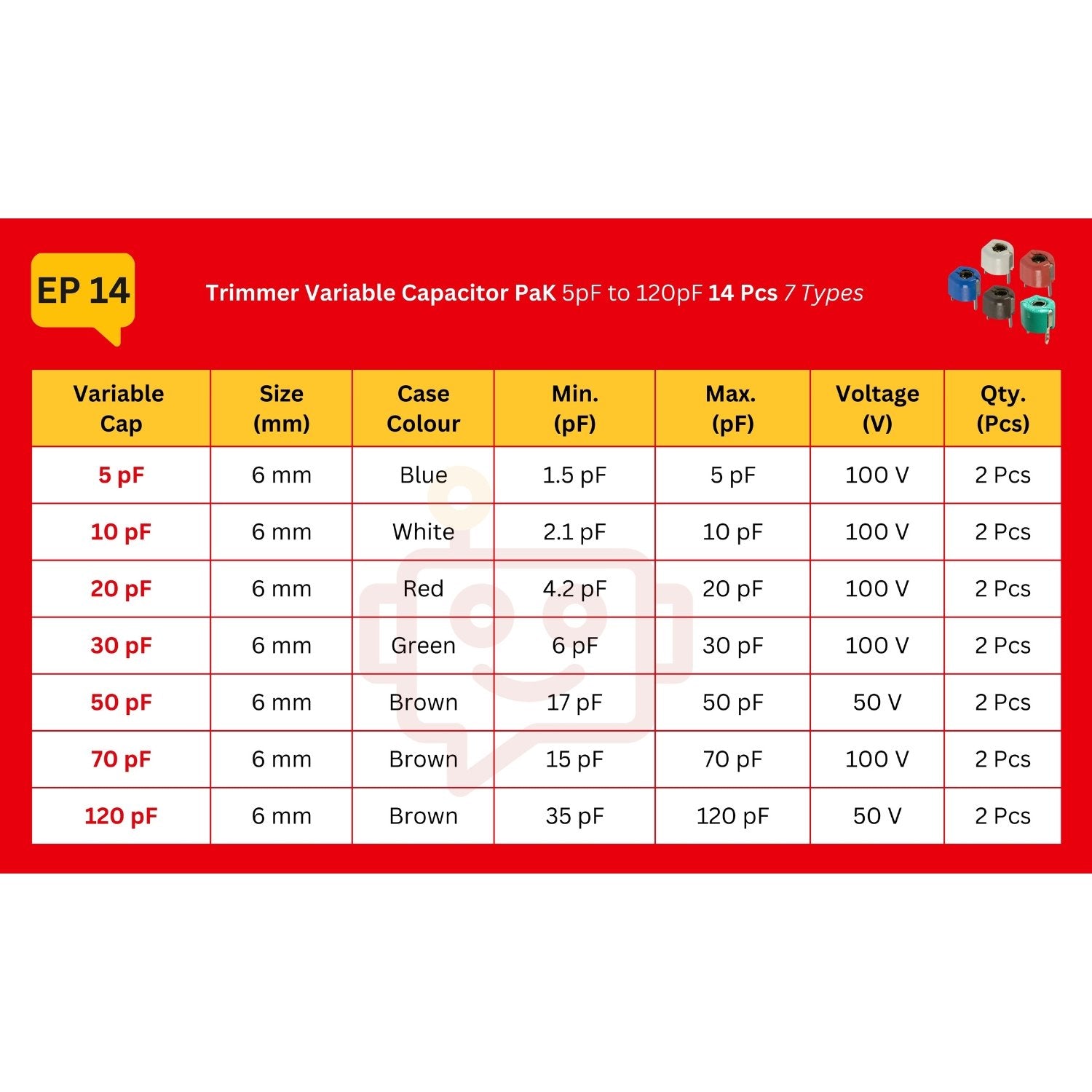

Technical Specifications:
- Type: Through Hole
- Model: Variable Capacitor
- Size: 6mm Lead Type
- Capacitance Min: 1.5 pF – 35 pF
- Capacitance Max: 5 pF – 120 pF
- Voltage Rating: 50 V – 100 V
- Terminal Shape: Top Adjustment
- Case Colour: Blue, Green, Red, White, Brown
- Pak Weight: 50 gm
- Pak Dimensions: 90 x 60 x 24 mm
Description
Variable capacitors are used for precise tuning in electronic circuits, particularly in RF (radio frequency), communication, and signal-processing applications.
These variable capacitor set consists of 14 capacitors in 7 different capacitance values, with 2 pieces of each type. These capacitors allow for adjustable capacitance, making them useful in circuits where fine-tuning is required.
Variable Capacitor Symbol:
Variable Capacitor Structure:
Features:
- Adjustable capacitance for precise tuning
- High precision and stability
- Compact and PCB-friendly design
- Low signal losses in RF applications
- Durable with good thermal stability
- Versatile use in tuners, oscillators, and communication devices
Applications:
- RF Tuners - Used for fine-tuning radio frequency circuits
- Oscillators - Helps in frequency control and stability
- Impedance Matching - Adjusts capacitance to optimize signal transmission
- Filters - Used in band-pass and notch filters for signal processing
- Antenna Matching Circuits - Enhances antenna performance and efficiency
- Wireless Communication Devices - Ensures stable signal transmission in RF modules
- Signal Generators - Helps in setting precise output frequencies.
