Elepak SMD Tactile Switch Pak 150 Pcs 10 Types

Elepak SMD Tactile Switch Pak 150 Pcs 10 Types

Rs. 465.00
Rs. 465.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
Trust

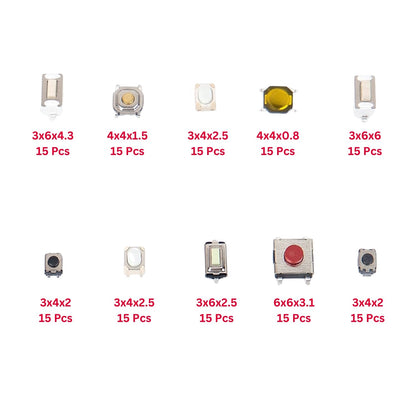

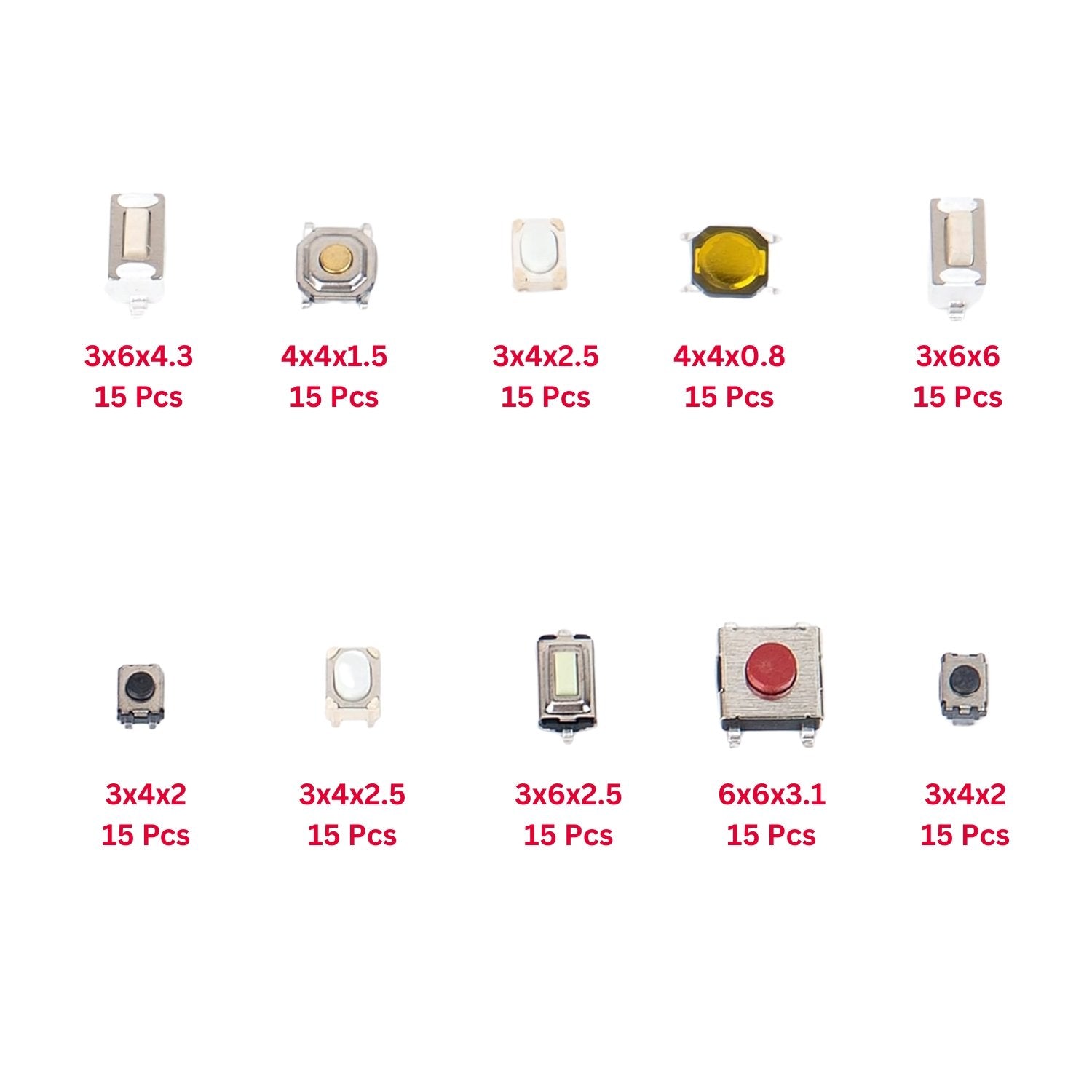

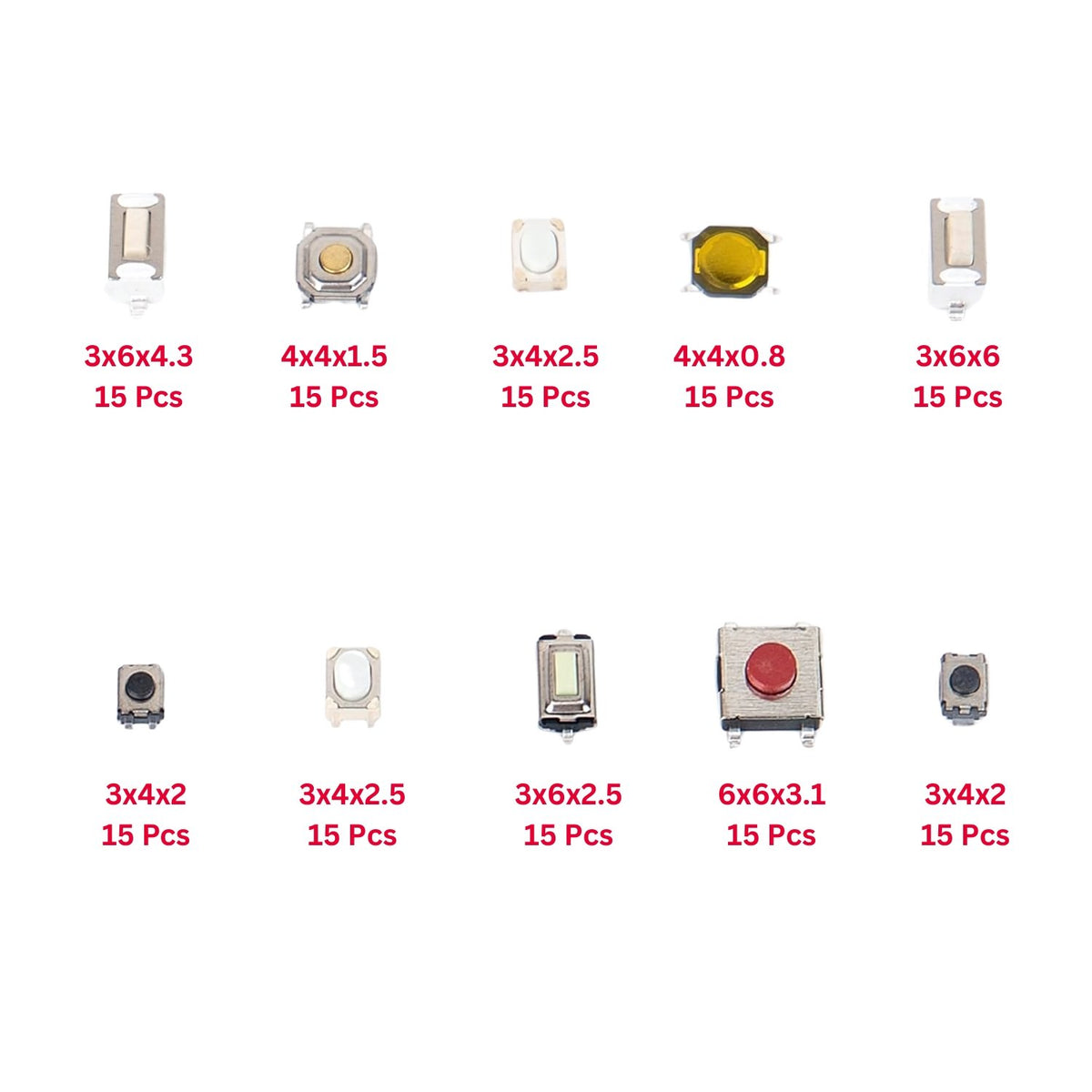

Package Includes:

150 SMD Tactile Switch 10 Types

  • 3×6×4.3 mm, 2 Pin – 15 Pcs
  • 4×4×1.5 mm, 4 Pin – 15 Pcs
  • 4×4×0.8 mm, 4 Pin – 15 Pcs
  • 3×6×6 mm, 2 Pin – 15 Pcs
  • 3×4×2 mm, 4 Pin – 15 Pcs
  • 3×6×2.5 mm, 2 Pin – 15 Pcs
  • 6×6×3.1 mm, 4 Pin – 15 Pcs
  • 3×4×2 mm, 2 Pin – 15 Pcs
  • 3×4×2.5 mm, Visible Pins, 4 Pin  – 15 Pcs
  • 3×4×2.5 mm, Recessed Pins, 4 Pin – 15 Pcs

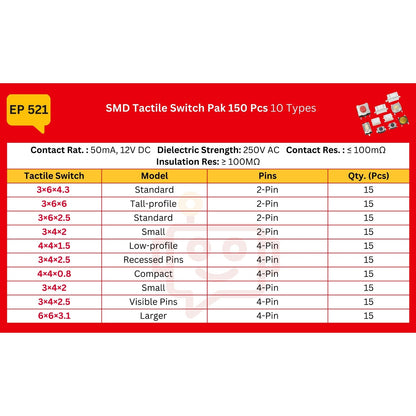

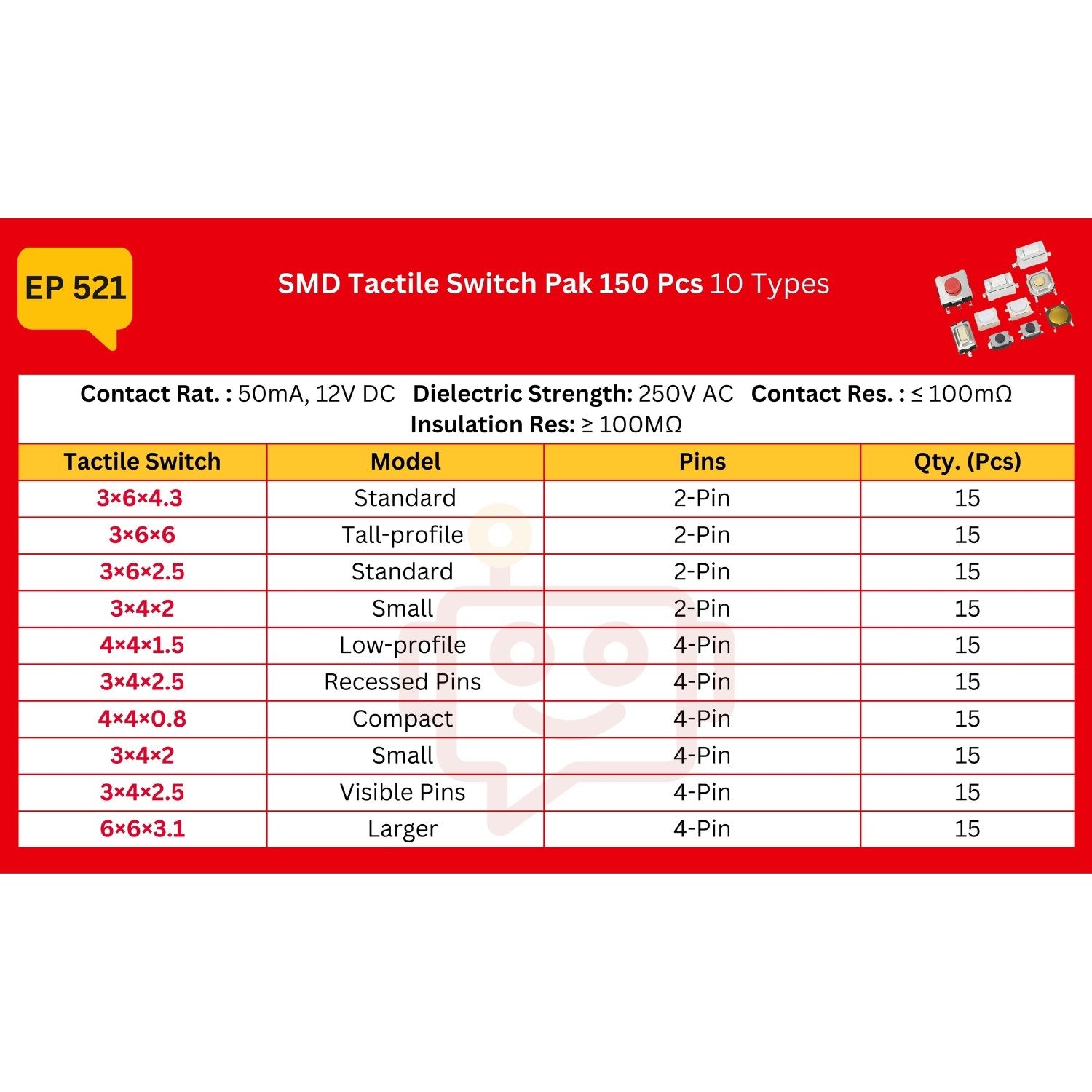

Technical Specification:

    • Type: SMD
    • Model: Switch
    • No of. Pins: 2 Pin, 4 Pin
    • Width: 3 mm – 6 mm
    • Height: 0.8 mm – 6 mm
    • Length: Varies according to each model
    • Contact Rating:
      • Voltage: Typically 12 V DC
      • Current: 50 mA
      • Contact Resistance: ≤ 100 Ω
      • Insulation Resistance: ≥ 100 mΩ
      • Dielectric Strength: ≥ 250 V AC for 1 minute
    • Pak Weight: 80 gm
    • Pak Dimensions: 90 x 60 x 24 mm

Description

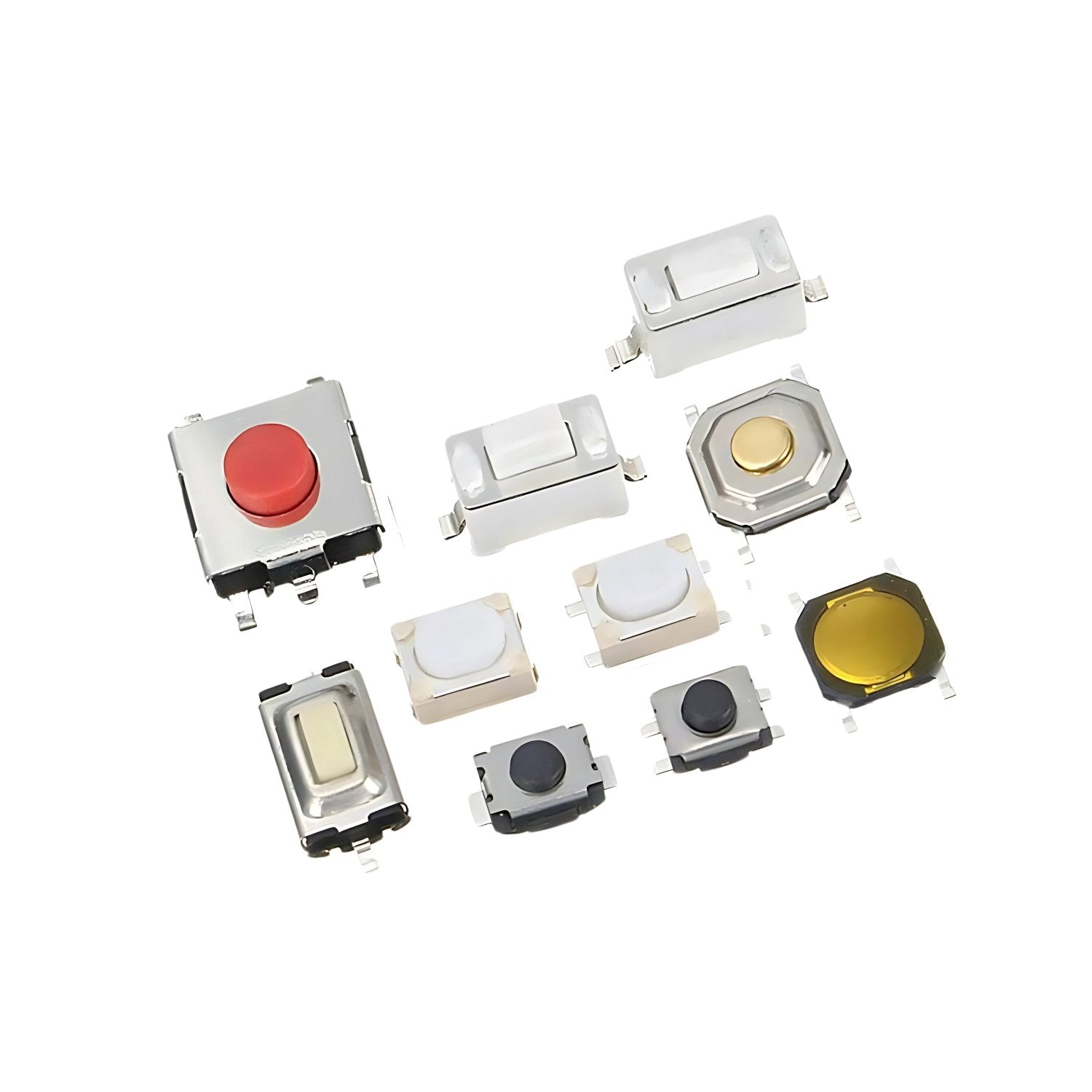

The SMD Tactile Switch Pak (150 Pcs, 10 Types) is a versatile assortment of tactile switches, designed for a wide range of electronic applications. The pack contains 150 pieces, divided into 10 different types, providing a broad selection for various projects. The switches come in different sizes, ranging from 3mm to 6mm in width and 0.8mm to 6mm in height.

These tactile switches are available in both 2-pin and 4-pin configurations, offering flexibility for different mounting and connectivity requirements. The variety of sizes and pin types ensures that the pack can meet the needs of various electronic designs, from prototypes to production.

Switch Symbol:

Features:

  • Includes 10 different tactile switch types for versatility.
  • Ideal for prototyping and design experimentation.
  • SMD format allows compact PCB designs and automated assembly.
  • All switches offer tactile feedback for better user experience.
  • Useful for repairs, mods, and replacements in various devices.
  • Convenient, all-in-one pack saves time and cost.

Applications:

  • Consumer Electronics – Used in phones, remotes, and wearables for compact, responsive buttons.
  • Embedded Systems & DIY Projects – Ideal for reset, input, and menu navigation on dev boards.
  • Computer Peripherals – Found in keyboards, touchpads, and laptop function buttons.
  • Test & Measuring Instruments – Used for mode selection and UI navigation in devices like multimeters.

Home Appliances – Buttons for control panels in microwaves, purifiers, and smart home devices.
