Elepak SMD Resistor 0402 1/16W ±1% Pak 0E to 10M 8500 Pcs 170 Types

Elepak SMD Resistor 0402 1/16W ±1% Pak 0E to 10M 8500 Pcs 170 Types

Rs. 1,770.00
Rs. 1,770.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
IHCPRIME
100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption

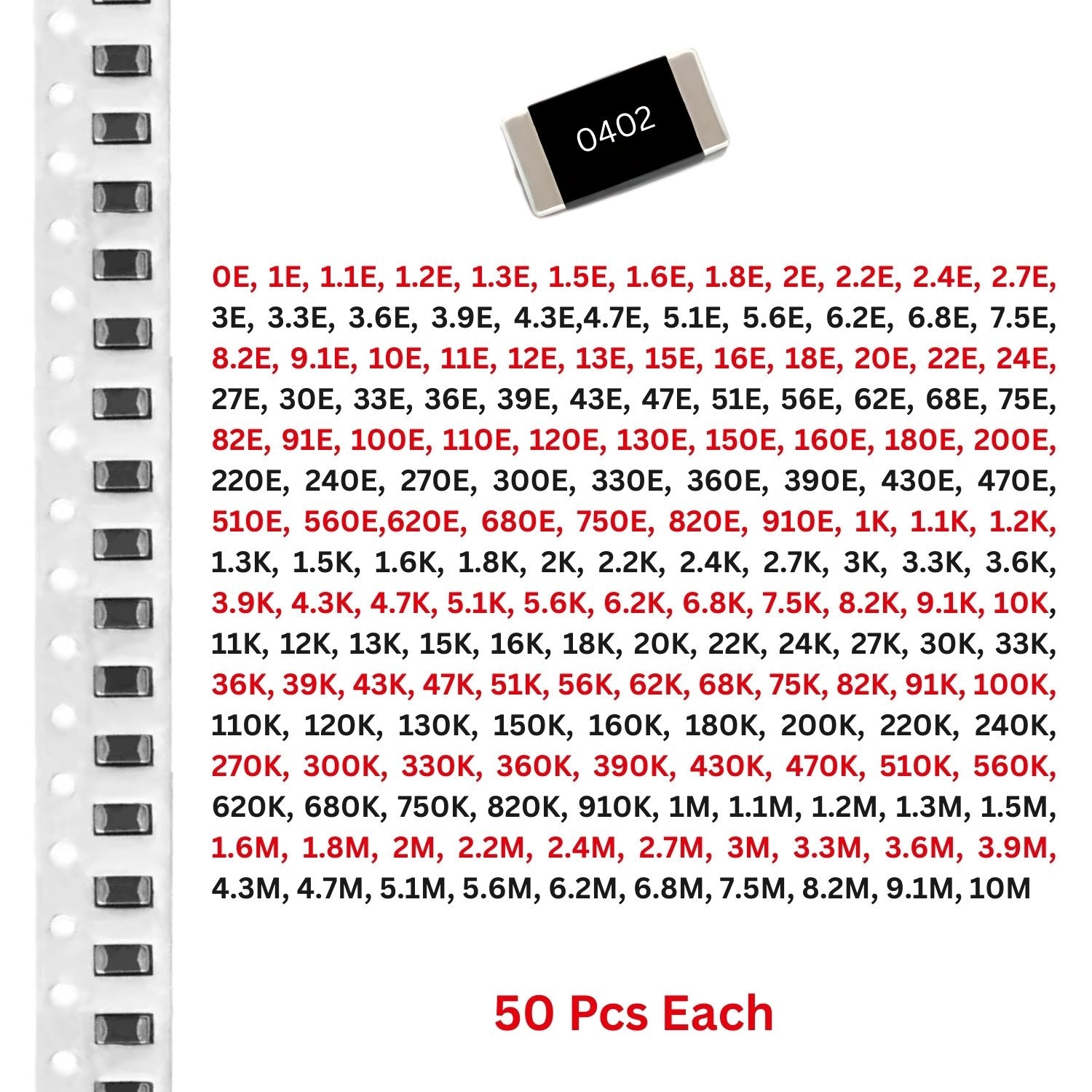

Package Includes:

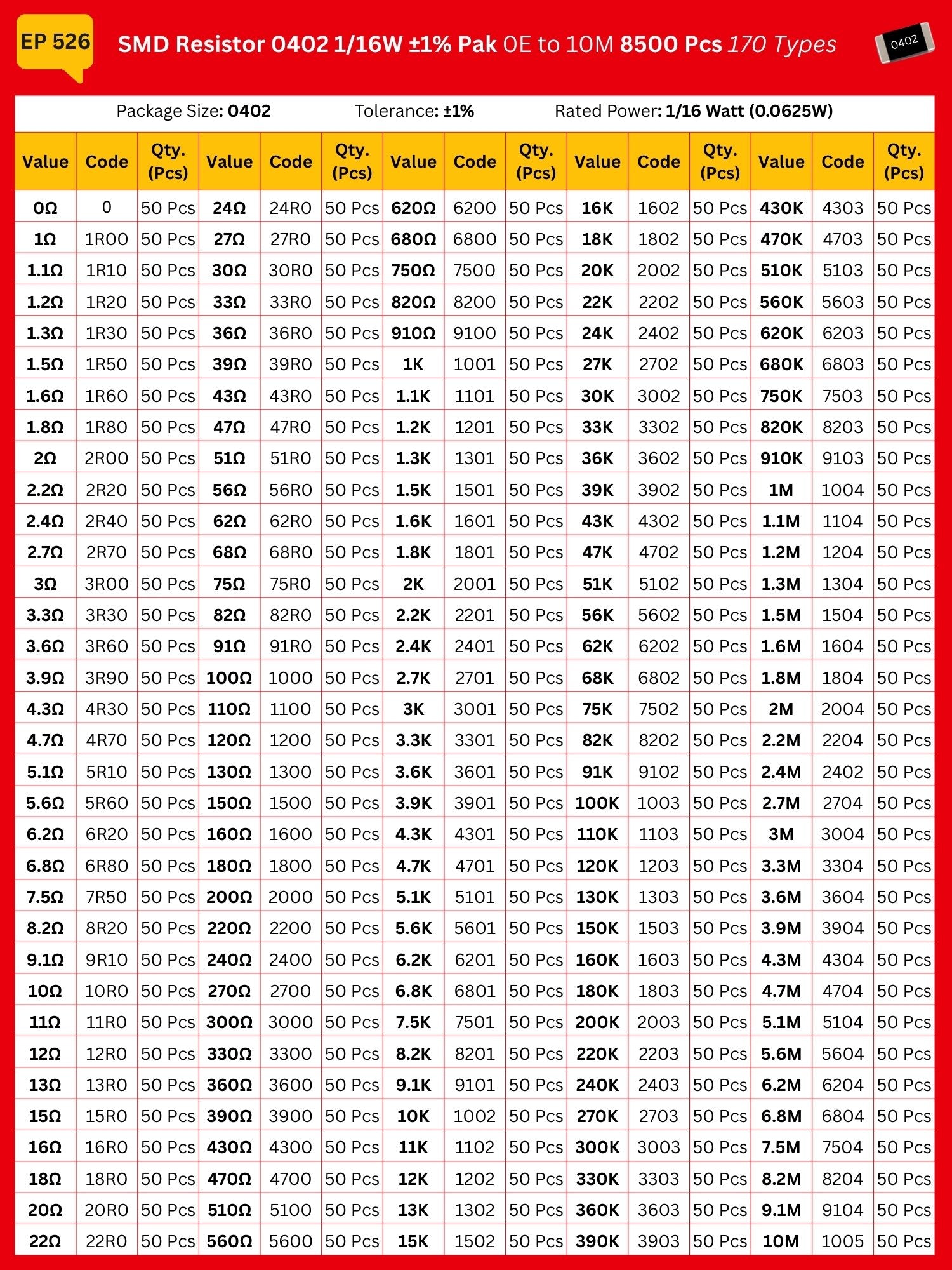

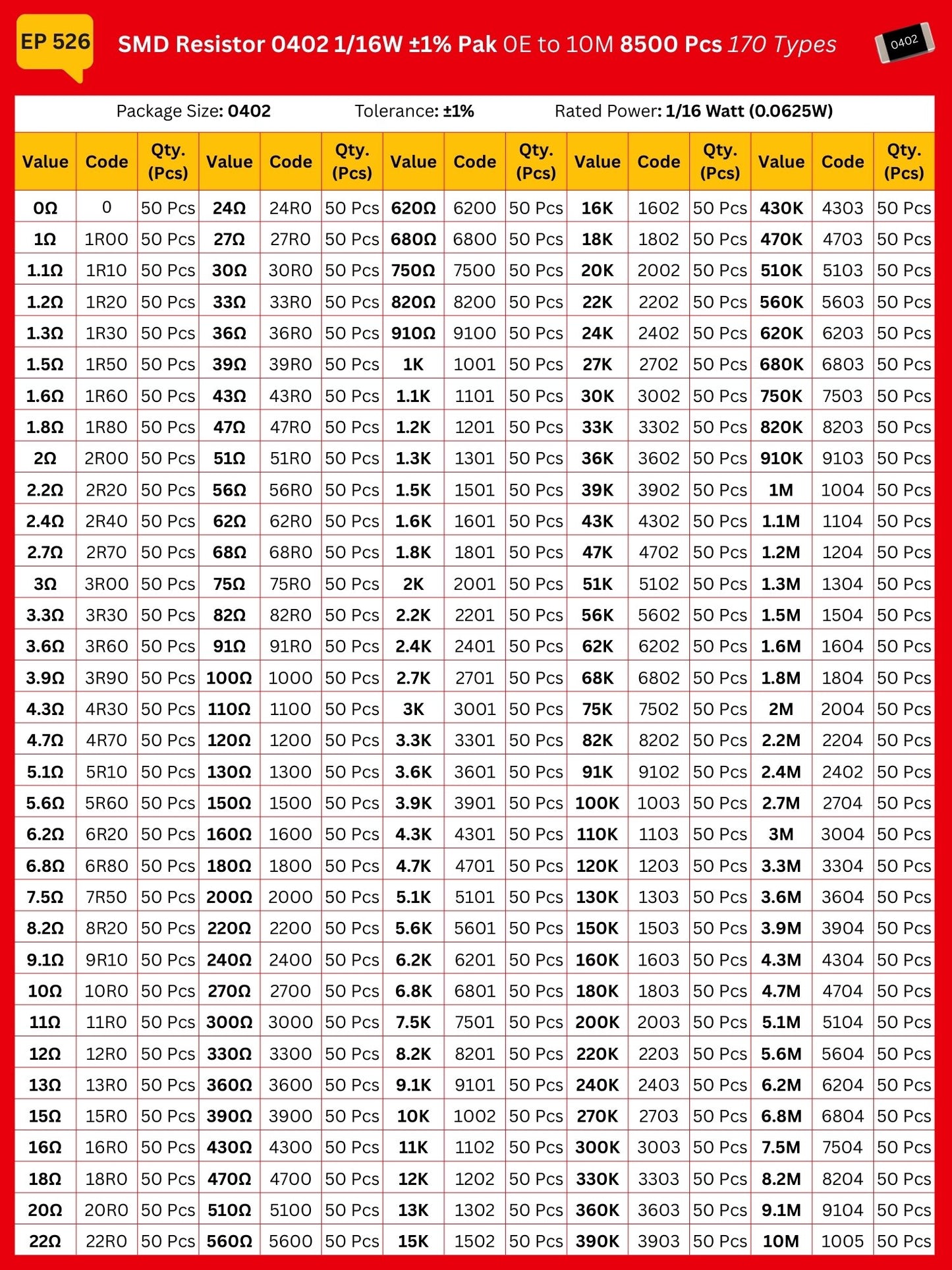

8500 SMD Resistor 0402 1/16W ±1% 170 Values

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Technical Specification:

  • Type: SMD

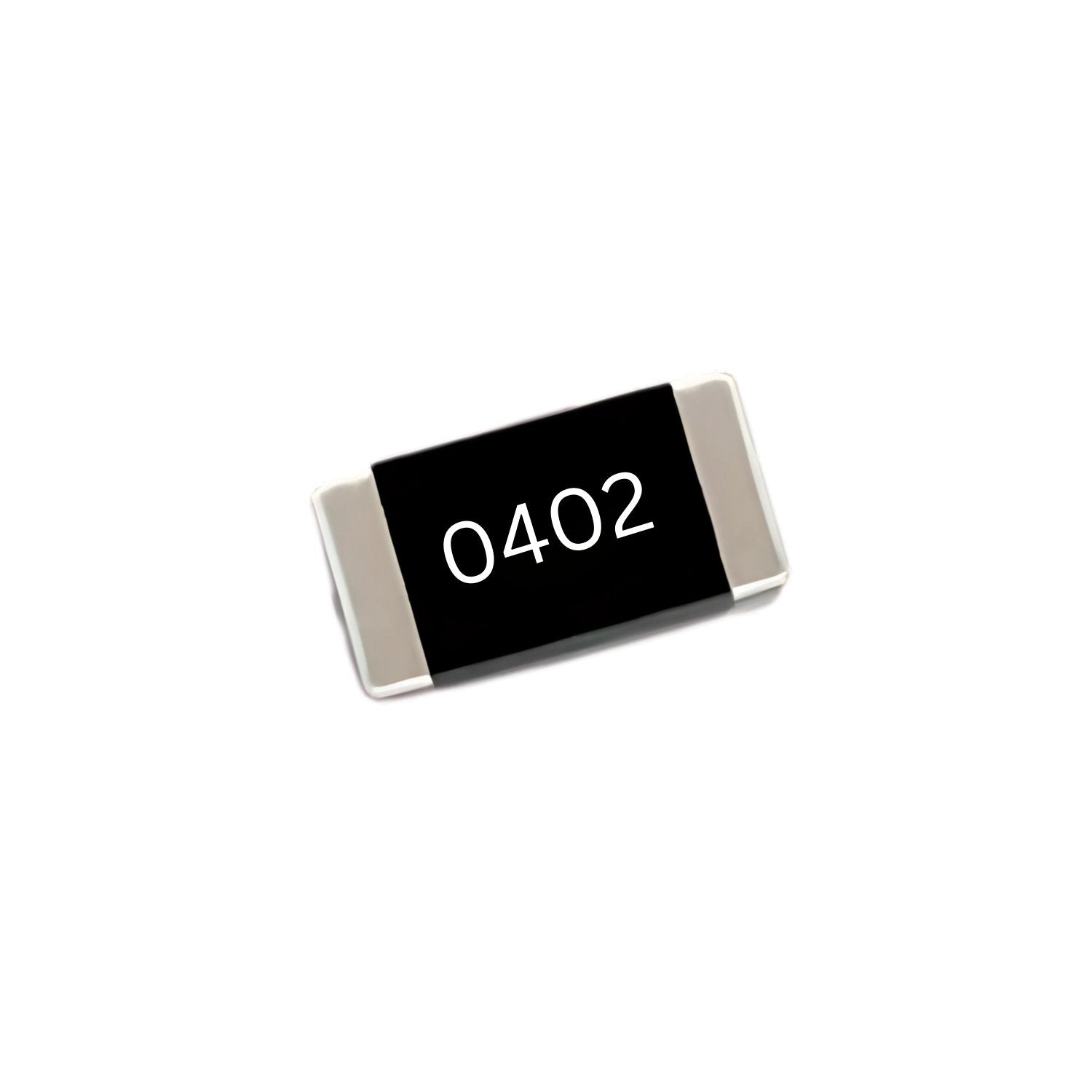

  • Model: 0402 Resistor
  • Package Type: 0402
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±1 %
  • Rated Power: 1/16 Watt (0.0625W)
  • Pak Weight: 500 gm
  • Pak Dimensions: 280 x 140 x 60 mm

Description

The SMD (Surface Mount Device) Resistor 0402 1/16W ±1% series is a set of precision chip resistors designed for compact electronic circuits. With a wide resistance range from 0 ohms to 10M ohms and tight tolerance, these resistors are ideal for signal processing, voltage division, and current control in space-constrained applications.

Resistor Symbol:

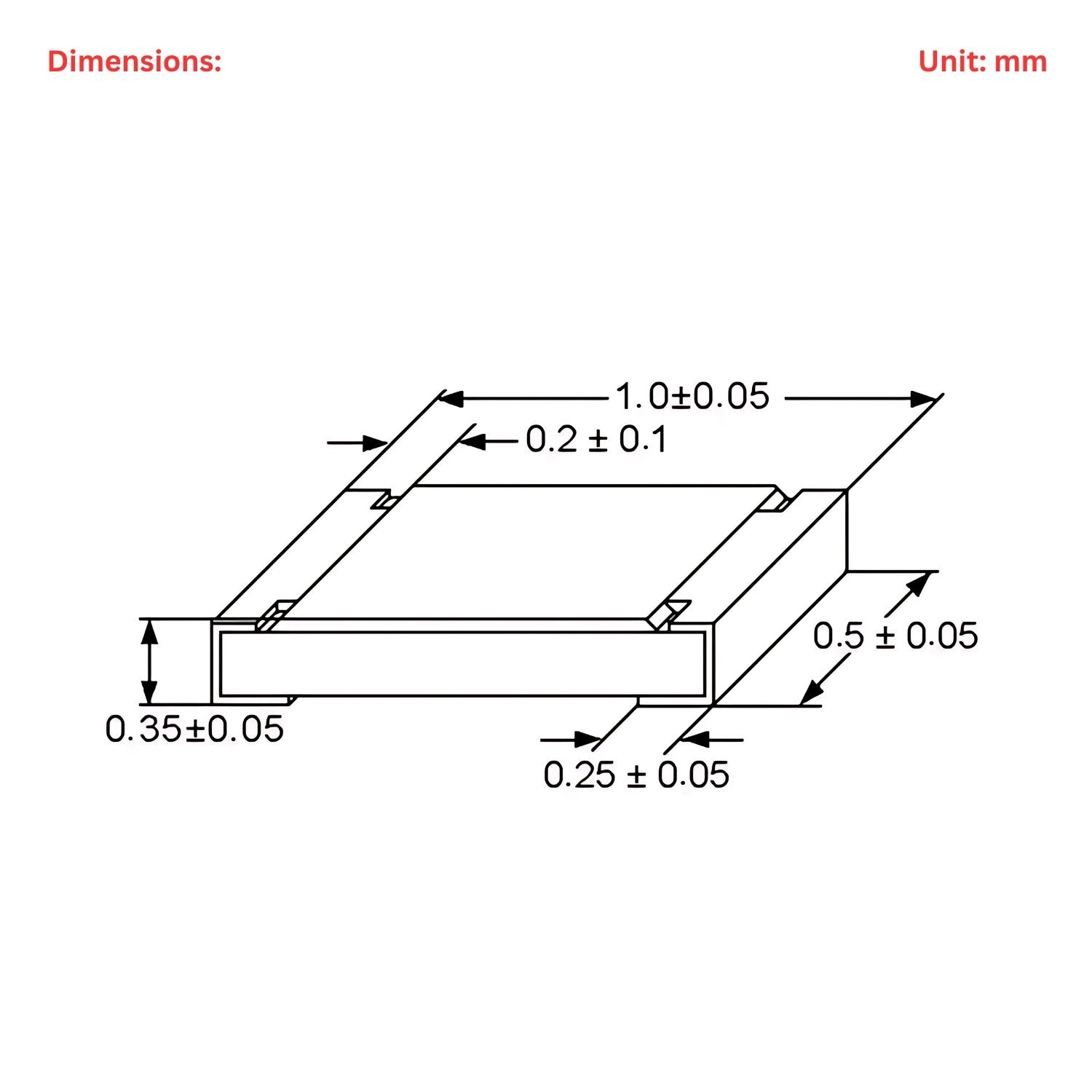

0402 Resistor Structure:

Features:

  • Ultra-compact 0402 size for high-density PCBs
  • Broad resistance range (0Ω to 10MΩ)
  • High precision with ±1% tolerance
  • Excellent stability and reliability

Applications:

  • Smartphones & Tablets - Provide compact and precise resistance for signal control in dense PCBs
  • Wearable Devices - Ensure miniaturized, reliable performance in space-limited designs
  • Medical Electronics - Deliver high accuracy and stability in sensitive diagnostic circuits
  • Automotive Electronics - Used in control units for dependable operation under harsh conditions
  • IoT & Embedded Systems - Support low-power, high-efficiency designs in connected devices
