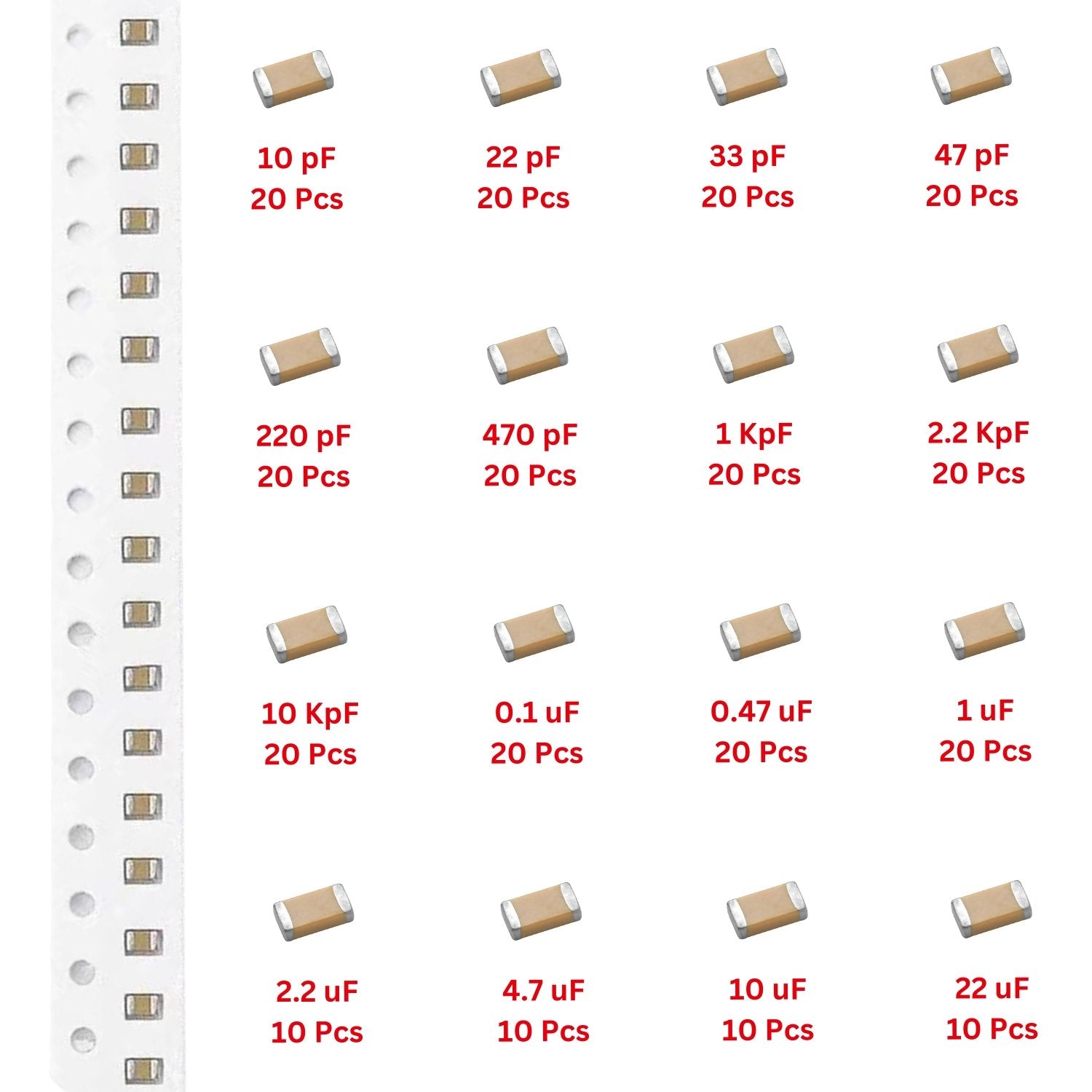

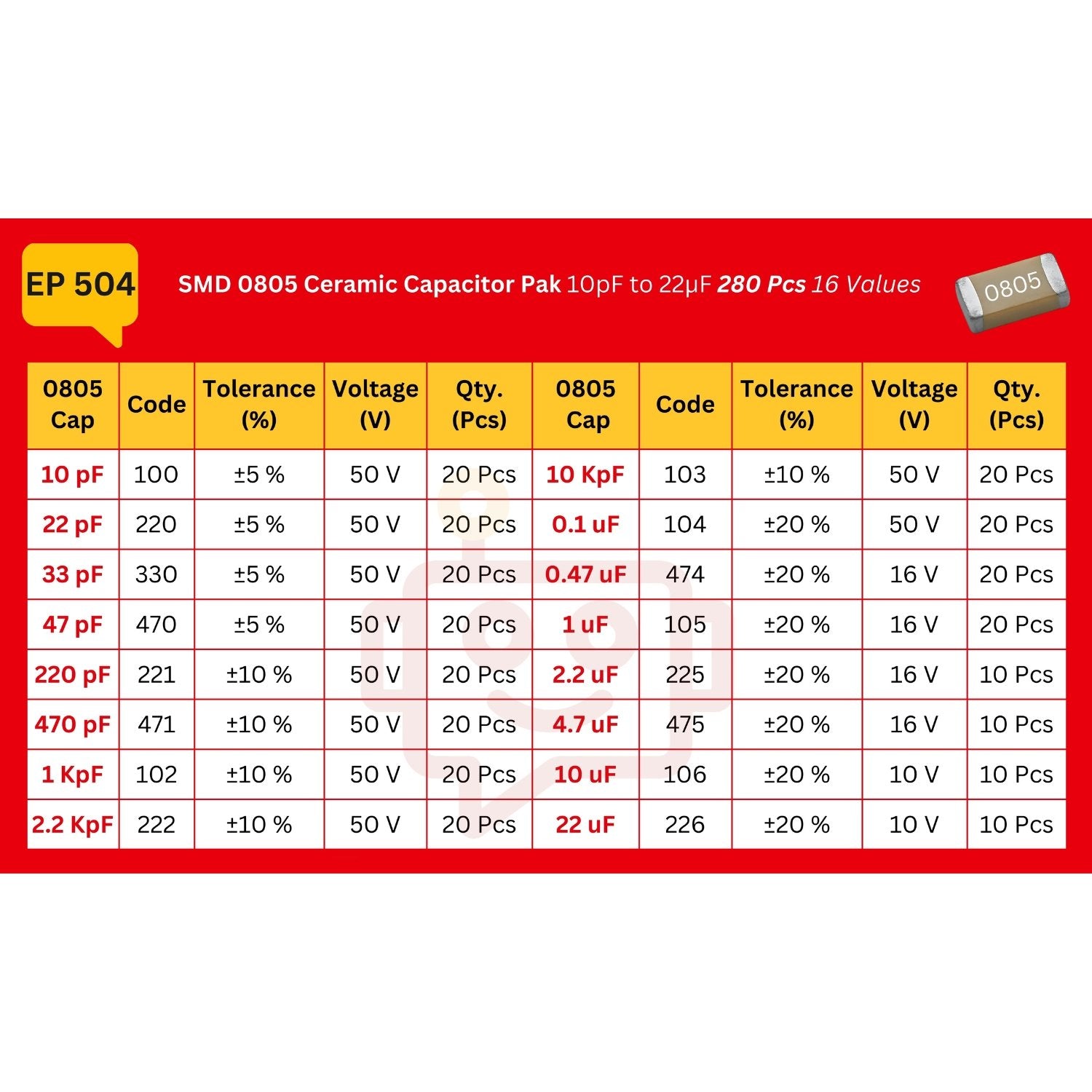

SMD 0805 Capacitors are small-sized surface-mount devices (SMD) with a package size of 0805, which is approximately 2.0mm x 1.25mm. They are widely used in electronic circuits for various purposes, such as decoupling, filtering, signal processing, and energy storage. These capacitors are typically made from ceramic materials and are commonly found in a wide range of consumer electronics, automotive electronics, telecommunications, and industrial devices.This 280-piece SMD 0805 capacitor assortment includes 16 different capacitance values with varying voltage ratings, making it an ideal selection for electronics prototyping, repair, and circuit design.
0805 Capacitor Symbol:

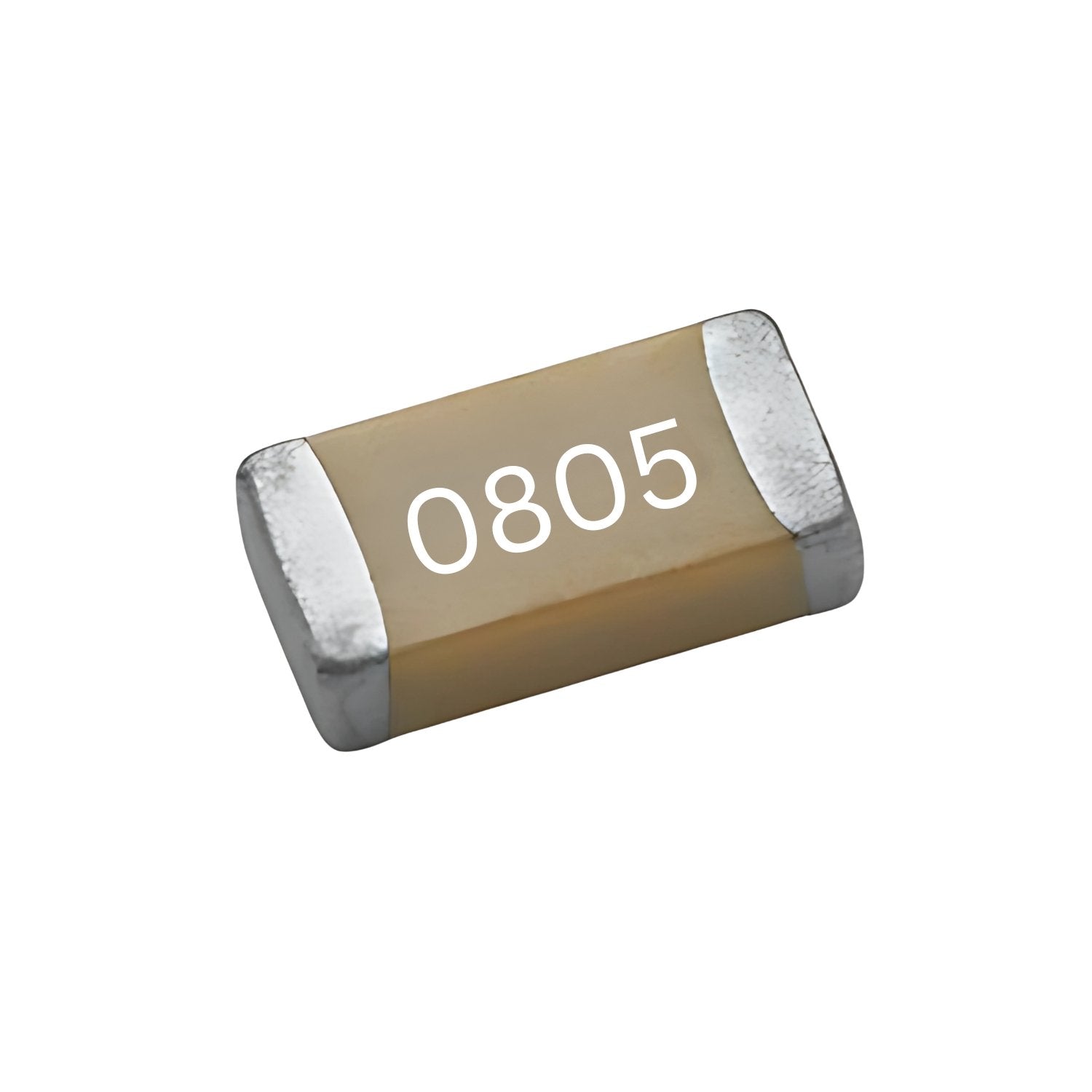

0805 Capacitor Structure:
Features:
- Wide Capacitance & Voltage
- Compact 0805 SMD Package
- Low ESR & High Stability
- SMT Assembly Compatible
- Pre-Sorted & Organized
Applications:
- Power Supply Filtering - Reduces noise and stabilizes voltage
- Decoupling & Bypassing - Prevents signal interference in circuits
- RF & High-Frequency Circuits - Used in oscillators and communication devices
- Signal Coupling & Blocking - Passes AC signals while blocking DC components
- Embedded Systems & Microcontrollers - Ensures stable operation in digital circuits
