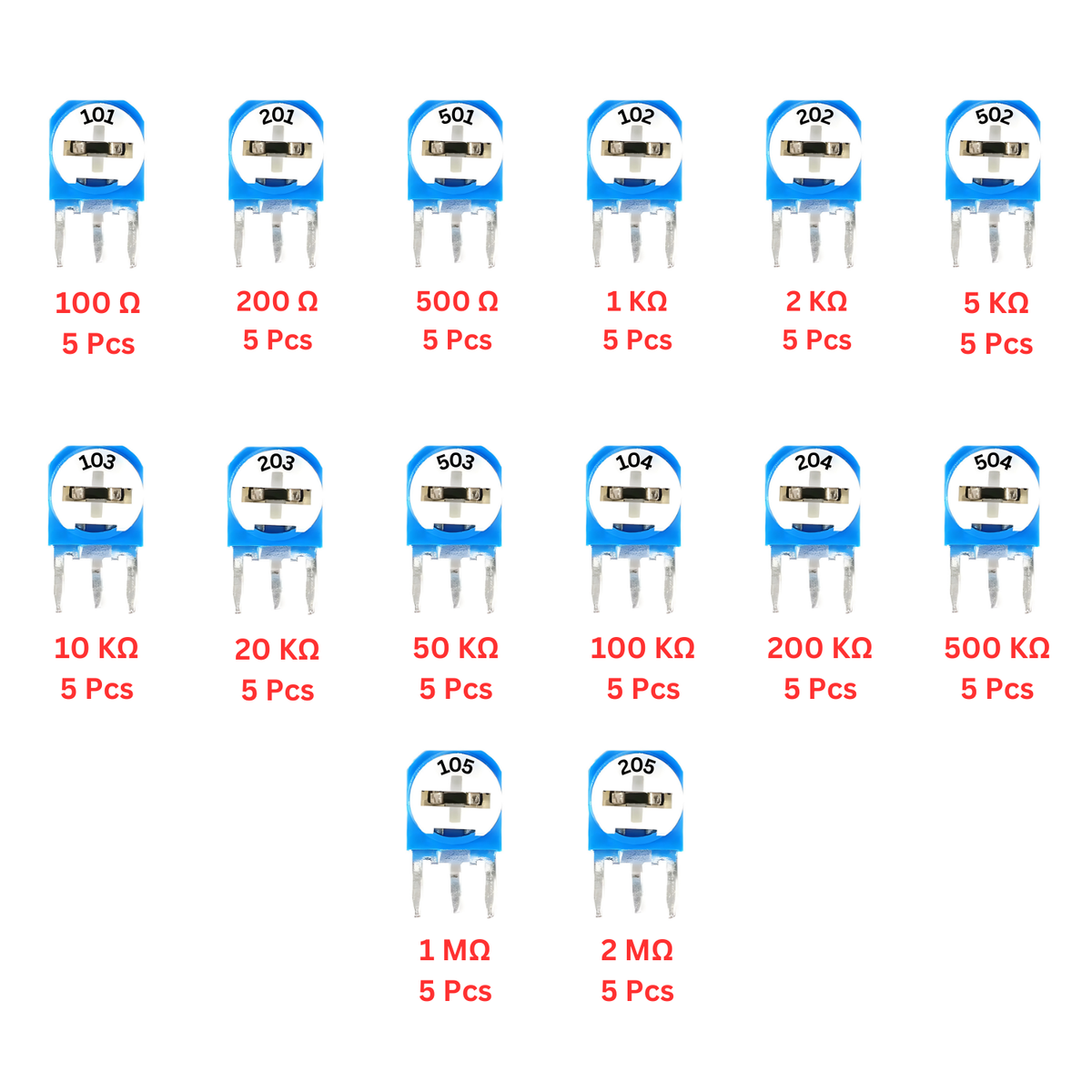

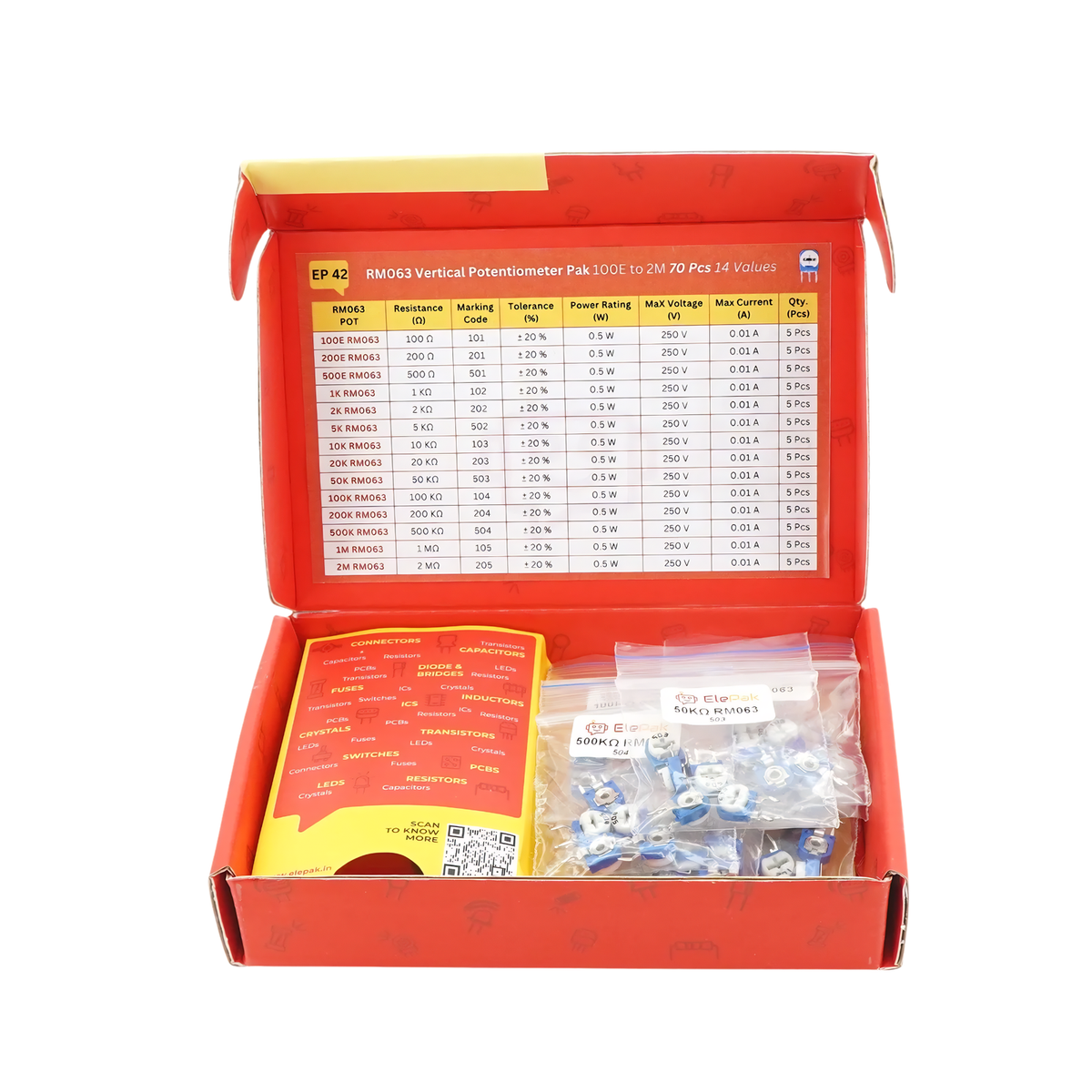

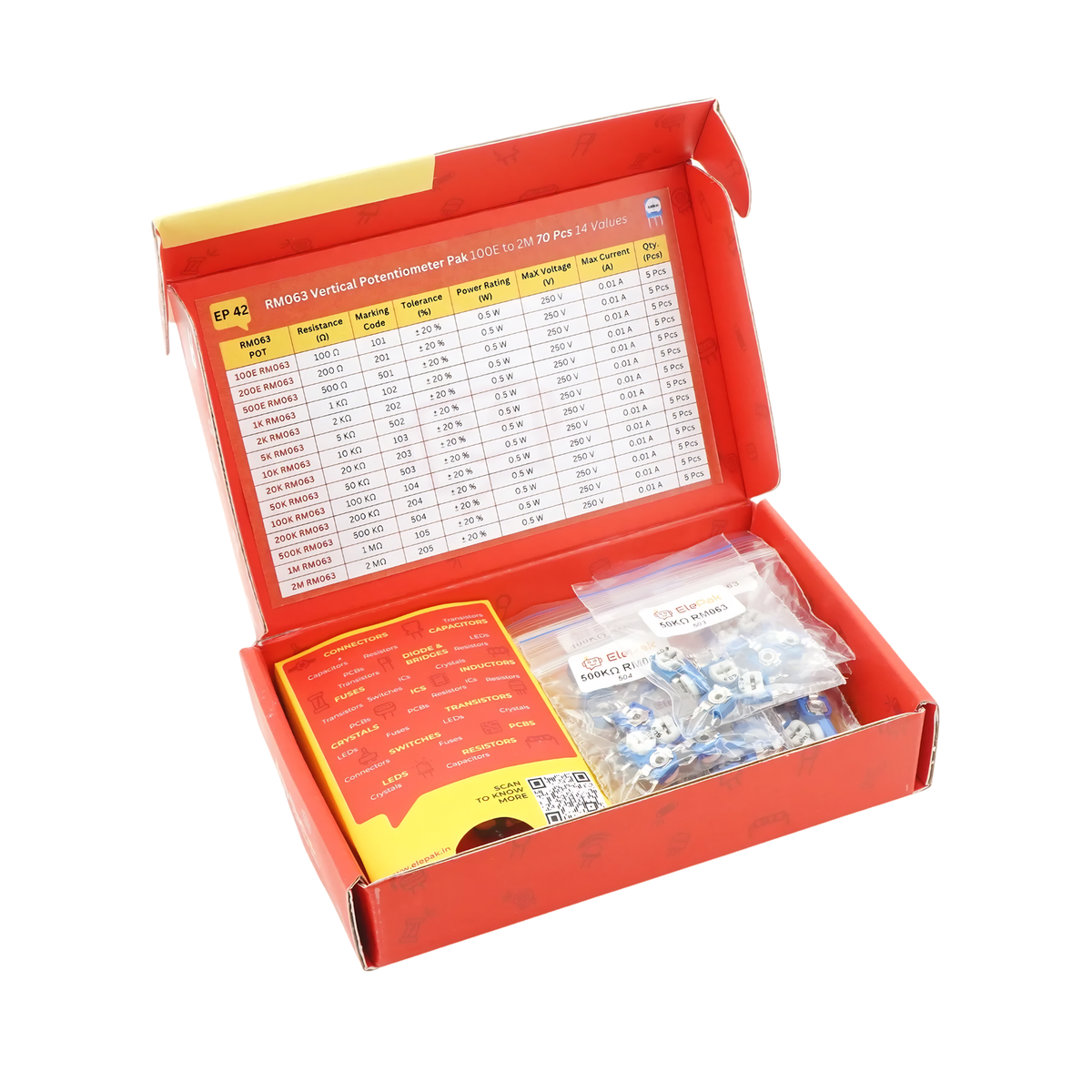

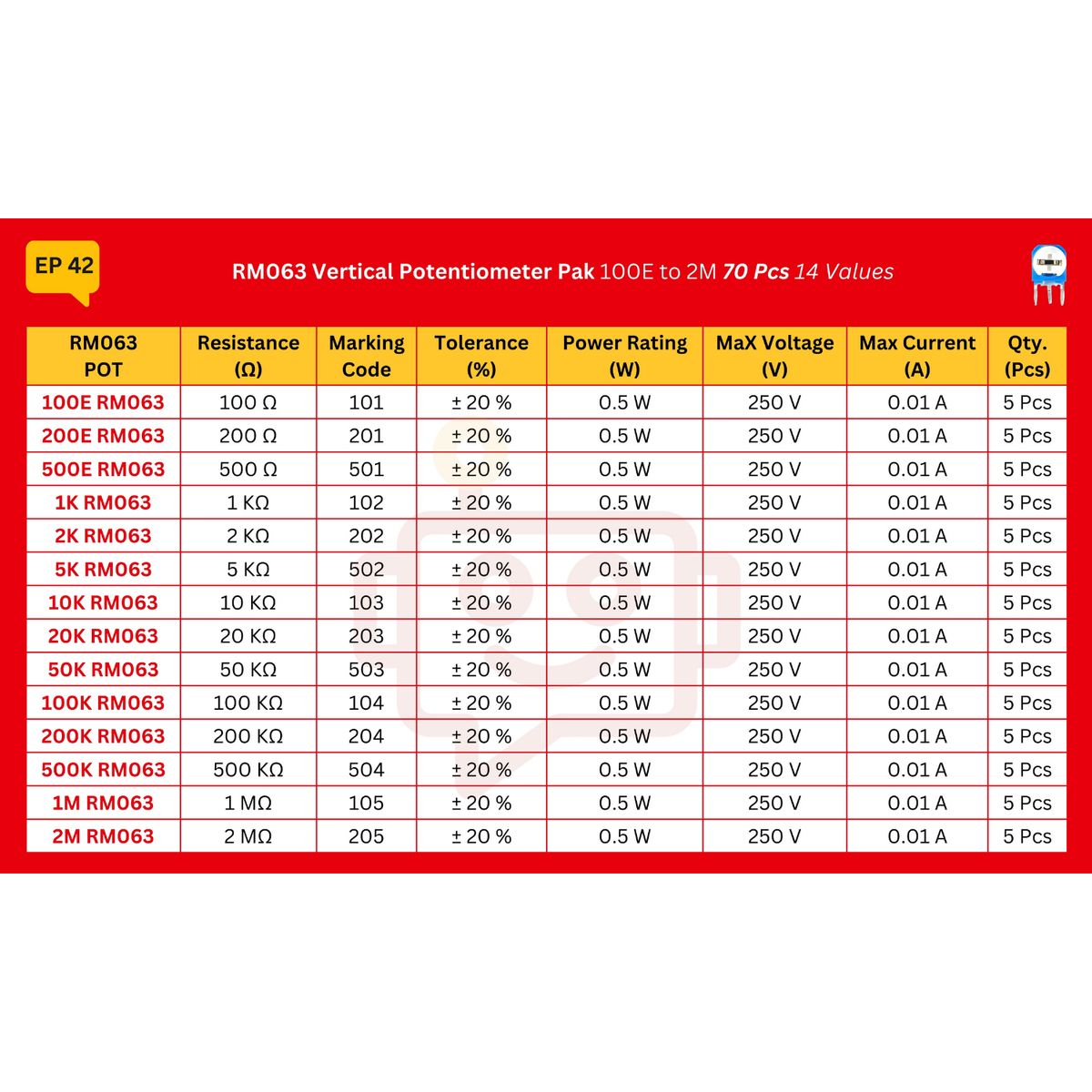

The RM063 Vertical Potentiometer Pak is a practical assortment of compact adjustable resistors designed for circuit calibration, voltage adjustment and signal control. This pack includes 70 potentiometers in 14 resistance values ranging from 100Ω to 2MΩ, offering a broad selection for prototyping, repairs and component replacement.
Its vertical mounting design helps save PCB space and allows convenient adjustment using a screwdriver. The RM063 Vertical Potentiometer Pak is suitable for power supplies, amplifier circuits, sensor modules, control boards, audio equipment, testing devices and DIY electronics projects.
Potentiometer Symbol:
RM063 POT Pin Configuration:
- PIN 1: Input (A) – Connects to the input voltage or signal
- PIN 2: Wiper (W) – Adjustable output, the variable connection point controlled by the potentiometer
- PIN 3: Output (B) – Connects to the output voltage or signal, depending on the adjustment of the wiper
Features:
- Precise vertical adjustment
- Durable with 0.5W power rating
- Compact design for tight spaces
- Suitable for low-power applications
- Versatile for audio, lighting, and circuit tuning
- Cost-effective
Applications:
- Audio Control: Adjusts volume, tone, or balance in audio systems
- Lighting Control: Used for dimming or adjusting brightness in lighting circuits
- Circuit Calibration: Fine-tunes resistance for precise testing and tuning in electronic circuits
- Prototyping: Enables flexibility in resistance settings for developing new electronic designs
- Signal Adjustment: Allows precise control of voltage or signal levels in various devices
