The 49-DIP type crystals are quartz crystals housed in a Dual In-line Package (DIP) configuration, specifically designed for precision frequency control in electronic circuits. These crystals are well-suited for applications requiring accurate timing and oscillation, such as microcontrollers, clocks, and frequency generation circuits.
Crystal Symbol:

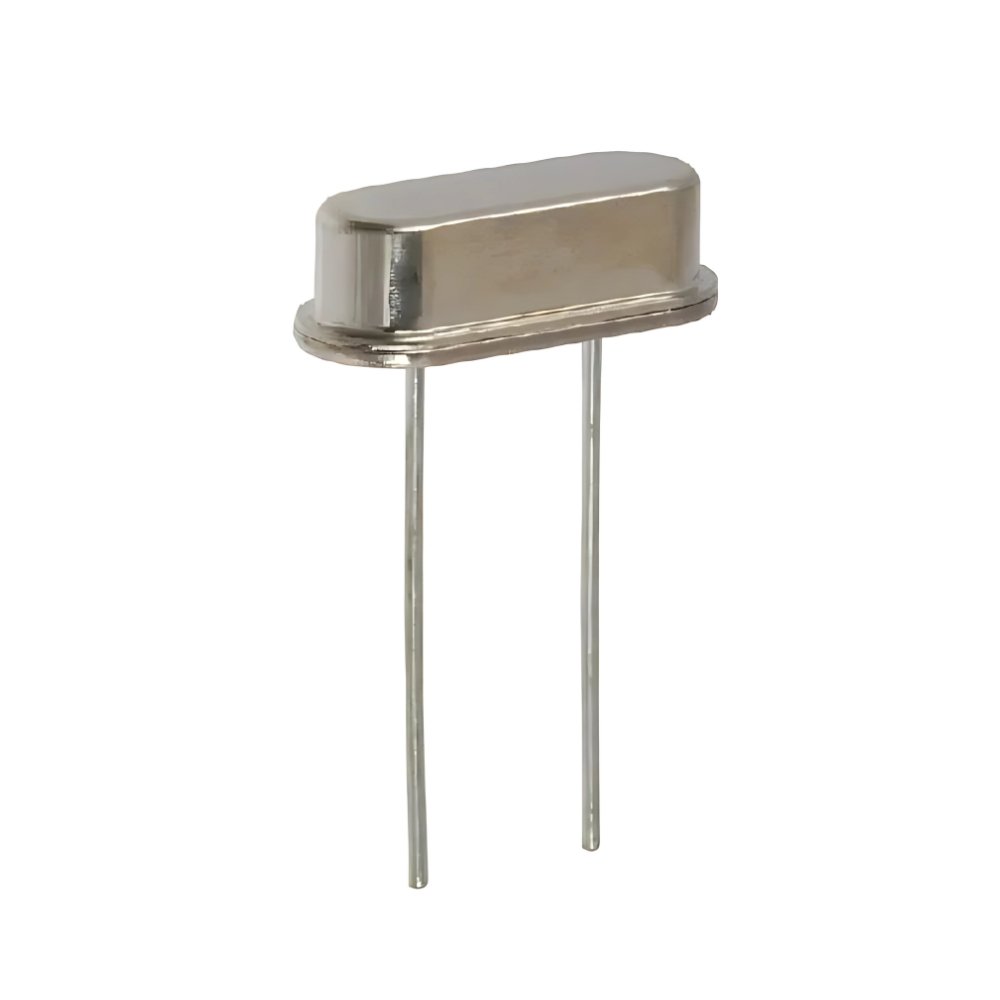

Crystal Structure:
Features:
- Precision and Stability
- Wide Temperature Range
- Low Aging Rate
- Compact and Convenient
- Cost-Effective
- Easy Integration
- Low Power Consumption
Applications:
- Microcontroller Clock Sources: Provide accurate timing signals for microcontrollers and processors
- Real-Time Clocks (RTC): Used in devices like watches and alarms for timekeeping
- Frequency Generators: Generate precise frequencies for testing and signal generation
- Signal Processors: Help with signal timing and synchronization in communication systems
- Communication Systems: Ensure accurate frequency control in RF and data transmission equipment
- Embedded Systems: Used for timing in microprocessor-based designs and systems
- Consumer Electronics: Found in digital clocks, audio equipment, and other time-dependent devices
- Timing Devices: Used in timers, counters, and event-driven systems for stable and accurate timing
