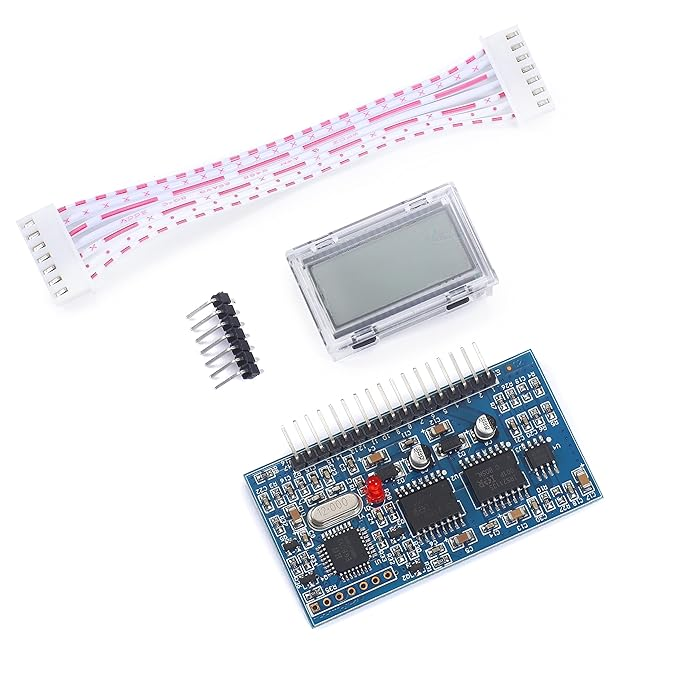

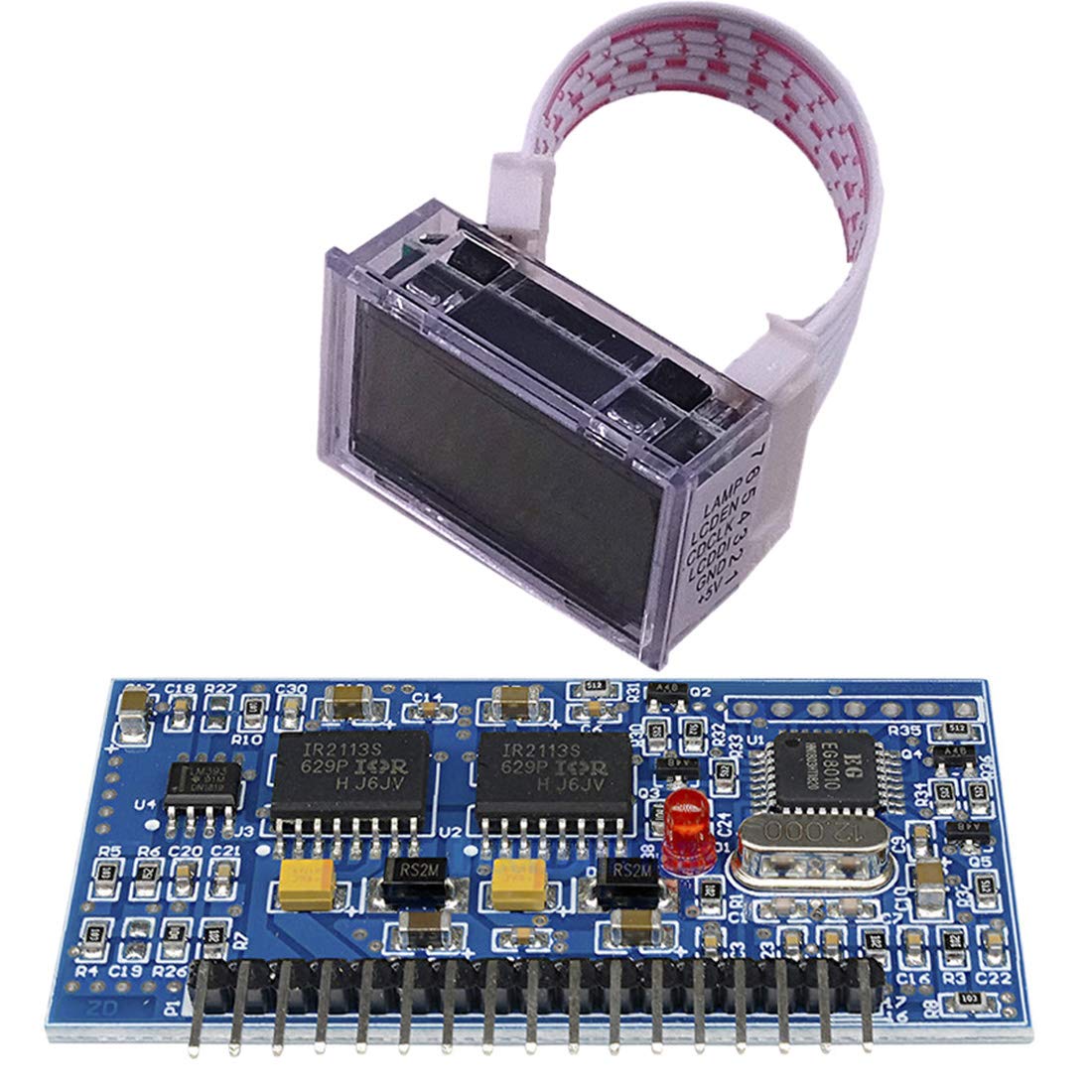

This is a EGS002 EG8010 + IR2113 DC-AC SPWM Pure Sine Wave Inverter Module.

EGS002 is a driver board-specific for single-phase sinusoid inverter. It uses ASIC EG8010 as control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control. Jumper configures 50/60Hz AC output, soft start mode and dead time. EGS002 is an improved version of EGS001 that is compatible with EGS001’s original interfaces. EGS002 also integrates cross-conduction prevention logic to
enhance its ability of anti-interference, and LCD display interface for users’ convenience to use chip’s built-in display function.

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two-stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead-time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

Features:

1. Voltage, current, real-time temperature feedback
2. Overvoltage, Undervoltage, overcurrent and overheating protection
3. Soft-start mode pin setting the response time of 1S
4. Serial communication to set the output voltage, frequency and other parameters
