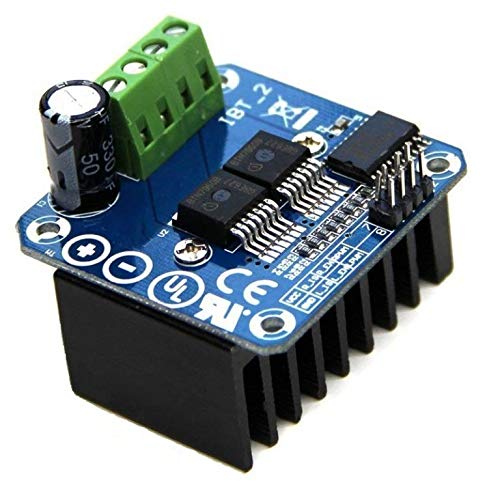

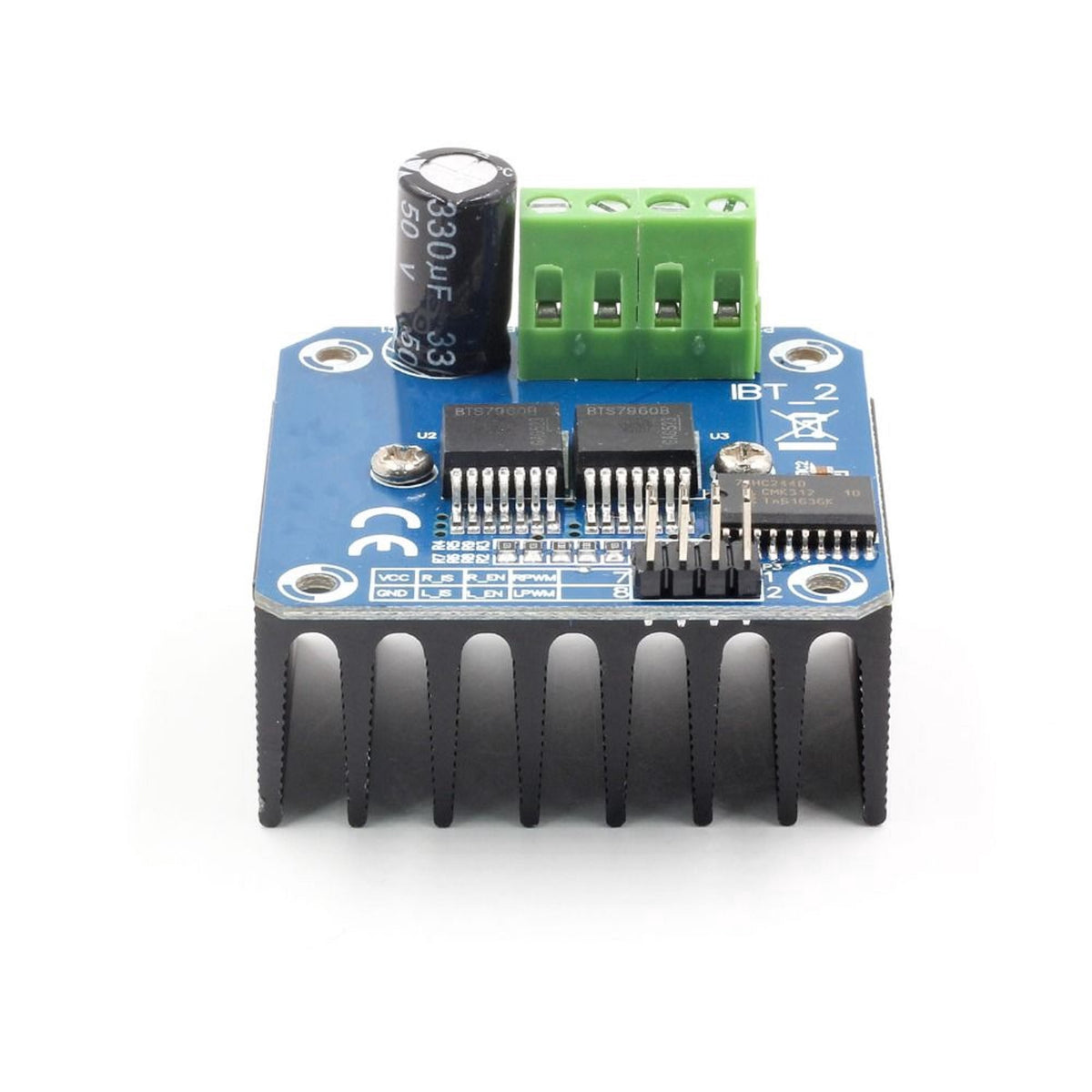

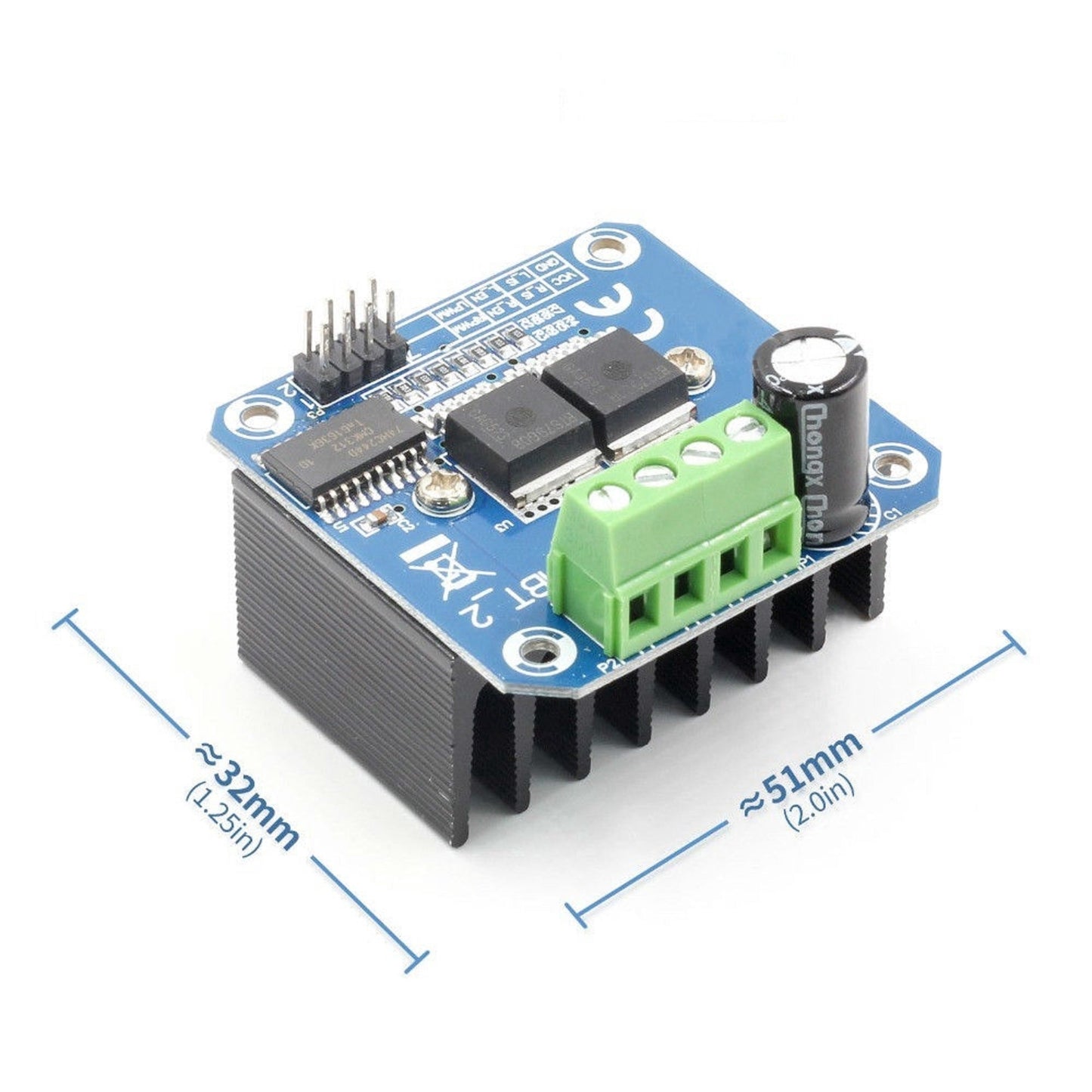

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
Regular price
Rs. 314.00
Regular price
Sale price
Rs. 314.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- This is BTS7960B 43A H-Bridge Motor Driver
- Double BTS7960 large current (43 A) H bridge driver

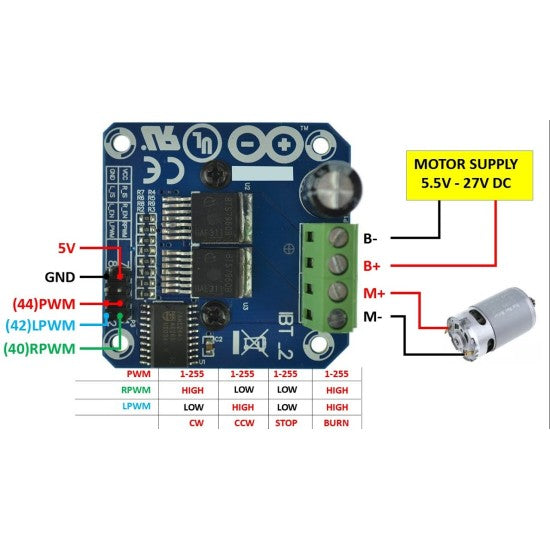

- The supply voltage: 5.5V to 27V
- This has Overtemperature shut down with latch behavior
- This has Overvoltage lockout and Undervoltage shut down
- The Driver circuit with logic level inputs.
- This has an onboard 5V power indicator
- This has a driver circuit with logic-level inputs.
Features
• Path resistance of type. 16 m? @ 25 °C
• Low quiescent current of typ. 7 µA @ 25 °C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behavior
• Overvoltage lockout
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
• Low quiescent current of typ. 7 µA @ 25 °C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behavior
• Overvoltage lockout
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
The Double BTS7960 43A H-Bridge High-Power Motor Driver Module is a fully integrated high current H bridge designed for motor drive applications that use the BTS7960 high current half bridge.
The NovalithICTM family includes the BTS7960. This package contains one p-channel high-side MOSFET and one n-channel low side MOSFET, as well as an integrated driver IC. The p-channel high-side switch eliminates the need for a charge pump, reducing EMI.
The integrated driver IC simplifies interfacing to a microcontroller by providing logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation, and protection against overtemperature, overvoltage, undervoltage, overcurrent, and short circuit.
