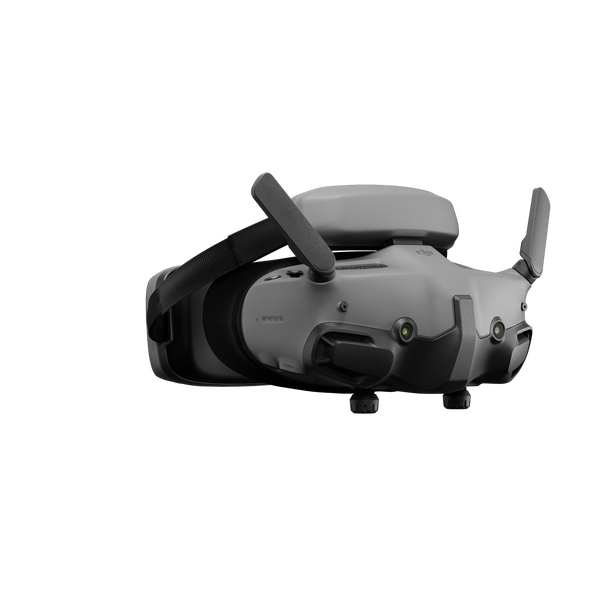

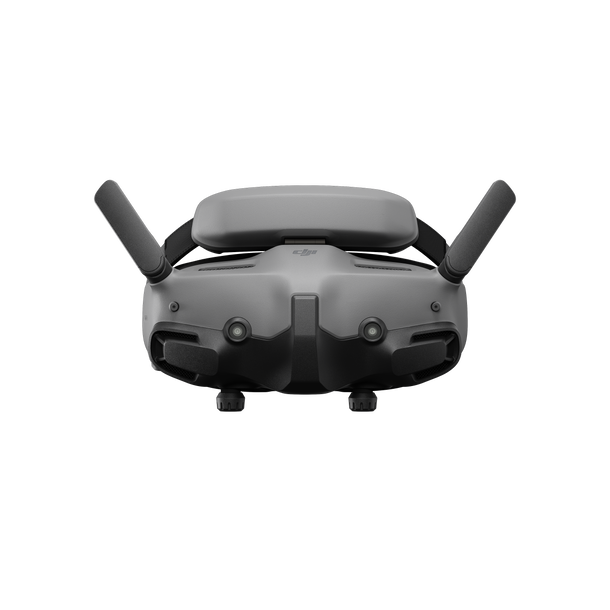

DJI Goggles 3 can be paired with DJI Avata 2 and DJI RC Motion 3 for intuitive body movement control. Merely tilt your head or wrist, and you will be flying Avata 2, enjoying an immersive and visually thrilling experience through the sky. Goggles 3 features the novel Real View PiP and comes equipped with DJI O4 low-latency video transmission, offering reliable safety and stability for your flight.
Real View PiP, An Effortless Reality Check
A simple double-tap on the right-side panel of the goggles toggles the display between the interactive interface and the live view of the real-world environment, while the real-time flight footage remains consistently displayed in the upper left corner of the screen. Without removing your goggles, you can now conveniently observe your surroundings to get enhanced flight safety.
Next-Gen O4 HD Video Transmission
DJI Goggles 3 is equipped with DJI's latest O4 digital video transmission with a 2-transmitter, 4-receiver, and 6-antenna design, ensuring a robust anti-interference capability. The system features a transmission latency as low as 24 ms, covers a range of up to 13 km, and automatically selects between the 2.4 GHz or 5.8 GHz bands depending on signal conditions to maintain stable, near-synchronous flight perceptions.
With a maximum video transmission rate of 60Mbps coupled with SyncSmooth Technology, video transmission performance from the skies to the ground is significantly optimized. This creates clearer, smoother visuals for a more comfortable viewing experience.
Low-Pressure Padding
DJI Goggles 3 incorporates the forehead pad into the foam padding, reducing pressure and nose-light leakage. The result is a soft, comfortable fit.
One-Tap Defogging
With defogging enabled, an internal fan rapidly accelerates to maximum speed, ensuring the lenses stay clear by swiftly circulating air – a convenient solution for sudden changes in temperature or high-humidity conditions.
Battery and Headband Integration
The sleek design, weighing in at a mere 470 g with an even weight distribution, integrates the battery with the headband. This liberates you from the tangle of cables, making the goggles easy to put on and take off, leaving you free to move. With a lengthy 3-hour operating time, there's more than enough power to meet the needs of immersive flights – circle through the sky multiple times and still have a generous reserve of battery.

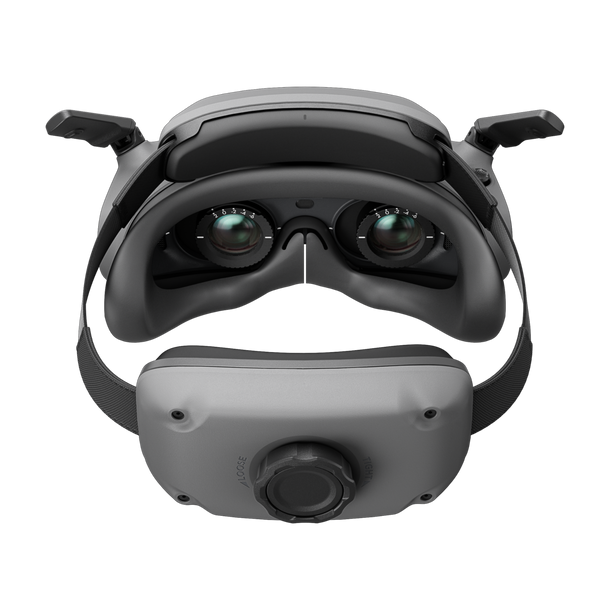

Refraction Adjustment, Instant Clarity
Supporting a diopter adjustment from -6.0 D to +2.0 D, Goggles 3 enables real-time visibility directly onscreen, making adjustments a simple and swift operation.
Quick Control With AR Cursor
When used with DJI RC Motion 3, you can treat the Motion 3 as an AR cursor to navigate the menu on the goggles' screen. The AR cursor makes using Goggles 3 simple. Enabling functions, adjusting the camera settings, and modifying transmission specifications have never been more efficient.
More Fun With Wireless Streaming
Avata 2's video transmission is displayed on the DJI Fly app interface when Goggles 3 is Wi-Fi connected to a smart device. Connect up to 5 m away. Sharing the excitement of FPV just got easier, and learning how to fly is more accessible than ever. You can also import panoramic and 3D videos onto an SD card and play them back using the Goggles 3 for an immersive experience that seems almost within reach.
A New Flight Experience With Camera Drones
DJI Goggles 3 is compatible with DJI Air 3 and DJI Mini 4 Pro. You can control the drones using DJI RC Motion 3, DJI RC 2, or DJI RC-N2 remote controllers for a fresh, immersive flying experience.
Goggles
-
Model
-
TKGS3
-
Weight
-
Approx. 470 g (battery included)
-
Dimensions (L×W×H)
-
With antennas folded: 170×109×112 mm (L×W×H)
With antennas unfolded: 205×109×112 mm (L×W×H)
-
Screen Size (single screen)
-
0.49 inch
-
Resolution (single screen)
-
1920×1080
-
Refresh Rate
-
Up to 100 Hz
-
Interpupillary Distance Range
-
56-72 mm
-
Diopter Adjustment Range
-
-6.0 D to +2.0 D
-
FOV (single screen)
-
44°
-
Video Recording Format
-
MOV
-
Supported Video and Audio Playback Formats
-
MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
Panoramic Video: Spherical 2D panoramic videos.
3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).
Max Video Specification: 4K/60fps
-
Real View FOV
-
44°
-
Operating Temperature
-
-10°C to 40°C (14°F to 104°F)
-
Power Input
-
Built-in battery
-
Supported SD Cards
-
microSD (up to 512 GB)
-
Recommended microSD Cards
-
Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Video Transmission
-
Video Transmission
-
When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
With DJI Avata 2: DJI O4
-
Operating Frequency
-
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.
-
Transmitter Power (EIRP)
-
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
-
Latency
-
With DJI Avata 2:
1080p/100fps video transmission quality: latency down to 24 ms
1080p/60fps video transmission quality: latency down to 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
-
Max Transmission Distance
-
When used with DJI Avata 2, DJI Goggles 3 can achieve the following max video transmission distance:
13 km (FCC); 10 km (CE/SRRC/MIC)
-
Max Video Bitrate
-
60 Mbps
Measured in an outdoor open environment without interference. Actual data varies with the operating environment.
Wi-Fi
-
Protocol
-
802.11 a/b/g/n/ac
-
Operating Frequency
-
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.
-
Transmitter Power (EIRP)
-
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.1 GHz:
< 20 dBm (FCC/CE/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Bluetooth
-
Protocol
-
Bluetooth 5.0
-
Operating Frequency
-
2.400-2.4835 GHz
-
Transmitter Power (EIRP)
-
< 10 dBm
GFSK
-
Operating Frequency
-
2.4000-2.4835 GHz
-
Transmitter Power (EIRP)
-
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
Battery
-
Dimensions
-
121×65×52.5 mm (L×W×H)
-
Capacity
-
3000 mAh
-
Voltage
-
5.6-8.4 V
-
Category
-
Li-ion
-
Chemical System
-
LiNiMnCoO2
-
Energy
-
21.6 Wh
-
Charging Temperature
-
0° C to 50° C (32° F to 122° F)
-
Max Charging Power
-
20 W (charging when powered off)
-
Runtime
-
Approx. 3 hours
The 3-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the battery of the goggles fully charged and not supplying power to external devices such as smartphones.

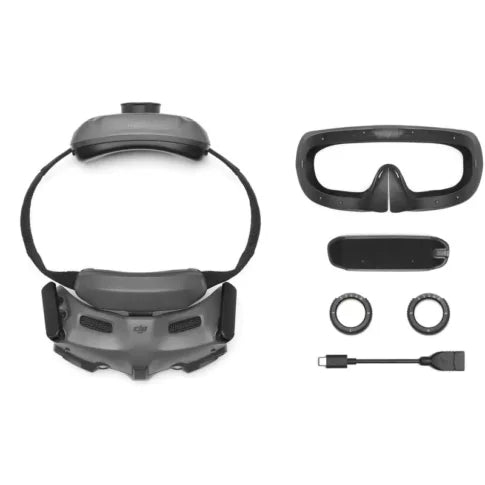

Package Includes:
1x DJI Goggles 3
1x Foam Padding
1x Additional Forehead Pad
1x DJI Corrective Lenses for FPV Goggles (-2.0D)
1x USB-C OTG Cable
