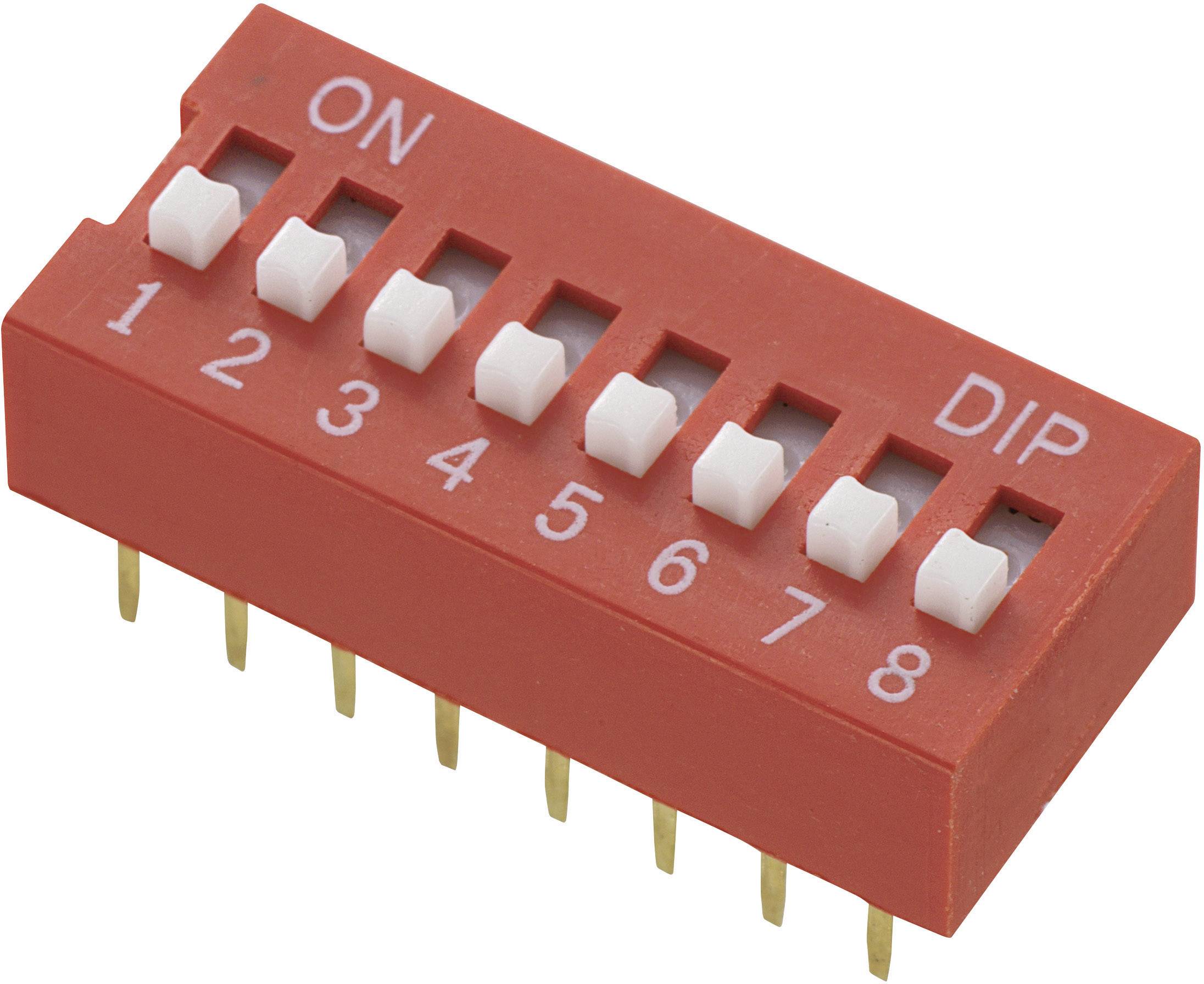

DIP Switch 8 Way DS-08 (8 Way Slide Switch 2.54mm Pitch)
DIP Switch 8 Way DS-08 (8 Way Slide Switch 2.54mm Pitch)
Regular price
Rs. 19.00
Regular price
Sale price
Rs. 19.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- No of Pins : 8 way
- Type : DIP (Dual-In-Line)
- Max Operating Voltage : 50 VDC
- Max Current (Carrying Capacity) : 150 mA DC
- Max Switching : 0.8 W
- Contact Resistance : <100 mΩ
- Insulation Resistance (at 100 VDC) : >100 mΩ
- Test Voltage (1 minute) : 500 VAC
- Life Expectancy : 1000 operations
- Operating Temperature : -20 to +80 C
- Mounting Type : Through Hole
- Pitch : 2.54 mm
