Digital Voltmeter (0-100V) and Ammeter (50 A) Dual Led Voltage Current Measurement Module with Shunt
Specifications:-
- Input Voltage - 4.5V to 100V DC
- Input Current - <= 20mA
- Display Color - Red (Voltage) , Blue (Current)
- Measuring Voltage Range - 0V to 100V DC
- Measuring Currrent Range - 0A to 50A
- Measurement Accuracy - 1%
- Minimum Voltage Resolution - 0.1V
- Minimum Current Resolution - 0.01A
- Meter Size - 48x29x21mm
Note:- Maximum Input Voltage should not exceed 100V otherwise there is a danger of burning
Wiring:-
- Black line (thin): vacant or buck circuit (module) Negative
- Red line (thin): power supply Positive
- Black line (thick): COM, common measuring
- Red line (thick): PW+, measuring terminal voltage input positive
- Yellow line (thick): IN+, current input Positive

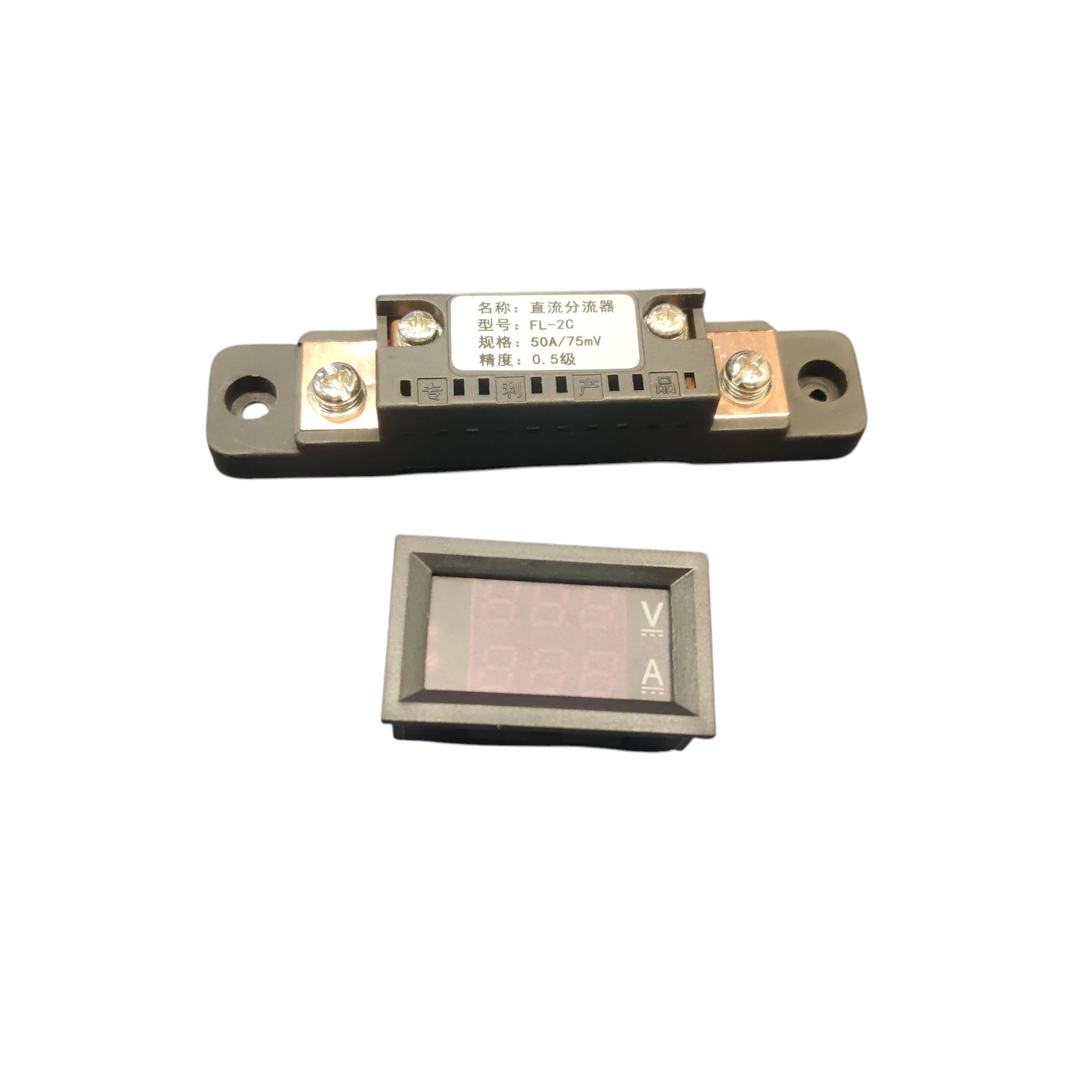

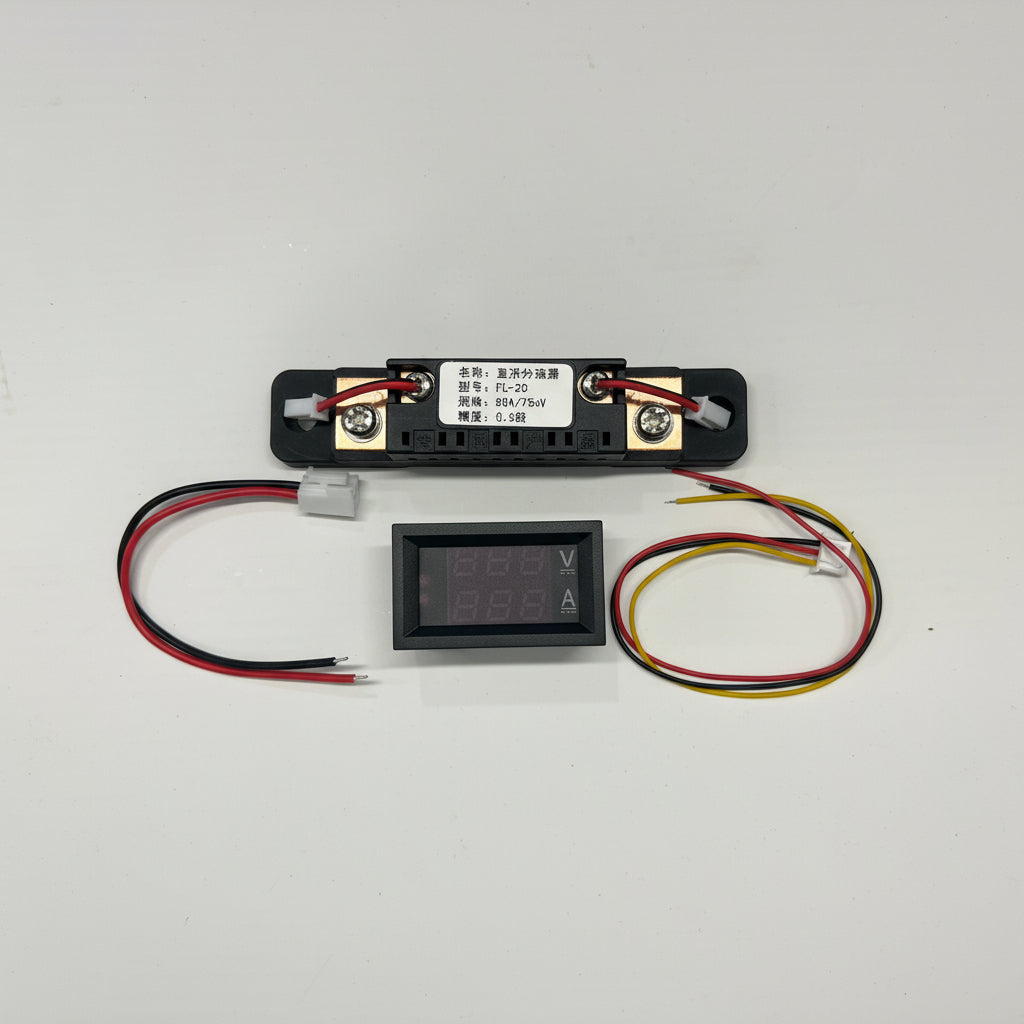

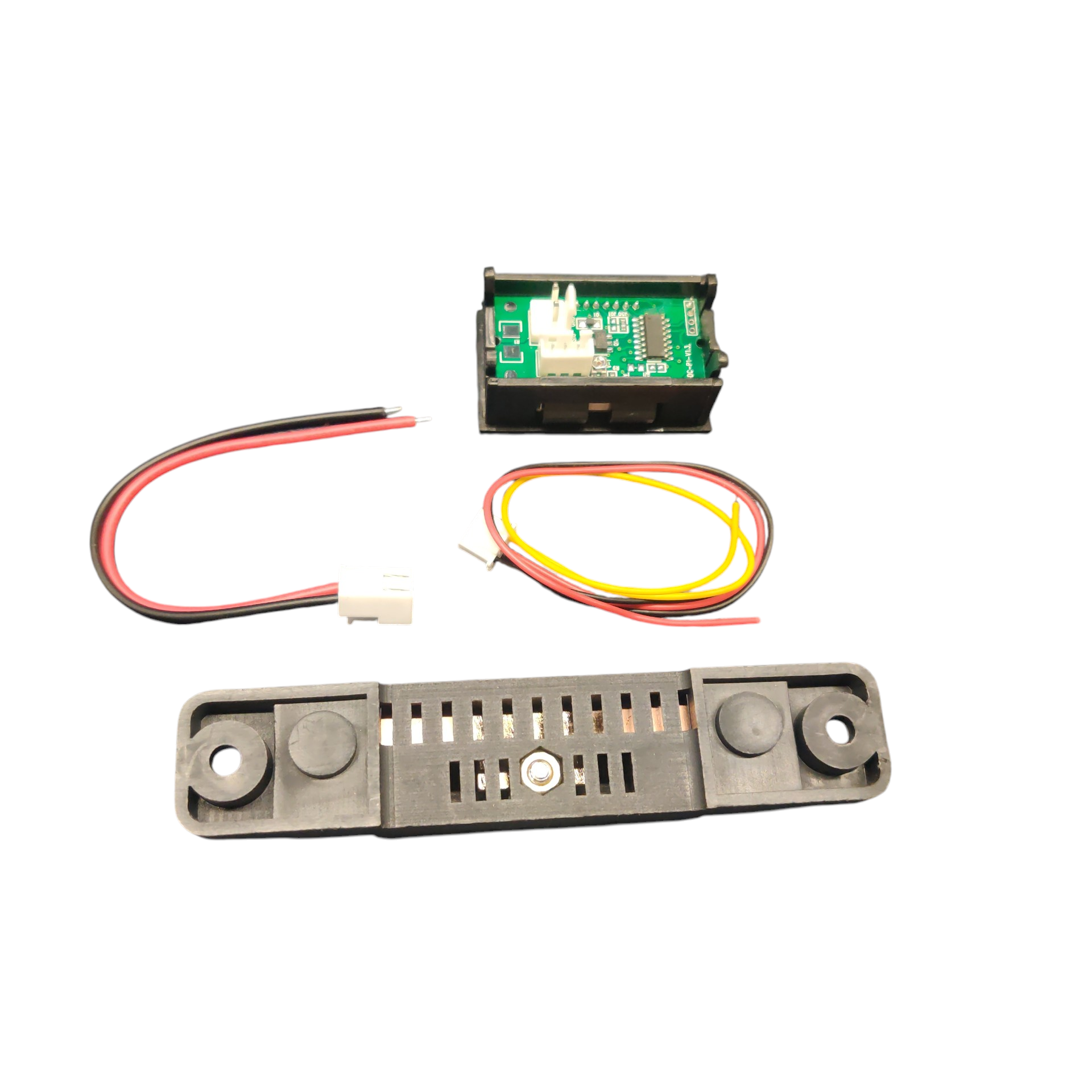

Package Contains:-
1 x Digital Voltmeter & Ammeter Module
1 x FL-2C 50A 75mV Analog DC Current Shunt Resistor With Base
1 x Two wire thin connector
1 x Three wire thin connector
