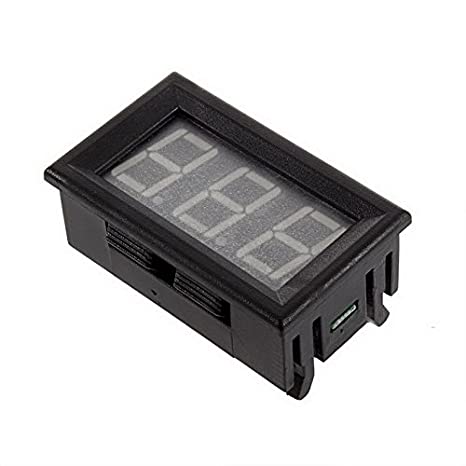

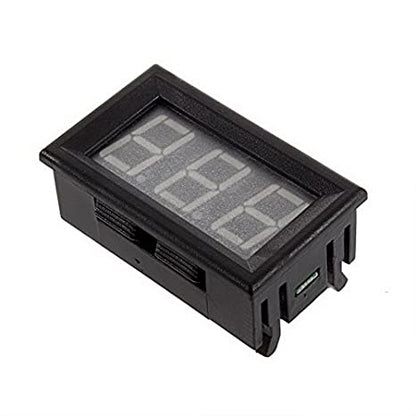

Digital Ammeter AMP Mini Current Digital Panel Meter DC 4.5-28V 0-9.99A

Rs. 249.00 Rs. 300.00

Subcribe to back in stock notification

All Prices Incuding GST

Save upto 28% in Input Credit

All Price are including GST & other applicable Taxes, For B2B GST Input Please update your GSTIN Number

Order Through WhatsApp

+91-8249931161

MON-SAT 11 AM- 6 PM

If you are facing difficulties to Place Order, feel free to Whatsapp us @8249931161, we will place order for you

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-75/-, 95/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+91-7749850441

The maximum input DC10A (do not hold a full scale input) Resolution of 0.01A Permissible error 1% (+ / - 1 words)
Display three 0.56 \"LED digital tube
Display color: blue Refresh rate of about 500mS / DC4.5-28V power supply
Current consumption less than 20mA, generally 5 to-15mA
Item size: 40*24*23mm Net weight: 23g Packaging weight: 32g


--

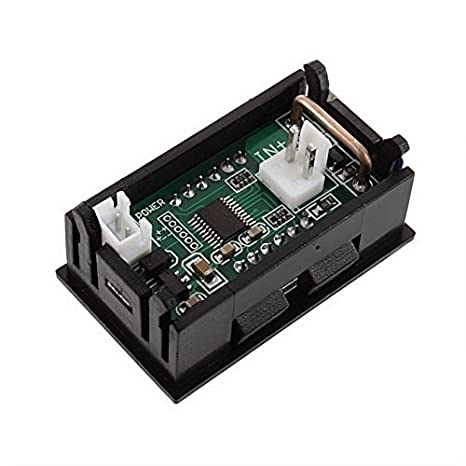

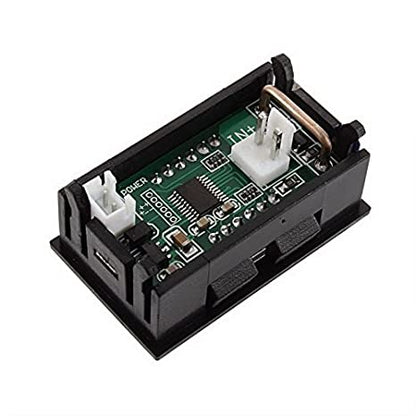

Put a current meter anywhere with this very handy display. This panel meter requires a DC voltage to run, and then has two thick gauge wires to measure current draw. A shunt is already on board so its very easy to hook up!

The easiest and safest way to use the meter is to have no electrical connection between the powering and sensing current. That is, connect something like a 9V battery to the thin power wires and you can put the current sensor in anywhere you want. As long as the circuits are totally separate this will work great.

The display has a microcontroller that will read the current through the shunt resistance, compare it to a stable reference and display the current in Amps on a 3-digit 0.56" tall 7-segment display. It works from 4.5V up to 30V and is reverse-polarity protected so it will be good for nearly any electronic project! The meter itself draws about 20mA to power the microcontroller and display. This particular LED display is a nice contrast red, which we found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.
