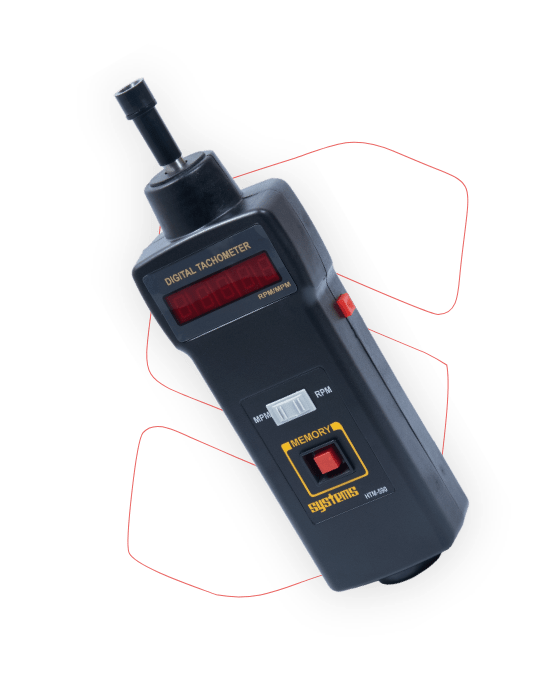

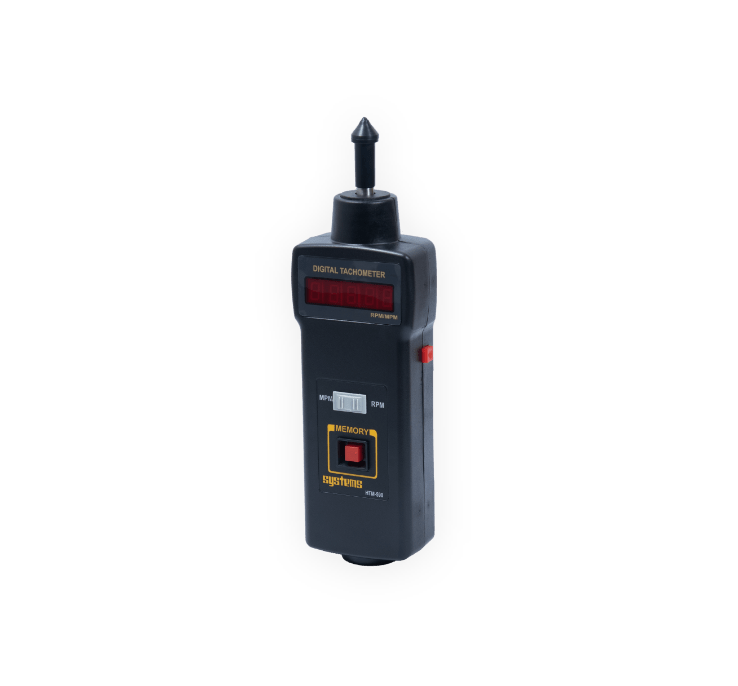

Systems HTM590 Contact Type Digital Tachometer

Rs. 2,999.00 Rs. 3,500.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

Model Number – HTM 590

A contact-type tachometer is a device used to measure the speed of a rotating object, such as a motor or shaft. It typically consists of a dial, a needle, and an adjustable contact point. The needle is connected to the contact point, which is placed against the object being measured. As the object rotates, the contact point vibrates against the surface of the object, causing the needle to move. The resulting reading on the dial indicates the speed of the object.



Key Features

Trusted for quality and reliability

  • Full Digital, Micro Controller LSI circuit design for high reliability and versatility
  • Comes with a sturdy, easy to carry/handle carrying case box with foam padding for protection against impact.
  • Ergonomically designed for handheld based operations for risk free RPM measurement at all times.
  • Excellent Quality, compact size and accurate reading.
  • Economic and effective Battery power utilization





Technical Specifications



Ranges 60 RPM – 50,000 RPM
6m/min – 5000 m/min (Surface speed)
Resolution 0.1 upto 1000 RPM
1 above 1000 RPM
0.01 upto 100 meter/min
0.1 above 100 meter/min
Display Type 5 DIGITS 10mm(0.38”) height RED LED
Accuracy +/- 0.05 + 1 Digit
Sampling Rate 1 second
Time Base Quartz Crystal Controlled
Low Battery Indicated by “Lobat” when the battery
voltage drops below operating voltage
Memory Recall ‘Last’, ‘Max’, ‘Min’ Values memorized automatically, upto 120sec can be recalled
Power Source 4 X 1.5V AA Battery. Auto Shut off feature included
Battery Life 90hrs for alkaline batteries | 30hrs for Carbon-Zinc batteries
Operating Temperature 0° Celsius to 60° Celsius (32° F to 140° F )
Size 70 x 200 x 40mm (2.8 x 7.8 x 1.6 inch)
Weight 320grams including battery

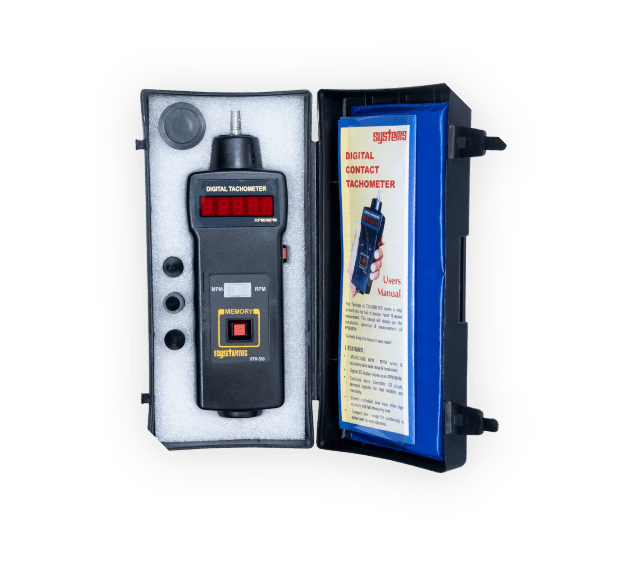

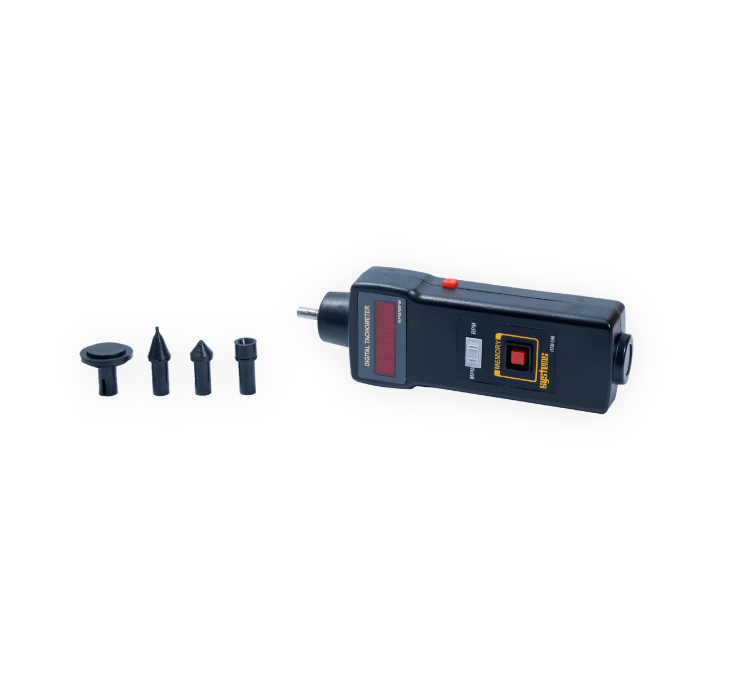

Standard Accessories Male rubber contact tip -2nos
Female rubber contact tip -2nos
Peripheral rubber contact tipReflective tape (Marks) – 1nos
Padded Carrying Case -1nos
User manual -1nos
