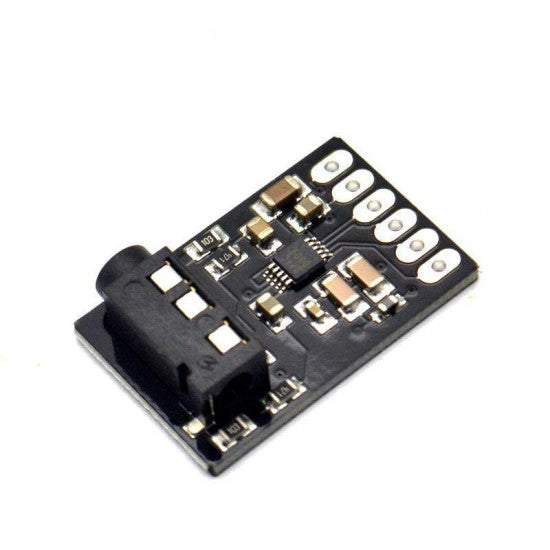

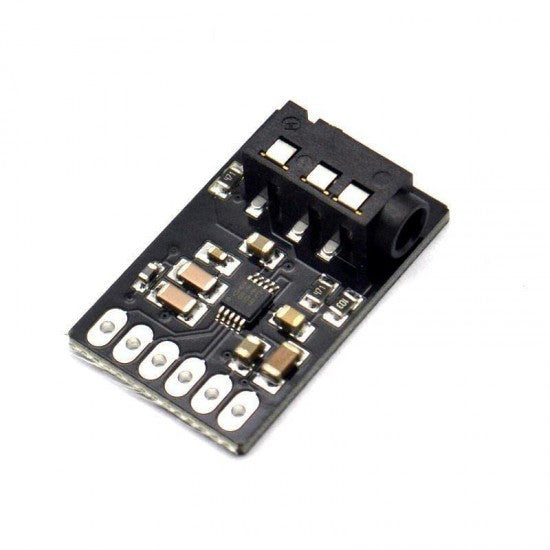

CJMCU-4344 CS4344 Digital to Analog Stereo Audio Conversion Module
CJMCU-4344 CS4344 Digital to Analog Stereo Audio Conversion Module
Couldn't load pickup availability
The CJMCU-4344 is a compact and efficient stereo digital-to-analog conversion module featuring the CS4344 chip. Designed for high-quality audio applications, it utilizes the I2S interface to deliver seamless integration with digital audio systems. This module is ideal for projects requiring precise and clear audio conversion, making it a great choice for audiophiles and developers alike.
The CS4344 chip supports stereo audio conversion with minimal distortion and noise, ensuring an excellent listening experience. Its small form factor allows for easy integration into a variety of devices, including audio players, microcontroller projects, and embedded systems.
Specifications
- Chipset: CS4344 Digital-to-Analog Converter
- Interface: I2S audio data interface
- Channels: Stereo output
- Resolution: 24 bit
- Input Voltages: 3.3V ~ 5V
- It can drive 16-120 ohm headphones
- Sampling Rate (Max): 192kHz
- Dynamic Range: 105dB
- Pin Number: 6 Pin

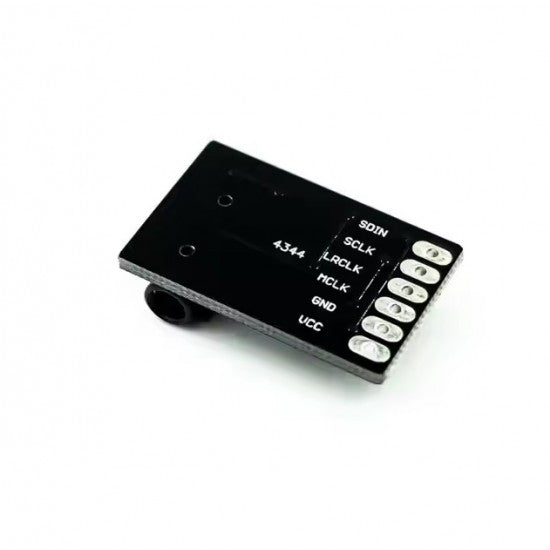

Instructions for Use:
- SDIN: Serial audio data input
- SCLK: External serial clock input
- LRCK: Left and right clock inputs to determine which channel, left or right, is currently active on the serial audio data line
- MCLK: Master clock source for modulator and digital filter
- GND: Ground terminal
- VCC: power terminal
Package Includes

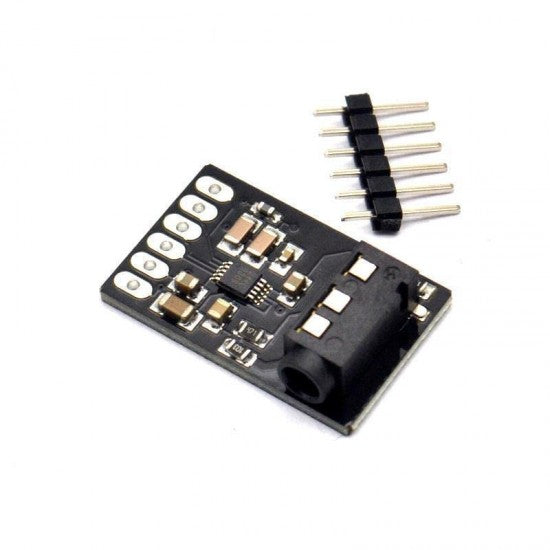

- 1x CJMCU-4344 CS4344 D/A Digital to Analog Stereo Audio Conversion Module
- 1x Pin Header
