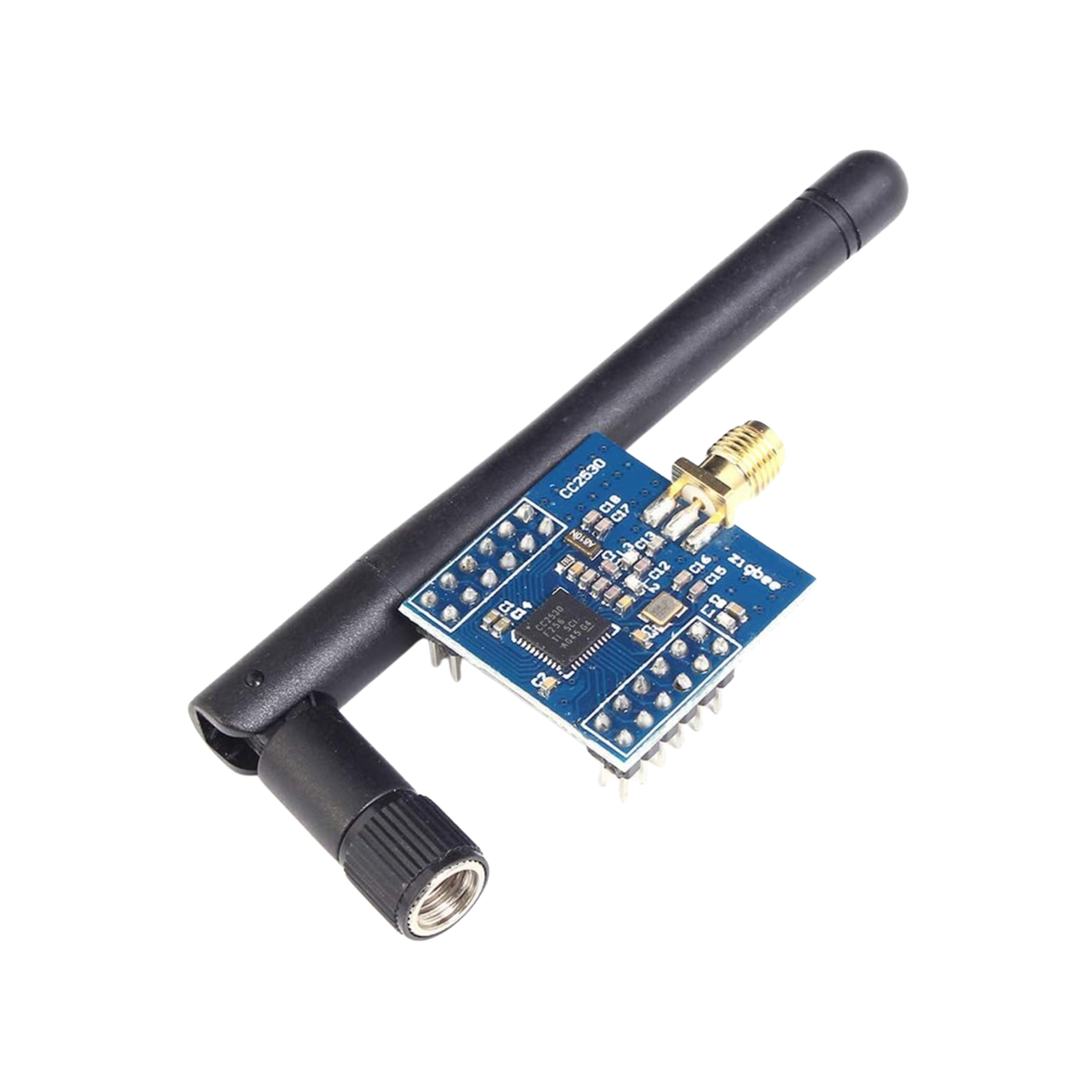

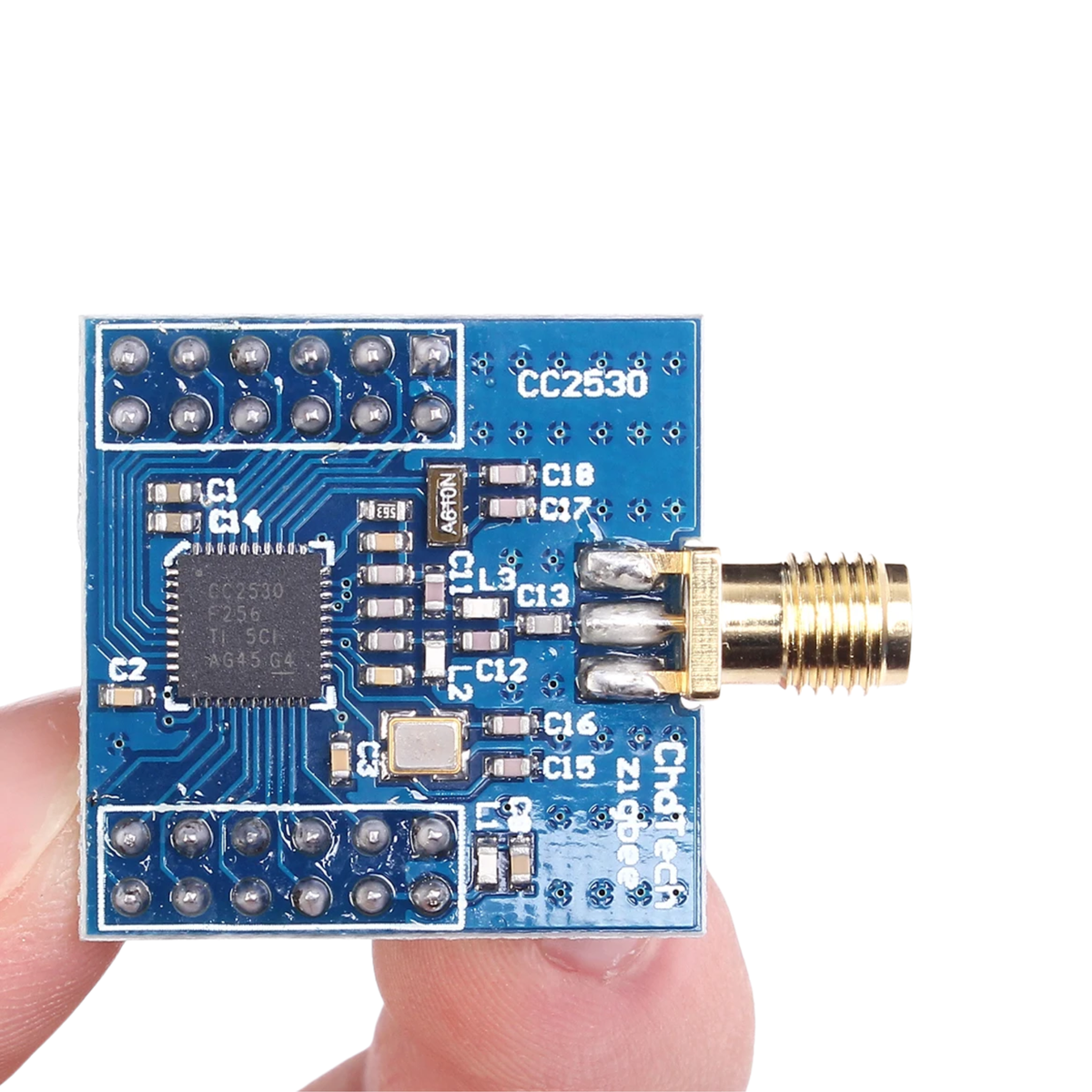

CC2530F256 Zigbee UART Wireless Core Module
CC2530F256 Zigbee UART Wireless Core Module
Regular price
Rs. 669.00
Regular price
Sale price
Rs. 669.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
- 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver.
-
Excellent Receiver Sensitivity and Robustness to Interference.
-
Programmable Output Power Up to 4.5 dBm.
- Very Few External Components
- 2.4-GHz IEEE 802.15.4 Systems.
This is a CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port, which supports Zigbee Protocol. The Module has a 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver, with Excellent Receiver Sensitivity and Robustness to Interference this module has programmable output power up to 4.5 dBm. Made with very few external components, this module supports 2.4-GHz IEEE 802.15.4 systems.
The pin configuration is given below:
| Pin Number/Name | Pin Name |
| P03 | TX |
| P02 | RX |
| VCC | 3.3V |
| GND | GND |
| P21 | Debug Data |
| P22 | Debug Clock |
| RST | Reset |
Specifications:
- Based on TI CC2530F256 Zigbee SoC with 256KB Flash memory
- Supports IEEE 802.15.4 / Zigbee wireless communication
- Operating Frequency: 2.4 GHz ISM band
- Operating Voltage: 2.0V – 3.6V DC
