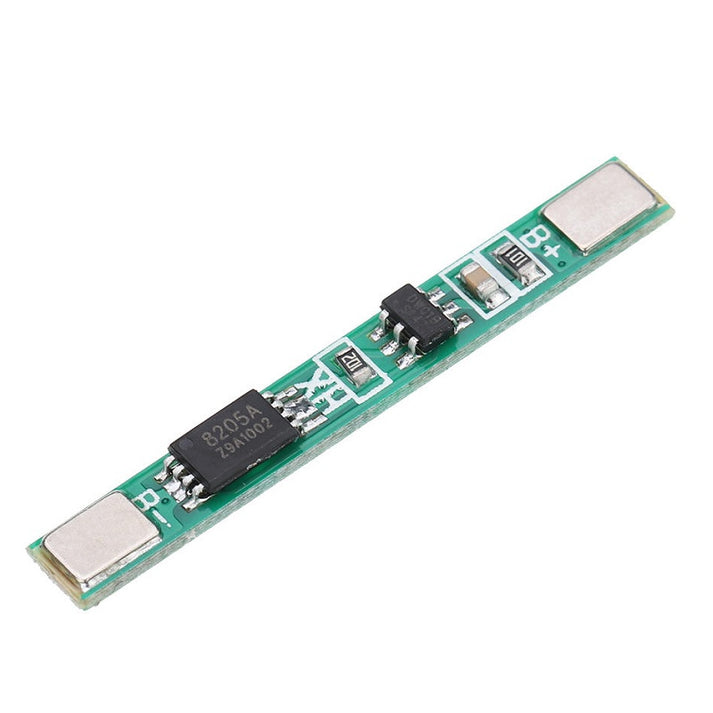

BMS 1S 20A 18650 Lithium Battery Protection Board
BMS 1S 20A 18650 Lithium Battery Protection Board
Regular price
Rs. 29.00
Regular price
Sale price
Rs. 29.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
The 18650 BMS (Battery Management System) - 1S - 20A is designed to protect and manage a single-cell (1S) 18650 lithium-ion battery. It ensures safe operation by providing overcharge, over-discharge, short circuit, and overcurrent protection.
Features:
- Overcharge Protection – Prevents battery damage from overcharging.
- Over-discharge Protection – Avoids deep discharge, which can shorten battery life.
- Overcurrent & Short Circuit Protection – Ensures safety by disconnecting the battery in case of a short.
- Balanced Charging – Some versions may include passive balancing for even charge distribution.
Specifications:
- Cell Configuration: 1S (Single Cell)
- Operating Voltage: 3.7V (Nominal) / 4.2V (Fully Charged)
- Discharge Current: Up to 20A
- Charge Current: Typically 5A – 10A
- Overcharge Protection: ~4.2V ± 0.05V
- Over-discharge Protection: ~2.5V ± 0.1V
- Short Circuit Protection: Yes
- Overcurrent Protection: Yes
- Self-consumption: <10µA
- PCB Size: Compact (varies by design)
Package Includes:
1 x BMS 1S 20A 18650 Lithium Battery Protection Board
