• 1S 10A Battery Protection System
• Over Charge, Over Discharge, Short Circuit Protection
• Charge Voltage: 4.2 V
• Working Current: 13 A
• Transient Current: 15 A

• Length (mm) - 35
• Width (mm) - 8
• Height (mm) - 2


Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself cannot be overcharge, over-discharge, short circuit, ultra-high temperature charge, etc. So lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using a high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);

4) MOS transistor can control the battery charge and discharge;

Package Includes:

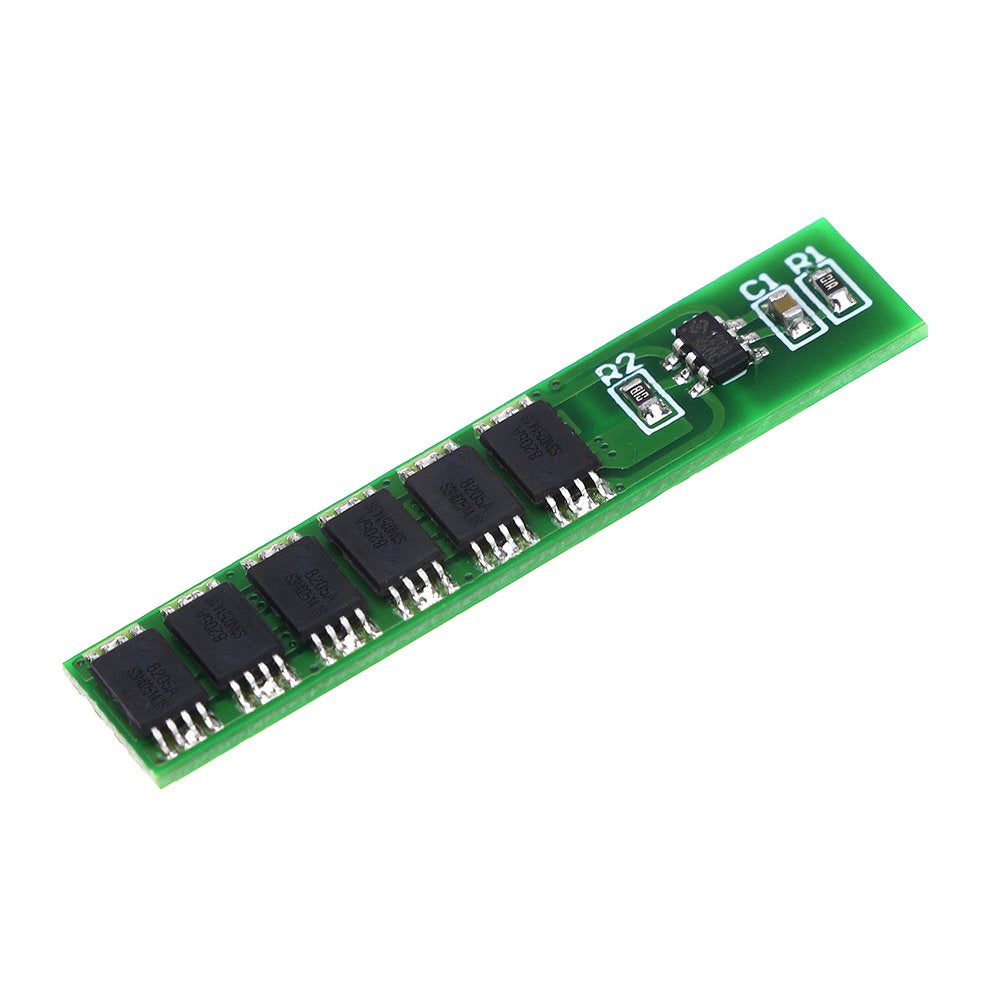

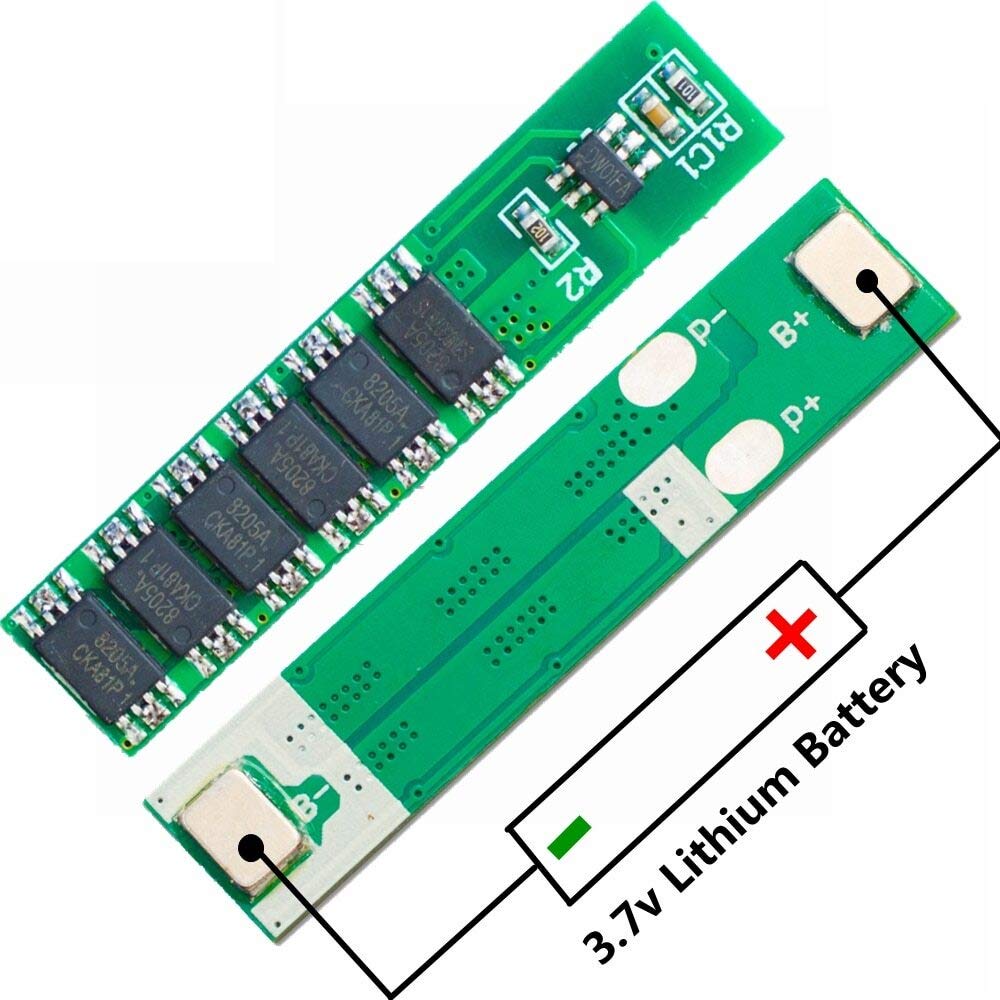

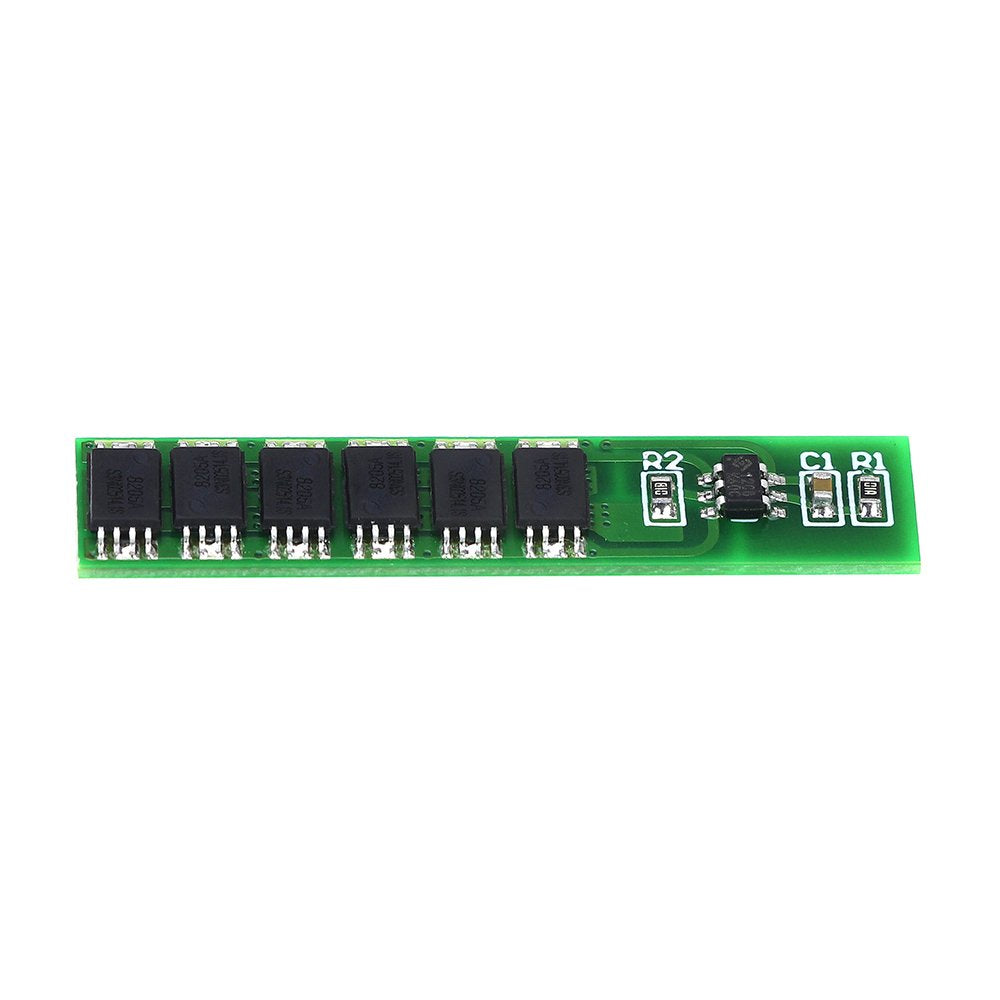

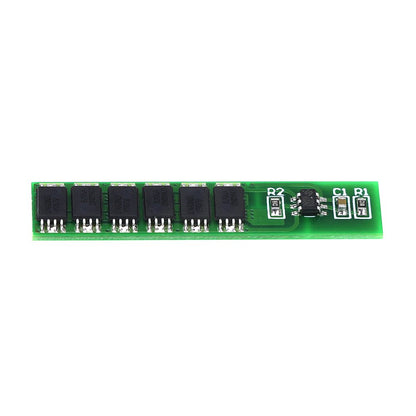

1 x 1S 10A 18650 Lithium Battery Protection Board

* Product Images are shown for illustrative purposes only and may differ from actual product.
