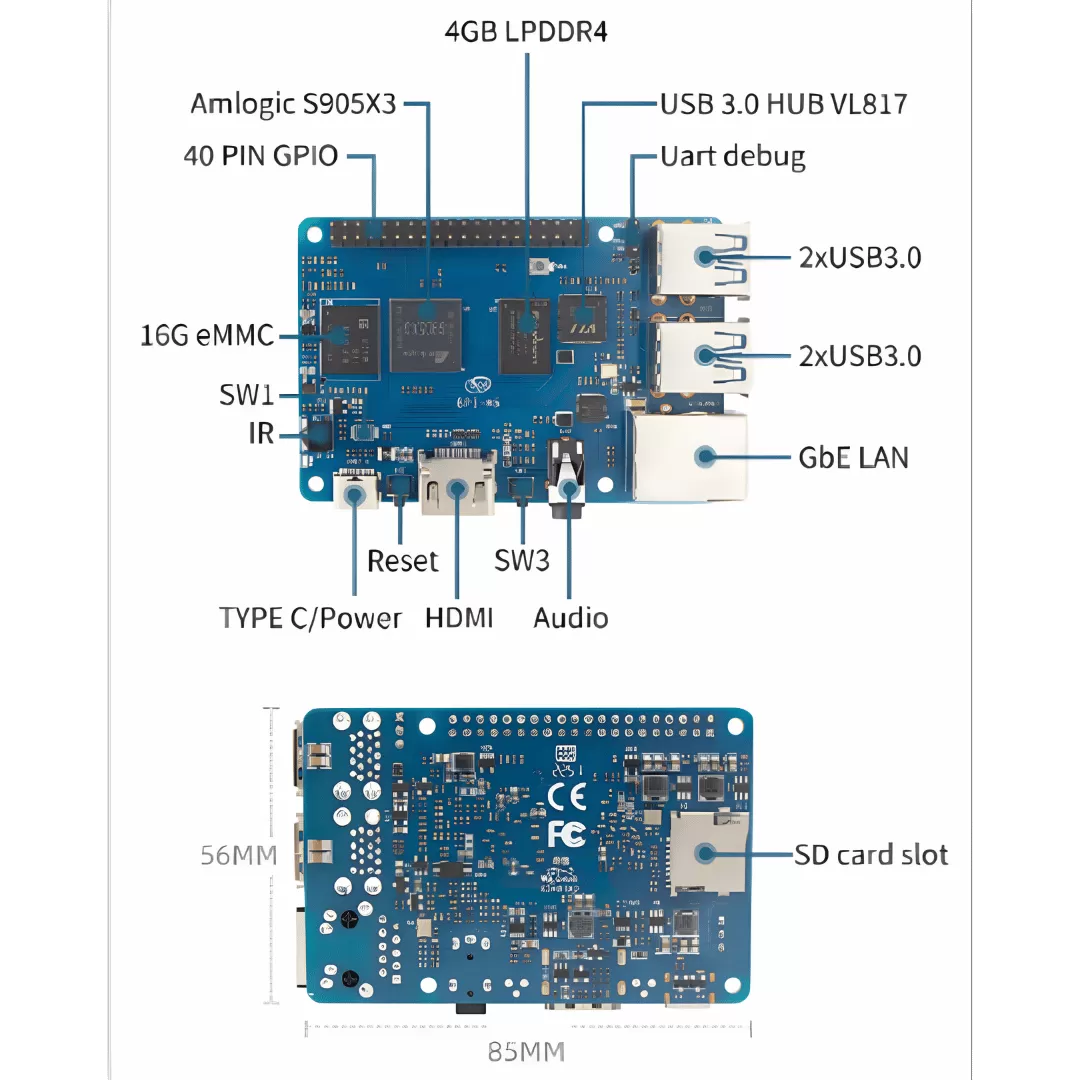

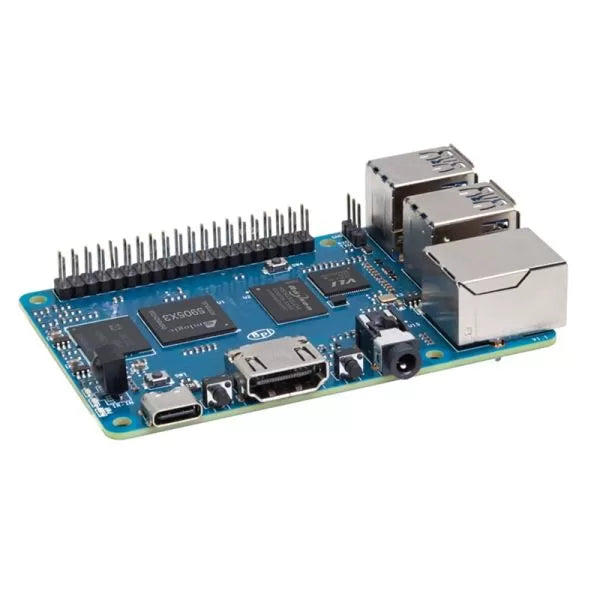

Banana Pi M5

Banana Pi BPI-M5 is the next generation single board computer from Banana Pi in 2020. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 4GB LPDDR4 memory and 16GB EMMC storage, and supports 4 USB 3.0 interface, a gigabit network port.

Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor. Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz). BPI-M5 will come with 4GB LPDDR4 RAM, 16GB eMMC flash, and offers four USB 3.0 ports, one Gigabit Ethernet port, and on HDMI 2.1 output port for 4K video output.

Features:

• CPU: Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
• GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
• Memory: 4 GB LPDDR4
• Storage: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
• Network: 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
• Video Output(s): 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
• Audio Output(s): 3.5mm jack and 1 x HDMI digital output
• USB ports: USB 3.0 PORT (x4)
• GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
• Switches: Reset, Power and U-boot
• LED: Power Status and Activity status
• Power Source: 5 volt @3A via Micro USB (TYPE C)
• OS: Android and Linux
