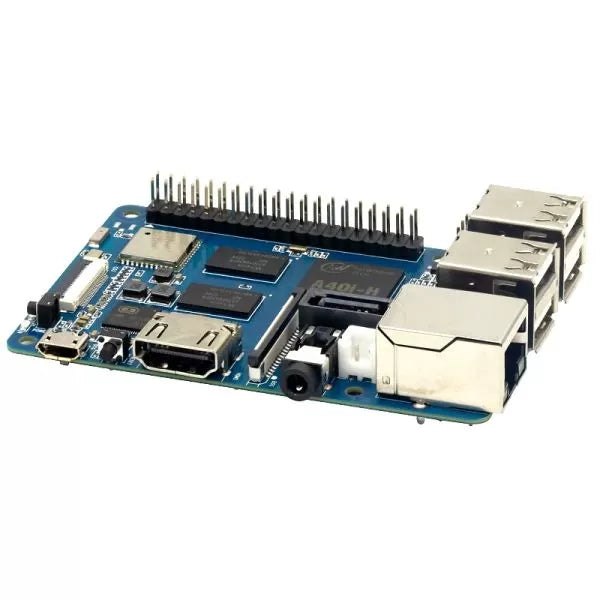

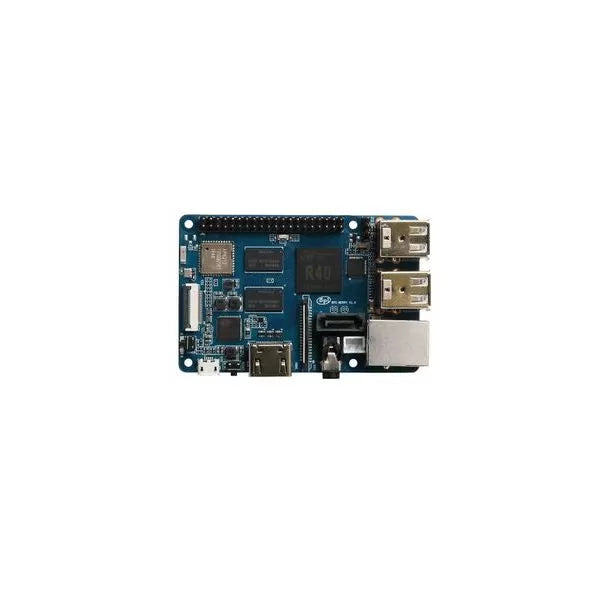

Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner V40 SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and last but not least, a SATA port..

Also being a member of the Banana Pi family, the M2 Berry is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the V40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

all size is same as raspberry pi 3,so you can use raspberry pi 3 case for BPI-M2 Berry.

Allwinner R40/V40 Quad Core ARM Cortex A7 CPU

• 1GB DDR3 SDRAM.
• WiFi (AP6212) & Bluetooth onboard.
• SATA Interface.
• 4*USB 2.0
• MIPI DSI ingerface
• CSI camera interface

Features:

• Model:  Banana Pi M2 Berry
• Soc:  Allwinner R40/V40
• CPU:  quad-core cortex -A7,the most power efficient CPU core ARM's ever development
• GPU:  dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.

• SDRAM: 1GB DDR3 with 733MHz\(shared with GPU\)
• SATA:  suppoort SATA interface
• GPIO:  40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
• On board Network:  10/100/1000Mbps Ethernet \(Realtek RTL8211E/D\)
• Wifi Module:  WiFi 802.11 b/g/n \(AP 6212 module on board\)
• Bluetooth:  BT4.0
• On board Storage:  MicroSD \(TF\) card,No eMMC onboard
• Display:  4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
• Video:  Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition\(HD\)H.264 video encoder is up to 1080P@45fps
• Audio outputs:  HDMI, analog audio \(via 3.5 mm TRRS jack\), I2S audio \(also potentially for audio input\)
• Camera:  A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
• Audio input:  On board microphone
• USB:  4 USB 2.0 host, 1 USB 2.0 OTG
• Buttons:  Reset button, Power button, U-boot button
• Leds:  Power status Led and RJ45 Led
• IR:  No onboard IR receiver
• DC Power:  5V/2A with micro USB port
• Battery:  No 3.7V lithium battery power support
