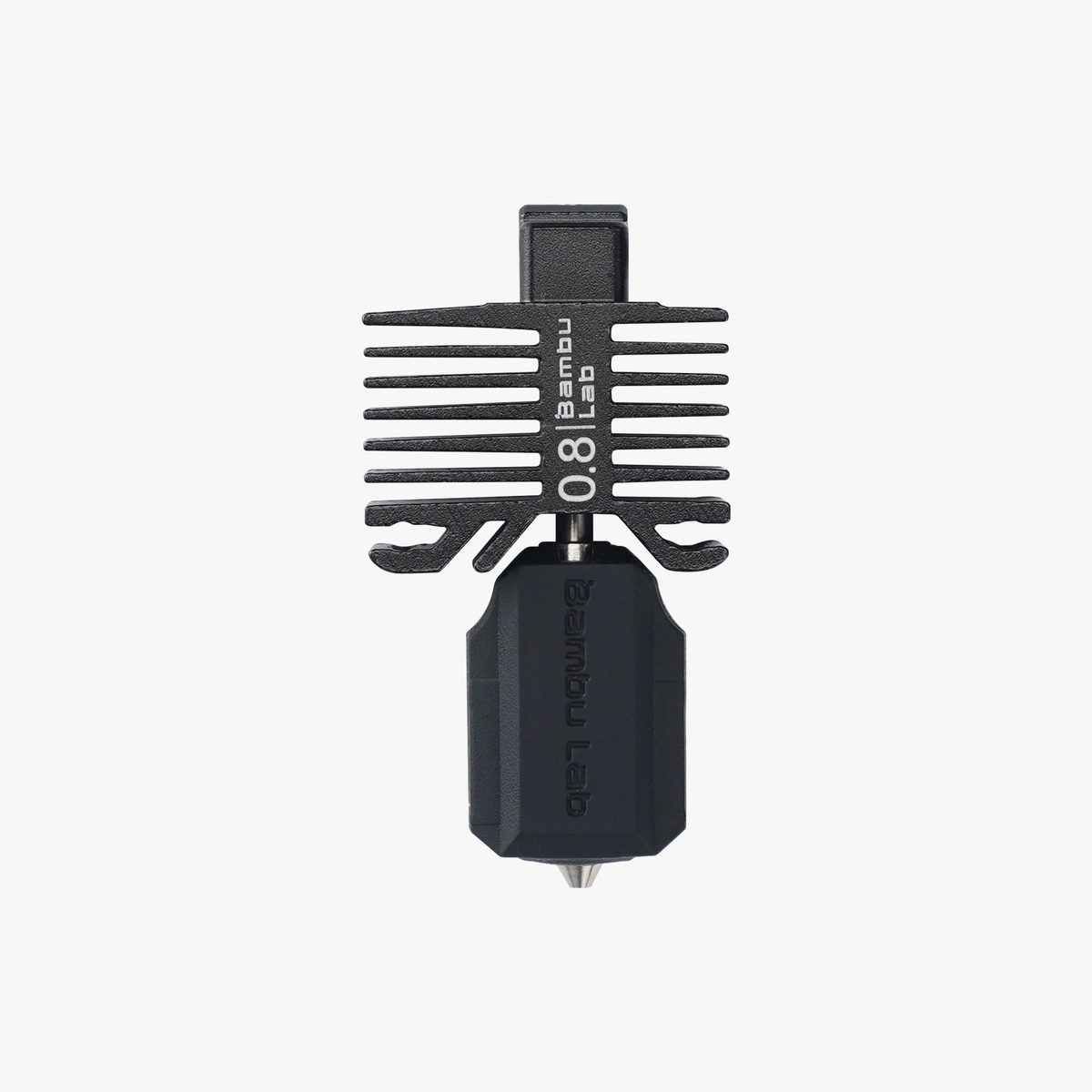

Bambu Lab Hotend 0.8 mm Hardened Steel for P1 Series (FAH003-N-1)

Bambu Lab P1 Series Hotend – 0.8 mm Hardened Steel

Choose a larger nozzle for large structural models and functional parts with this Bambu Lab 0.8 mm hardened steel hotend. The larger nozzle diameter extrudes more filament per second than smaller sizes, enabling faster printing where the material and slicing profile allow, with some reduction in fine detail.

Key Features

• 0.8 mm hardened steel nozzle for Bambu Lab P1 Series printers.
• Hotend-only version for replacement or nozzle-size changes.
• Suitable for larger structural parts, household functional models and engineering applications.
• Hardened steel nozzle suitable for compatible abrasive carbon-fibre and glass-fibre filaments.

Important: Hotend-Only Version

FAH003-N-1 is the hotend-only option, not the complete hotend assembly. Follow the manufacturer's hotend replacement procedure when fitting the necessary components. For the complete 0.8 mm P1 Series version, choose FAH003-P instead.

Filament Guidance

Use filament profiles appropriate for a 0.8 mm nozzle and check the filament manufacturer's recommendations. Hardened steel is required for abrasive fibre-filled materials, but nozzle selection alone does not establish compatibility with every material. Verify your printer's other hardware and temperature requirements before printing.

Specifications

• Model number: FAH003-N-1
• Compatibility: Bambu Lab P1 Series
• Version: Hotend only
• Nozzle diameter: 0.8 mm
• Nozzle material: Hardened steel
• Manufacturer-listed maximum printing temperature: 320°C
• Hotend length: 47.3 mm
• Package dimensions: 190 × 70 × 50 mm

In the Box

• 1 × Hotend
• 2 × M3-14 step screws
• 1 × Silicone sock
• 1 × Thermal grease
• 1 × Retaining clip

Installation and Setup

Follow the Bambu Lab Wiki hotend replacement instructions for your P1 Series printer. Select the 0.8 mm nozzle configuration in your slicing software before printing. The hotend component's temperature rating does not override your printer's operating limits.
