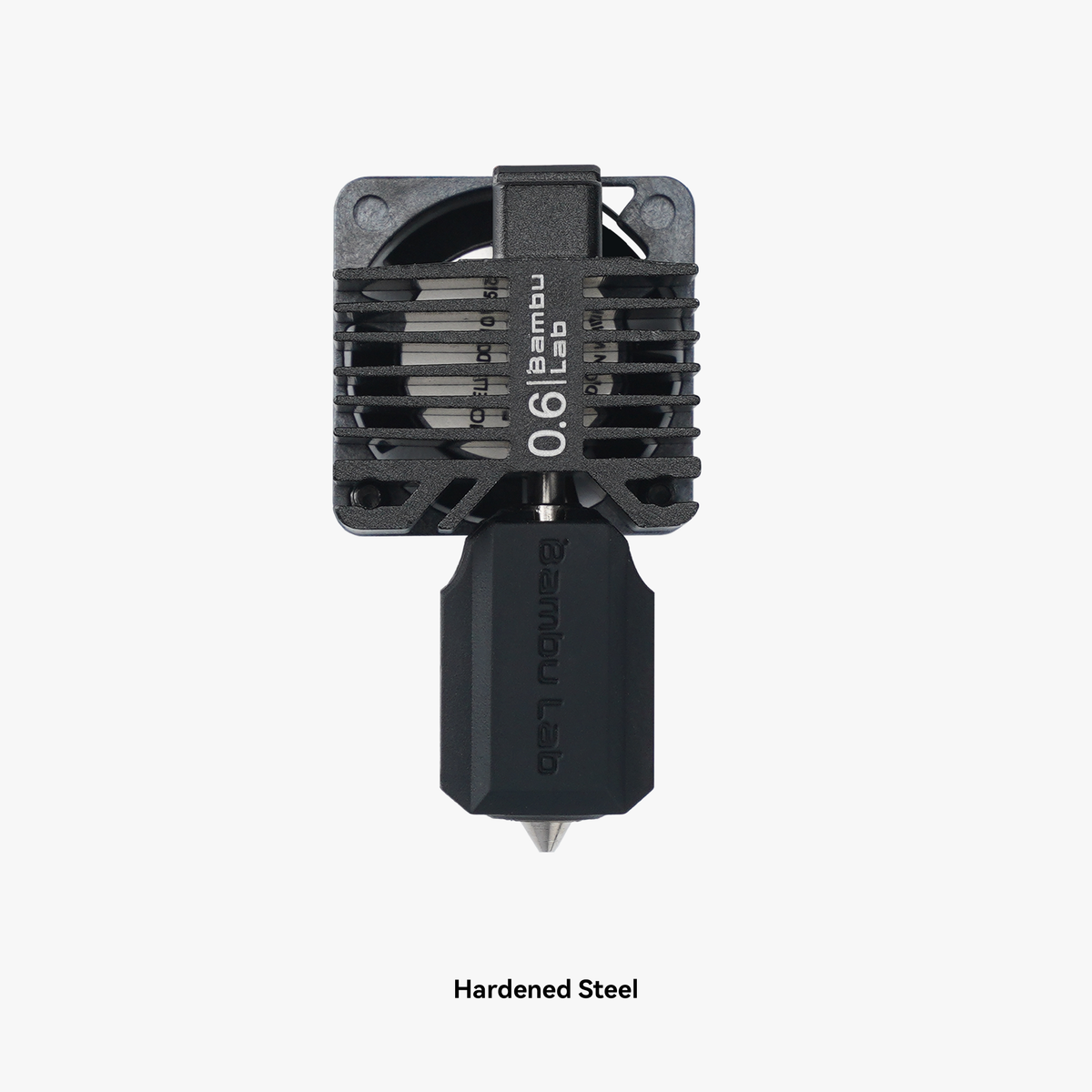

Bambu Lab Complete Hotend 0.6 mm Hardened Steel for P1 Series (FAH005-P)

Bambu Lab P1 Series Complete Hotend – 0.6 mm Hardened Steel

Choose a larger nozzle for functional parts and larger models with the Bambu Lab 0.6 mm Hardened Steel Complete Hotend for P1 Series printers. The larger nozzle diameter can extrude more filament per second than smaller nozzle sizes, offering faster printing with some reduction in fine detail.

Key Features

• 0.6 mm hardened steel nozzle for P1 Series printers.
• Complete hotend version, distinct from the hotend-only replacement.
• Suitable for larger structural models, household functional parts and engineering applications.
• Hardened steel nozzle for printing abrasive fibre-filled materials when used with compatible printer hardware and filament settings.

Filament Selection

Bambu Lab recommends a hardened steel 0.6 mm nozzle for carbon-fibre and glass-fibre filaments to help minimise clogging and abrasion. Always check your printer's other hardware requirements and the filament manufacturer's recommended nozzle size and printing settings. A larger nozzle trades some resolution for higher extrusion capacity; actual print speed depends on the material and slicing profile.

Specifications

• Model number: FAH005-P
• Compatibility: Bambu Lab P1 Series
• Version: Complete Hotend
• Nozzle diameter: 0.6 mm
• Nozzle material: Hardened steel
• Manufacturer-listed hotend maximum printing temperature: 320°C
• Hotend length: 47.3 mm
• Package dimensions: 190 × 70 × 50 mm

In the Box

• 1 × P1 Series Complete Hotend
• 2 × M3-14 step screws

Installation and Setup

Follow the Bambu Lab Wiki instructions for replacing the P1 Series Complete Hotend. Select the correct 0.6 mm nozzle configuration in your slicing profile before printing. The hotend's component temperature rating does not override your printer's supported operating limits.

This listing is for the complete 0.6 mm assembly, not the FAH005-N-1 hotend-only part.
