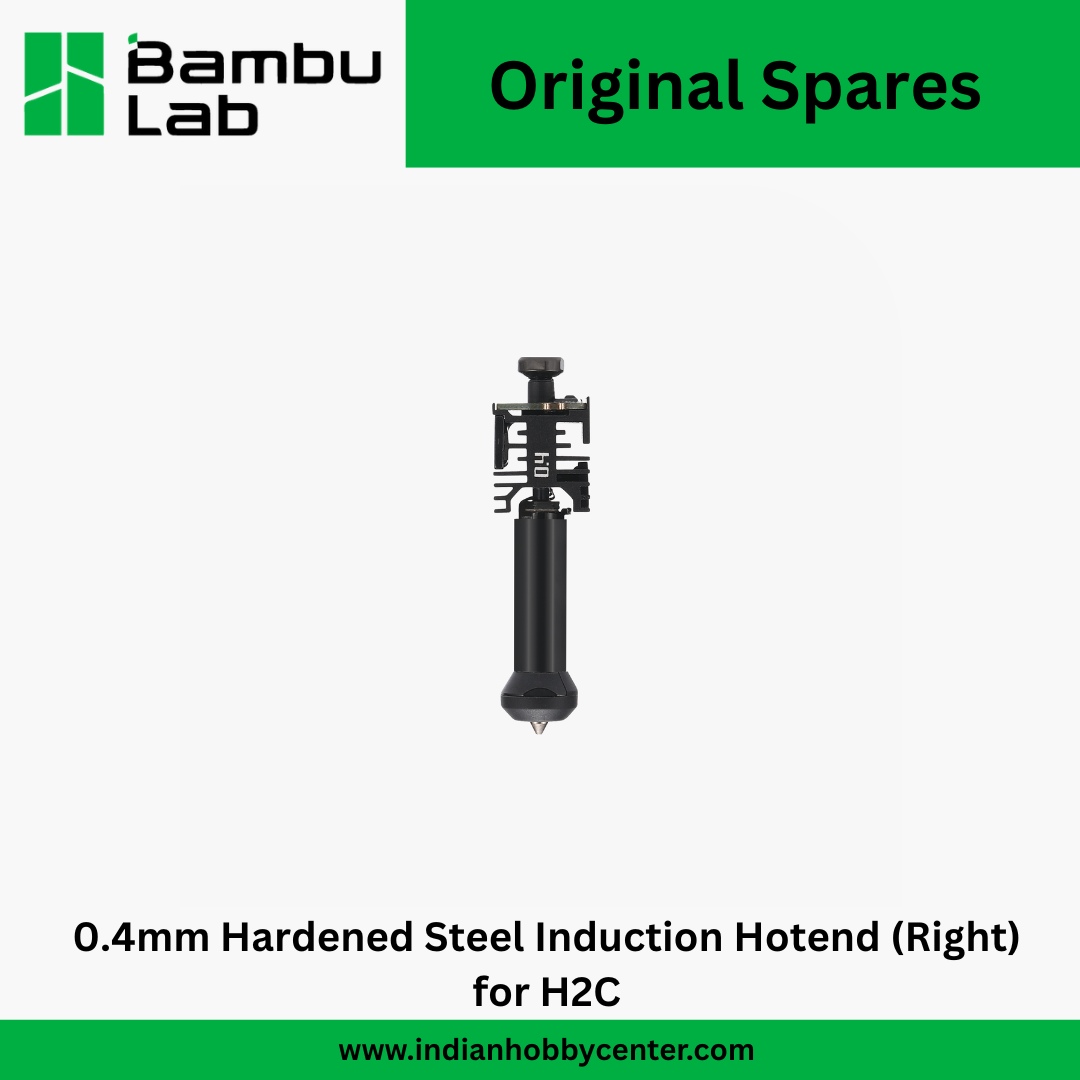

Bambu Lab Induction Hotend (Right) for H2C with Hardened Steel Nozzle - 0.4 mm (FAH051)
Bambu Lab Induction Hotend (Right) for H2C with Hardened Steel Nozzle - 0.4 mm (FAH051)
Couldn't load pickup availability
Product Details
- Product: Induction Hotend
- Brand: Bambu Lab
- SKU: FAH051
- Material: Hardened Steel
- Nozzle Size: 0.4 mm
- Max Temp: 350°C
- Flow Type: Standard Flow
- Compatible Model: H2C
Multi-Material Printing with Less Waste
The Vortek System uses up to six interchangeable induction-heated hotends to achieve true multi-material printing with significantly reduced purge waste compared to single-nozzle systems. The hotend swap mechanism eliminates purge flushing during filament changes (H2C under 7 filaments), saving both material and time.
Fast and Precise Induction Heating
The Vortek Induction Hotend rapidly heats the nozzle to printing temperature in approximately 8 seconds (PLA). This fast response shortens color-change transitions and further reduces purge waste. Integrated overheat, overvoltage, short-circuit, and open-circuit protection ensure reliable performance during continuous multi-material workflows.
Reliable Contactless Connection
Instead of contact-based metal pins—which can oxidize and degrade over time—the Vortek System employs a contactless, high-frequency power and signal interface. This delivers a stable, long-lasting connection for accurate temperature control and synchronized hotend operation.
Heatsink Overheat Monitoring
Dual temperature sensors monitor both nozzle and heatsink temperatures in real time. When heatsink temperature exceeds safe limits, the system automatically increases cooling to prevent heat creep and reduce the risk of clogging.
.jpg)
Intelligent Multi-Hotend Management
Each Vortek Hotend stores its filament information locally, ensuring correct material mapping and preventing loading errors. When printing with more than seven filament types, the system intelligently optimizes hotend mapping to minimize purge waste and improve overall efficiency.
| Filament | Induction 0.2 mm Stainless Steel |
Induction 0.4 mm Hardened Steel |
Induction 0.6 mm Hardened Steel |
Induction 0.8 mm Hardened Steel |
Induction 0.4 mm High Flow Hardened Steel |
Induction 0.6 mm High Flow Hardened Steel |
Induction 0.8 mm High Flow Hardened Steel |
| PLA Basic | √ | √ | √ | √ | √ | √ | √ |
| PLA Matte | √ | √ | √ | √ | √ | √ | √ |
| PLA Lite | √ | √ | √ | √ | √ | √ | √ |
| PLA Basic Gradient | √ | √ | √ | √ | √ | √ | √ |
| PLA Silk+ | √ | √ | Not recommended | Not recommended | √ | Not recommended | Not recommended |
| PLA Silk Dual Color | √ | √ | Not recommended | Not recommended | √ | Not recommended | Not recommended |
| PLA Silk | √ | √ | Not recommended | Not recommended | √ | Not recommended | Not recommended |
| PLA Metal | √ | √ | √ | √ | √ | √ | √ |
| PLA Marble | X | √ | √ | √ | √ | √ | √ |
| PLA Sparkle | X | √ | √ | √ | √ | √ | √ |
| PLA Wood | X | √ | √ | √ | √ | √ | √ |
| PLA Galaxy | Not recommended | √ | √ | √ | √ | √ | √ |
| PLA Glow | X | √ | √ | √ | √ | √ | √ |
| PLA Translucent | Not recommended | √ | √ | √ | √ | √ | √ |
| PLA tough+ | √ | √ | √ | √ | √ | √ | √ |
| PLA-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PLA Aero | X | √ | Not recommended | Not recommended | √ | Not recommended | Not recommended |
| PETG HF | √ | √ | √ | √ | √ | √ | √ |
| PETG Basic | √ | √ | √ | √ | √ | √ | √ |
| PETG Translucent | Not recommended | √ | √ | √ | √ | √ | √ |
| PETG-CF | X | √ | √ | √ | Not recommended | √ | √ |
| ABS | √ | √ | √ | √ | √ | √ | √ |
| ABS-GF | X | √ | √ | √ | √ | √ | √ |
| ASA | √ | √ | √ | √ | √ | √ | √ |
| ASA Aero | X | √ | Not recommended | Not recommended | √ | Not recommended | Not recommended |
| ASA-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PC | √ | √ | √ | √ | √ | √ | √ |
| PC FR | √ | √ | √ | √ | √ | √ | √ |
| TPU for AMS | X | √ | √ | √ | √ | √ | √ |
| TPU 95A HF | X | √ | √ | √ | √ | √ | √ |
| TPU 85A | X | X | √ | √ | X | Not recommended | Not recommended |
| TPU 90A | X | √ | √ | √ | Not recommended | Not recommended | Not recommended |
| PAHT-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PET-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PA6-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PA6-GF | X | √ | √ | √ | Not recommended | √ | √ |
| PPA-CF | X | √ | √ | √ | Not recommended | √ | √ |
| PPS-CF | X | √ | √ | √ | Not recommended | √ | √ |
| Support for ABS | X | √ | √ | √ | √ | √ | √ |
| Support for PLA/PETG | √ | √ | √ | √ | √ | √ | √ |
| Support for PA/PET | X | √ | √ | √ | √ | √ | √ |
| Support for PLA (New Version) | √ | √ | √ | √ | √ | √ | √ |
| PVA | X | √ | √ | √ | √ | √ | √ |
In the Box
- Bambu Lab Induction Hotend (Right) for H2C with Hardened Steel Nozzle - 0.4 mm (FAH051)*1
