- Multiple Current Options: Adjustable current settings from 1.9A to 6.0A.
- Flexible Pulse Settings: Supports half/full flow and single/double pulse settings.
- Wide Input Frequency: Input pulse frequency range from 0~200 kHz.
- Low Power Consumption: Automatically runs at low power when idle.
- Wide Voltage Range: Operates with DC 20V to 120V power input.
- Overcurrent Protection: Built-in protection to prevent damage from excessive current.
- Current Control: Configurable current modes using SW6, SW7, and SW8.
- Direction Control: Allows precise direction control for stepper motor rotation.
- Error Indicators: Provides error codes (Error 1 to 7) for troubleshooting.
- Single Power Input: Simplifies design with a single power input connection.

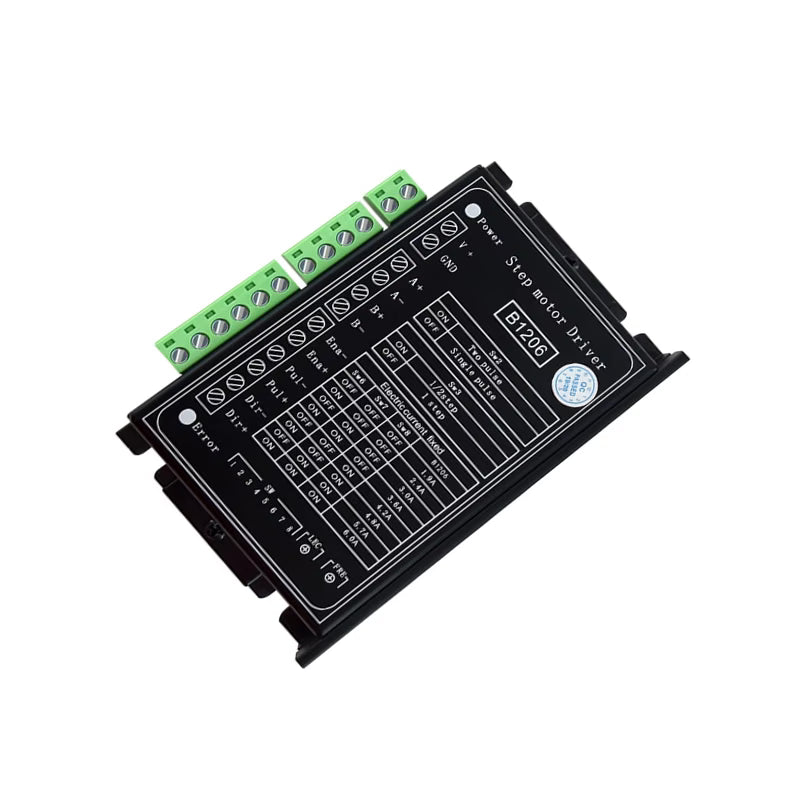

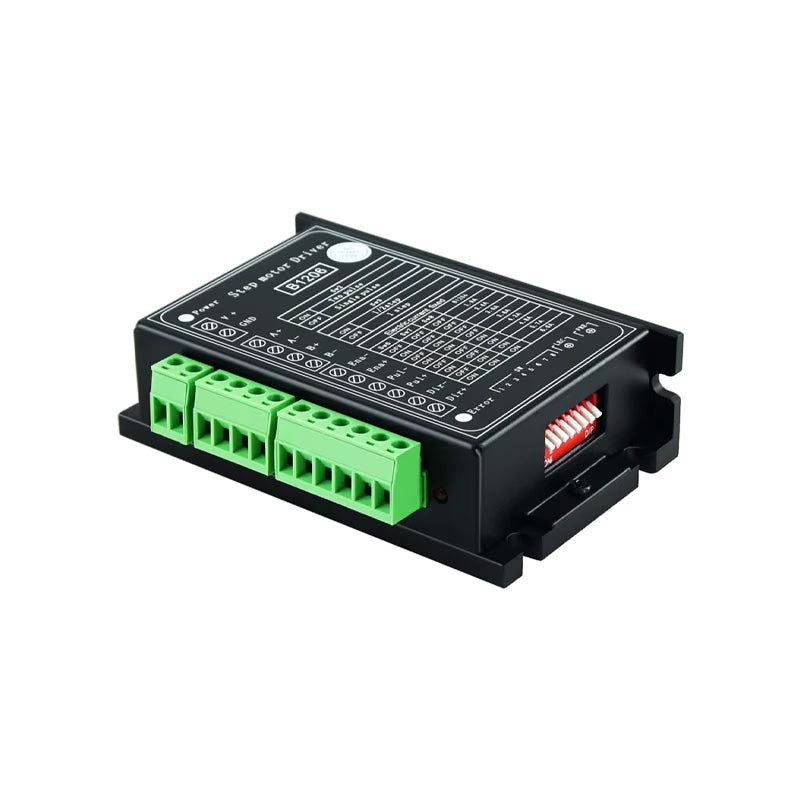

The B1206 Digital Stepper Motor Driver 20V-120V 6Amp is a highly versatile and efficient driver designed for controlling stepper motors in various applications such as CNC machines, robotics, 3D printers, and other motion control systems. With multiple current options, adjustable pulse settings, and various operating modes, this driver ensures precision, reliability, and efficiency.
Applications:
- Laser cutters
- Laser markers
- High precision X-Y tables
- Labelling machines, etc.
