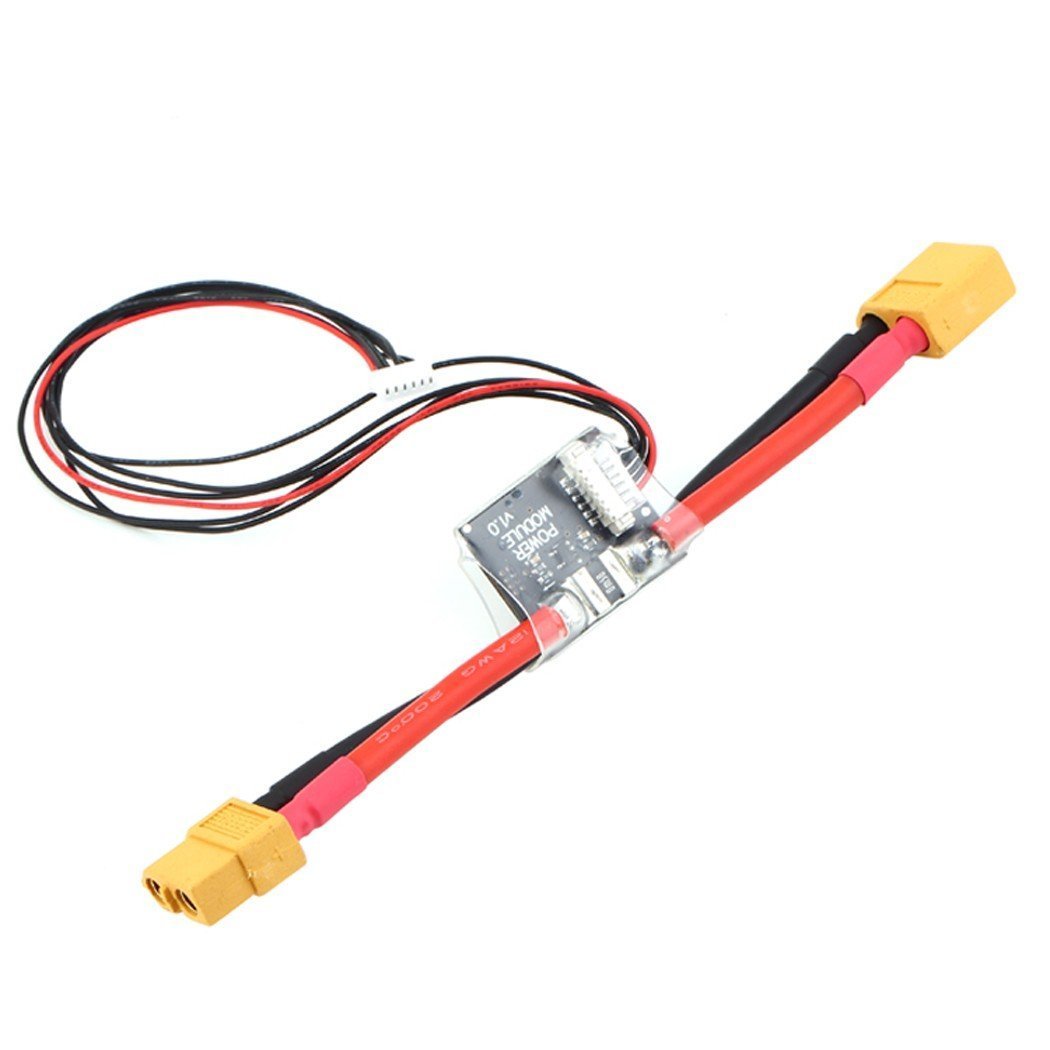

APM Pixhawk Power Supply Eco Module (5.3V/3A) With XT60 Connector
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Max input voltage: 18V
Max current sensing: 90A, 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
Voltage and current measurement configured for 5V ADC Switching regulator outputs 5.3V and 2.25A max
--
The apm 2.5/6 power module is a simple way of providing your apm 2.5/6 with clean power from a lipo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3v and a maximum of 2.25a. The power module comes completely assembled with xt60 black connectors and wrapped in shrink tubing for protection. Note: The power module is only designed to power apm, a rc receiver and apm accessories (gps, 3dr radio). It is not designed to power servos. Use your aircraft's own esc/bec for that. Specifications max input voltage: 18v max current sensing: 90a voltage and current measurement configured for 5v adc switching regulator outputs 5.3v and 2.25a max 6-pos df13 cable plugs directly to apm 2.5's 'pm' connector.
