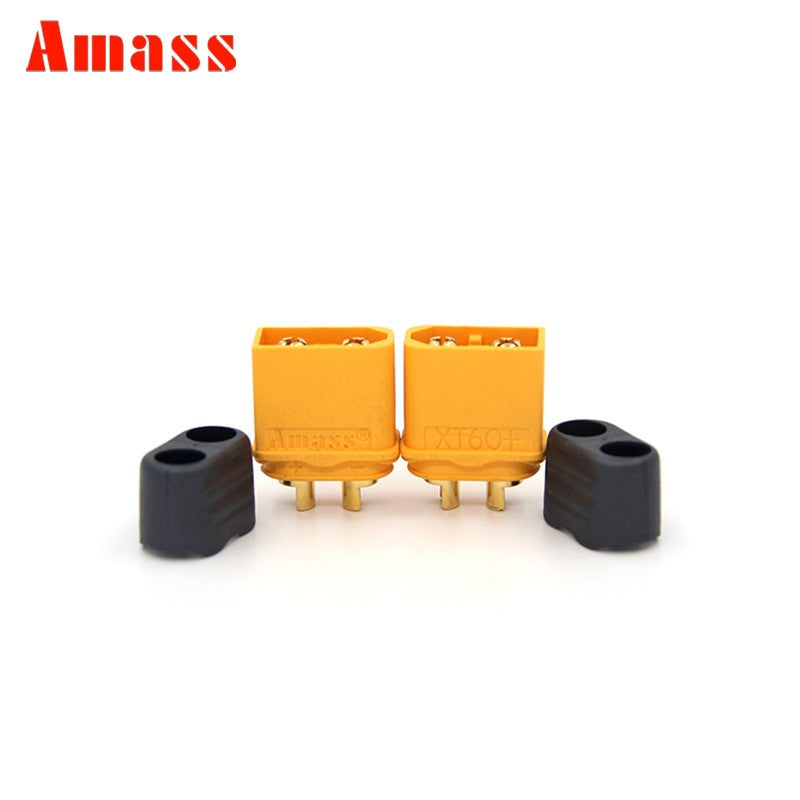

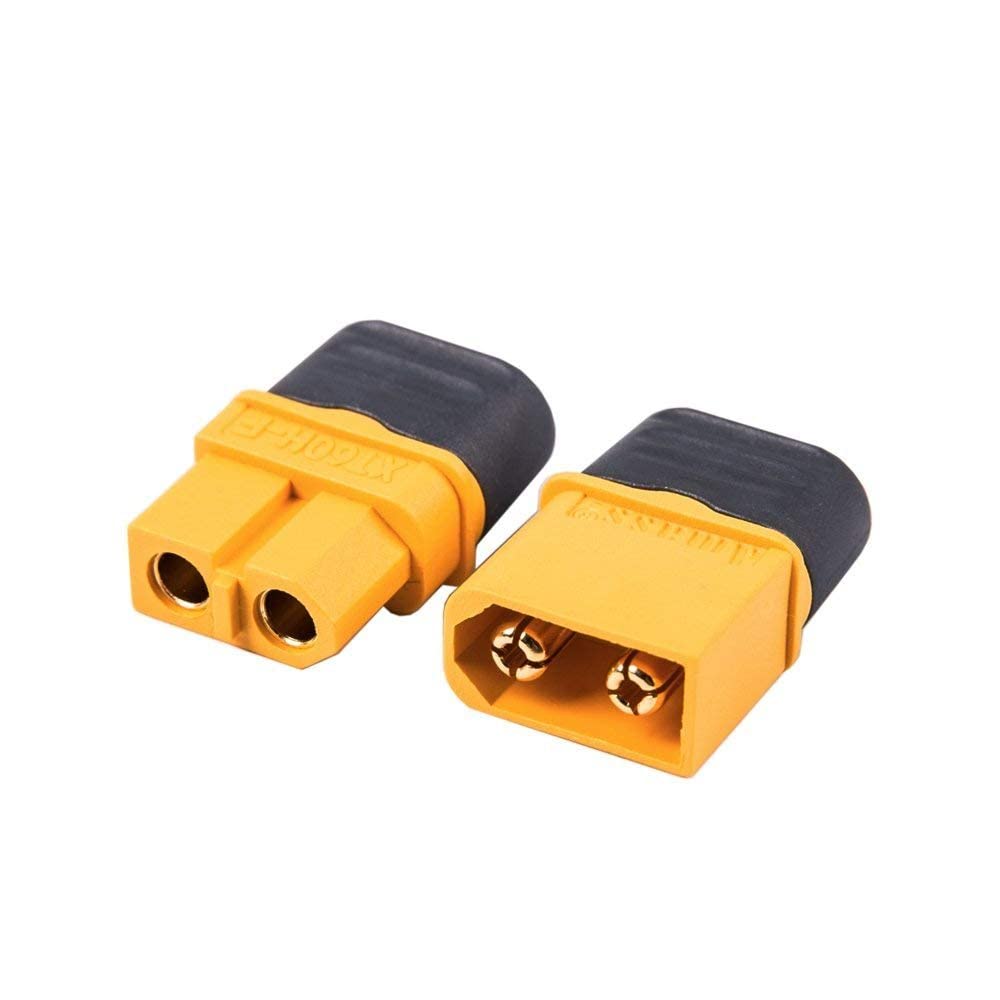

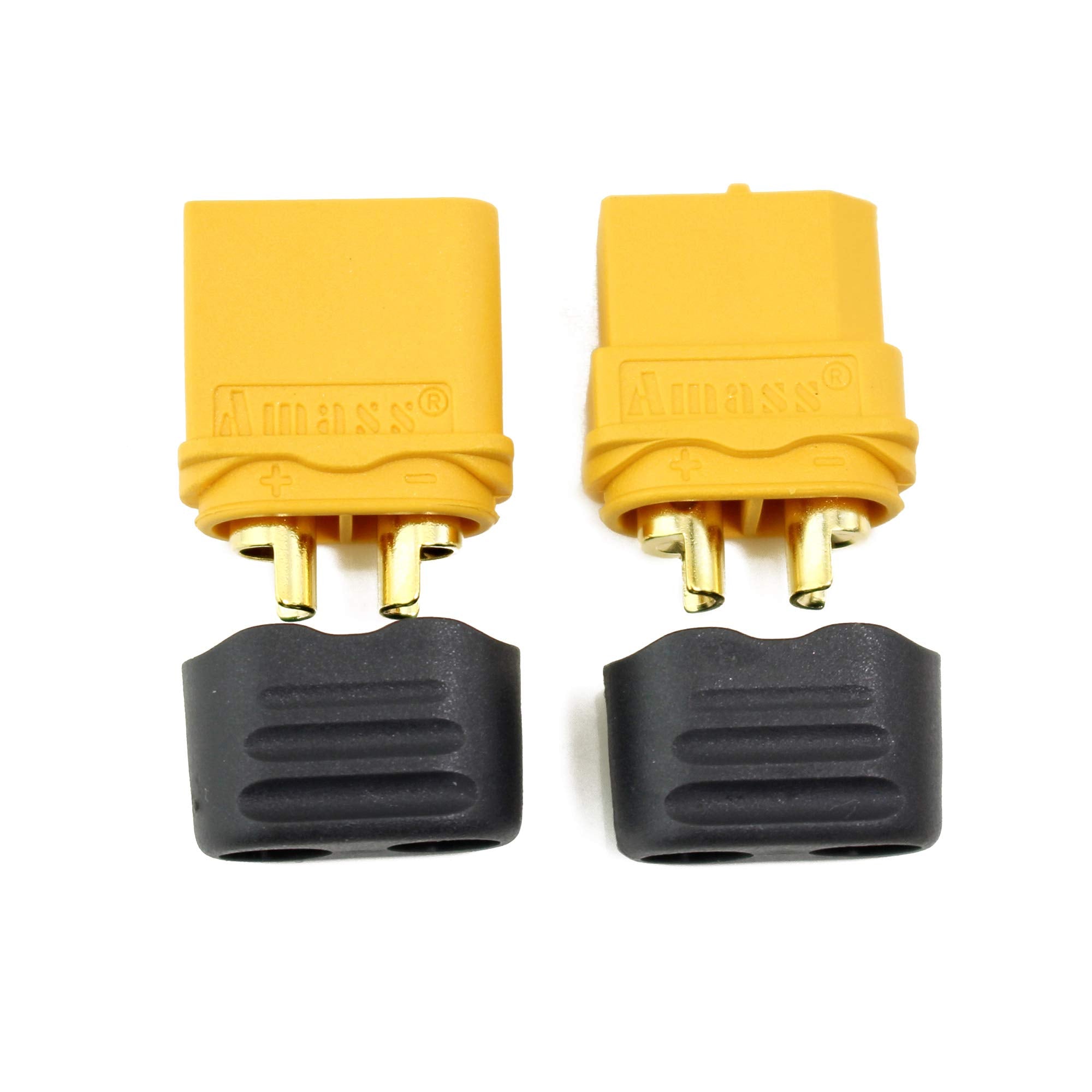

Amass XT60H Male-Female Connector with Housing-1 Pair

1. Manufacturer: AMASS
2. Current Rating: 60A
3. Rated Voltage: 500V
4. Flammability Rating UL94V-0
5. Operating Temperature -20…120°C
6. Type of connector:  DC supply
7. Connector series:  XT60H Pair
8. Excellent connector solution for RC Quadcopters, Drones, UAVs,
9. Airplanes and Jets, Cars and Trucks, as well as RC Boats.

The best battery connectors on the market just got better with the development of the XT60H. This connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A.

The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that’s why H letter is added in XT60.

The XT60H is completely compatible with original XT60 connectors so you can use them straight away.

IMPORTANT: “These are not cheap copied XT60H plugs. These original Nylon XT60H plugs, manufactured by AMASS, can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60H plugs

Features:

1. Genuine Amass XT60 Connector with protection housing, upgrade version, high quality
2. Provides Solid and Reliable Connection
3. Mechanical mounting for cable
4. Electrical mounting soldered
5. Spatial Orientation Straight
6. Excellent connector solution for RC Quadcopters, Drones, UAVs,
7. Airplanes and Jets, Cars and Trucks, as well as RC Boats.

Package Includes:

1 x XT60H Male-Female Connector Pair with Housing
