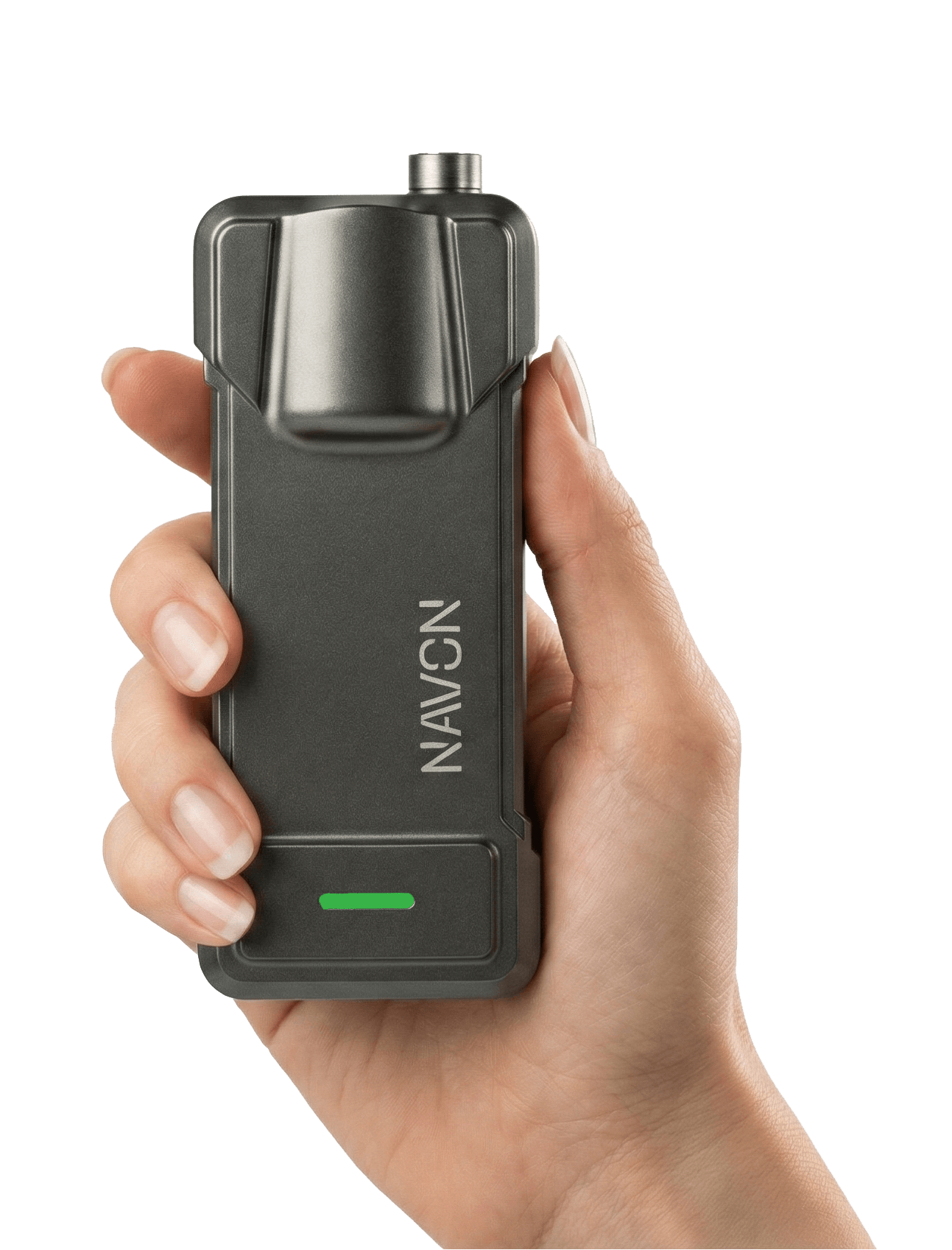

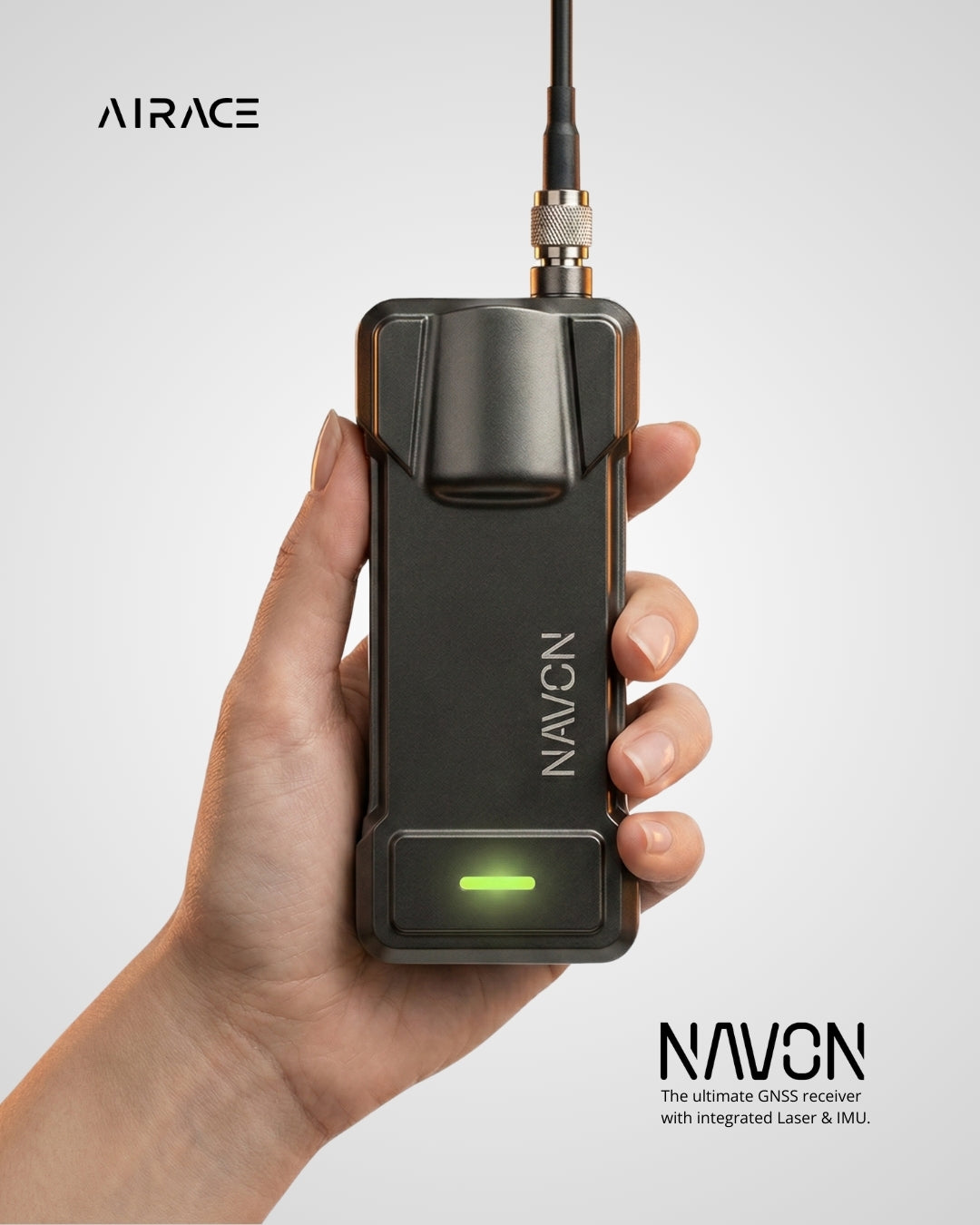

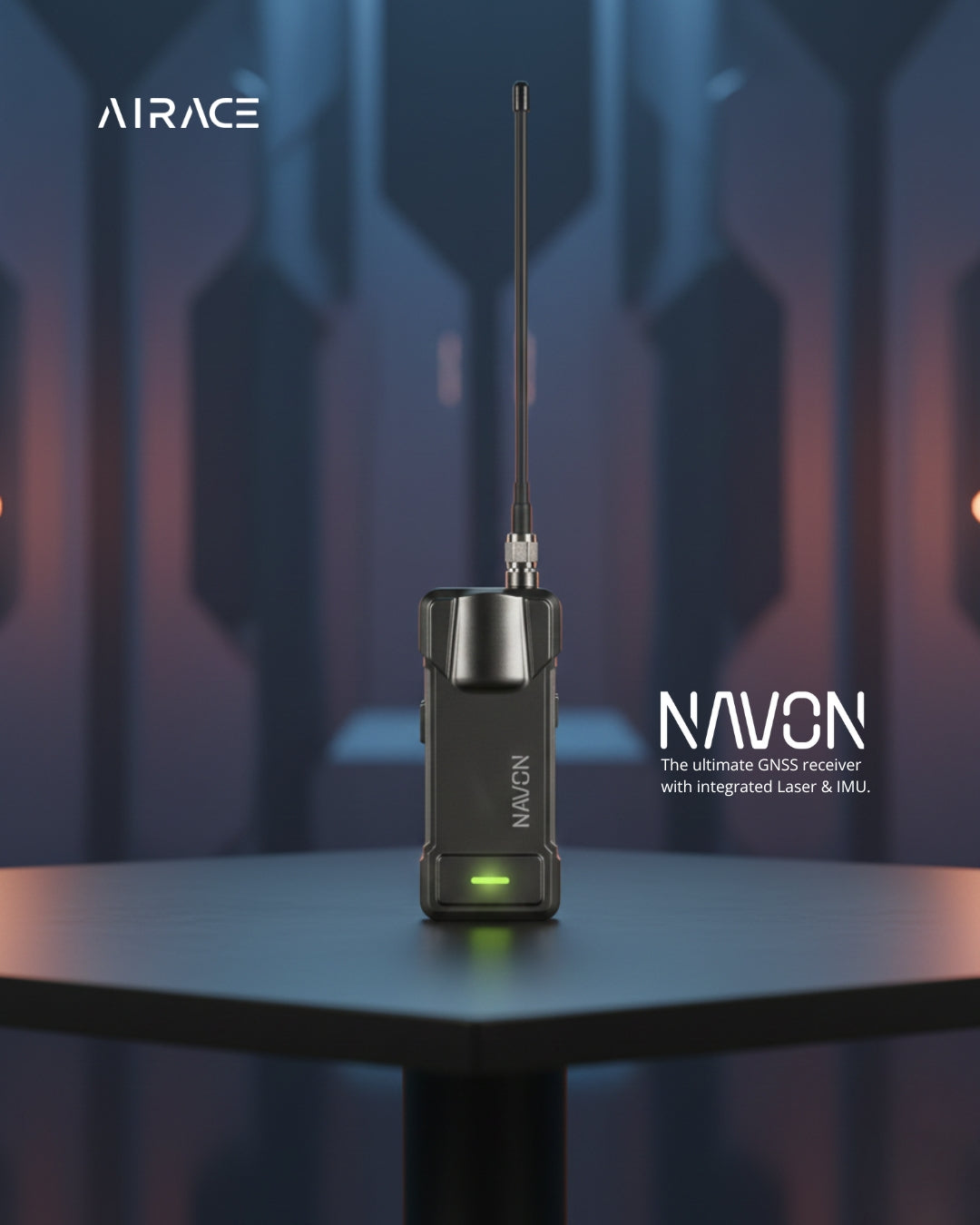

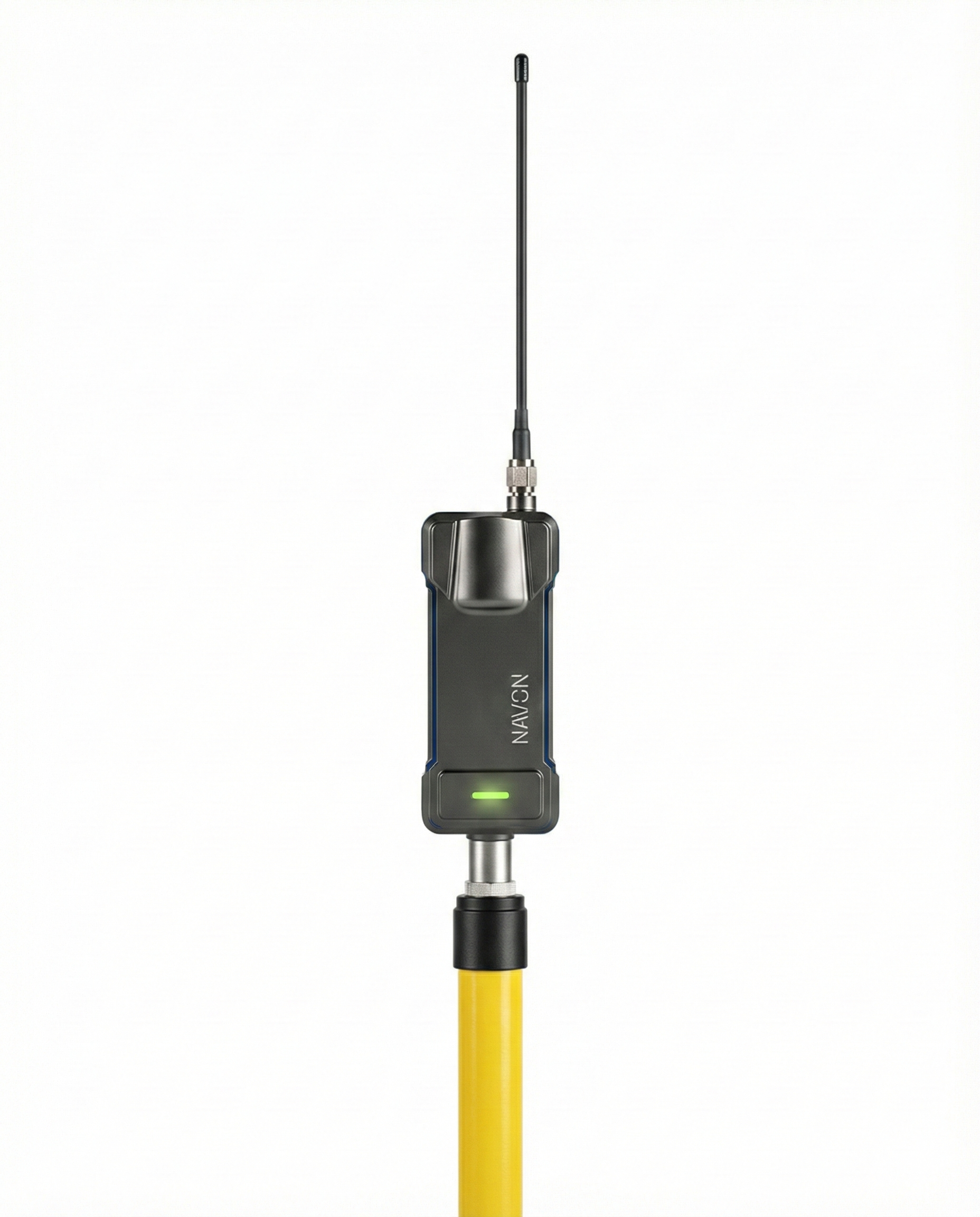

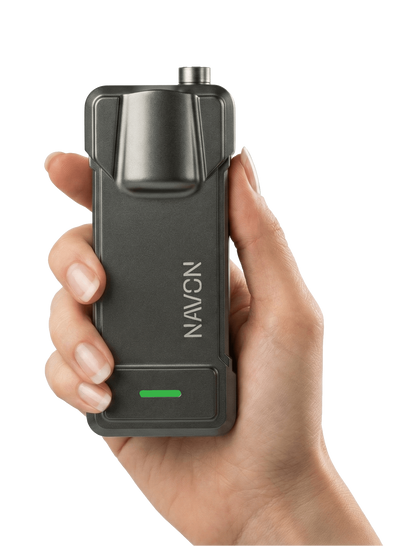

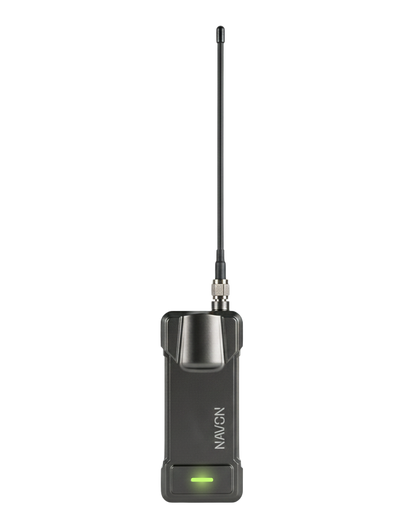

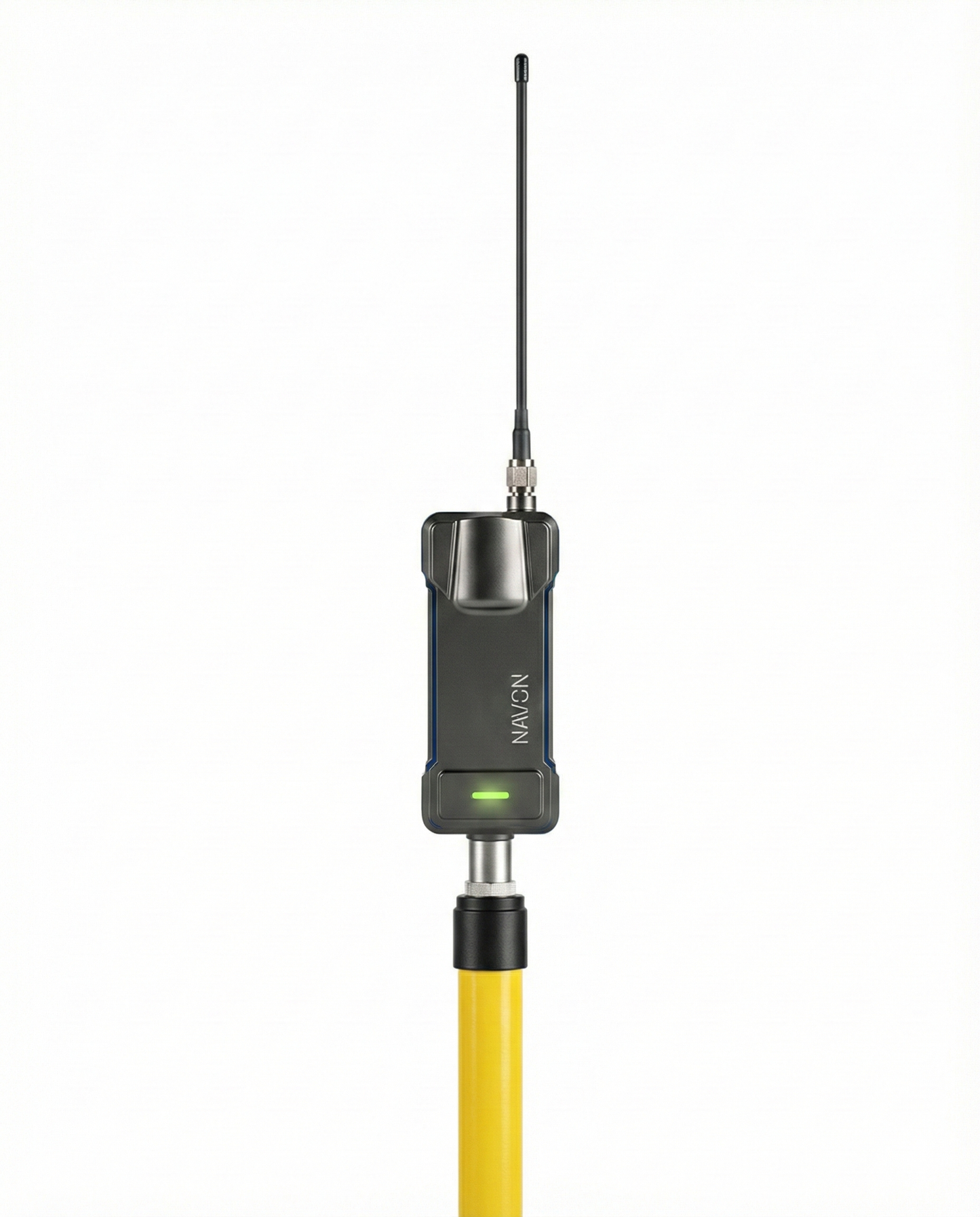

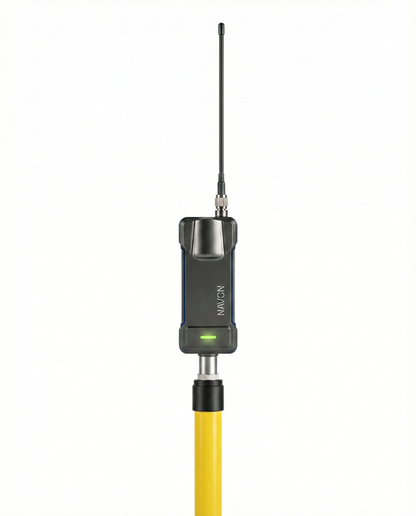

Airace Navon :- The Ultimate GNSS Receiver with Integrated Laser & IMU
Rs. 499,999.00
Rs. 650,000.00
All Prices Incuding GST
Save upto 28% in Input Credit
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk
Key Features
- 672+ channels with support for GPS, GLONASS, BEIDOU, GALILEO, QZSS, NAVIC & SBAS

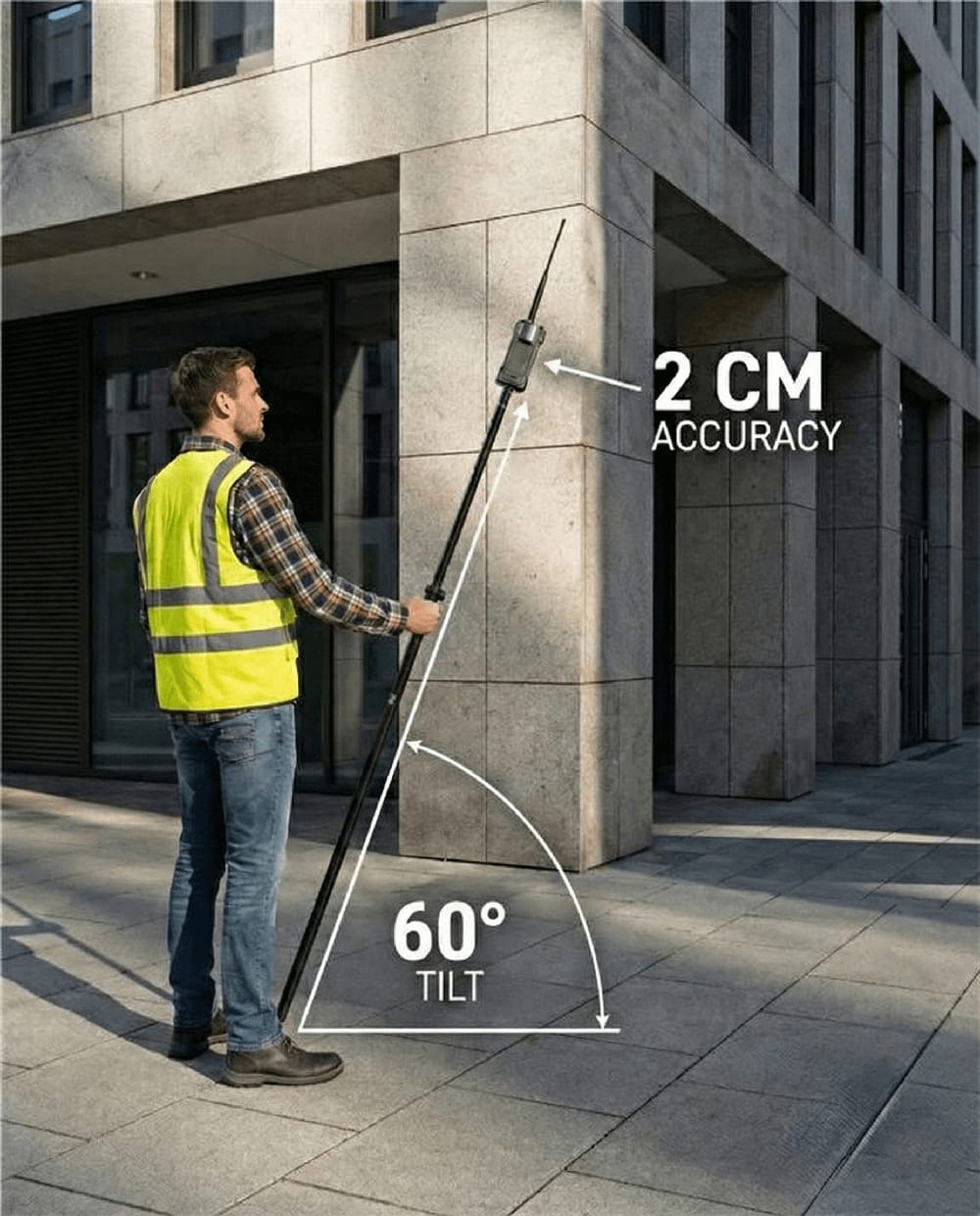

- 9-DOF IMU with tilt compensation up to 60° (no calibration needed)
- RTK & PPK accuracy down to ±5 mm
- Internal 4G, Wi-Fi & Bluetooth 5.0 for flexible communication
- 20 hours of operation (Rover mode) on a single charge

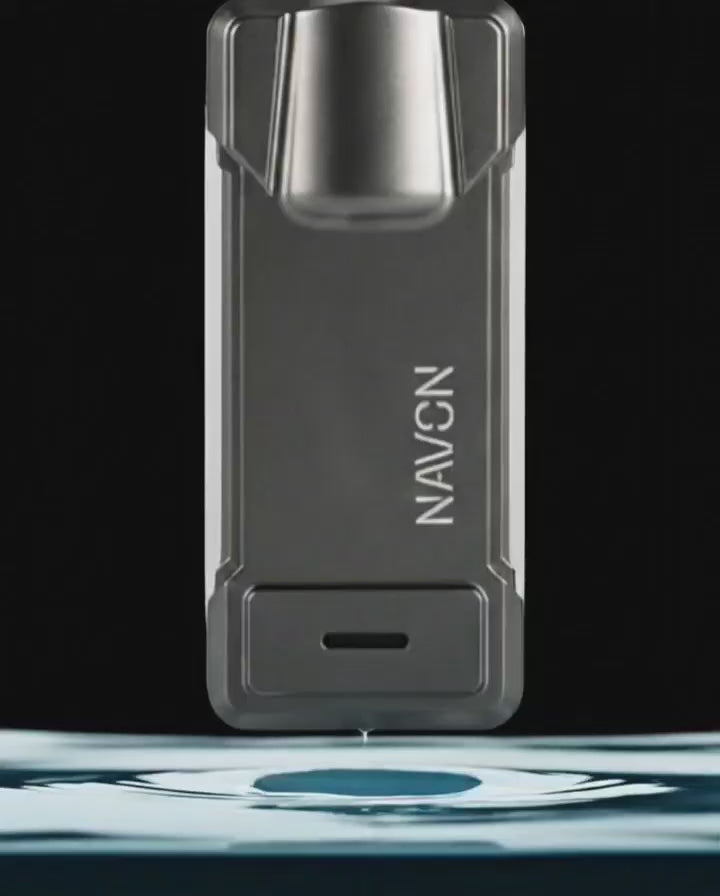

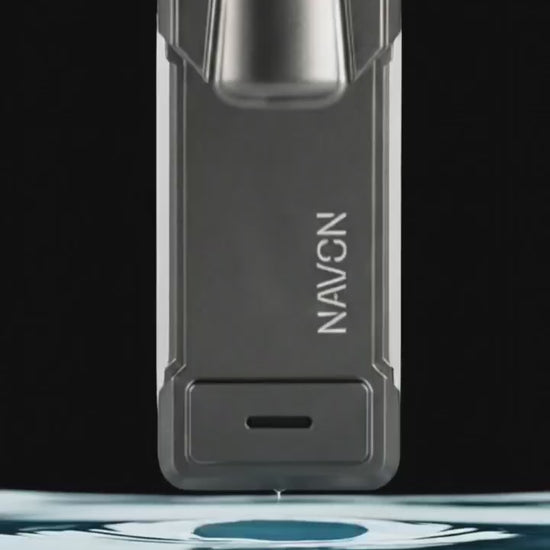

- IP67-rated—waterproof, dustproof, & built for harsh environments
- Cold start in 5 seconds—fast fix wherever you go
Technical Specifications
Receiver Specification:-
- SIGNAL TRACKING & SIGNAL RECEIVED
- GPS: L1, L1 C/A, L2, L2 C, L2 E, L2 P, L5
- GLONASS: L1, L2, L2 C/A, L2 P, L3
- BEIDOU: B1, B2, B2a, B2b, B3
- GALILEO: E1, E5a, E5b, E5ab, E6
- QZSS: L1c/a, L1c, L5, L2c, L6
- NAVIC: L5
- SBAS: WAAS, EGNOS, BDSBAS, MSAS, GAGAN, SDCM
- L-BAND
- NUMBER OF CHANNELS:- 1200+ Channels
- UPDATE RATE:- Up to 20Hz
- MEMORY:- Internal memory of 32 GB
- RTK & PPK BASELINE:- Up to 100KM
- PPP POSITIONING:- Any point on Earth
- IMU POSITIONING:- 9 DOF, Calibration Free (0° - 60° tilt compensation RTK Mode)+/- 5 mm +0.4mm/°

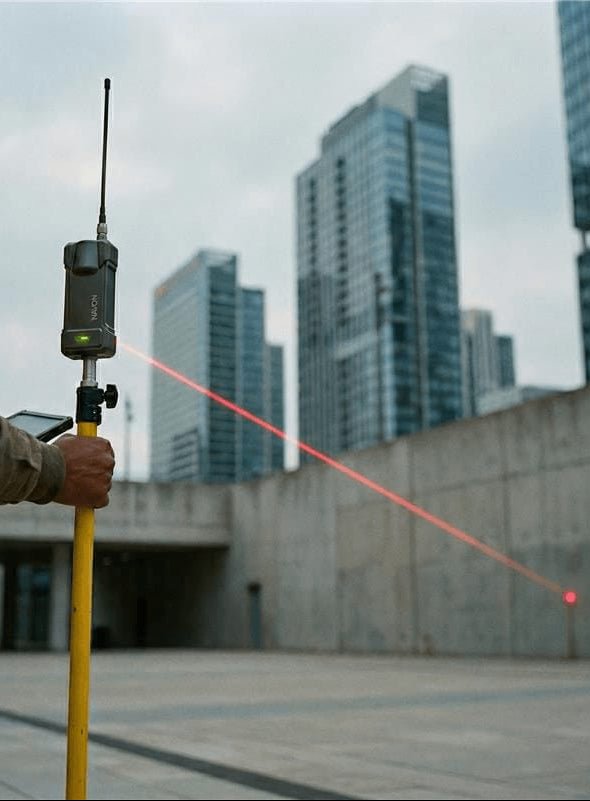

- LASER POSITIONING:- ≤ 4.5cm (20m range, ≤ 45° tilt in RTK mode)
Physical Specification
- DIMENSIONS:- 190 mm (H) X 40 mm (W) X 75 mm (L)
- WEIGHT:- 400 grams
- OPERATING TEMPERATURE:- -40°C to 65°C
- STORAGE TEMPERATURE:- -40°C to 85°C
- WATER/DUST PROOF:- IP68 rated (waterproof and dustproof)
- HUMIDITY:- 5% to 95% non-condensing
- TEST COMPLIANCE:- Dust: IEC-60529
- Water Intrusion: IEC-60529
- Vibration/Shock: MIL-STD-810 F
- Drop: QM-333 (2 m drop test)
- TESTING LAB:- NABL ACCREDITED
- LASER SAFETY:- CLASS II, according to IEC 60825-1
Data Format
- Correction Formats:- RTCM 2.X, RTCM 3.0, RTCM 3.1, RTCM 3.2, VRS, NTRIP
- Position Output:- NMEA 0183, LLH/XYZ
- Raw Data:- RINEX, NMEA
Communication
- BLUETOOTH:- Bluetooth 5.0 for wireless connectivity
- WI-FI:- Built-in Wi-Fi 2.4 GHz & 5 GHz, 802.11 b/g/n for network communication & data transfer
- NETWORK COMMUNICATION:- Internal 4G TDD-LTE/ FDD-LTE/ WCDMA/ GPRS/ GSM (900MHz & 1800 MHz), WCDMA 2100MHZ/900MHZ, LTE BAND 1,3,7,8,20 (via Certified Android Controller)

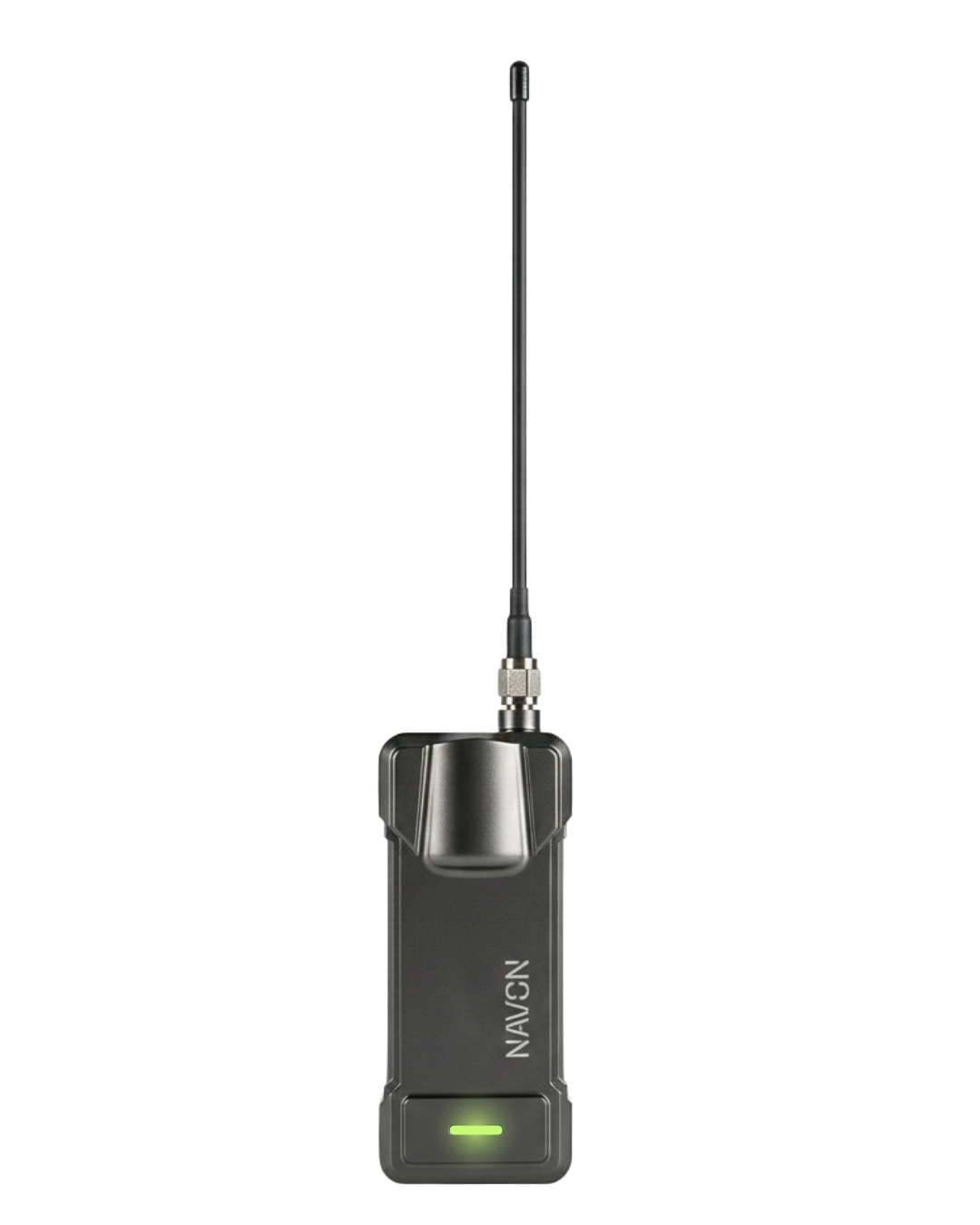

- INTEGRATED UHF RADIO:- 2 Watt
- RADIO RANGE:- Urban: 3-5 km *, Rural (Open Area): > 7km *, 410-462 MHz
- TYPE C:- USB Type C port for charging & data transfer
- NMEA OUTPUT:- NMEA-0183 output for compatibility with external devices over Bluetooth
- OPERATING SYSTEM:- free RTOS
- STARTUP TIME:- 5 SECONDS
Power Supply
- RECHARGEABLE BATTERY:- Lithium-ion battery, 10,000 mAh (included)
- OPERATING PERIOD
- Rover Mode - 24 hours
- Base Mode - 15 hours
- CHARGING TIME:- LESS THAN 4 hrs
Positioning Performance
- HIGH PRECISION STATIC (PHASE) LONG OBSERVATION
-
- 3 mm + 0.1 ppm (horizontal)
- 3.5 mm + 0.4 ppm (vertical)
- FAST STATIC/PPK
-
- 3 mm + 0.5 ppm (horizontal)
- 5 mm + 0.5 ppm (vertical)
- REAL TIME KINEMATIC (RTK) TILT
-
- 6 mm + 0.5 ppm (horizontal)
- 10 mm + 1 ppm (vertical)
- RTK + 5mm + 0.4mm/° tilt (up to 60°) RMS
- RTK-NETWORK/CORS
-
- 6 mm + 0.5 ppm (horizontal)
- 10 mm + 1 ppm (vertical)
- PPP LASER RTK
-
- 4 cm + 1ppm or better (Horizontal + Vertical)
- ≤ 4.5cm (20m range, ≤ 45° tilt in RTK mode)
- DGPS ACCURACY
-
- 25 cm + 1 ppm RMS (horizontal)
- 40 cm + 1 ppm RMS (vertical)
- SBAS: typically <2m 3DRMS
- L BAND ACCURACY
-
- 2 cm (horizontal)
- 3 cm (vertical)
