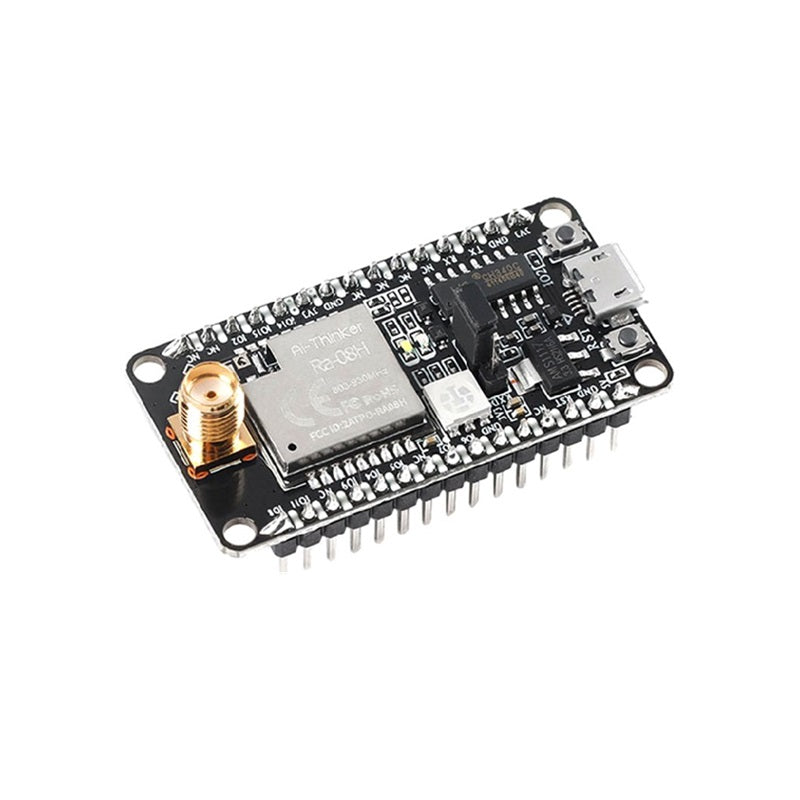

RA-08H-KIT – LoRaWAN RF Module 915MHz ASR6601 Wireless Transceiver Controller MCU Development Board-Ai-Thinker WITHOUT ANTENNA

1. Manufacturer: Ai-Thinker
2. Module Number: Ra-08H-Kit
3. Antenna Form: External SMA
4. Spectrum Range: 803-930MHz
5. Input Voltage Range: 5VDC
6. Input Current: 500mA

7. Antenna Form: External SMA

8. Spectrum Range: 803-930MHz

9. Input Voltage Range: 5VDC

10. Input Current: 500mA

11. Support Interface: UART/GPIO/ADC/PWM/12C/12S/SPI/DAC

12. Number of IO Ports: IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15

13. Serial Port Rate: Low rate serial port, default 9600 bps

14. Transmission Protocol: LoRaWAN, LinkWAN

15. SPI Flash: 128KB

16. Package: DIP-30

17. Operating Temperature:-40°C ~ 125°C

18. Work Humidity: 5%~95%RH

Features:

• The ASR6601 chip is a general-purpose LPWAN wireless communication SoC that integrates an RF transceiver, a modem, and a 32-bit RISCMCU. The MCU adopts an ARM core, and the operating frequency can reach 48MHz.
• The Ra-08H module supports LoRa modulation and traditional (G)FSK modulation under the LPWAN use case; meanwhile, the transmitter also supports BPSK modulation and (G)MSK modulation, and the receiver supports (G)MSK modulation.
• The Ra-08H module on the development board provides ultra-long range and ultra-low power communication for LPWAN applications, which can be widely used in smart meters, supply chain and logistics, home building automation, security systems, remote irrigation systems, etc.
