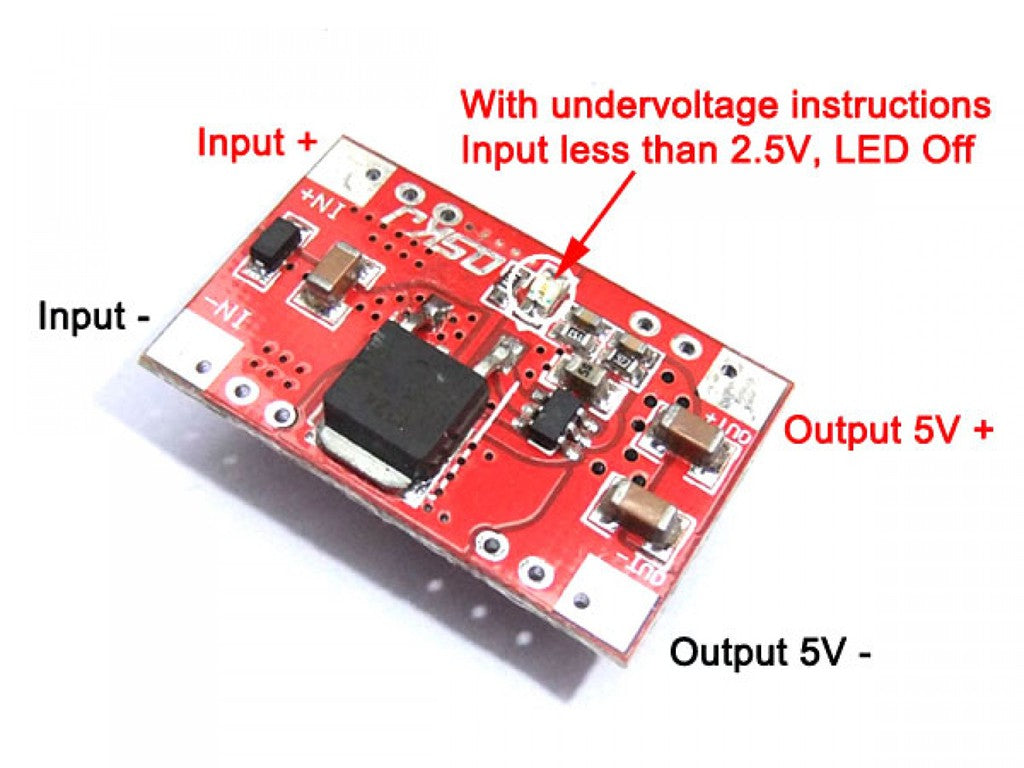

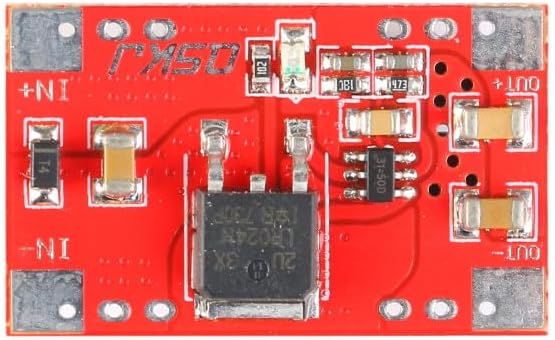

92% efficiency DC DC boost module 5V 3A instant 5A ultra small volume boost circuit board

Feature :

• Module Prties :non-isolated step-up module (BOOST)
• Input voltage :DC 35V ( if Input voltage less than 3V, it can NOT reach rated output)
• Output Voltage :DC 5.0V
• Output current :rated 3A (input voltage greater than 3V), short 5A (less than 10 seconds)
• Conversion efficiency :92% (the higher the input voltage, the higher the efficiency)
• Switching frequency :500KHz

Output ripple:

• Input 4.2V Output 5V 3A 40mV (MAX)
• Input 3.7V Output 5V 3A 50mV (MAX)
• 20M-bandwidth
• Operating Temperature :Industrial (-40°c to 85°c) (Ambient temperature 85°c less than 1A output current)
• Full load temperature rise :40°c
• Quiescent Current :200uA
• Voltage regulation :± 0.5%
• Dynamic response speed :5% 200uS
• Short circuit protection :None (Please Install fuses and protection circuits at Input port.)
• Input Reverse Polarity Protection :None (Please Series diode at the input port.)
• Connection :Welding
