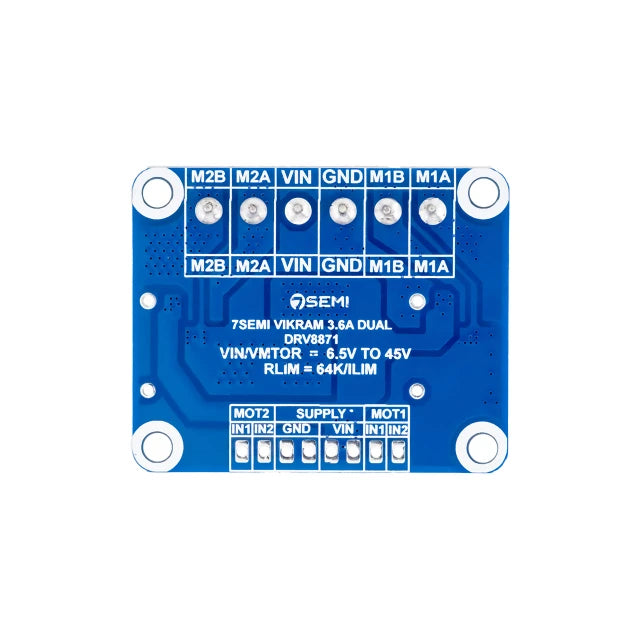

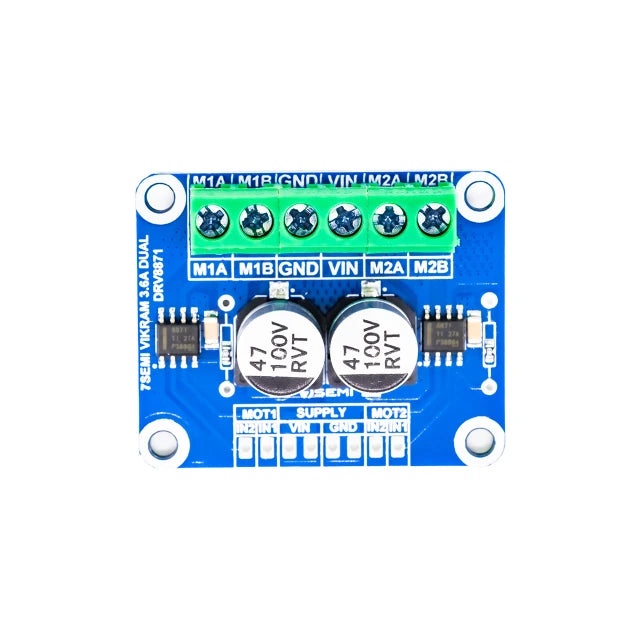

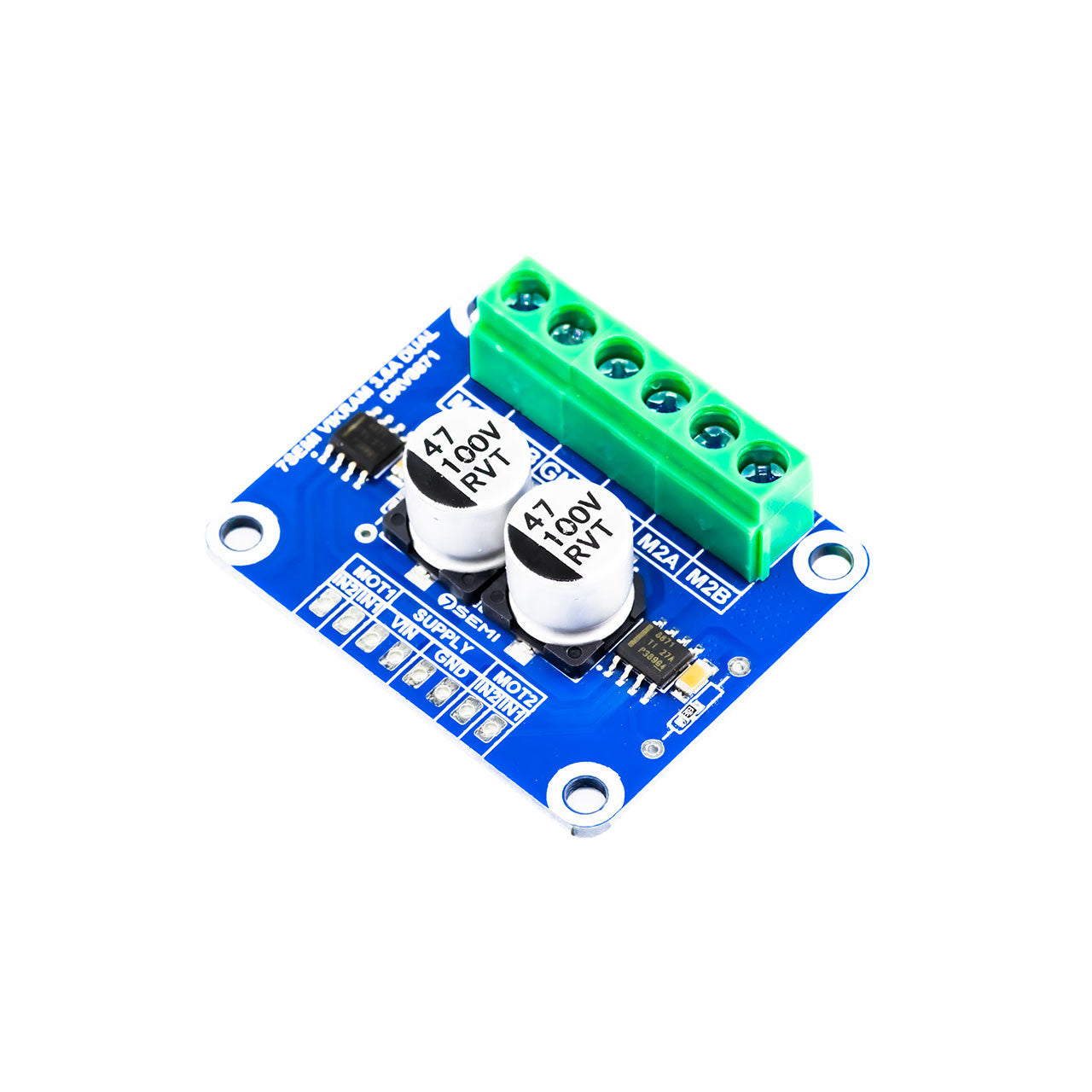

The 7Semi Vikram-453R6D is a reliable and easy-to-use motor driver that can control two DC motors at the same time. It works with a wide input voltage from 6.5V to 45V, making it suitable for many types of motors and power setups. Each channel can provide up to 3.6A current, so it can handle medium to high power motors easily. The board uses solid-state design, so it is fast, reliable, and does not wear out like relay-based systems. It supports different control methods, giving flexibility in how you run your motors. This module is a good choice for robotics, automation, and general motor control projects where stable and smooth operation is needed.

Features:

• Dual Motor Control: Can control two DC motors independently.

• Wide Voltage Range: Works from 6.5V to 45V DC input.

• High Current Support: Up to 3.6A continuous per motor channel.

• 3V–5V Signal Compatible: Easy to control using standard logic signals.

• Fast Solid-State Operation: No mechanical parts, faster response and longer life.

• Multiple Control Modes: Supports different PWM control methods for flexibility.

• Regenerative Braking: Helps in better motor control and efficiency.

• Built-in Protection: Includes over-voltage, under-voltage, and overheat protection.

• Status Indicator: Onboard LED shows working condition.
