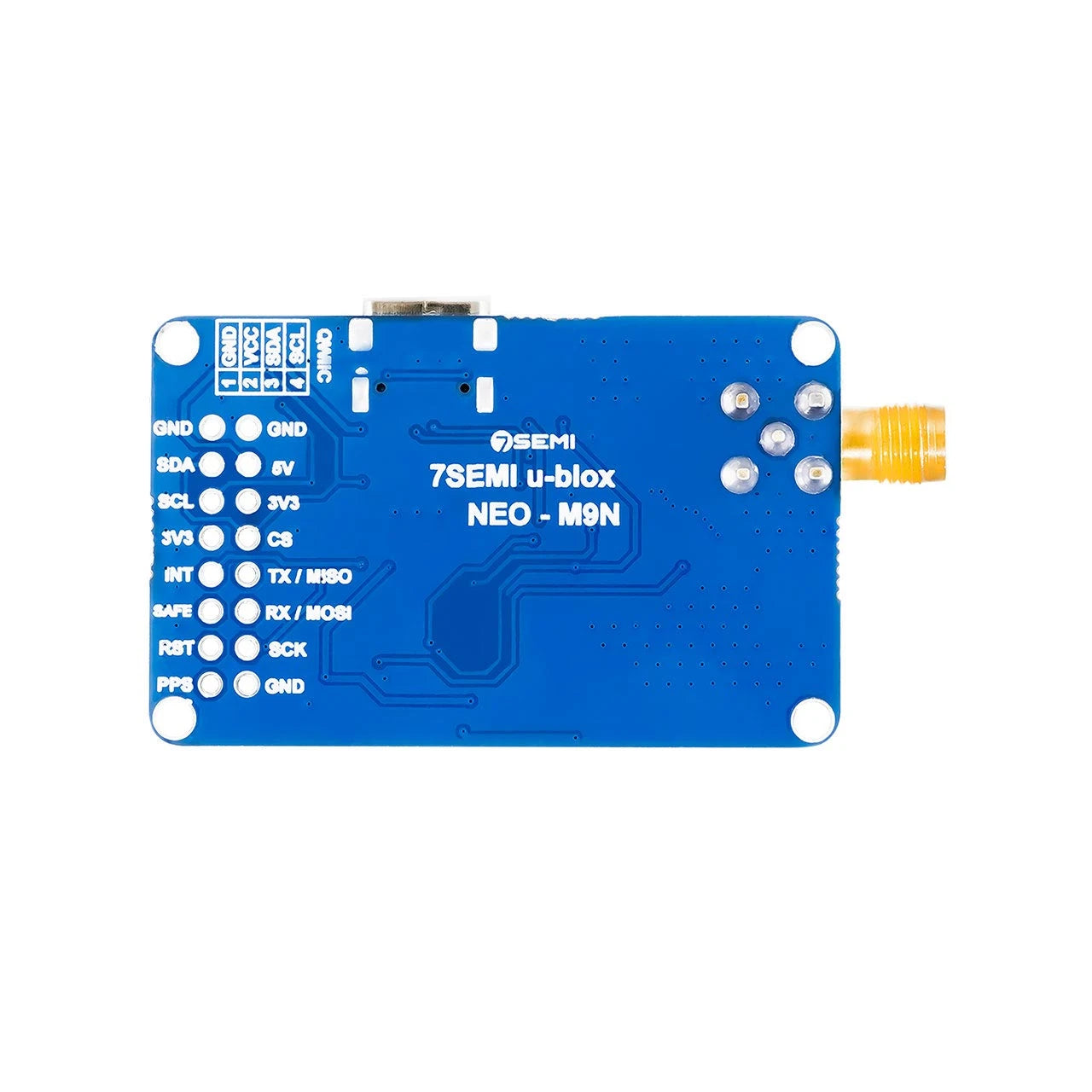

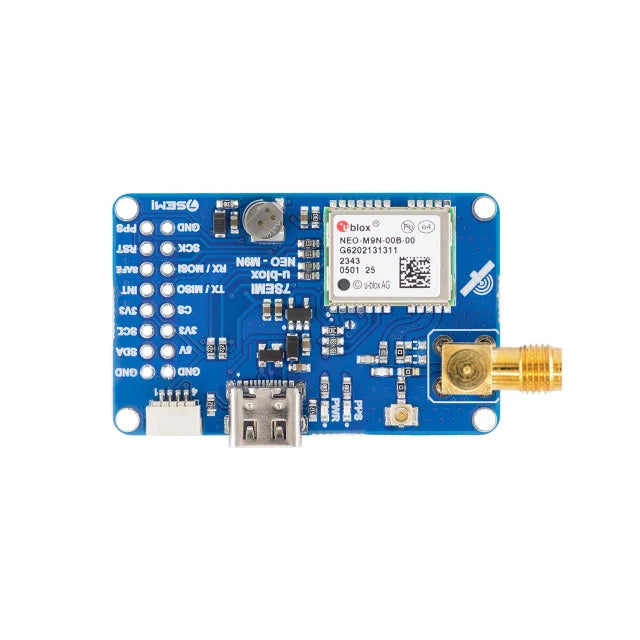

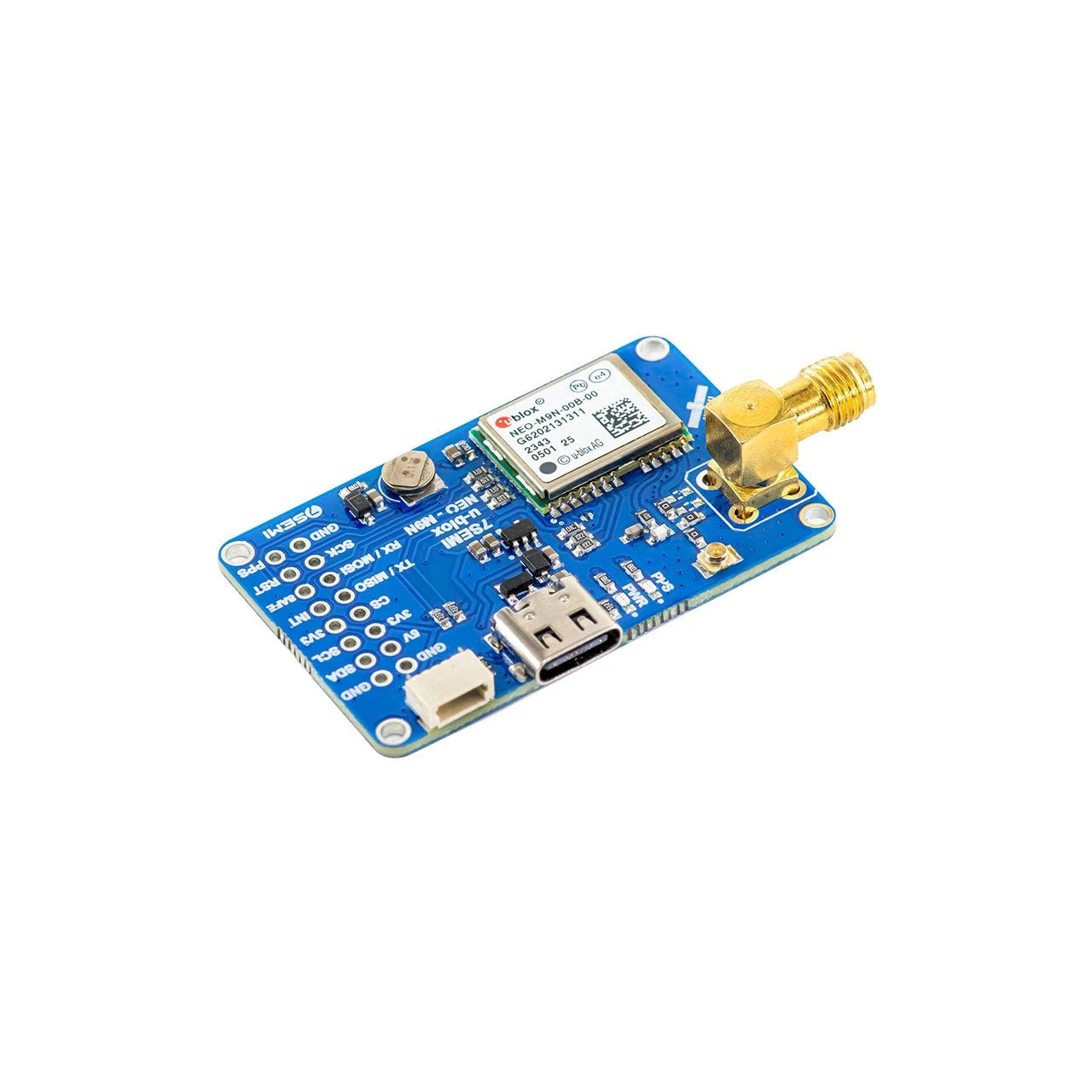

The 7Semi NEO-M9N GPS Breakout is a high-precision GNSS module supporting concurrent reception of up to four GNSS systems: GPS, GLONASS, Galileo, and BeiDou. It offers rapid position updates up to 25 Hz and features a 3.3V power supply with I2C and UART interfaces for seamless integration. Its compact design and low power consumption make it ideal for applications requiring accurate positioning, such as navigation systems and drones.

Specifications:

• MODULE: NEO M9N

• CONNECTEIVITY: USB TYPE C

• OPERATING BAND: GNSS BAND L1/B1/E1

• GNSS SUPPORT: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS

• INTERFACE: UART / I2C

• OPERATING TEMPRATURE: -40°C to +85°C

• DIMENSION IN MM: L=56mm W=31mm H=13mm

• High-Precision GNSS Receiver: Supports GPS, GLONASS, Galileo, and BeiDou with ~1.5 meter accuracy, ensuring optimal performance in diverse conditions.
• Rapid Position Fixes: Onboard rechargeable battery enables a hot start within just 2 seconds, significantly reducing initialization time.
• Advanced Security: Detects and reports jamming and spoofing events, providing enhanced protection for critical applications.
• Versatile Connectivity: Supports NMEA, UBX, and RTCM protocols over UART or I2C interfaces, offering flexibility in integration.
• Software Configurable: Easily customize functions like geofencing, spoofing detection, and more using the Arduino Library or u-center software.
• Wide Compatibility: Ideal for use in drones, robotics, and other high-precision positioning applications requiring reliable GNSS data.
