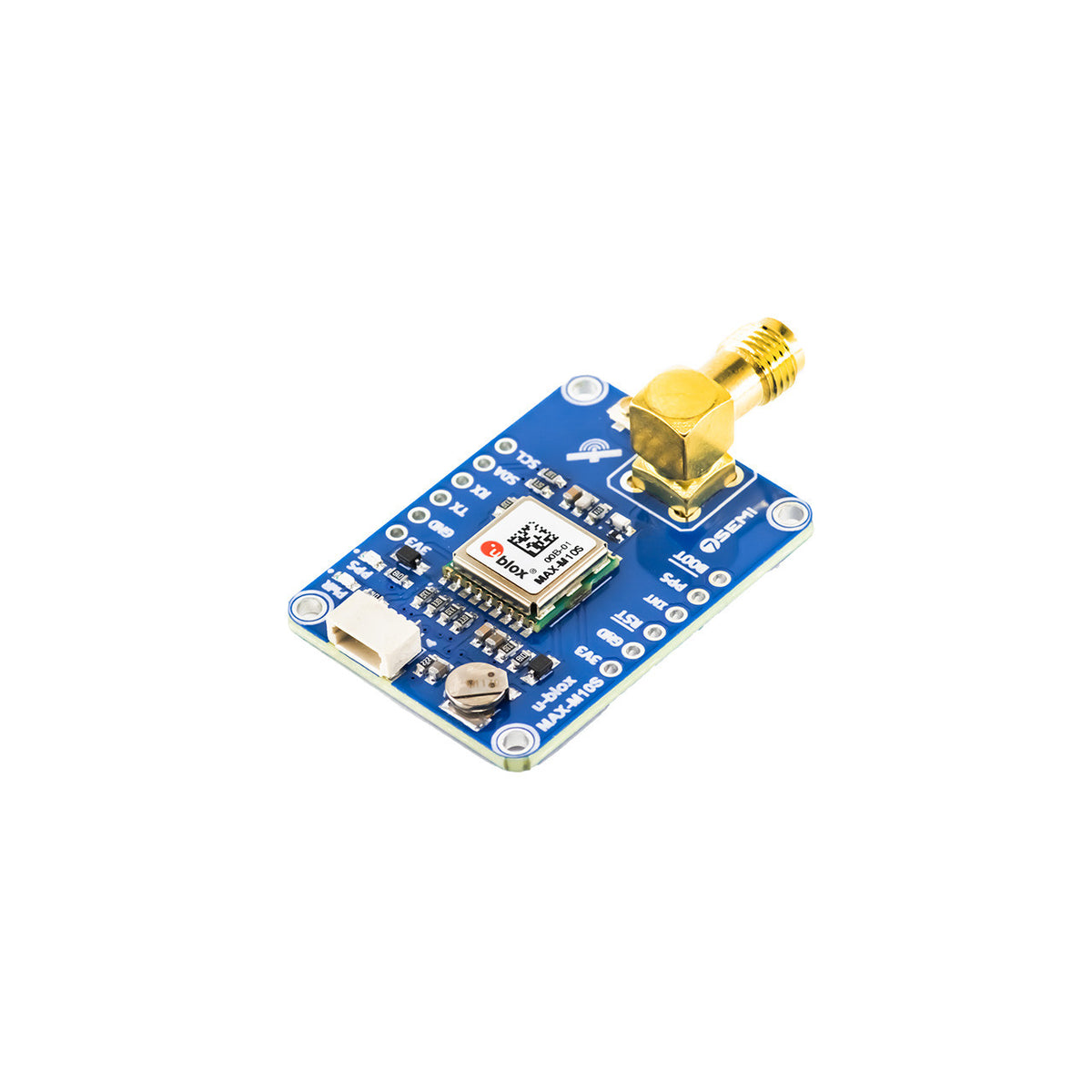

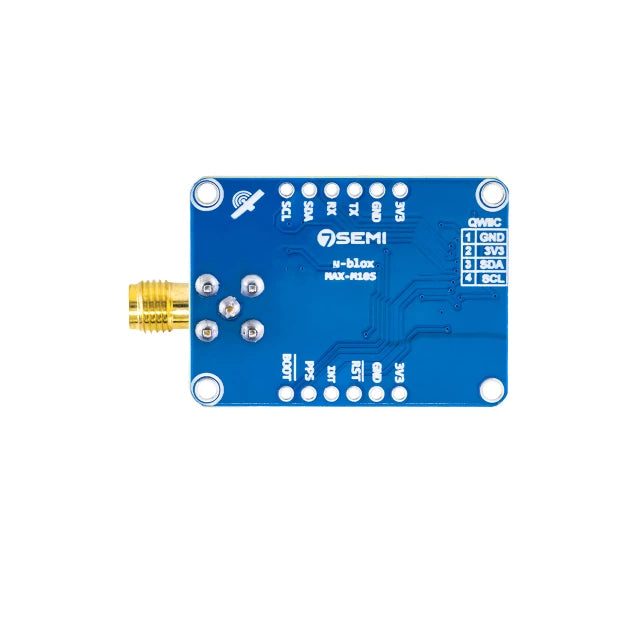

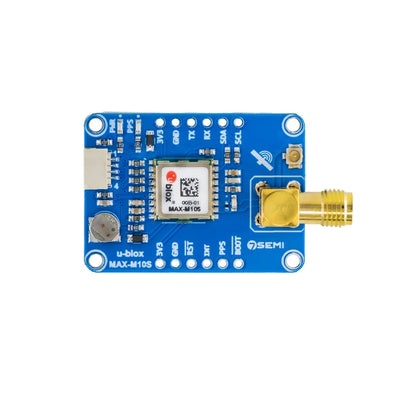

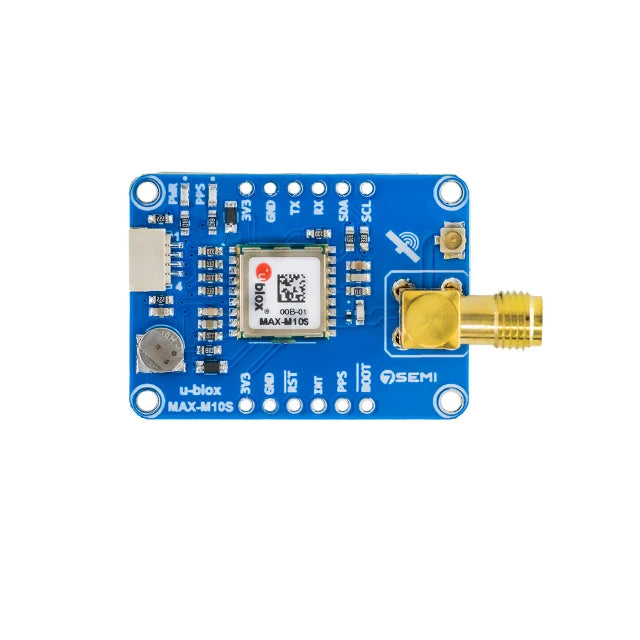

7Semi MAX-M10S GNSS Receiver Breakout

• Category: GNSS Module

• Communication interface: UART & I2C

• Operational voltage: 1.8V to 3.6V (Typ 3.3V)

• Connectors: Qwiic / STEMMA QT compatible connector

• Operational temperature: -40C to 80C

• GNSS Constellations: GPS / QZSS, Galileo, GLONASS, BeiDou

• GNSS Frequency Band: L1

• RTK Support: Not supported

• Antenna Connector: U.FL / I-PEX RF Connectors & SMA connector

• Board Dimensions: 44mm x 26mm x 12.93mm

Features:

• Multi-GNSS Support: Works with GPS, Galileo, GLONASS, and BeiDou for better coverage.
• High Accuracy Positioning: Provides around 1.5m accuracy for reliable tracking.
• Fast Start Time: Quick position lock for faster operation.
• Low Power Consumption: Suitable for battery-powered applications.
• External Antenna Support: SMA connector for better signal reception.
• Multiple Communication Options: Supports UART and I²C for easy connection.
• Compact Design: Small board size for easy integration into projects.
• Stable Performance: Works well in different environments including outdoor and urban areas.

The 7Semi MAX-M10S GNSS Board is a compact and easy-to-use positioning module designed for accurate location tracking. It supports multiple satellite systems like GPS, Galileo, GLONASS, and BeiDou, giving reliable performance and better coverage. The board provides high accuracy positioning with low power consumption, making it suitable for battery-powered projects. It includes an SMA connector for external antenna connection, helping improve signal strength and performance. With simple communication options and a clean breakout design, this module is ideal for tracking systems, drones, robotics, timing applications, and embedded projects where accurate location data is needed.
